Toyota KR 460 Manual de usuario

RIBBER

INSTRUCTION MANUAL

TOYOTA KR 460

All manuals and user guides at all-guides.com

all-guides.com

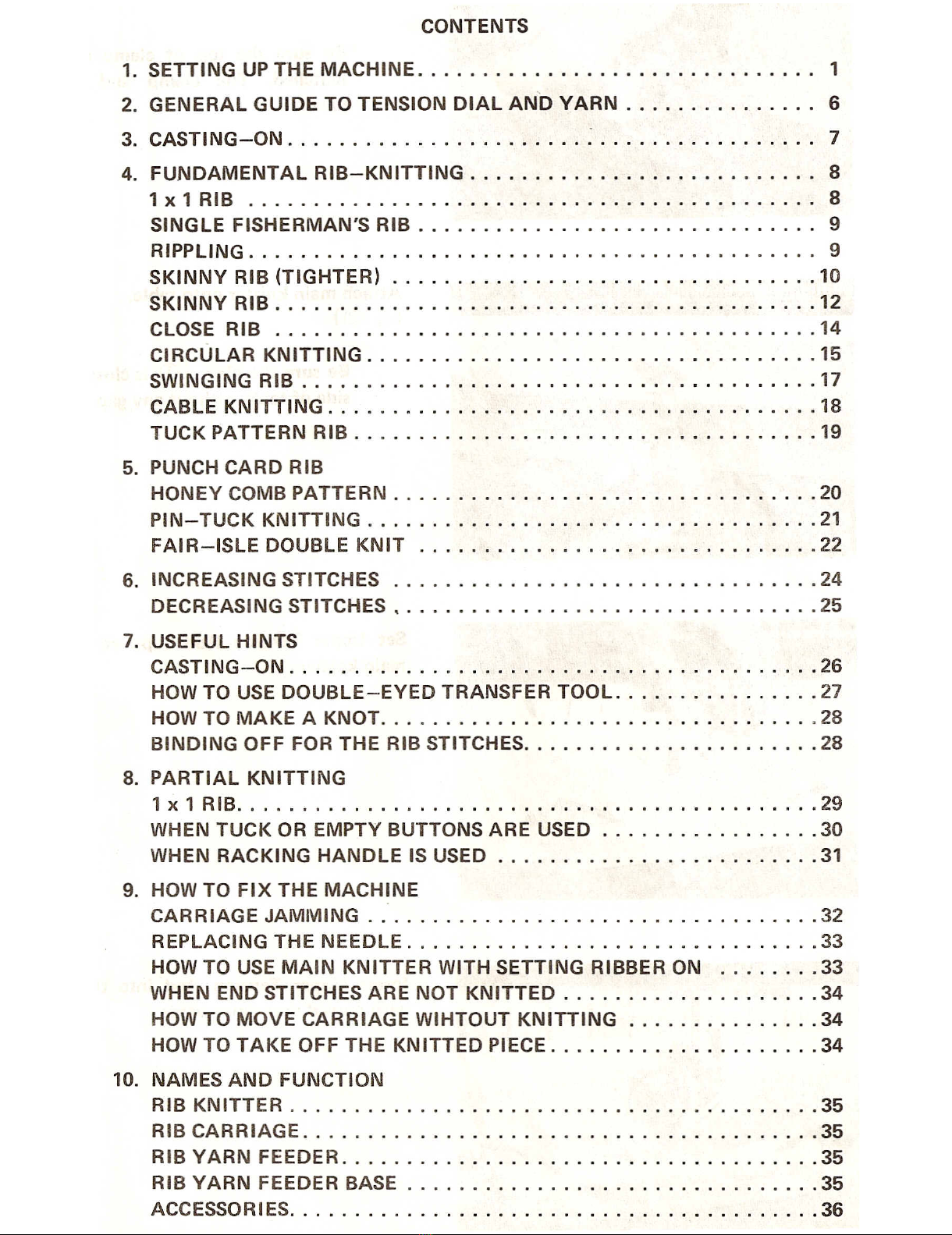

CONTENTS

1.SETTING UP THE MACHINE 1

2. GENERAL GUIDE TO TENSION DIAL AND YARN 6

3. CASTING-ON : 7

4. FUNDAMENTAL RIB-KNITTING 8

1 x 1 RIB 8

SINGLE FISHERMAN'S RIB 9

RIPPLING 9

SKINNY RIB (TIGHTER) 10

SKINNY RIB 12

CLOSE RIB 14

CIRCULAR KNITTING 15

SWINGING RIB 17

CABLE KNITTING 18

TUCK PATTERN RIB 19

5. PUNCH CARD RIB

HONEY COMB PATTERN 20

PIN-TUCK KNITTING 21

FAIR-ISLE DOUBLE KNIT 22

6.INCREASING STITCHES 24

DECREASING STITCHES •................................25

7.USEFUL HINTS

CASTING-ON 26

HOW TO USE DOUBLE-EYED TRANSFER TOOL.27

HOW TO MAKE A KNOT 28

BINDING OFF FOR THE RIB STITCHES 28

8. PARTIAL KNITTING

1 RIB 29

WHEN TUCK OR EMPTY BUTTONS ARE USED 30

WHEN RACKING HANDLE IS USED 31

9. HOW TO FIX THE MACHINE

CARRIAGE JAMMING 32

REPLACING THE NEEDLE 33

HOW TO USE MAIN KNITTER WITH SETTING RIBBER ON 33

WHEN END STITCHES ARE NOT KNITTED 34

HOW TO MOVE CARRIAGE WIHTOUT KNITTING 34

HOWTOTAKEOFFTHE KNITTED PIECE 34

10.NAMES AND FUNCTION

RIB KNITTER 35

RIB CARRIAGE 35

RIB YARN FEEDER 35

RIB YARN FEEDER BASE 35

ACCESSORIES 36

All manuals and user guides at all-guides.com

Screw the clamps to the bottom of main knitter.

(CD~)

*Be surethe top of clamp andslotto be

matched. The clamp andslot must be

parallel.

Attach main knitter onto table.

(CD~)

Be sure the clamp

is closelyfittedtothe

side of table without anygap.

SetUpperTension Rod Support at the back of

main knitter.

Insert Upper Tension Rodinto the rodsupport

withcurvedpart downwards.

All manuals and user guides at all-guides.com

. • Ml"f "

•• ,""a , "'_ •• ,.,. •••..•••

Install right HangingPlateontoYarn End Holder,

then the leftonenext.

A slight gap between the Stopper

and thefront of the main knitter

will cause improper gauge in knit-

ting or dropping stitch.

Fix left Hanging Plate inthesame way astheright

one .

Install left Set Screw leaving it loose temporally

foradjustment.

Set Half Pitch Lever to "P" position, and Racking

Indicatorat"5".

Besurethecentersinker-hooks of both

knitter are parallel.

All manuals and user guides at all-guides.com

the needles on main knitterandribberdo not

face exactly opposite, loosen SetScrews and fix

them by sliding ribber sideways.

Besure the sinker-hooks on both

knitters facing exactly opposite.

Tighten left Set Screw so that Stopper isclosely

fitted to the front of main knitter without any

gap.

Pull

rightFixingPlatedown onto tableand fix it

by clamp of main knitter as shown in Fig.

(BothFixing Plates are folded with spring at

thebottom of ribber)

Do not force Fixing Plate in the

direction shown by arrow

(<===»

in Fig.

All manuals and user guides at all-guides.com

Fix the handle to main carriage, and place carriage

correctly on the needle bed so that it slides

smoothly.

*Be sure Front Holder is correctly mounted

onto the needle bed.

Fix the handle to ribber carriage, and set carriage

in the following way.

1.Mountthe bottom of ribber carriage onto

the rail, leaning it towardsyou.

2. Slide carriage in side way,ensuring it won't

hit StopPin. (2)

3.Fix carriage by pushing up both Front

Holders. ®

Do not force carriage against Stop

Pin,which prevents carriage from

dropping.

Removeboth Fabric Presser Knobs ofmain

carriage.

SetRib Yarn FeederBase so that the arrow marks

face to main knitter.

*Make sure bothholes of Rib Yarn Feeder

Base arecorrectly fitted to pins ofmain

carriage.

All manuals and user guides at all-guides.com

all-guides.com

Slide Metal Pins to the center.Mount Rib Yarn

Feeder between both Carriage Guides and place it

onto Rib Yarn Feeder Base.

Ensure both cut-outs

of Rib Yarn Feeder

snugly fit to small pegs on the front of main

carriage.

Tighten both Fabric Presser Knobs.

Move both Metal Pins towards the direction shown

by arrows (

CD(2))

for final fixing.

As for threading, refer to Instruction Book of

Main Knitter, Page 11.

All manuals and user guides at all-guides.com

Set Upper Tension Dial between

-4.~

and "_"

For smooth knitting, use paraffin

wax.

It is recommended to hang small

weights at both sides to prevent

the end stitches from coming up

(Seepage 34).

1 Main Tension Dial

ex. - .... -------

RibTension Dial

Kinds of Yarns

(In livesize)

Fine

Medium Thick Thick CrepeCrepe

Names medium Boucle MohairTweed

3ply 4ply 2ply 3ply 5(4)ply 6ply 8ply

Casting-on

0 0 000

000

(1stthreading)

0 0 00 0

000

Casting 2nd

22 2 36832 3

1x1 Rib -on row

0000 0

000

(3rows 3rd

of and 1222368323

knitting) 4th 1 2 22368323

rows

Ribbing 12223 6 832 3

1222368 3 23

Casting-on

..Q..

.l..l..l.

.l..l. .l.

(1stthreading)

211 2 33112

Casting 2nd 244 4

1..

Ji 2-

Skinny Rib -on row

21123 3 1 12

(2x2 Rib) (3 rows 3rd

(J.:ighterRib) of and 244457854

knitting) 4th 244 4 57 8 545

rows

Ribbing

.§.

1..

.§. .§.

2 4 4 4 5 7-8545

Casting-on

.l.

1 1

.1.

11st threading)

11111

2nd 244

.i.

.§.

Close Rib Casting row

-on "3rd

and 24445

.§.

4th 244455

rows

2 4 445

Ribbing 2 4 4 4 55

Circular Knitting 4

..§.

..§. ..§.

.§.

1..

l .

.§..§.

.§.

4.2 5.2 5.2 5.2 6.27.2 8.2 6.25.2 6.2

-6-

All manuals and user guides at all-guides.com

L~t4.5.6~~ R

TTT

.LLL

~~~~~~~ j~~~~~~

WRONG SETTING

~JJJ]

JJ]L

1. Set Racking Indicator at "5"and Half Pitch

Leverat "P".

To prevent theneedles from being

damaged,be sure not to operate

Racking Handle with leavingthe

needles on both beds at selected

position.

2. Setalternate needles on both beds with end

needles on main bed.

Whenmore than 180 needles are

used, set extension rails.

All buttons and levers are in neutral.(Set

tension dials at "0" for 4ply in use, see page

6.)

Threading.

Holdthe end ofyarn by hand.

Move

them carriages

down.

6.Hang cast-on comb.Pullout the cast-on

comb wire. Push teeth between the beds,

through the stitches done at the verybegin-

ning

,place wire throughteeth ~,allow

the combto drop and hang on weights.

Fasten yarn end to Knitting Weight.

Hangweights on comb so as to

be balanced.

All manuals and user guides at all-guides.com

c===~>

<==="J

c===;>

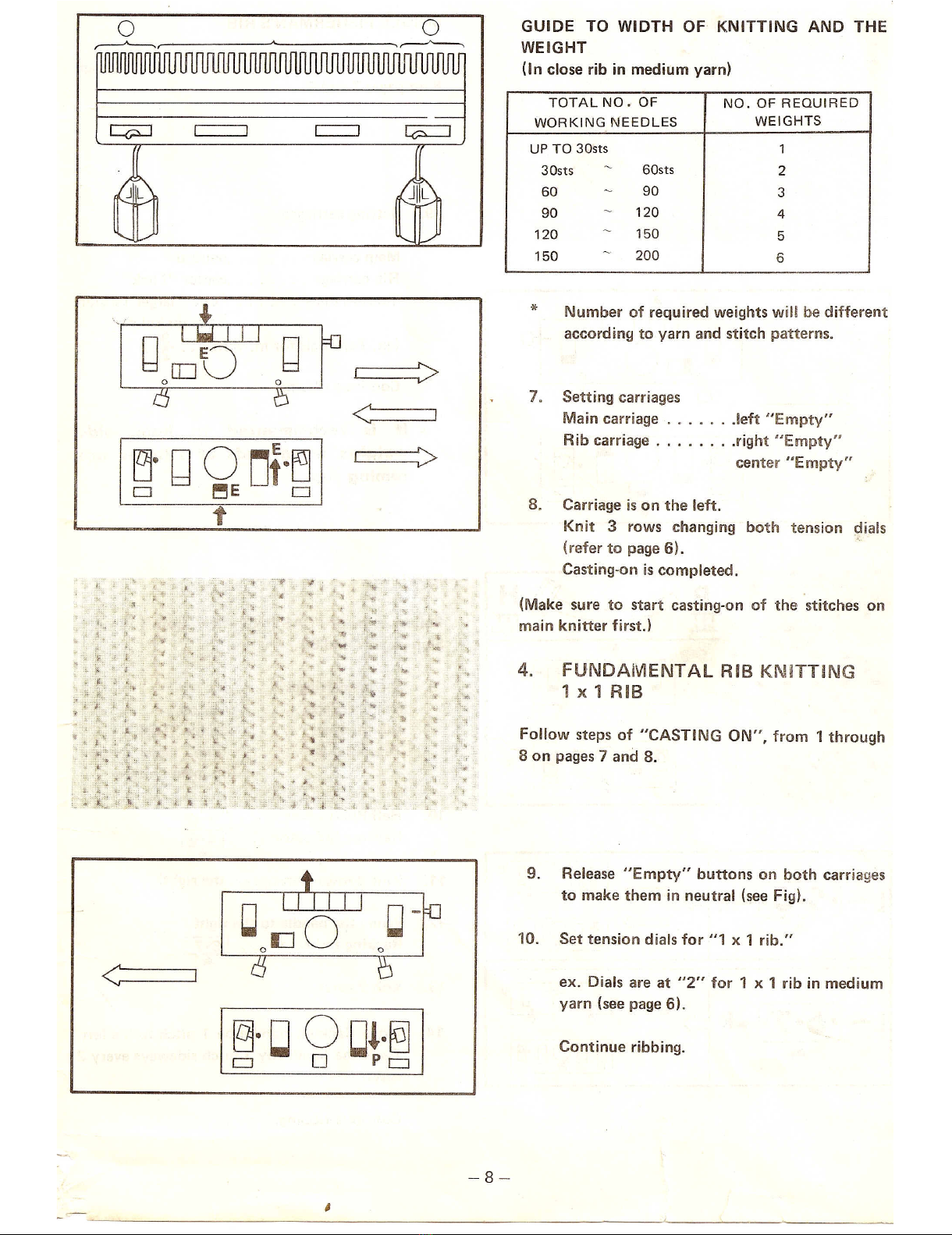

GUIDE TO WIDTH OF KNITTING AND THE

WEIGHT

(In close rib in medium yarn)

TOTAL NO.OF NO. OF REQUIRED

WORKING NEEDLES WEIGHTS

UP TO 30sts 1

30sts

60sts 2

90 3

120

1505

150-200 6

Number of required weights will be different

according to yarn and stitchpatterns.

Settingcarriages

Main carriage.left "Empty"

Rib carriage right "Empty"

center"Empty"

Carriage is on theleft.

Knit 3 rowschanging both tension ~ials

(refer to page 6).

Casting-onis completed.

(Make sure to start casting-on of the stitches on

mainknitterfirst.)

4.FUNDAMENTAL RIB KNiTTING

1x1RIB

Followstepsof "CASTINGON",from 1 through

8on pages 7 and 8.

9.Release"Empty"buttonsonbothcarriages

to make theminneutral(see Fig).

ex. Dials areat "2" for1 x 1 ribin medium

yarn (see page 6).
