Toyota Avensis RHD Manual de usuario

AUDIO

TOYOTA GENUINE AUDIO

NOTICE EXPLICATIVE DE L’INSTALLATION

Avensis

RHD

FÜR-FOR-POUR **T25*R

Binder Volume 4

Manual Ref.no A4RT25/J-0-0

All manuals and user guides at all-guides.com

all-guides.com

Avensis (T25) TOYOTA GENUINE AUDIO

Avensis (RHD) - 310-02

1. Application Chart ............................................................................................................................................................................ 4

2. System Layout .............................................................................................................................................................................. 5

3. In-dash 6 CD-Changer Installation ................................................................................................................................................. 6

4. Hide-away 6 CD-changer installation.............................................................................................................................................. 15

1. TABLE OF CONTENTS

All manuals and user guides at all-guides.com

+ ADD-ON UNIT

(

)

Hide Awa

CD-Chan

er TM0461

(

08601-00911

)

Navi

ation S

tem TNS200

(

08545-00802

)

(

ONLY PORT FIT

)

1Radio/Cassette/CD (Lo) (only) MOP-unit or -

W53900 (08600-058 1) -

2Radio/Cassette/CD (Hi) (only) MOP-unit or -

W53901 (08600-058 ) -

3Radio/Cassette/CD (Lo) + Hide Away CD-Changer MOP-unit or ( ) Wire (08695-00370)

W53900 (08600-058 1) ( ) Wire (08695-00370)

4Radio/Cassette/CD (Lo) + In-Dash CD-Changer MOP-unit or (1) Wire (08695-00370) + F/K (08695-05801)

W53900 (08600-058 1) (1) Wire (08695-00370) + F/K (08695-05801)

5Radio/Cassette/CD (Lo) + Navigation (TBT) MOP-unit or (3) Wire (08695-00370) + F/K (PZ4 5-T0330-60)

W53900 (08600-058 1) (3) Wire (08695-00370) + F/K (PZ4 5-T0330-60)

6Radio/Cassette/CD (Lo) + Hide Away CD-Changer + Navigation (TBT) MOP-unit or ( ) (3) Wire (08695-00370) + F/K (PZ4 5-T0330-60)

W53900 (08600-058 1) ( ) (3) Wire (08695-00370) + F/K (PZ4 5-T0330-60)

7Radio/Cassette/CD (Lo) + In-Dash CD-Changer + Navigation (TBT) MOP-Unit or (1) (3) Wire (08695-00370) + F/K (08695-05801) + F/K (PZ4 5-T0330-60)

W53900 (08600-058 1) (1) (3) Wire (08695-00370) + F/K (08695-05801) + F/K (PZ4 5-T0330-60)

8Radio/Cassette/CD (Hi) + Hide Away CD-Changer MOP-unit or ( ) Wire (08695-00370)

W53901 (08600-058 ) ( ) Wire (08695-00370)

9Radio/Cassette/CD (Hi) + In-Dash CD-Changer MOP-Unit or (1) Wire (08695-00370) + F/K (08695-05801)

W53901 (08600-058 ) (1) Wire (08695-00370) + F/K (08695-05801)

10 Radio/Cassette/CD (Hi) + Navigation (TBT) MOP-unit or (3) Wire (08695-00370) + F/K (PZ4 5-T0330-60)

W53901 (08600-058 ) (3) Wire (08695-00370) + F/K (PZ4 5-T0330-60)

11 Radio/Cassette/CD (Hi) + Hide Away CD-Changer + Navigation (TBT) MOP-Unit or ( ) (3) Wire (08695-00370) + F/K (PZ4 5-T0330-60)

W53901

(

08600-058

)

(

)

(

)

Wire

(

08695-00370

)

+ F/K

(

PZ4 5-T0330-60

)

12 Radio/Cassette/CD (Hi) + In-Dash CD-Changer + Navigation (TBT) MOP-Unit or (1) (3) Wire (08695-00370) + F/K (08695-05801) + F/K (PZ4 5-T0330-60)

W53901 (08600-058 ) (1) (3) Wire (08695-00370) + F/K (08695-05801) + F/K (PZ4 5-T0330-60)

Unique Design Audio

HEAD UNITCOMBINATION REQUIRED ADDITIONAL PARTS

In-Da h CD-Chan

er TM0561

(

08601-00907

)

AUDIO & NAVIGATION APPLICATION CHART

TMME-CA Division Dev. Dept. II - Decembe 12th, 2002 Avensis **T25*R (RHD)

p. 1/1

MOP: Factory installed option

(1): Glove box application (2): Located under the RH-seat (3): Located under the LH-seat. For required additional parts see the NAVI installation instructions.

All manuals and user guides at all-guides.com

Avensis (T25) TOYOTA GENUINE AUDIO

Avensis (RHD) - 510-02

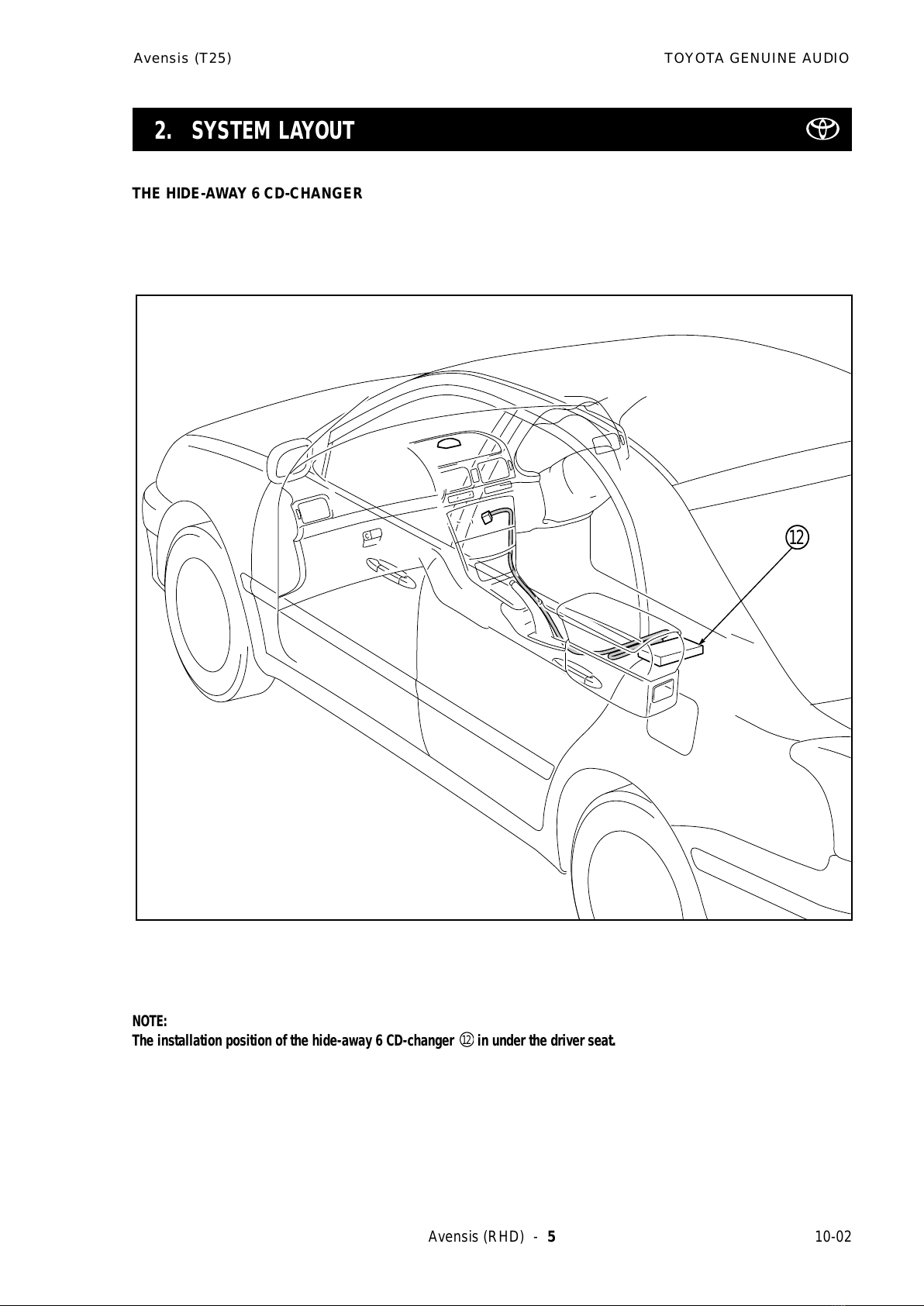

NOTE:

The installation position of the hide-away 6 CD-changer in under the driver seat.

THE HIDE-AWAY 6 CD-CHANGER

2. SYSTEM LAYOUT

All manuals and user guides at all-guides.com

Avensis (T25) TOYOTA GENUINE AUDIO

Avensis (RHD) - 6

10-02

Fig. 1

Fig. 2

1. Remove the shift knob and shift

cover using a nylon pry tool.

: Clip (4x)

: Nail (4x)

3. Attach the protection tape .

Fig. 3

2. Remove the panel .

: Clip (5x)

3. IN-DASH 6 CD-CHANGER INSTALLATION

All manuals and user guides at all-guides.com

Avensis (T25) TOYOTA GENUINE AUDIO

Avensis (RHD) - 710-02

4. Remove the audio unit .

: Bolt (4x)

101

Fig. 4

a) Remove the switch .

b) Remove the bulb .

c) Remove the connector by moving it

upward.

Fig. 5

Fig. 6

5. Remove the glove compartment .

a) Remove the hooks .

: Hook (2x)

b) Remove the stoppers by pulling

them inside.

104

101

All manuals and user guides at all-guides.com

all-guides.com

Avensis (T25) TOYOTA GENUINE AUDIO

Avensis (RHD) - 8

10-02

Fig. 7

Fig. 8

Approximately 1

7. Cut the tape into 10 equal pieces.

8. Relocate the vehicle connector

position from location “A” to location“B”

and attach the connector to the har-

ness using tape and a wire tie .

: Wire tie (1x)

“A”

“B”

Harness

All manuals and user guides at all-guides.com

Avensis (T25) TOYOTA GENUINE AUDIO

Avensis (RHD) - 910-02

Fig. 9

9. Route and attach the changer wire

using wire ties .

: Wire tie (3x)

Fig. 10

10. Route the changer wire using wire

ties and wrap the connectors using

tape .

: Tape 2x (3x)

: Wire tie (2x)

Connect

To audio

Vehicle harness

To audio

AVC-LAN wire harness

Wire of changer unit

WITH POP UP DISPLAY

Do not connect

WITHOUT POP UP DISPLAY

Do not connect

All manuals and user guides at all-guides.com

Avensis (T25) TOYOTA GENUINE AUDIO

Avensis (RHD) - 10

10-02

11. Cut the template (312N) (see page

22, 23) using scissors.

Fig. 11

13. Use protection tape in order not to

damage the surface of the dashboard.

Fig. 13

Fig. 12

12. Mark the dashboard using the template

(312N) .

Corner fits

Marking

Corner fits

Marking

Drill a hole of 10mm

Hole fit

All manuals and user guides at all-guides.com

Avensis (T25) TOYOTA GENUINE AUDIO

Avensis (RHD) - 11 10-02

14. Cut the marked position on the dash-

board using a saw.

Fig. 14

Fig. 15

16. Temporary attach the screws in the

existing holes.

: Screw (M6x12) (2x)

106

Fig. 16

15. Cut the marked position on the dash-

board using a saw.

Cut

Saw

Existing holes

Reinforcement pipe

Cut

Saw

106
