Toyota Corolla 2004 Manual de usuario

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 6. . . . . . . . . . . . . . . . . . . . . . .

SECTION 1−1

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

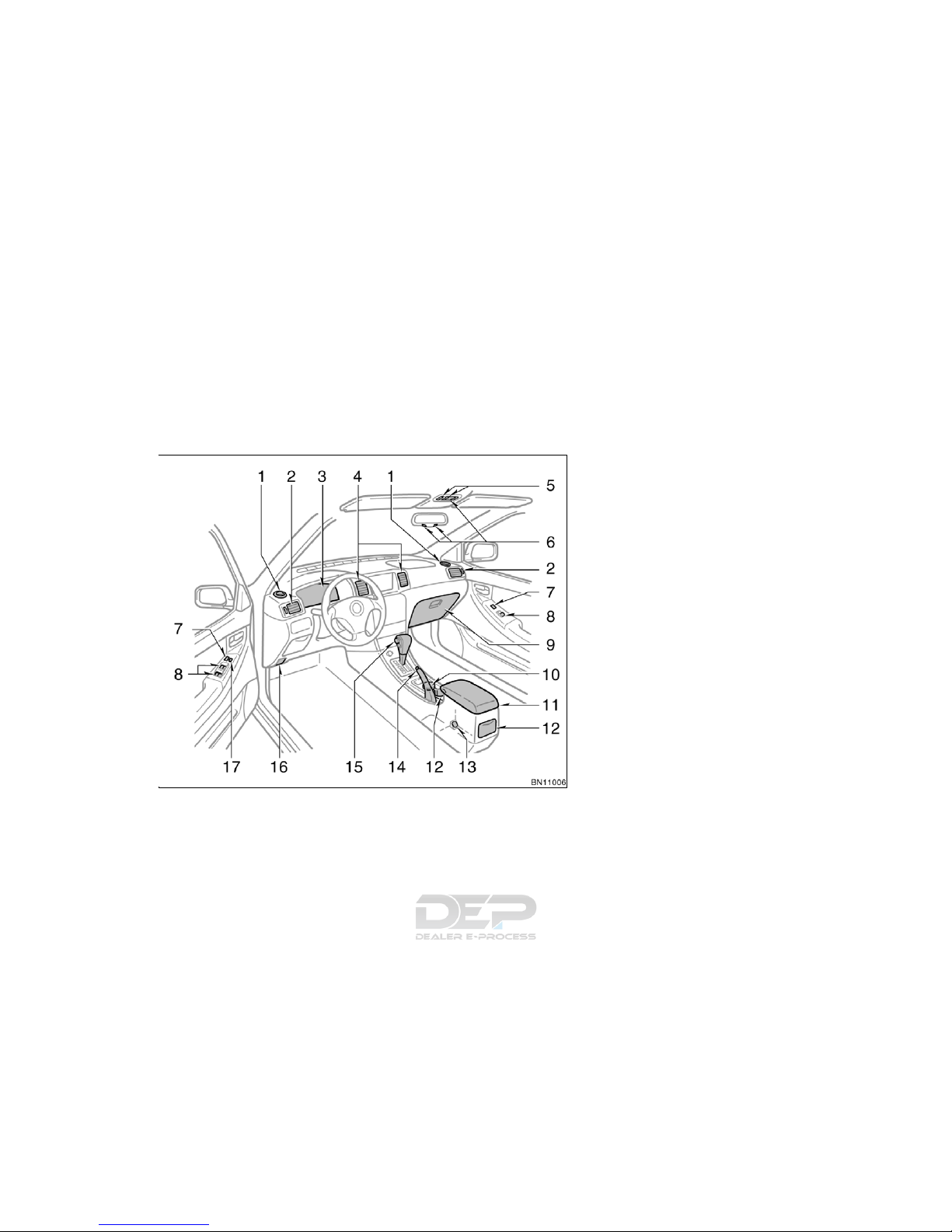

1. Side defroster outlets

2. Side vents

3. Instrument cluster

4. Center vents

5. Electric moon roof switches

6. Personal lights

7. Power door lock switches

8. Power window switches

9. Glove box

10. Portable ashtray

11. Rear console box

12. Cup holders

13. Power outlet

14. Parking brake lever

15. Automatic transmission selector lever

or manual transmission gear shift lever

16. Hood lock release lever

17. Window lock switch

Instrument panel overview

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

1. Headlight, turn signal and front fog

light switches

2. Wiper and washer switches

3. Emergency flasher switch

4. Car audio

5. Clock

6. Front passenger’s seat belt reminder

light

7. Rear window defogger switch

8. Auxiliary boxes

9. Power outlet or cigarette lighter

10. Air conditioning controls

11. Ignition switch

12. Cruise control switch

13. Tilt steering lock release lever

14. Interior/instrument panel light control

dial

15. Power rear view mirror control switches

16. Toyota vehicle intrusion protection

system indicator light

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

1. Service reminder indicators and

indicator lights

2. Tachometer

3. Speedometer

4. Engine coolant temperature gauge

5. Fuel gauge

6. Trip meter reset knob

7. Odometer, two trip meters and outside

temperature display

Instrument cluster overview

"Type A

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

1. Service reminder indicators and

indicator lights

2. Tachometer

3. Speedometer

4. Engine coolant temperature gauge

5. Fuel gauge

6. Trip meter reset knob

7. Odometer, two trip meters and outside

temperature display

"Type B

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

or Brake system warning light∗1

Driver’s seat belt reminder light∗1

Discharge warning light∗1

Low fuel level warning light∗1

Low engine oil pressure warning light∗1

Anti−lock brake system warning light∗1

Open door warning light∗1

SRS warning light∗1

Low windshield washer fluid level warning light

∗1, ∗3

Turn signal indicator lights

Headlight high beam indicator light

Front passenger’s seat belt reminder light∗1

Malfunction indicator lamp∗1

Indicator symbols on the instrument panel

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

Overdrive−off indicator light

Cruise control indicator light∗2

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 88 in Section 1−6.

∗2: If this light flashes, see “Cruise control” on page 102 in

Section 1−7.

∗3: This symbol equipped only on vehicles sold in Canada.

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Keys and Doors

Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trunk lid 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Toyota vehicle intrusion protection system (TVIP) 21. . . . . . . . . . . . . . .

Hood 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric moon roof 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 1−2

’04 Corolla_U (L/O 0306)

2004 COROLLA from Oct. ’03 Prod. (OM12859U)

Your vehicle is supplied with two kinds

of keys.

1. Master keys—These keys work in ev-

ery lock.

2. Sub key—This key will not work in the

trunk.

To protect items locked in the trunk when

using valet parking, leave the sub key

with the attendant.

Since all the doors and trunk lid can be

locked without a key, you should always

carry a spare master key in case you

accidentally lock your keys inside the ve-

hicle.

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

We recommend writing down the key num-

ber and storing it in a safe place.

LOCKING AND UNLOCKING WITH KEY

Insert the key into the keyhole and turn

it.

To lock: Turn the key forward.

To unlock: Turn the key backward.

Vehicles with power door lock system—

All the doors lock and unlock simulta-

neously with either front door. In the driv-

er’s door lock, turning the key once will

unlock the driver’s door and twice in suc-

cession will unlock all the doors simulta-

neously.

Keys Side doors—
