Toyota Celica 2003 Manual de usuario

’03MY CELICA U (L/O 0208)

2003 CELICA from Aug. ’02 Prod. (OM20809U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .

SECTION 1−1

’03MY CELICA U (L/O 0208)

2003 CELICA from Aug. ’02 Prod. (OM20809U)

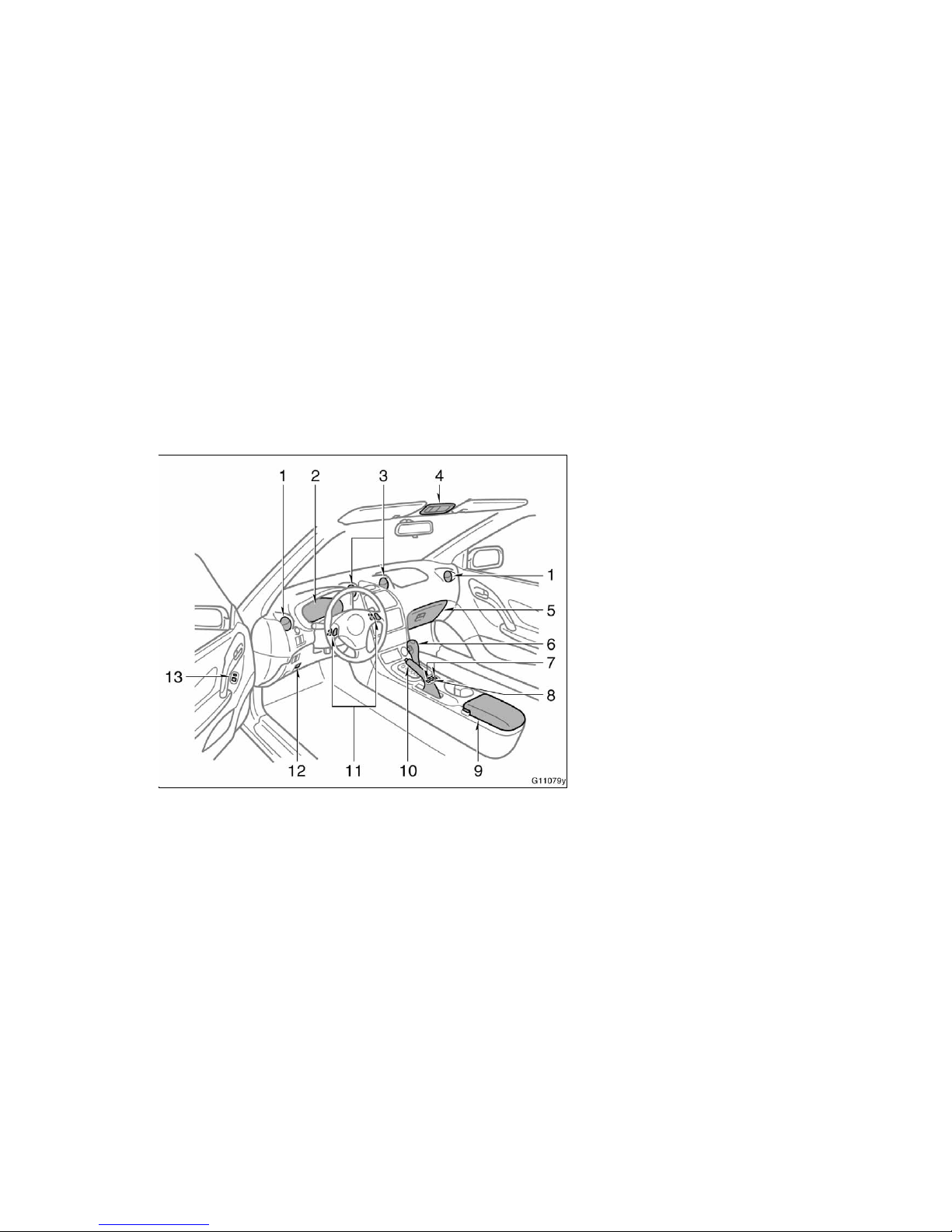

1. Side vents

2. Instrument cluster

3. Center vents

4. Electric moon roof switch and/or

interior light

5. Glove box

6. Manual transmission gear shift lever or

automatic transmission selector lever

7. Power window switches

8. Power door lock switch

9. Auxiliary box

10. Parking brake lever

11. Transmission shift switches

12. Hood lock release lever

13. Power rear view mirror control switches

Instrument panel overview

’03MY CELICA U (L/O 0208)

2003 CELICA from Aug. ’02 Prod. (OM20809U)

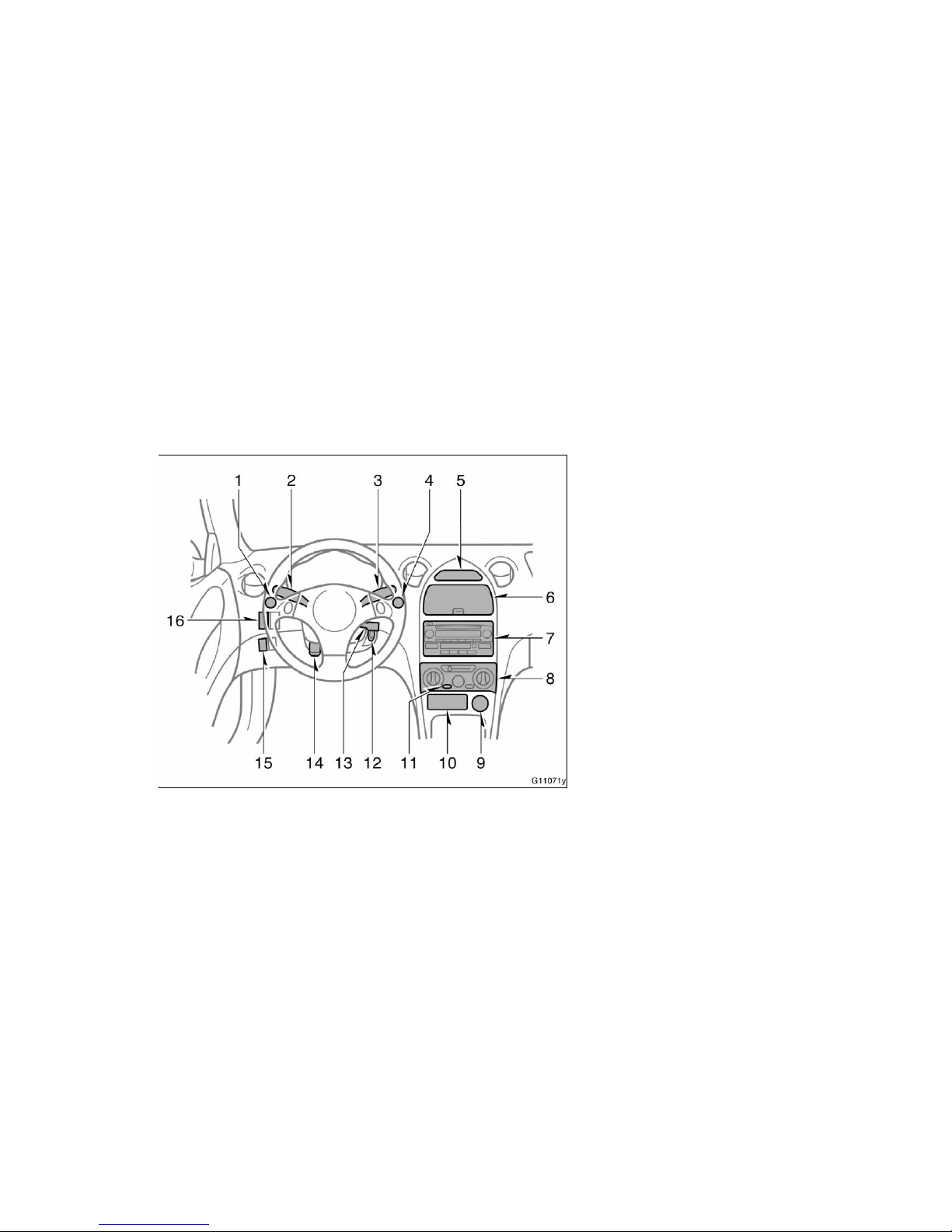

1. Instrument panel light control knob

2. Headlight and turn signal switch, and

front fog light switch

3. Wiper and washer switches

4. Emergency flasher switch

5. Clock

6. Auxiliary box

7. Car audio

8. Air conditioning controls

9. Cigarette lighter

10. Ashtray

11. Rear window defogger switch

12. Ignition switch

13. Cruise control switch

14. Tilt steering lock release lever

15. Headlight beam level control dial

16. Window lock switch

’03MY CELICA U (L/O 0208)

2003 CELICA from Aug. ’02 Prod. (OM20809U)

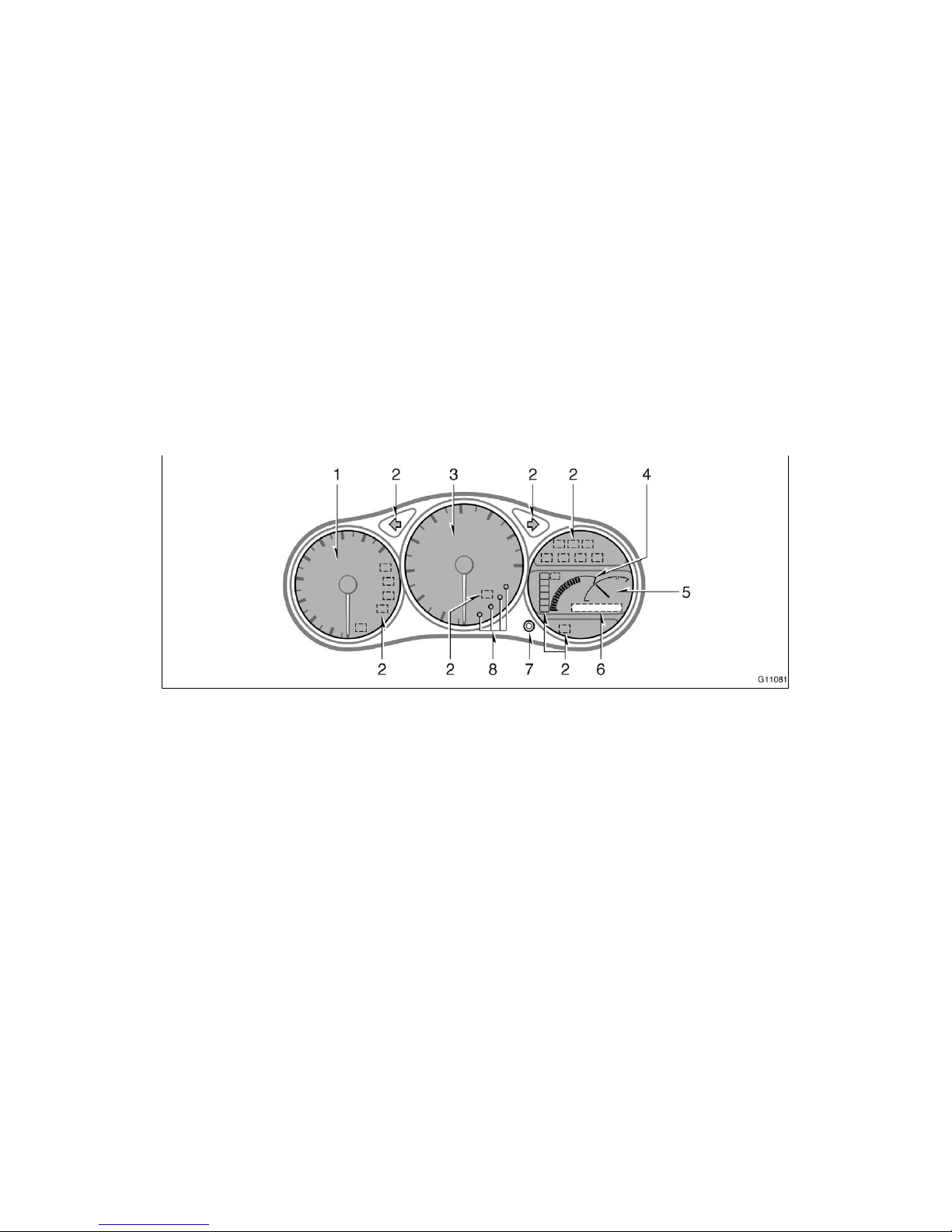

1. Tachometer

2. Service reminder indicators and

indicator lights

3. Speedometer

4. Fuel gauge

5. Engine coolant temperature gauge

6. Odometer and two trip meters

7. Trip meter reset knob

8. Gear position indicators

Instrument cluster overview

’03MY CELICA U (L/O 0208)

2003 CELICA from Aug. ’02 Prod. (OM20809U)

SRS warning light∗1

Open door warning light∗1

Brake system warning light∗1

Discharge warning light∗1

Low engine oil pressure warning light∗1

Malfunction indicator lamp∗1

Anti−lock brake system warning light∗1

Driver’s seat belt reminder light∗1

Low fuel level warning light∗1

or or

Automatic transmission fluid temperature

warning light∗1

Headlight low beam indicator light

Tail light indicator light

Headlight high beam indicator light

Front passenger’s seat belt reminder light∗1

Indicator symbols on the instrument panel

’03MY CELICA U (L/O 0208)

2003 CELICA from Aug. ’02 Prod. (OM20809U)

∗1: For details, see “Service reminder indicators and warning

buzzers” in Section 1−5.

∗2: If this light flashes, see “Automatic transmission” in Section

1−6.

∗3: If this light flashes, see “Cruise control” in Section 1−6.

Cruise control indicator light∗3

Overdrive−off indicator light

Automatic transmission indicator lights

M mode indicator light∗2

Turn signal indicator lights

’03MY CELICA U (L/O 0208)

2003 CELICA from Aug. ’02 Prod. (OM20809U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Keys and Doors

Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Back door 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hood 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric moon roof 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 1−2

’03MY CELICA U (L/O 0208)

2003 CELICA from Aug. ’02 Prod. (OM20809U)

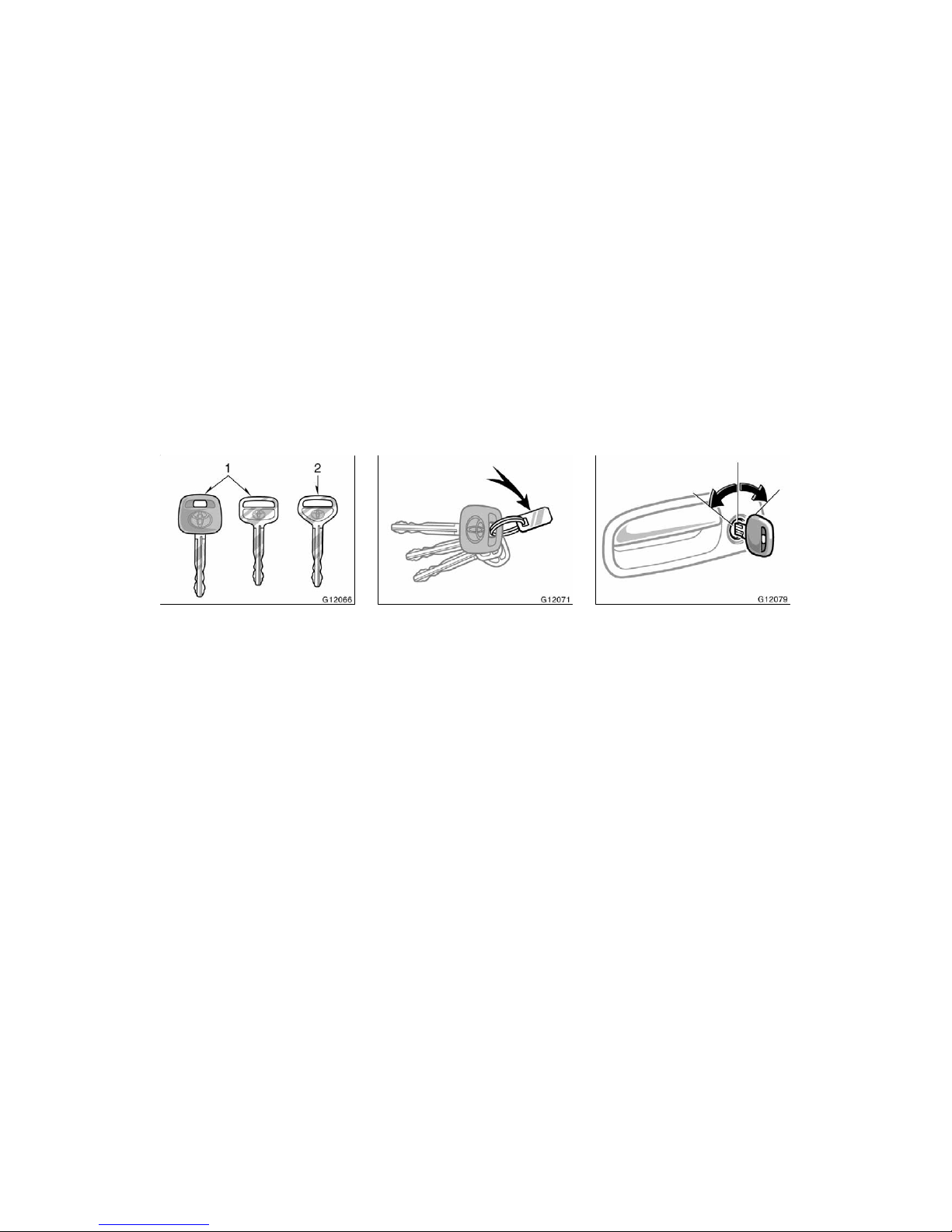

Your vehicle is supplied with two kinds

of keys.

1. Master keys—

These keys work in every lock.

Since the side doors and back door

can be locked without a key, you

should always carry a spare master

key in case you accidentally lock your

keys inside the vehicle.

2. Sub key—

This key will not work in the back door

and glove box.

To protect items locked in the glove

box or luggage compartment when us-

ing valet parking, leave the sub key

with the attendant.

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

We recommend writing down the key num-

ber and storing it in a safe place.

LOCKING AND UNLOCKING WITH KEY

Insert the key into the keyhole and turn

it.

To lock: Turn the key forward.

To unlock: Turn the key backward.

Vehicles with a power door lock system—

Both side doors and back door lock and

unlock simultaneously with either side

door. In the driver’s door lock, turning the

key once will unlock the driver’s door and

twice in succession will unlock both side

doors and back door simultaneously.

Keys Side doors—

’03MY CELICA U (L/O 0208)

2003 CELICA from Aug. ’02 Prod. (OM20809U)

Vehicles with a power door lock system—

When the interior light switch is in the

“DOOR” position, and both side doors and

back door are unlocked using either the

key or wireless remote control transmitter,

the interior light will come on and remain

on for about 15 seconds before fading

out. (For further information, see “Interior

light” in Section 1−4.)

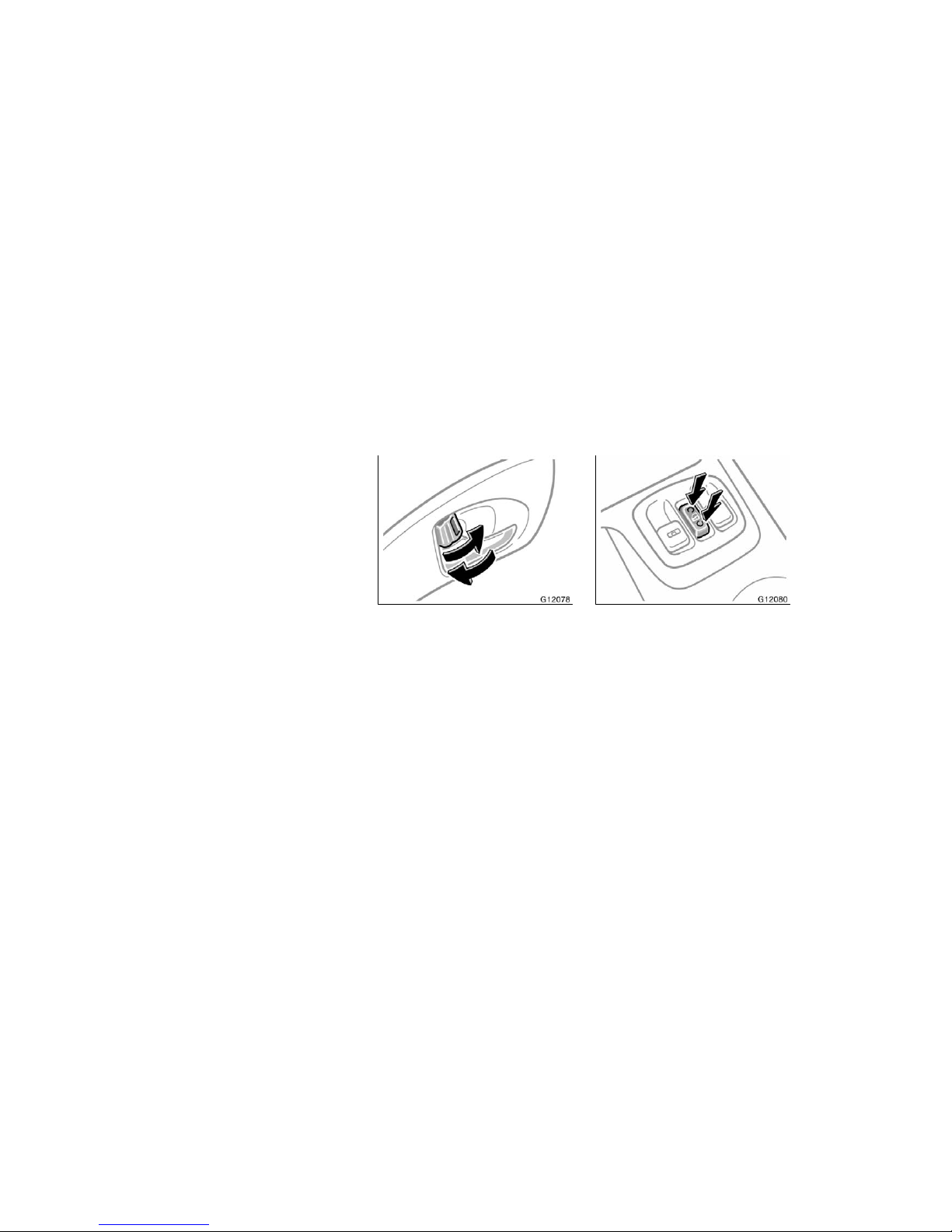

LOCKING AND UNLOCKING WITH

INSIDE LOCK KNOB

Move the lock knob.

To lock: Push the knob forward.

To unlock: Pull the knob backward.

Closing the side door with the lock knob

in the lock position will also lock the side

door. Be careful not to lock your keys in

the vehicle.

Vehicles with a power door lock system—

Doors cannot be locked when either side

door is open and the key is in the igni-

tion.

LOCKING AND UNLOCKING WITH

POWER DOOR LOCK SWITCH

Push the switch.

To lock: Push the switch down on the

front side.

To unlock: Push the switch down on the

rear side.

Both side doors and back door lock or

unlock simultaneously.

’03MY CELICA U (L/O 0208)

2003 CELICA from Aug. ’02 Prod. (OM20809U)

CAUTION

Before driving, be sure that the side

doors are closed and locked, espe-

cially when small children are in the

vehicle. Along with the proper use of

seat belts, locking the side doors

helps prevent the driver and passen-

gers from being thrown out from the

vehicle during an accident. It also

helps prevent the side doors from be-

ing opened unintentionally.

Locking operation

Unlocking operation

The wireless remote control system is

designed to lock or unlock both side

doors and back door, or activate the

“PANIC” mode from a distance within

approximately 1 m (3 ft.) of the vehicle.

LOCKING AND UNLOCKING THE SIDE

DOORS AND BACK DOOR

To lock and unlock both side doors and

back door, push the switches of the

transmitter slowly and securely.

To lock: Push the “LOCK” switch. Both

side doors and back door are locked si-

multaneously. At this time, parking lights,

side marker lights and tail lights flash.

Check to see that both side doors and

back door are securely locked.

If either side doors or back door is not

securely closed, or if the key is in the

ignition switch, locking cannot be per-

formed by the “LOCK” switch.

To unlock: Push the “UNLOCK” switch

once to unlock the driver’s door alone.

Pushing the switch twice within 3 seconds

unlocks both side doors and back door

simultaneously. At this time, parking lights,

side marker lights and tail lights flash

twice.

—Wireless remote control
