Touchstone Sideline Elite Series Manual de usuario
Sideline Elite®Series
Electric Fireplace Heater
OWNER’S MANUAL
42” / 50” / 60” / 72” / 84” /100”
Sideline Elite®Series Recessed Electric Fireplace
AC 110-120V 60Hz 1500W
Model # : 80036, 80037, 80038, 80042, 80044, 80050
800.215.1990 touchstonehomeproducts.com
rev.121222
2
IMPORTANT SAFETY INFORMATION 3
CSA Approval Listing Information 4
Fireplace Specifications 4
Serial Number Label 5
DIMENSIONAL DRAWINGS 6
80036 – Sideline Elite®50” Dimensions 6
80037 – Sideline Elite®60” Dimensions 7
80038 – Sideline Elite®72” Dimensions 8
80042 – Sideline Elite®42” Dimensions 9
80050 – Sideline Elite®84” Dimensions 11
UNPACKING YOUR FIREPLACE 12
Parts and Hardware 12
Tools Required 12
What’s in the Box 12
Unpacking and Setup 12
Wiring 13
Testing the Fireplace Prior to Installation 13
3-prong Outlet Installation 13
Hard Wire Connection 14
INSTALLATION 15
Choosing Installation Location 15
Removing the Glass Panel 16
Recessed Installation 17
Installing the Crystal Embers and Driftwood Logs 20
Re-installing the Glass Panel 21
Wall Mounted Installation 22
OPERATING THE FIREPLACE 25
Power 25
Control Panel Operation 25
Wireless Remote Control Operation 25
Control Panel Functions 26
Wireless Remote Control Functions 27
Remote Control Operation 29
Temperature Limiting Control 29
CARE, CLEANING AND MAINTENANCE 30
WARRANTY 31
800.215.1990 touchstonehomeproducts.com
rev.121222
3
Important Safety Information
PLEASE READ CAREFULLY FOR SAFE OPERATION
§ THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS.
§ Do not operate fireplace before reading and understanding operating instructions. Failure to operate
fireplace according to operating instructions could cause fire or injury.
§ Risk of injury. This fireplace is HOT when in operation and heating element is ON. Power to the
fireplace should be turned OFF and the fireplace allowed to cool before servicing. To disconnect
power to the fireplace, turn controls to OFF, then remove plug from outlet.
§ Do not install damaged, incomplete, or substitute components.
§ Young children should be carefully supervised when they are in same room with fireplace. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at-risk individuals in the house. To restrict access to the fireplace, install
an adjustable safety gate to keep at-risk individuals away from the fireplace and hot surfaces.
§ Clothing and other flammable material should not be placed on or near the fireplace.
§ Due to high temperatures, the fireplace should be located out of traffic and away from furniture and
draperies.
§ It is imperative that the control compartments, circulating blower, and its passageway are kept clean.
§ Under no circumstances should this fireplace be modified.
§ Do not use the fireplace if any part has been under water.
§ Do not operate the fireplace with the glass panel removed, cracked or broken.
§ Keep the packaging material out of the reach of children. As with all plastic bags, these are not toys
and should be kept away from children and infants.
§ Servicing should only be done while the fireplace is disconnected from the power outlet.
§ Unplug fireplace if not being used for an extended period of time.
§ Always plug this fireplace into a wall outlet or receptacle. Never plug this fireplace into a
surge protector, extension cord, or relocatable power tap.
§ Do not operate this fireplace with a damaged cord or plug after the fireplace malfunctions, has been
dropped, or damaged in any manner.
§ Do not use outdoors.
§ Never locate fireplace where it may fall into a bathtub or other water container.
§ Do not place the cord under carpeting. Do not cover cord with throw rugs, runners, or the like.
Arrange cord away from traffic area and where it will not be tripped over.
§ Connect to properly grounded outlets or hard wire connection only.
§ Do not insert foreign objects into any ventilation or exhaust opening as this may cause electric
shock, fire, or damage to the fireplace.
§ To prevent a possible fire, do not block the air intakes or exhaust in any manner. Do not use on soft
surfaces, like a carpet, where openings may be blocked.
§ Ensure clearances to combustibles are maintained when building a mantel or shelves above the
fireplace. Elevated temperatures on the wall or in the air above the fireplace can cause melting,
discoloration or damage to decorations, television or other electronic components.
800.215.1990 touchstonehomeproducts.com
rev.121222
4
CSA Approval Listing Information
This fireplace has been tested in accordance with the CSA Standards for fixed and location-dedicated
electric room appliances in the United States and Canada. If you need assistance during installation, please
contact our technical support department at 800-215-1990.
Note: This fireplace must be electrically wired and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition in the United States or the
Canadian Electric Code, CSA C22.1 in Canada.
Fireplace Specifications
Model Number
80036
80037
80038
Description
Sideline Elite®50”
Sideline Elite®60”
Sideline Elite®72”
Voltage
120v AC
120v AC
120v AC
Watts
Max 1500W
Max 1500W
Max 1500W
Amps
15 AMP
15 AMP
15 AMP
Fireplace Width
49 ¾”
59 ¾”
71 ¾”
Fireplace Height
19 ¾”
19 ¾”
19 ¾”
Fireplace Depth
5 ½”
5 ½”
5 ½”
Shipping Weight
63 lbs.
73 lbs.
90 lbs.
Fireplace Weight
50 lbs.
60 lbs.
77 lbs.
Model Number
80042
80044
80050
Description
Sideline Elite®42”
Sideline Elite®100”
Sideline Elite®84”
Voltage
120v AC
120v AC
120v AC
Watts
Max 1500W
Max 1500W
Max 1500W
Amps
15 AMP
15 AMP
15 AMP
Fireplace Width
41 ¾”
99 ¾”
83 ¾”
Fireplace Height
19 ¾”
19 ¾”
19 1/4”
Fireplace Depth
5 ½”
5 ½”
5 ½”
Shipping Weight
48 lbs.
140 lbs.
120 lbs.
Fireplace Weight
40 lbs.
127 lbs.
102 lbs.
800.215.1990 touchstonehomeproducts.com
rev.121222
5

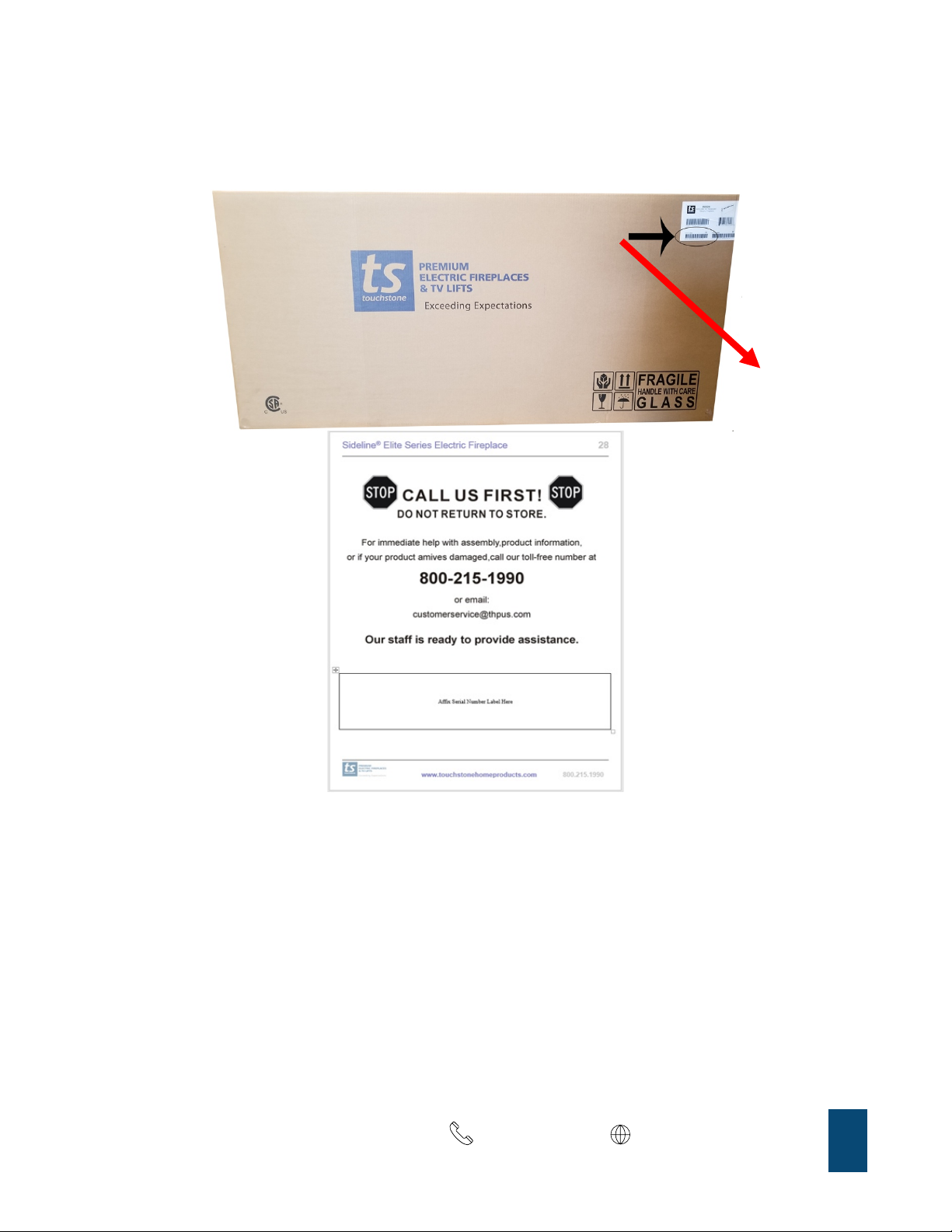

Serial Number Label
Each Touchstone Home Products Electric Fireplace contains a serial number label on the shipping box.
Please remove the shipping label and place the label on the back page of this manual for future reference.
800.215.1990 touchstonehomeproducts.com
rev.121222
6
Dimensional Drawings
80036 – Sideline Elite®50” Dimensions
800.215.1990 touchstonehomeproducts.com
rev.121222
7

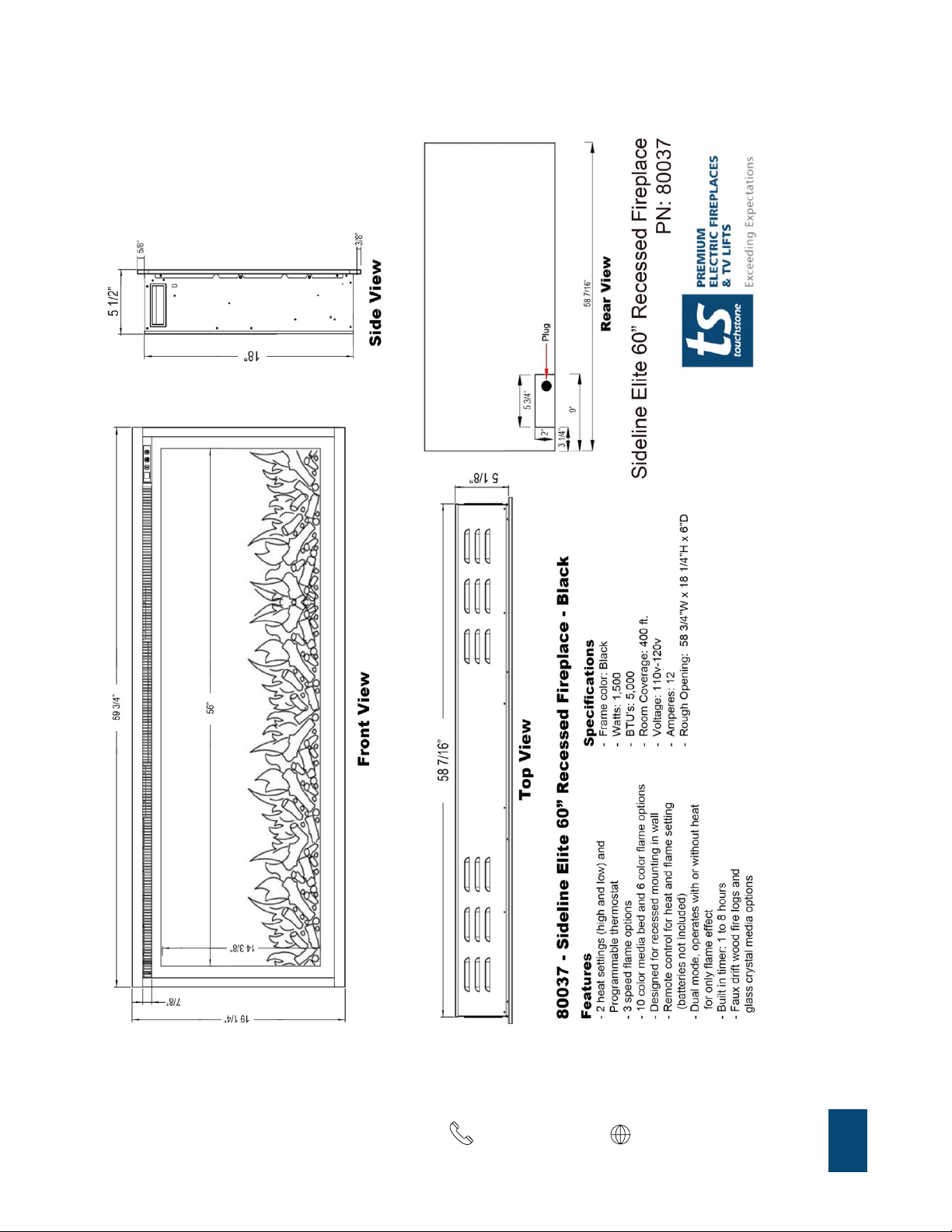

80037 – Sideline Elite®60” Dimensions
800.215.1990 touchstonehomeproducts.com
rev.121222
8
80038 – Sideline Elite®72” Dimensions
800.215.1990 touchstonehomeproducts.com
rev.121222
9

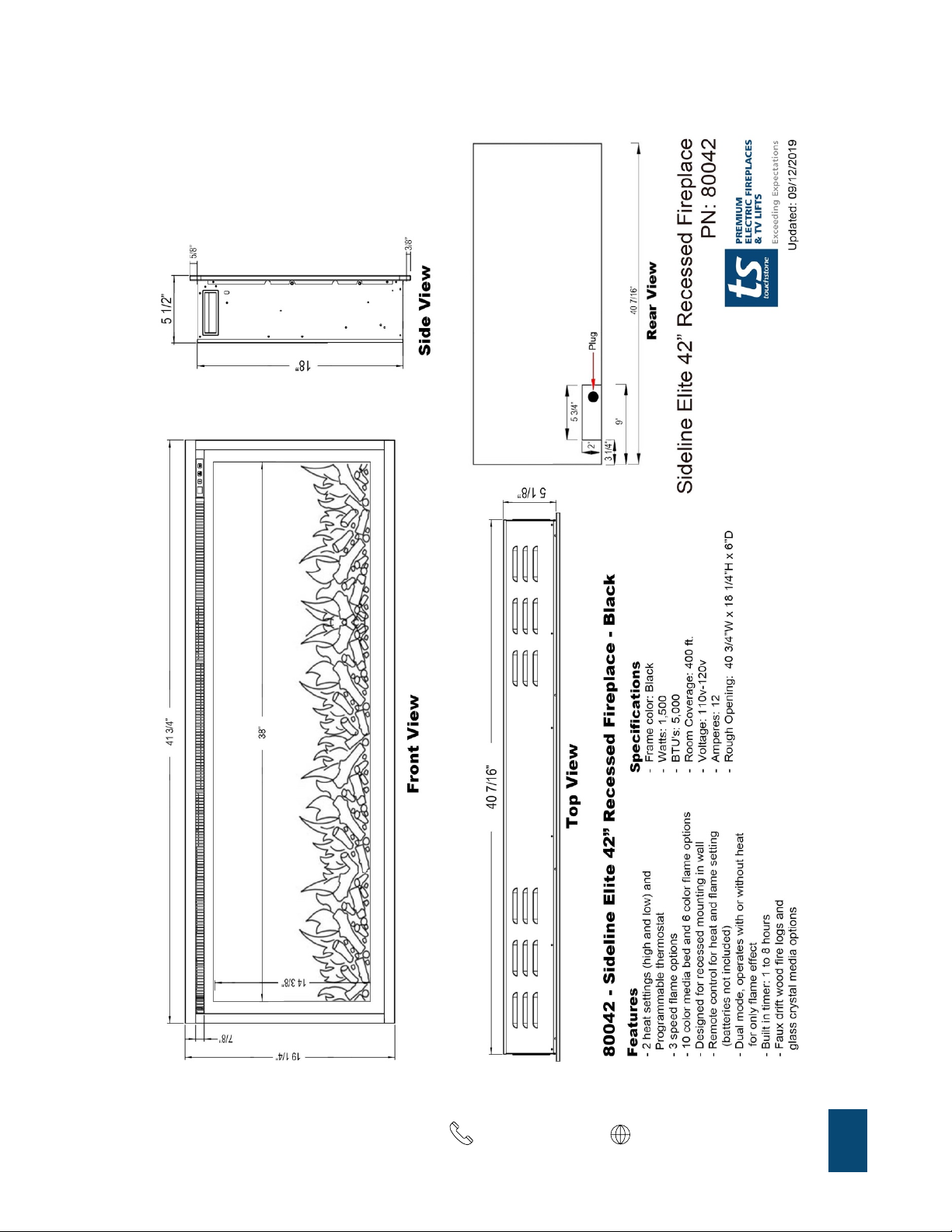

80042 – Sideline Elite®42” Dimensions
800.215.1990 touchstonehomeproducts.com
rev.121222
10
80044 – SIDELINE ELITE®100” DIMENSIONS
