TOTOLINK Wireless Router
(A2004NS) User’s Guide
j
1
HKBN_SETUP_ROUTER_TOTOLINK_160415
1 Get to know TOTOLINK (A2004NS) Wireless Router.........................................................2
A. Tech Specs - Connections and Expansion .................................................................2
B. System Requirements (bb500/ FibreHome500/ bb1000/ FibreHome1000) ................3
2 Connecting to TOTOLINK Router.......................................................................................4
3 Switching your broadband Internet service to HKBN........................................................16
4 Factory default reset of TOTOLINK Router.......................................................................20
j
2
HKBN_SETUP_ROUTER_TOTOLINK_160415
Get to know TOTOLINK
(A2004NS) Wireless Router
路由器
1 Get to know TOTOLINK (A2004NS) Wireless Router
A. Tech Specs - Connections and Expansion
USB LED
LAN LED
WAN LED
5G LED
2.4G LED
CPU LED
Power LED
WPS Button
Power
Socket
Reset
Button
USB
Port
WAN Port
LAN Port
j
3
HKBN_SETUP_ROUTER_TOTOLINK_160415
Get to know TOTOLINK
(A2004NS) Wireless Router
路由器
1 Get to know TOTOLINK (A2004NS) Wireless Router
B. System Requirements (bb500/ FibreHome500/ bb1000/ FibreHome1000)
To ensure that you have a stable and speedy network, please refer to the following as a
recommended minimum system requirement:
Central Processing Unit (CPU)
Intel Core2 Duo P8700/2.5 (3 GHz or above)
System Memory
4GB or above
Hard disk
64GB SATA II SSD (Min. I/O speed of 200MB/s)
Network Adaptor
100/1000M Network Adaptor
j
4
HKBN_SETUP_ROUTER_TOTOLINK_160415
Connecting to TOTOLINK
Router
2 Connecting to TOTOLINK Router
Make sure you have a LAN cable connected from the HKBN wall plate/ONT to the WAN port
of your TOTOLINK (A2004NS) wireless router. Using a second LAN cable, connect it from
the router LAN port to the computer LAN port. Once finished, switch on the power supply for
the router and turn on the computer.
Open your Internet browser, and input [http://192.168.1.1] using the address-bar and press
[Enter].
Choose [Internet Wizard] to start the setup.
Enter [admin] as the default username and password, click [OK].
j
5
HKBN_SETUP_ROUTER_TOTOLINK_160415
Connecting to TOTOLINK
Router
2 Connecting to TOTOLINK Router
Choose [Manual Internet configuration] then click [Next].
Choose [DHCP method] then click [Next].
j
6
HKBN_SETUP_ROUTER_TOTOLINK_160415
Connecting to TOTOLINK
Router
2 Connecting to TOTOLINK Router
Choose [No MAC clone] and tick the box of [Allow a private internt IP address], click [Next].
Click [Save and Close].
j
7
HKBN_SETUP_ROUTER_TOTOLINK_160415
Connecting to TOTOLINK
Router
2 Connecting to TOTOLINK Router
Choose [Wireless Wizard] at main menu.
Click [Next].
j
8
HKBN_SETUP_ROUTER_TOTOLINK_160415
Connecting to TOTOLINK
Router
2 Connecting to TOTOLINK Router

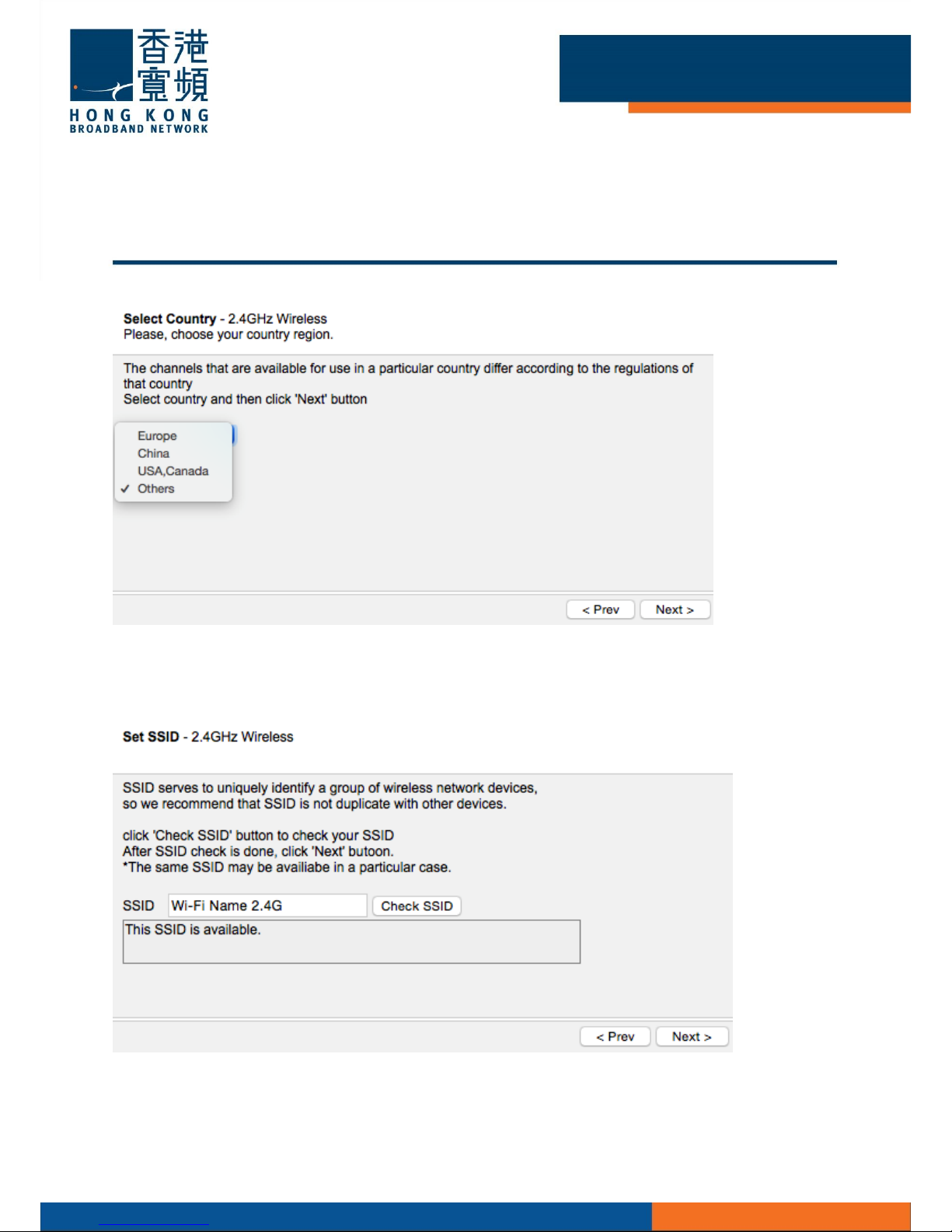

Suggest to select [Others] as the country, then click [Next].
TOTOLINK (A2004NS) supports both 2.4GHz and 5GHz wireless connections. Create a
Wireless Network Name [SSID] for 2.4GHz network, click [Check SSID] to confirm the SSID
is available, then click [Next].
j
9
HKBN_SETUP_ROUTER_TOTOLINK_160415
Internal Wi-Fi Network setup
of TOTOLINK Router
2 Internal Wi-Fi Network setup of TOTOLINK Router
Click [Search best channel], when the search result show up, pick one of the [Best channel]
or [Available] channel, click [Next].
Confirming all settings are correct, click [Next].
