Totem LADYBUG Manual de usuario

It is a good idea to

start every step in-

serting nuts into

beams (if the step

requires).

Use the back of the

screwdriver to push

in the nuts.

After entering the

ﬁ rst slot, nuts tend

to tilt. Use your

thumb to push it

back straight, and

then again use the

screwdriver to in-

sert the nut all the

way in.

Push Nylon

Standoﬀ with your

thumb while tight-

ening it with the

wrench.

Some of the nuts

are missing threads.

This is a manufac-

turing issue and we

are working on it. In

the mean time, we

add few extra nuts.

We apologize for

the inconvenience.

Use Beam/Bolt

ruler to determine

the length of beams

and bolts.

For more tips, please visit the link below:

https://totemmaker.net/blog/totem-mechanics-for-beginners/

STARTING TIPS

Inserting nuts (1) Inserting nuts (2) Faulty threads Tightening

standoﬀ s

Ruler

PART LIST

1x Board 30x100 10x Beam 90 mm 4x Bolt M1.6x3 34x Bolt M3x6 4x Bolt M3x8 8x Bolt M3x12 2x Bolt M3x16

4x Bolt M3x20 2x Bolt M3x25 8x 2-Hole Simple

Bracket

2x L-Twisted

Bracket

2x L-Twisted Mirror

Bracket

6x Strip Bracket

60 mm (12 Holes) 2x Zip Tie

14x Lock Nut M3 4x Nut M3 5.5x5.5 42x Nut M3 6x10 4x Nylon Nut M3 4x Nylon Standoﬀ

M3x8 mm

10x Nylon Spacer

4 mm

2x Nylon Spacer

8 mm

1x Rechargeable

Battery 2x N20 Motor 1x Mini Control

Board

2x Mini DC Motor

Bracket 2x N20 Motor Hub 2x Googly Eye 1x Ladybug Head

1x Ladybug Shell 6x Moon Boot 4x Ladybug Dot 1x Totem

Screwdriver 1x Totem Wrench 1x Mini

Screwdriver 1x Battery Charger

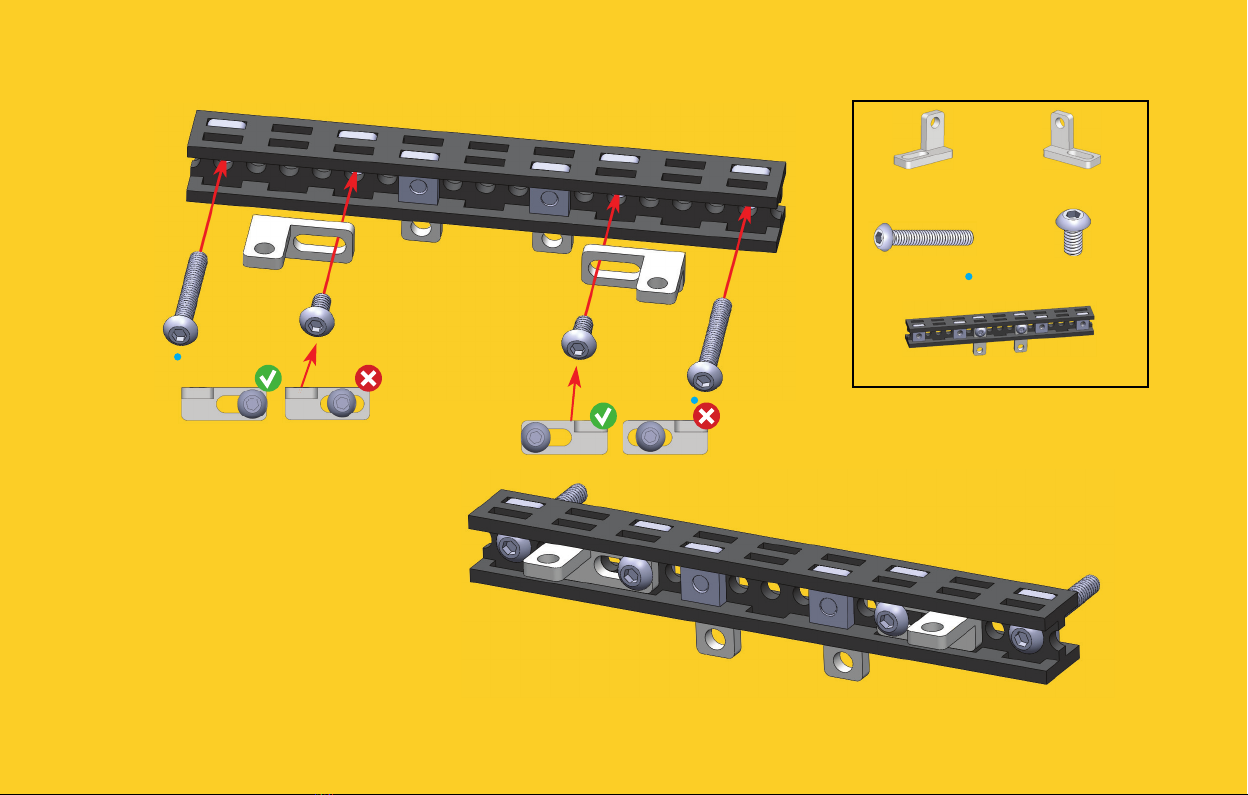

2x Beam 90 mm 4x Bolt M3x6

4x 2-Hole Simple

Bracket 12x Nut M3 6x10

Repeat this step twice.

2x L-Twisted Bracket 2x L-Twisted Bracket

4x Bolt M3x20 4x Bolt M3x6

2x Step 1 Assembly

Repeat this step twice.

4x Bolt M3x6 2x Step 2 Assembly

2x Step 3 Assembly

2x Beam 90 mm 4x Bolt M3x6

4x 2-Hole Simple

Bracket 8x Nut M3 6x10

Repeat this step twice.

Use Mini Screwdriver

for this step.

4x Nut M3 6x10 4x Bolt M3x8

2x Step 4 Assembly 2x Step 5 Assembly

4x Bolt M1.6x3 2x N20 Motor

2x N20 Motor Bracket

Repeat this step twice.

Make sure motor

cables go on top

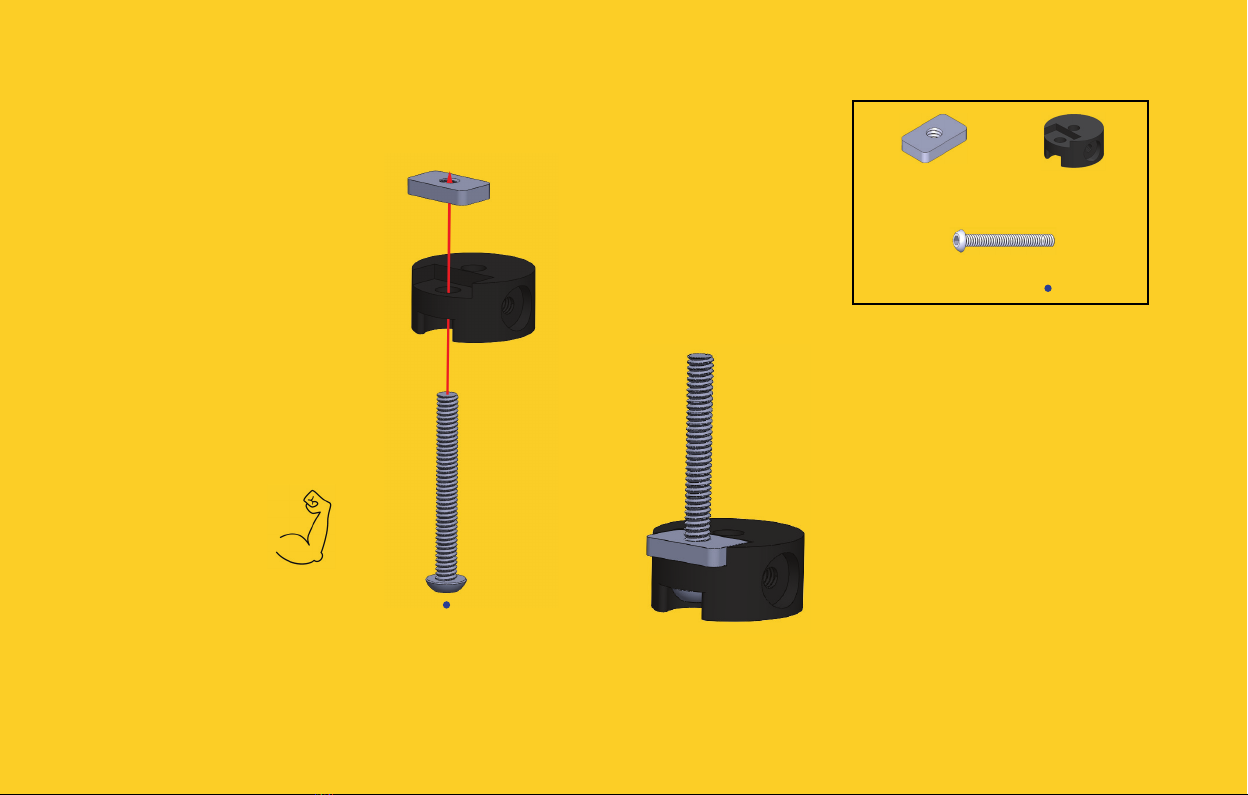

2x Nut M3 6x10 2x N20 Motor Hub

2x Bolt M3x25

Repeat this step twice.

Tighten the

bolt ﬁ rmly.

2x Nylon Spacer 4 mm 4x Bolt M3x6

2x Step 6 Assembly 2x Step 7 Assembly

Repeat this step twice.

Prepare N20 Motor Hub:

screw bolts half way in

before placing hub on the

shaft of motor.

One of the bolts must hit

the  at side of the shaft.

Tighten both bolts evenly

to keep the hub straight.

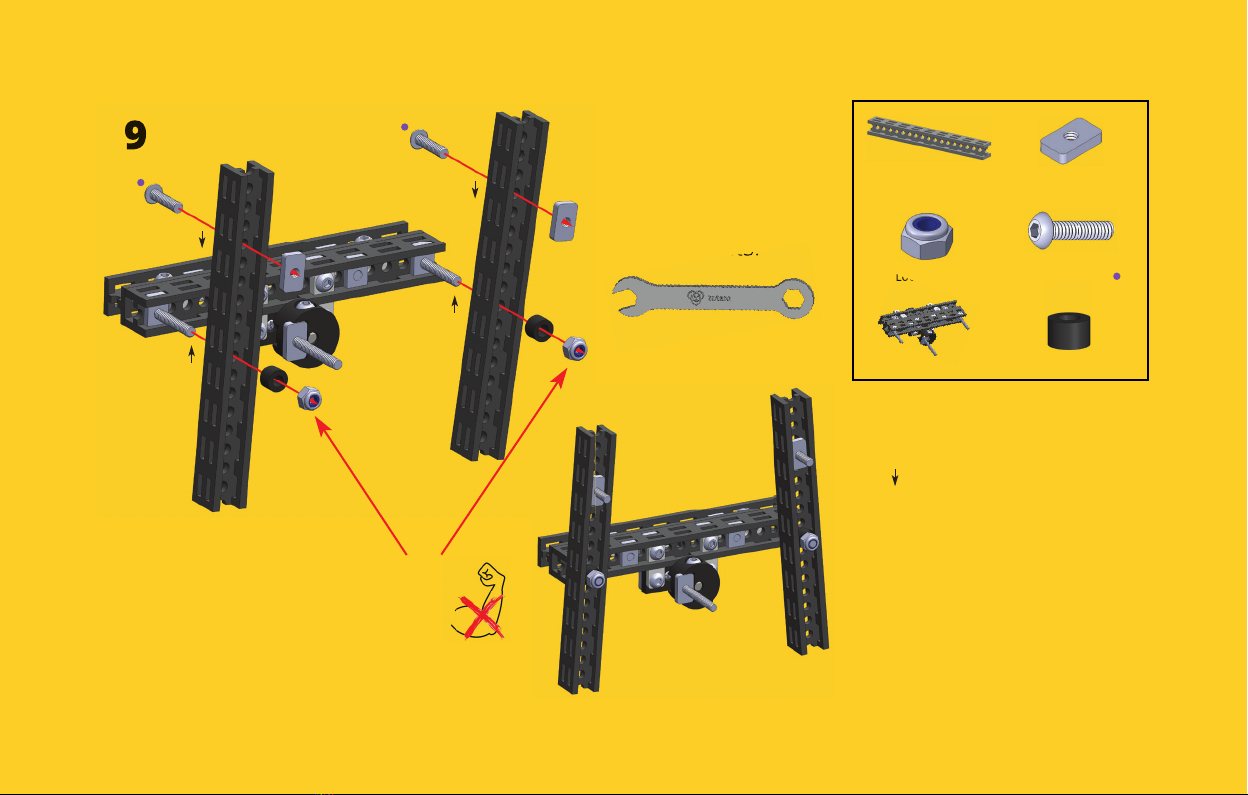

4x Beam 90 mm 4x Nut M3 6x10

4x Lock Nut M3 4x Bolt M3x12

2x Step 8 Assembly 4x Nylon Spacer 4 mm

Repeat this step twice.

Use Totem Wrench

for Lock Nuts.

Do not over-tighten Lock

Nuts. Legs have to move

freely, but not to wobble.

# indicates number

of circular slot.

indicates counting

direction.
