TOTALINE BASIC 1H Manual de usuario

Operating Manual

Mode d'emploi

Manual de Uso

Totaline ®Basic 1H/1C & 2H/1C

Programmable Thermostats

Thermostats programmables

Termostatos programables

570-208 IIIIIIIIIIIIIIIIIIIIIIII

69-2277EFS

Totaline Basic 1H/1C & 2H/1C

This manual covers the following models:

P310-1110: For 1-Heat/1-Cool systems

P310-1210: For 2-Heat /1-Cool heat pump systems

(Remove thermostat from wallplate and find model number on the wallplate.)

CAUTION: EQUIPMENT DAMAGE HAZARD.

To prevent possible compressor damage, do not use Cooling mode when the

outdoor temperature is below 50 °F (10 °C).

For assistance with this product please visit www.totaline.com.

Read and save these instructions.

® U.S. Registered Trademark. Patents pending.

Operating Manual 570-208

i_1qFJ__

Overview

Thermostat features ............................. 1

Quick start ............................................ 2

Quick reference to controls .................. 3

Quick reference to display .................... 4

Programming & Operation

Setting the clock ................................... 5

System switch (Heat/Cool) ................... 6

Fan switch (Auto/On) ............................ 7

Using the schedule .......................... 8-10

Temporary schedule override .............. 11

Permanent schedule override ............ 12

Early Recovery ................................... 13

Compressor protection ....................... 13

Appendices

Battery replacement ........................... 14

In case of difficulty .............................. 15

Customer assistance .......................... 16

Limited two-year warranty .................. 17

Your new thermostat ispre-programmed

and readyto go!

see page 2 for quick start.

Totaline Basic 1H/1C & 2H/1C

Your new Totaline thermostat has been designed to give you many years of reliable service

and easy-to-use, push-button climate control.

Features

Backlit display is easy to read

Displays ambient (measured) temperature at all times

One-touch access to setpoint temperature

Energy Star® compliant to greatly reduce your heating/cooling expenses

Separate programmable weekday/weekend schedules (5+2 day programming)

Temporary and permanent override of schedule

Early Recovery ensures right temperature at the right time

Built-in compressor protection

Operating Manual 570-208

Simply perform the three steps below and the thermostat is in operation:

Set the clock .................................................................................................. See page 5

Select whether to heat or cool ....................................................................... See page 6

_) Select whether to run the fan continuously or only when needed ................. See page 7

Your thermostat is pre-programmed with Energy Star® settings. If you do not wish to use

these settings, you can:

Modify the schedule .................................................................................... See page 10

Temporarily override the schedule .............................................................. See page 11

Permanently override the schedule ............................................................. See page 12

Press to set clock,

day or schedule

(see pages 5 & 10).

Press to override

schedule and hold

temperature (see

page 12).

Press to run

(follow) schedule

(see page 8).

Totaline Basic 1H/1C & 2H/1C

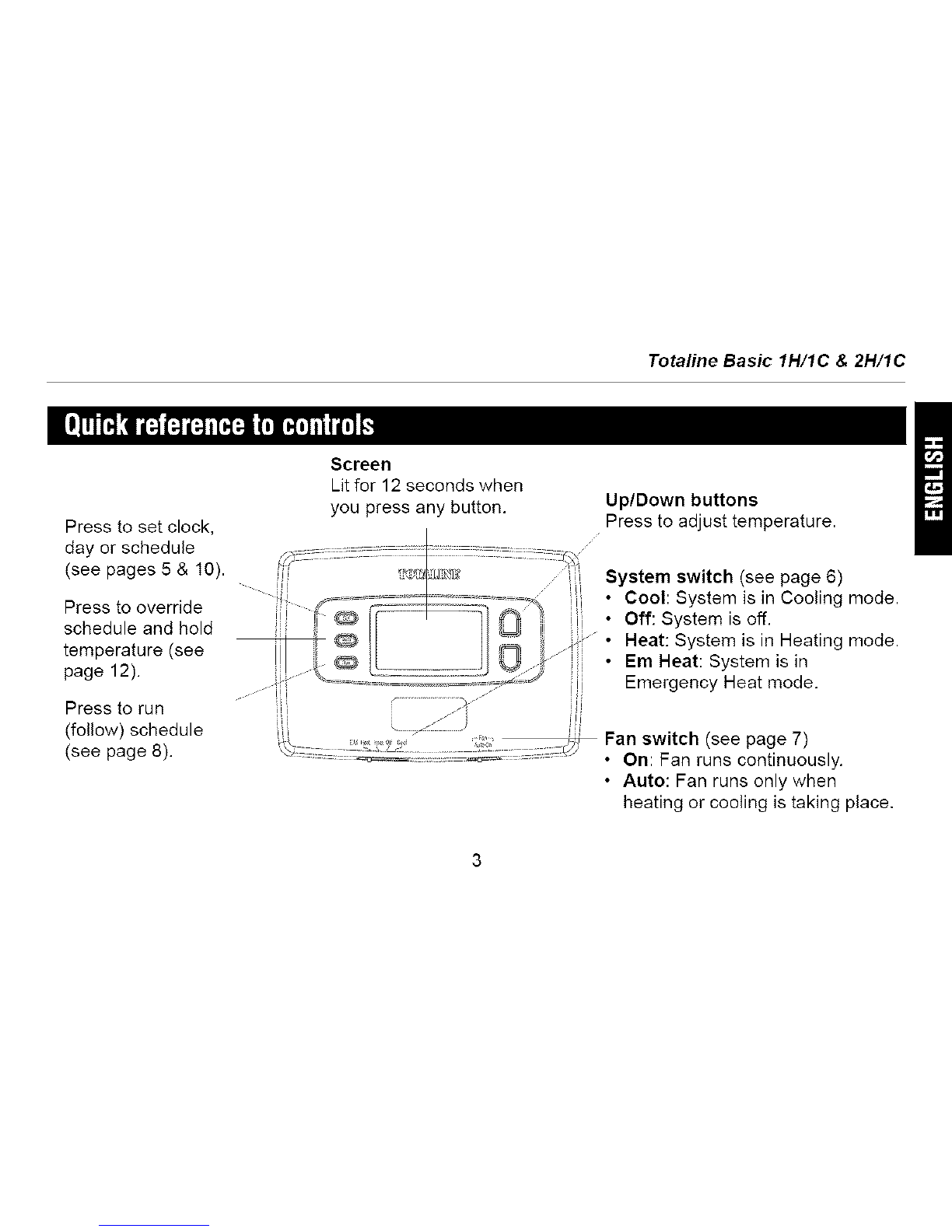

Screen

Lit for 12 seconds when

you press any button. Up/Down buttons

Press to adjust temperature.

System switch (see page 6)

•Cool: System is in Cooling mode.

• Off: System is off.

• Heat: System is in Heating mode.

•Em Heat: System is in

Emergency Heat mode,

Fan switch (see page 7)

• On: Fan runs continuously.

• Auto: Fan runs only when

heating or cooling is taking place.

Operating Manual 570-208

Clock Schedule period

System status

•Cool @:

Cooling is activated. *

• Heat _ :

Heating is activated. *

• Stg2:

Auxiliary heat is activated. **

Low-battery warning (see page 14)

*When Heat _ or Cool @is flashing, compressor protection is

engaged (see page 13).

** Applies to P310-1210 model only.

Temporary schedule

override (see page 11)

Permanent schedule

override (see page 12)

Setpoint indicator

Appears when the setpoint

temperature is displayed.

The ambient (measured)

temperature is normally

displayed. To view the setpoint

temperature, press either

temperature adjustment button

once. The setpoint temperature

will appear for five seconds.

Totaline Basic 1H/1C & 2H/1C

O Press the Set button. Set Time will appear on the screen

and the time display will flash.

O Press the Up or Down button to set the time.

Press the Set button again. Set Day will flash on the screen.

O Press the Up or Down button to select the day of the week.

Press the Run button to save the changes & exit. (The

changes are also saved if you do not press any button for 60

seconds.)

NOTE: The clock has lost its settings when the time display flashes. If the thermostat is

following the schedule, it will use the temperature settings programmed for Period 1 of the

weekdays until you readjust the clock.

Operating Manual 570-208

d; Use the System switch to place the system in one of the

ITij ,_ '_:_LJ_i; ....... _i following modes:

if"_ "_ i • Cool: System is in Cooling mode.

I II U •Off: System is off.

i _ 0 • Heat: System is in Heating mode.

•Em Heat: System is in Emergency Heat mode. Only

y.........................................._ ii auxiliary heating can be activated. The compressor is

:_, ............_;i[: _ ',:: iLdisabled. (This mode is available on the P310-1210 model

_c: ......... _ ...... _:: ¢_' only.)

CAUTION: EQUIPMENT DAMAGE HAZARD.

Do not use Cooling mode when the outdoor temperature is below 50 °F (10 °C).

Totaline Basic 1H/1C & 2H/1C

Use the Fan switch to select the fan operation.

• Auto: The fan runs only when heating or

cooling is activated (commonly used

setting).

• On: The fan runs continuously. Use this

setting for improved air circulation or for

more efficient air cleaning.
