Toshiba TransMemory Manual de usuario

v.1.0

Security Software Installation Manual

TRANSMEMORY™ USB TNU FLASH DRIVE

Table of Contents

Chapter 1: Introduction......................................................................................2

Chapter 2:Required System Configuration .....................................................4

Chapter 3: How to Download the Security Software .......................................5

1. Connect the TransMemory™ USB TNU Flash Drive ............................. 5

1.1 Downloading the TransMemory™ Secure Software.........................5

Chapter 4: How to Use the Security Software.................................................. 7

1. Connect the TransMemoryTM USB 2.0 Flash Drive..................................7

1.1 Setting up the security software - adaptability..................................7

1.2 Setting up the security software.......................................................9

1.3 Formatting using the security software...........................................11

2. Changing the Security Software Password and Log In/Log Out............18

2.1 Changing the password using the security software......................18

2.2 Logging into the Privacy Zone using the security software. ...........20

2.3 Logging out of the Privacy Zone using the security software .........22

v.1.0

Security Software Installation Manual

TRANSMEMORY™ USB TNU FLASH DRIVE

Chapter 1: Introduction

Thank you for purchasing a TransMemoryTM USB TNU Flash Drive (“TransMemoryTM” or

“TransMemoryTM Flash Drive”). The device has the following features:

•This TransMemoryTM Flash Drive, featuring Toshiba’s NAND flash memory, can be used as

a removable disk for a personal computer.

•Toshiba TransMemoryTM Secure Software is available to allow password protection of

saved data.

•The TransMemoryTM Flash Drive is bus-powered, eliminating the need for an AC power

adapter.

Important Note: Please comply with all applicable laws regarding the treatment of copyrighted

material. Any copyrighted data saved on this device must be used only in accordance with

applicable copyright laws.

This document describes how to install and use the TransMemoryTM Secure Software. Before

installing or using this Software, please read this manual thoroughly to ensure correct use.

•The TransMemoryTM Secure Software works only when connected to one personal computer

•Do not activate IEEE1667 password protection and the TransMemoryTM Secure Software

simultaneously.

•When formatting TransMemoryTM Flash Drive using the Secure Software, do not subject it to

shaking/impact, turn off the power to your computer, restart your computer, or put it into the

Standby or Hibernate mode. If one of the above operations has been performed, please

reformat the TransMemoryTM Flash Drive using the TransMemoryTM Secure Software.

•

The TransMemory™ Flash Drive may stop functioning properly if your computer is restarted or

resumed from Standby or Hibernate mode while the TransMemory™ Secure Software is enabled

and the Privacy Zone is in use. If one of these operations has been performed, disconnect the

TransMemory™ Flash Drive from your computer, reconnect it, and log back into the Privacy Zone.

•

If you are using the Windows Vista® or Windows 7® operating system and have enabled

ReadyBoost™ to use the Public Zone, you may find at times that you are unable to log into the

Privacy Zone. If this happens, disable ReadyBoost

, disconnect the TransMemory™ Flash Drive

from your computer, reconnect it, and log back into the Privacy Zone.

•

If you are using the Windows Vista® operating system, do not enable ReadyBoost

to use the

Privacy Zone.

•

The images depicted in this manual may differ from the actual product.

•

The design, specifications, product manual, and related information are subject to change without

notice.

v.1.0

Security Software Installation Manual

TRANSMEMORY™ USB TNU FLASH DRIVE

■Trademarks

•Microsoft®, Windows®, Windows Vista® and ReadyBoostTM are trademarks, registered in

the United States and other countries, of Microsoft Corporation of the U.S.

•Intel® and Pentium® are trademarks or registered trademarks of Intel Corporation in

various nations.

•Other companies and products mentioned herein are trademarks or registered trademarks

of their respective owners.

v.1.0

Security Software Installation Manual

TRANSMEMORY™ USB TNU FLASH DRIVE

Chapter 2: Required System Configuration

The following are required to properly operate this product:

■Required hardware

•CPU: Intel Pentium II 266MHz or higher

•Available hard disk space of at least 800 KB

•USB Specification-compliant USB port (Operation on self-built or modified personal

computers cannot be guaranteed.)

■Required operating systems

•Microsoft® Windows® XP Professional Service Pack 2 or greater

•Microsoft® Windows® XP Home Edition Service Pack 2 or greater

•Microsoft® Windows Vista® Ultimate

•Microsoft® Windows Vista® Enterprise

•Microsoft® Windows Vista® Business

•Microsoft® Windows Vista® Home Premium

•Microsoft® Windows Vista® Home Basic

•Microsoft® Windows® 7 Ultimate

•Microsoft® Windows® 7 Enterprise

•Microsoft® Windows® 7 Professional

•Microsoft® Windows® 7 Home Premium

•Microsoft® Windows® 7 Home Basic

•Microsoft® Windows® 7 Starter

For MicrosoftWindowsXP be sure to first log in as a user belonging to the Administrator’s

group. If attempting to log in as a User, an error may result.

Note: The TransMemoryTM Secure Software does not work with any operating system other than

MicrosoftWindowssystems listed above.

v.1.0

Security Software Installation Manual

TRANSMEMORY™ USB TNU FLASH DRIVE

Chapter 3: How to Download the Security Software

Please follow the instructions below to download the TransMemoryTM Secure Software.

■1. Connect the TransMemory™ TNU Flash Drive

Before downloading the security software, connect the TransMemoryTM Flash Drive to the

computer. Close all other applications.

■ 1.1 Downloading TransMemoryTM Secure Software

1) Access www.digitalmedia.toshiba.com.

2) Click on the “TransMemoryTM USB TNU Secure Software and Installation Manual” link.

3) Then click on the “TransMemoryTM TNU Secure Software v305” link.

4) Read and agree to the End User Software License Agreement and click the Download

button.

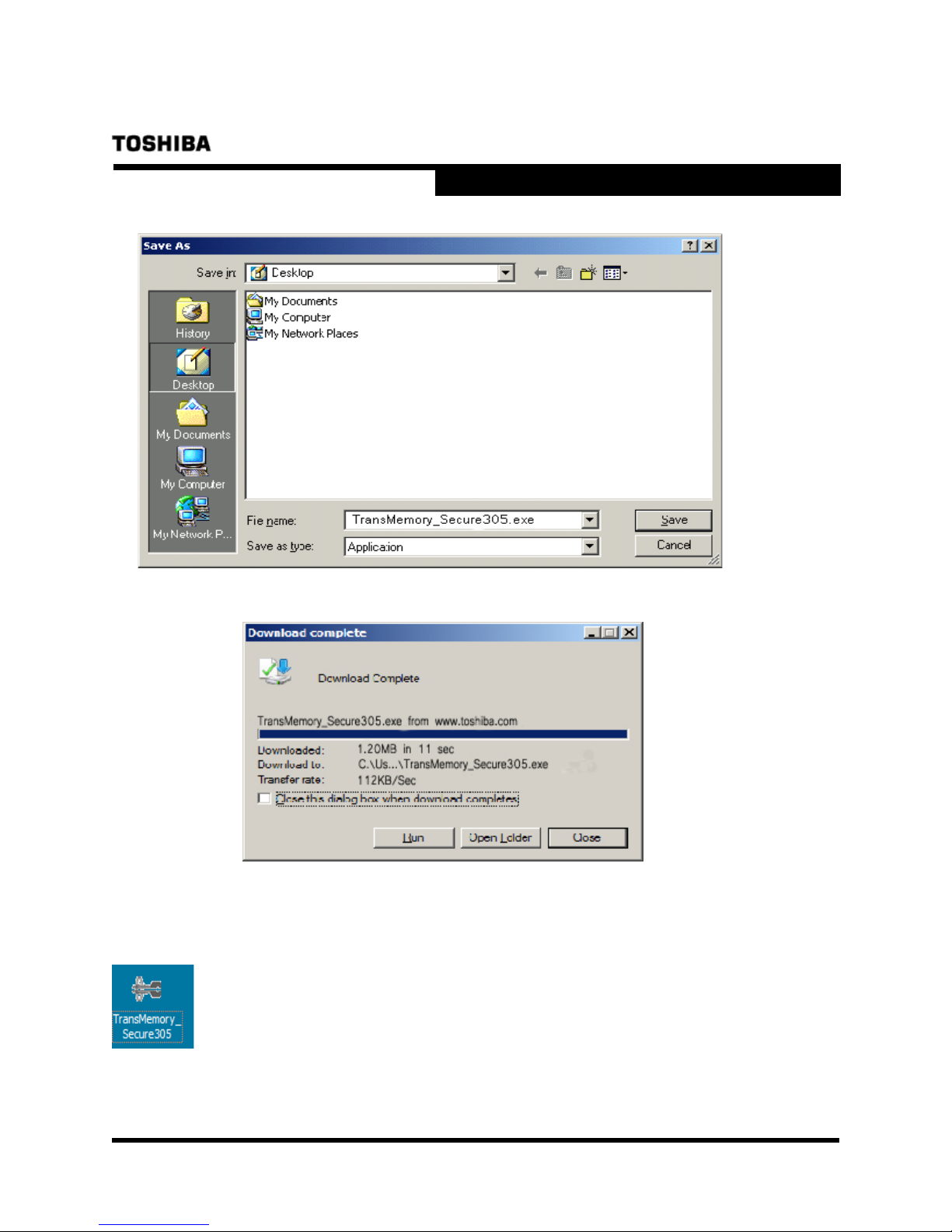

5) Click on “Save” in the dialog box, as shown below

v.1.0

Security Software Installation Manual

TRANSMEMORY™ USB TNU FLASH DRIVE

6) A dialog box asking where the software is to be saved appears. Select on “Desktop”.

7) When the download is complete, the following dialog box appears. Click on “Close”.

8) On the desktop, the downloaded software named “TransMemory_Secure305.exe” appears

as a new executable file.

v.1.0

Security Software Installation Manual

TRANSMEMORY™ USB TNU FLASH DRIVE

Chapter 4: How to Use the Security Software

This chapter describes how to use the TransMemoryTM Secure Software. Be sure to follow the

instructions for correct installation.

Important Note: Before following the instructions below, please back up any data stored in the

TransMemoryTM Flash Drive that you wish to save. All data may be lost when formatting

TransMemoryTM for the Privacy Zone. Toshiba assumes no liability for destruction or loss of data

stored on TransMemoryTM for any reason.

■ 1. Connect the TransMemory USB TNU Flash Drive

Please connect the TransMemoryTM Flash Drive to your computer before executing the

TransMemoryTM Secure Software.

■ 1.1 Setting up the Security Software – Adaptability Check

1) Double click on the “TransMemory_Secure305.exe” security software icon to start up the

security software.

2) Some types of TransMemory TM USB Flash Drives will show the dialogue boxes below.

Click “Check” when below dialogue box appears.

v.1.0

Security Software Installation Manual

TRANSMEMORY™ USB TNU FLASH DRIVE

Click “OK” on the dialogue box below.

Disconnect the TransMemory™ from the PC. These dialogues boxes will not appear once this

protocol is completed.

v.1.0

Security Software Installation Manual

TRANSMEMORY™ USB TNU FLASH DRIVE

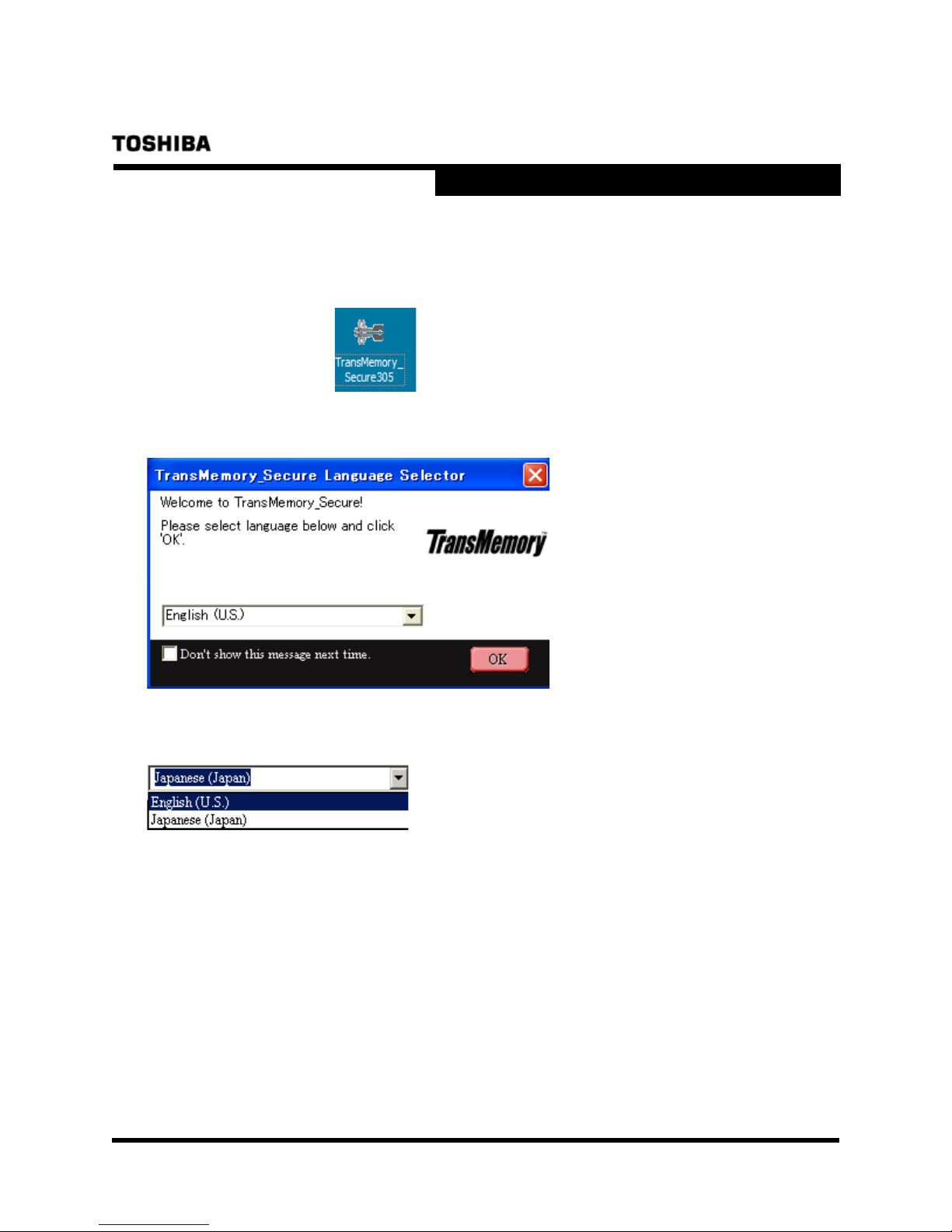

1.2 Setting up the Security Software

1) Double click on the “TransMemory_Secure305.exe” security software icon to start up the

security software.

2) When the following dialog box appears, click on “OK”.

If English is not selected, click on the downward-pointing arrow and select English.
