Toshiba B-FP3D-GH30-QM-R Manual de usuario

Portable Printer

B-FP3D-GH30/40-QM-R

B-FP3D-GS32/42-QM-R

B-FP3D-GH52-QM-R

Owner's Manual

Part Names

op cover open button

Operation

panel

trap slot

attery lever

Battery

cover

op cover

Platen

rint head

Peel-off unit

(GH30/GH40/GH52 only)

CIN connector

SB port

edia sensor

rint head cleaner

BD address label

(

GS32/GH30/GH52 models only)

elt clip

-3x8 screws

Tear bar

Battery pack

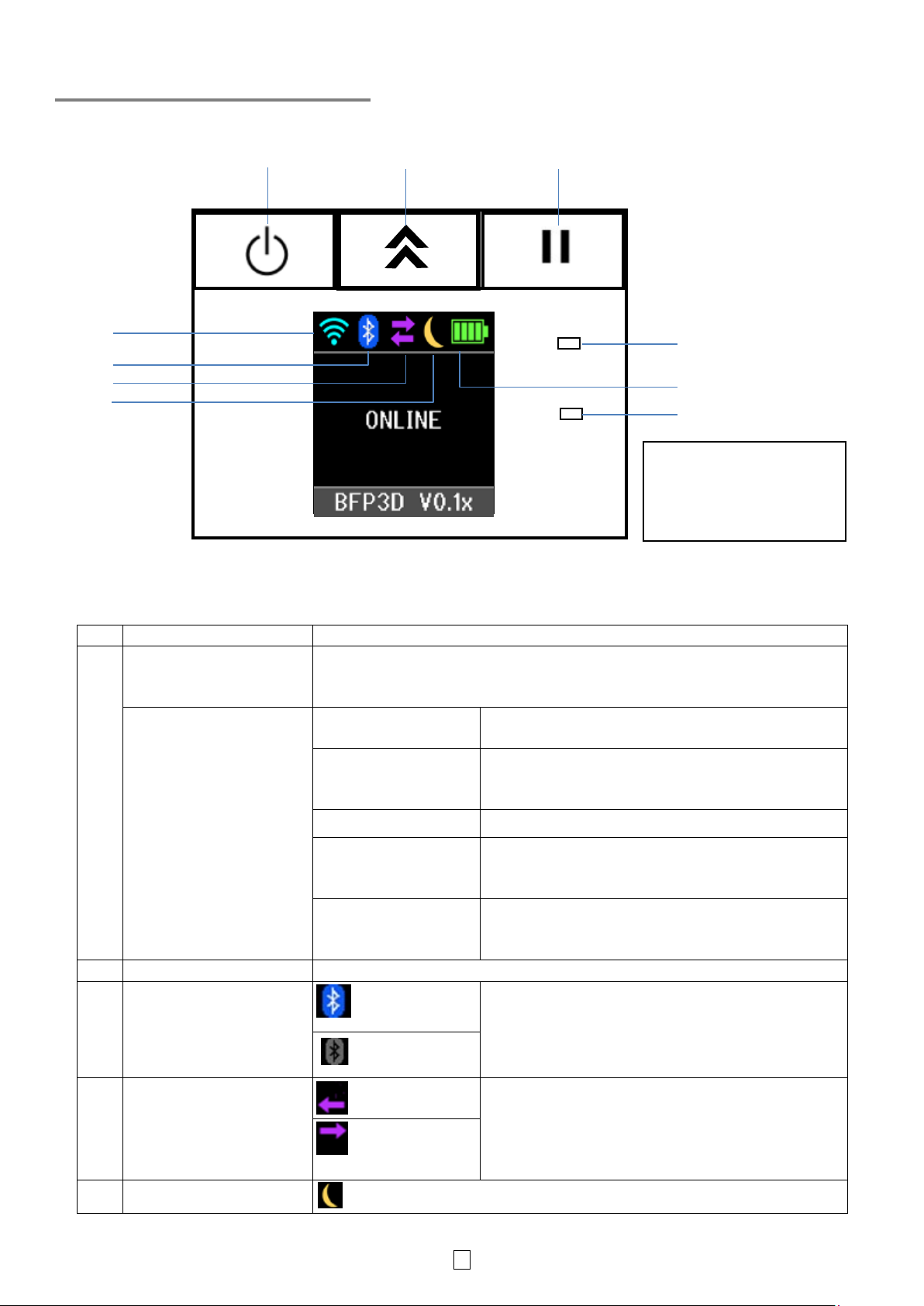

Operation Panel Functions

No.

Name/Icon

Function/Usage

(1)

Liquid Crystal Display

Icons indicating the printer statuses, such as the radio intensity,

battery level, etc. are displayed.

Printer status is indicated in alpha numerals or symbols.

LCD Message

ONLINE

The printer is ready for an issue command

from the host.

PAUSE

The printer is in pause state. When the printer

is paused during printing, the number of

unprinted labels is displayed.

COVER OPEN The top cover is open.

LBL PRESENT ****

The printer is waiting for a printed label to be

removed from the media outlet. “****” indicates

the number of unprinted labels.

WAITING(XXXX)

The printer is waiting for the recovery of the

battery voltage or the temperature decrease of

the print head or motor.

(2)

WLAN Signal strength

Indicates the WLAN intensity in 4 levels

(3) Bluetooth

Bluetooth

connected

Indicates the Bluetooth connection status

Bluetooth

not connected

(4) Transmission

Data reception

by the printer

Indicates the data transmission status.

Data

transmission to

the host

(5) Sleep

Displayed while the printer is in the power saving mode.

(10)

NOTE:

Do not touch the operation

panel with a sharp object,

as its surface is easily

damaged.

POWER

FEED

PAUSE

STATUS

CHARGE

(2)

(3)

(4)

(5)

(7)

(8)

(9)

(11)

(12)

(6) Error

Displayed when an error has occurred in the printer.

(7)

Battery level

Indicates the battery level in 5 levels.

(8) STATUS lamp

Lights or blinks in green, red or orange to indicate the printer status.

•Lights up in green: Normal state

•Lights up in orange: Low-battery warning state (Operable)

•Lights up in red: Low-battery state

•Blinks in green or orange: Communicating or internal processing is

in progress or a printed label is waiting to be removed.

•Blinks in red: Error state

(9) CHARGE lamp

Lights up in orange while the battery pack is charging and goes out

when the battery charge is completed.

(10) [POWER] button

Turns the printer on or off.

How to turn on the printer

While the printer is off, hold down the POWER button for a few

seconds. When “ONLINE” is displayed on the LCD, the printer is

ready.

How to turn off the printer

Hold down the POWER button until the LCD goes off.

(11) [FEED] button

Feeds media or reprints a previously printed data items.

The function of the [FEED] button differs depending on the issue

mode.

(12) [PAUSE] button

Temporarily stops media issuing or restarts printing.

Used to recover the printer after the clearing of an error

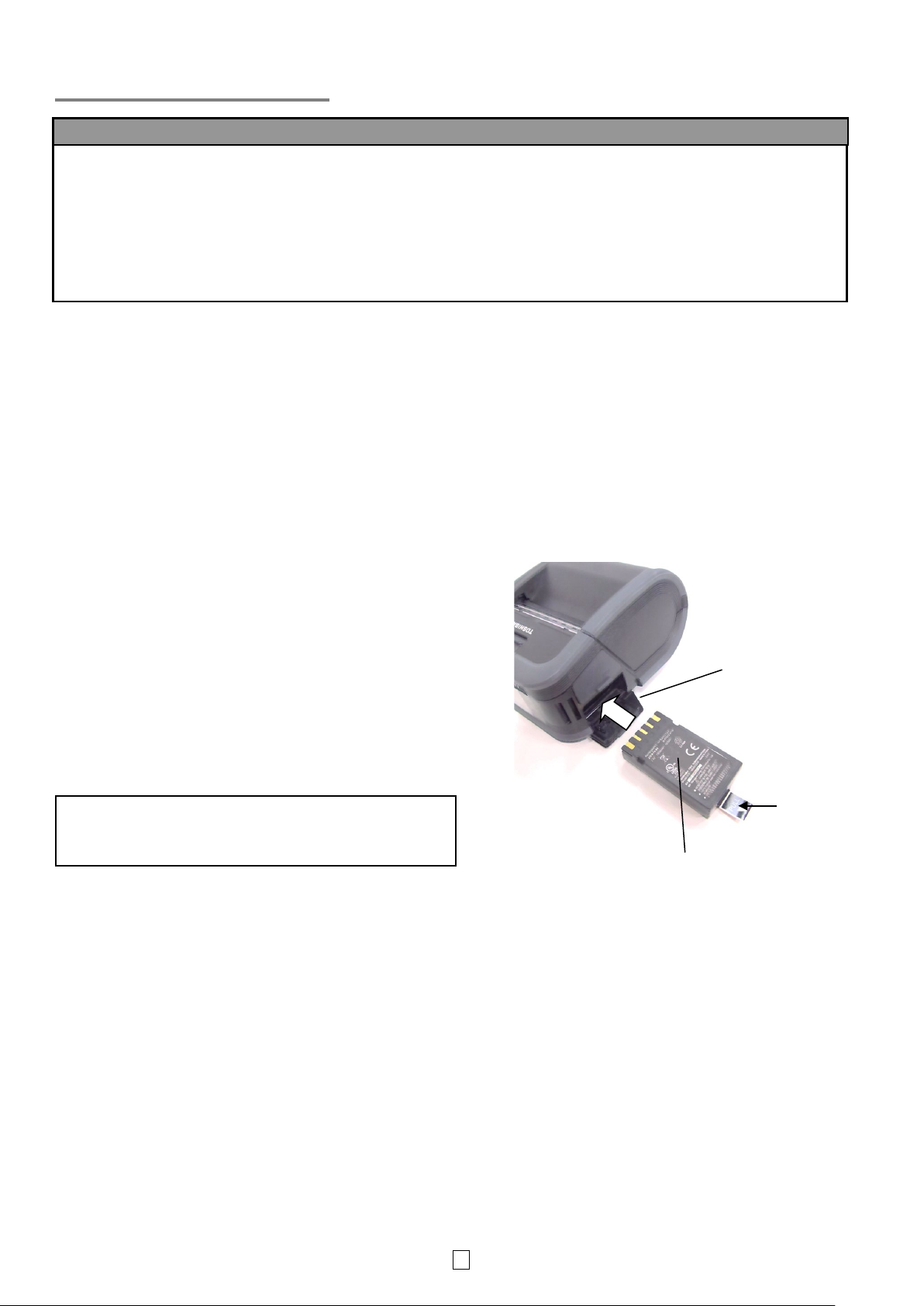

Loading a Battery Pack

Press the battery lever to open the battery cover and

insert the battery pack into the printer right up to the

end. The battery pack is locked in by the battery

cover. Be careful of the orientation of the battery

pack.

NOTE:

•

Be sure to use only the

battery pack designed and

manufactured for use with the printer B-FP3D

series: B-FP803-BTH-QM-R

•

When unpacked, the battery level of the supplied

battery pack is not full. Therefore, charge the

battery pack with an optional battery charger or

load the battery pack in the printer and connect an

optional adapter before using it.

♦1-slot battery charger: B-EP800-CHG-QM-R

♦6-slot battery charger: B-EP800-CHG6-QM-R

♦AC adapter: B-FP800-AC-QM-S

♦Cigarette lighter adapter: B-EP802-DC12-QM-R

♦DC Jack plug adapter: B-FP800-DCJA-QM-R

[B-FP3D Series]

1. If the battery pack leaks liquid or gives out smoke or a bad smell, immediately stop using it and keep

it away from fire. Failure to do this may cause combustion or even an explosion.

2. In the United States, used lithium ion batteries should be returned to the store where you bought the

machine. (USA only)

3. LITHIUM ION BATTERIES MUST BE DISPOSED OF PROPERLY.

Caution: Do not handle any damaged batteries or any leaking lithium ions.

4. To avoid injury, be careful not to drop the battery pack on your feet.

WARNING!

CAUTION!

DO NOT CONNECT any device other than the

above to the printer.

attery pack

attery lever

Tab

Removing a Battery Pack

Push the battery lever down in the direction of the

arrow, and remove the battery pack from the printer

by pulling on the tab.

Charging the Battery Pack with an Optional Adapter

When charging the battery pack in the printer using

an optional AC adapter, cigarette lighter adapter, or

DC adapter, insert the plug of the adapter into DCIN

connector of the printer.

NOTE:

For details, please refer to the Owner’s Manual of

respective optional adapters.

When using an optional battery charger to charge

the battery packs, please refer to the Owner’s

Manual of respective models of battery charger.

Even if the ambient temperature is within the

operating temperature, the battery pack may not be

charged for safety depending on the temperature of

the battery pack.

attery pack

Open

Plug of the power adapter

Cover

Batt

ery lever

Tab

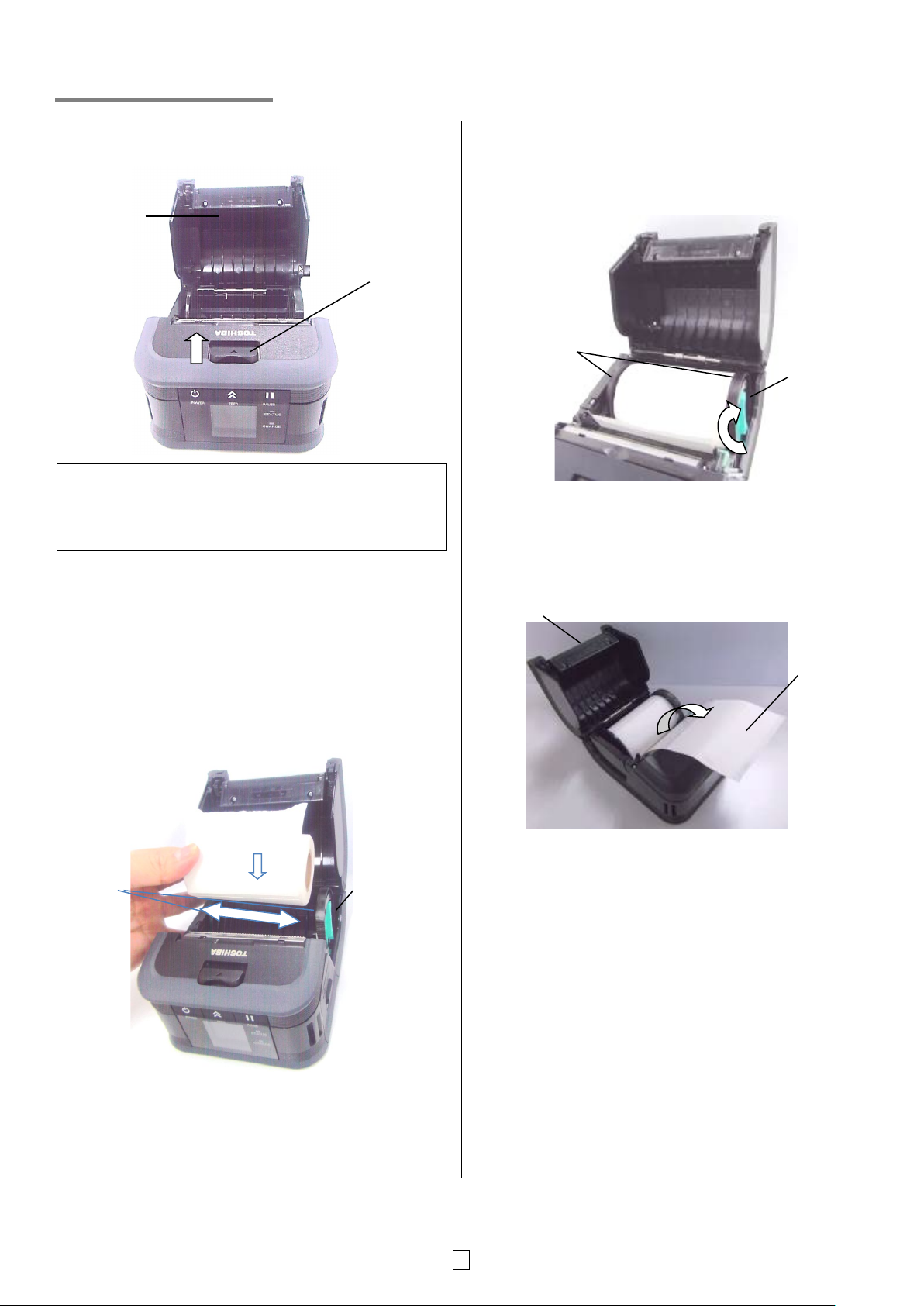

Loading the Media

Push the top cover open button to open the top

cover.

2. Move the paper guide lever toward the operation

panel and the paper guides outward.

NOTE:

Do not move the paper guides without unlocking

the paper guide lever. Doing this may break the

paper guides.

3. Place a media roll in the printer. Only outside

wound media can be used in the printer.

NOTE:

Be careful when working with the tear bar. Its edge

is sharp.

Adjust the paper guides to the media roll width.

5. Push back the paper guide lever to lock the paper

guides.

6. Pull the top edge of the media toward the

operation panel, and close the top cover removing

slack of the media.

NOTE:

•

Use Toshiba Tec approved media only. We are

not responsible for any print result due to the use

of other media.

•

When you order media, contact the nearest

Toshiba Tec representative.

Top cover

pen button

Top cover

Paper guide

ever

Paper

uide

Release

Media

Top cover

Paper guide

lever

Paper guide

Lock

CAUTION!

The print head has become hot immediately after

printing. Therefore, cool it down before loading

the media.

Before using a Peel-off Unit (GH30, GH40, GH52 models only)

When issuing labels in the peel-off mode, pull out

the peel-off roller before loading a label roll.

1. Open the top cover, and push the lock lever in the

direction of the arrow.

2. The peel-off unit is lifted.

Refer to “Loading the Media” on the previous

page and set a label roll.

NOTES:

1. DO NOT PULL the center of the peel-off roller

strongly. Doing so may break the peel-off roller.

2. Do not forcibly pull out the peel-off roller or push it

into the printer, otherwise the peel-off roller may

break.

3. Be careful when working with the tear bar. Its

edge is sharp.

How to put away the peel-off roller

1. Gently press the peel-off roller unit down and

push it into the printer in the direction i

ndicated by

the arrow until it clicks.

Peel

-off unit

Peel

-off unit

Peel

-off unit

Peel

-off unit

Lock lever

How to Attach the Accessories



Belt Clip

When you want to use the printer on belt, first

secure the supplied belt clip to the rear of the p

rinter.

1. Secure the belt clip to the printer back with the

two screws.

NOTE:

Only use the supplied screw to secure the belt clip.

The use of another screw may damage the inside of

the printer.

2. Fasten the belt clip to your belt.

Shoulder Strap (Option)

Use the following procedure to fasten an optional

shoulder strap (B-EP900-SS-QM-R) to the printer.

1. Pass either end of the shoulder strap through the

strap slot on the front of the printer.

2. Pass the end of the shoulder strap through the

buckle. Slide the buckle to adjust the length of

the shoulder strap.

3. Repeat for the other end of the shoulder strap.

CAUTION!

1. Care should be taken not to drop the printer when securing it to your waist or slinging it over your shoulder.

2. For fixing the printer to your belt, the belt width should be 40 mm or less. The use of the other belts may cause

the printer to fall.

-3x8 screws

elt clip

Belt

houlder strap

Buckle

trap slot

Data Transmission

USB

1. Turn on the host and start the system.

2. Turn on the printer and connect a USB cable to

the printer.

3. Connect the USB cable to the host.

4. Send data from the host to the printer.

NOTE:

•

For details of the interface cable, consult the

nearest Toshiba Tec representative.

•

When disconnecting the USB cable, follow the

instructions of the system on the host.

Wireless

1. When using Bluetooth, ensure the printer within

3m of the host.

In the case of wireless LAN, place the printer

within a wireless coverage area.

2. Turn on the printer and the host, and send data

from the host to the printer.

NOTE:

•

Be sure to read “Precautions for Handling of

Wireless Communication Devices” before

operating the printer.

•

Confirm that there are no obstacles between the

printer and the host. Obstacles may cause a

communication failure.

The radio connectivity is affected by the operating

environment. Especially, metal obstacles, metal

powder or locations enclosed by metal walls may

prevent proper communication.

For the installation location of access points,

consult

the nearest Toshiba Tec representative.

SB cable

SB port

andy terminal

ccess point

[Bluetooth]

[Wireless LAN]

Handy terminal

(via

Bluetooth)

PC host

(via

Bluetooth)

Bluetooth 4.0

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de Toshiba

Toshiba

Toshiba HSP100 Manual de usuario

Toshiba

Toshiba e-STUDIO222CP Manual de usuario

Toshiba

Toshiba B-SP2D Series Manual de usuario

Toshiba

Toshiba B-FV4D-GS12-QM-R Manual de usuario

Toshiba

Toshiba B-570 Manual de usuario

Toshiba

Toshiba B-SX4T Series Manual de usuario

Toshiba

Toshiba e-STUDIO400P Guía de configuración

Toshiba

Toshiba TRST-A10 SERIES Manual de usuario

Toshiba

Toshiba B-FP2D-GH30-QM-S Manual de usuario

Toshiba

Toshiba B-570-QQ Manual de usuario

Toshiba

Toshiba E-STUDIO 282 Manual de usuario

Toshiba

Toshiba TEC B B-SX5T SERIES Manual de usuario

Toshiba

Toshiba E-studio18 Instrucciones originales

Toshiba

Toshiba B-570 Manual de usuario

Toshiba

Toshiba GA-1121 Manual de programación

Toshiba

Toshiba B-852 Series Manual de usuario

Toshiba

Toshiba B-EP Series Manual de usuario

Toshiba

Toshiba TRST-A00 SERIES Manual de usuario

Toshiba

Toshiba TRST-A10 SERIES Manual de usuario

Toshiba

Toshiba B-EX4 T1 Series Manual

Toshiba

Toshiba B-852-R Series Manual de usuario

Toshiba

Toshiba B-SA4TM-GS12 Manual de usuario

Toshiba

Toshiba e-STUDIO2010AC Manual de programación

Toshiba

Toshiba B-450-R SERIES Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
