Toshiba B-852 Series Manual de usuario

TOSHIBA Thermal Printer

B-852 Series

SUPPLY LOADING INSTRUCTIONS

This sheet contains only the media and ribbon loading procedures. Please be sure to read the Owner’s Manual in

the CD-ROM for further information about this printer.

1. LOADING THE MEDIA

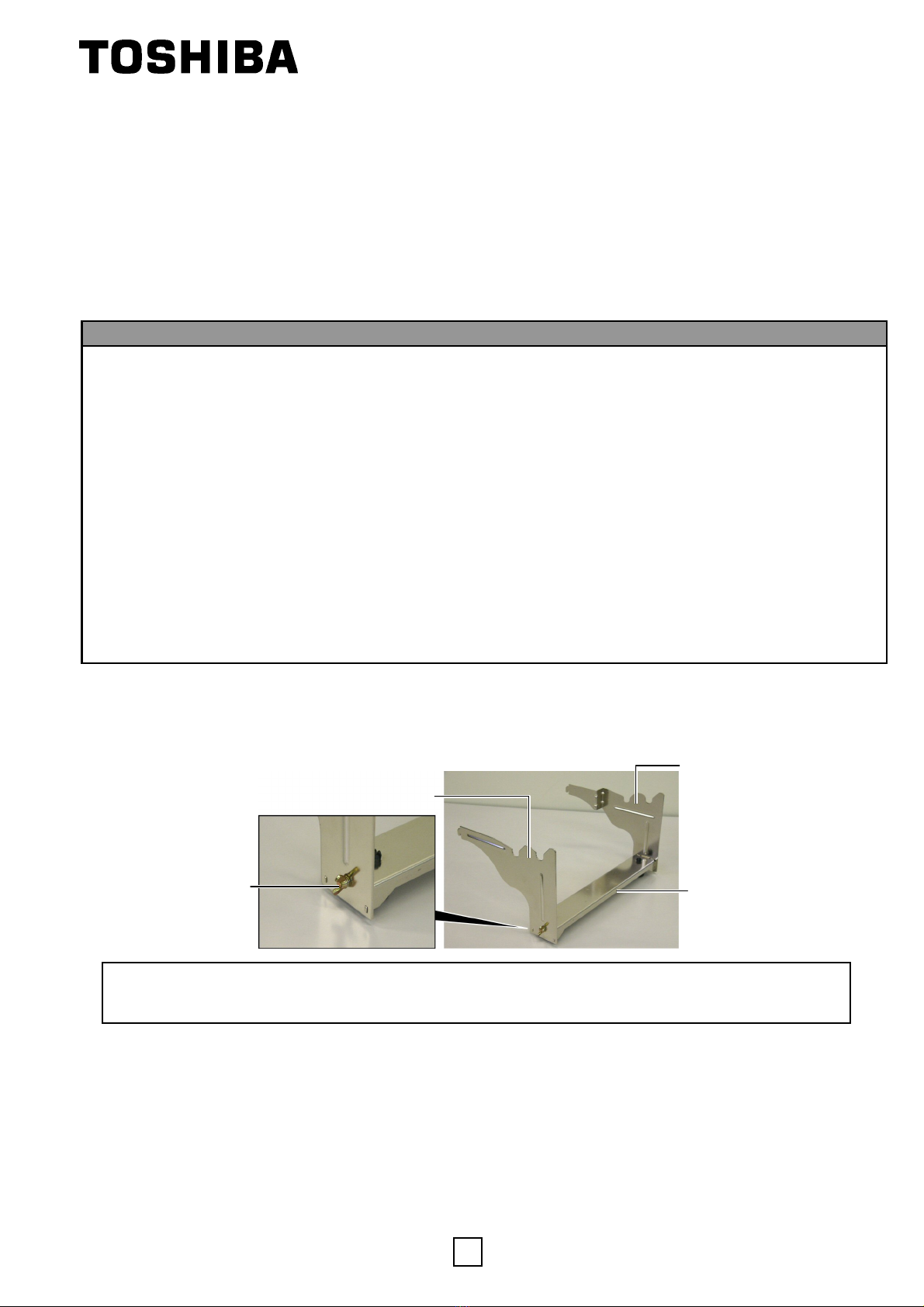

1.1 Assembling the Supply Holder Frame

1. Assemble the Supply Holder Frame (L) and Supply Holder Frame (R) to the Supply Holder Base using the

two M-4X6 Wing Bolts supplied, as shown below.

1. Do not touch any moving parts. To reduce the risk of fingers, jewellery, clothing, etc., being drawn into the

moving parts, be sure to load the media once the printer has stopped moving completely.

2. The Print Head becomes hot immediately after printing. Allow it to cool before loading the media.

3. Care must be taken not to pinch your fingers when opening or closing the Top Cover.

4. Be careful not to pinch your fingers by the Supply Holder Frame or Media Holders when loading the media.

AVERTISSEMENT!

1. Ne touchez pas aux éléments en mouvement. Pour éviter les risques que les doigts, les bijoux les

habits, etc. soient tirés vers les éléments en mouvement, rassurez-vous de charger le média lorsque

l'imprimante est arrêtée complètement.

2. La tête chauffe beaucoup en imprimant. Laissez-la refroidir avant de charger le média.

3 .Prenez garde à ne pas vous pincer les doigts lorsque vous manipulez la capot supérieur ou le capot

coté droit.

4. Prenez garde à ne pas vous pincer les doigts lorsque vous manipulez le cadre support média ou les

guides lors du chargement média.

WARNING!

Supply Holder Base

Supply Holder Frame (L)

Supply Holder Frame (R)

Wing Bolt

NOTE:

Make sure that the two small flanges at each end of the Supply Holder Base fit into the small rectangular holes at the

bottom of the Supply Holder Frames before tightening the Wing Bolts.

!00TSCC0156603!

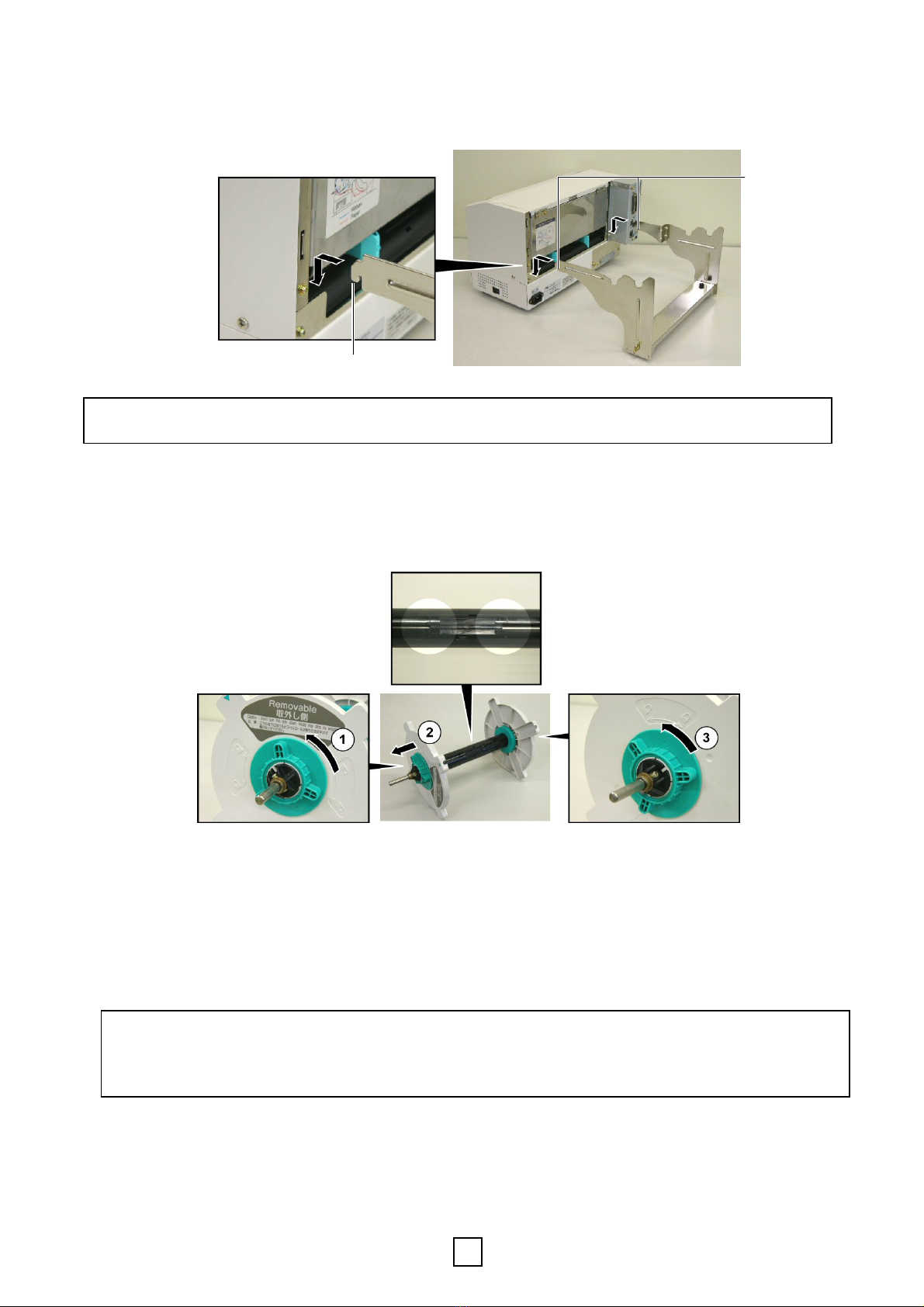

2. Attach the assembled Supply Holder Frame to the rear of the B-852 printer by inserting the hooks of the

Frame into the two slots in the rear of the printer as shown in the figure below.

1.2 Installing the Media onto the Supply Holder Unit

1. Disassemble the Supply Holder Unit.

1) Position the Supply Holder Unit as shown in the above diagram so that the Non-removable Supply Holder

is at the right.

2) Rotate the Green Supply Holder Locking Knob in the direction of arrow



(counterclockwise) to loosen

the Removable Supply Holder.

3) Slide the Removable Supply Holder in the direction of arrow



to remove it from the Supply Shaft.

4) Rotate the green Supply Holder Locking Knob in the direction of arrow



(counterclockwise) to loosen

the Non-removable Supply Holder.

5) Slide the Non-removable Supply Holder all the way to the end of the Supply Shaft until it stops.

Hook

NOTE:

After attaching the supply holder frame to the printer, make sure that it is assembled firmly

NOTES:

1. The Non-removable Supply Holder is the one that slides in the wide slot while the Removable Supply Holder is the

one that slides in the narrow slot.

2. Do not turn the Supply Holder Locking Knob anti-clockwise too far, or it may come off the Supply Holder.

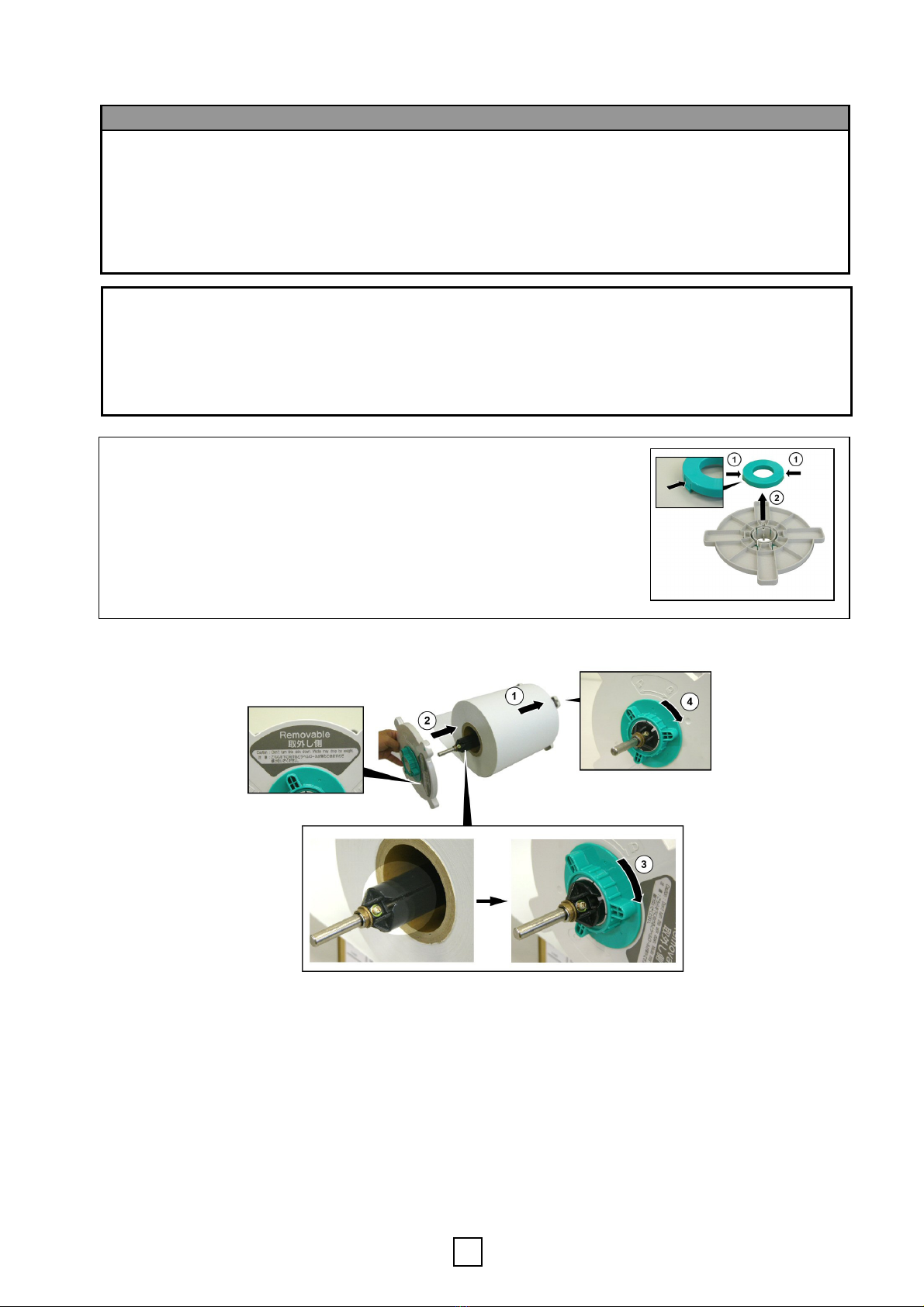

2. Install the Media and reassemble the Supply Holder.

1) Place the media roll onto the Supply Shaft with the media feeding from the bottom as shown in the

diagram above.



2) Align the tab of the Removable Supply Holder with the Slot in the Supply Shaft, then reinstall the

Removable Supply Holder by sliding it onto the Supply Shaft as shown in the figure above.

3) Holding the reassembled Supply Holder Unit in your right hand, apply pressure only to the reinstalled

Removable Supply Holder to push it in the direction of arrow



, causing the auto centering mechanism to

center the media on the Supply Shaft.

4) Tighten the green Supply Holder Locking Knob for the Removable Supply Holder by turning it in the

direction of arrow



5) Tighten the green Supply Holder Locking Knob for the Non-removable Supply Holder by turning it in the

direction of arrow



If you turn the Removable Supply Holder side down after loading the media, the media may drop by

weight. You might be injured by the dropped media.

AVERTISSEMENT!

Prenez garde à ne pas tenir le support de media avec la flasque amovible vers le bas car le rouleau

de media peut tomber sous l'effet de son proper poids. Dans ce cas, prenez garde à ne pas vous

blesser lors de la chute.

WARNING!

CAU

TION!

When installing the media roll, do not push on the Non-

removable Supply Holder as this will result in

the media roll not being properly centred.

ATTENTION!

En installant le rouleau de media, ne poussez pas sur la flasque non amovible, car cela aura

pour

résultat d’avoir un mauvais centrage du rouleau.

NOTES:

1. This Supply Holder accepts four sizes of media core: 38 mm, 40 mm, 42 mm and

76.2 mm. When using a media roll of 38 mm, 40 mm, or 42 mm, remove the

spacers from the Supply Holders by pushing both hooks of the Spacer. Keep the

removed Spacers safe.

2. Use only inside wound label stock. Outside wound label stock may not feed

properly. Use outside wound label stock at your own risk.

3. Do not over-tighten the green Supply Holder Locking Knob.

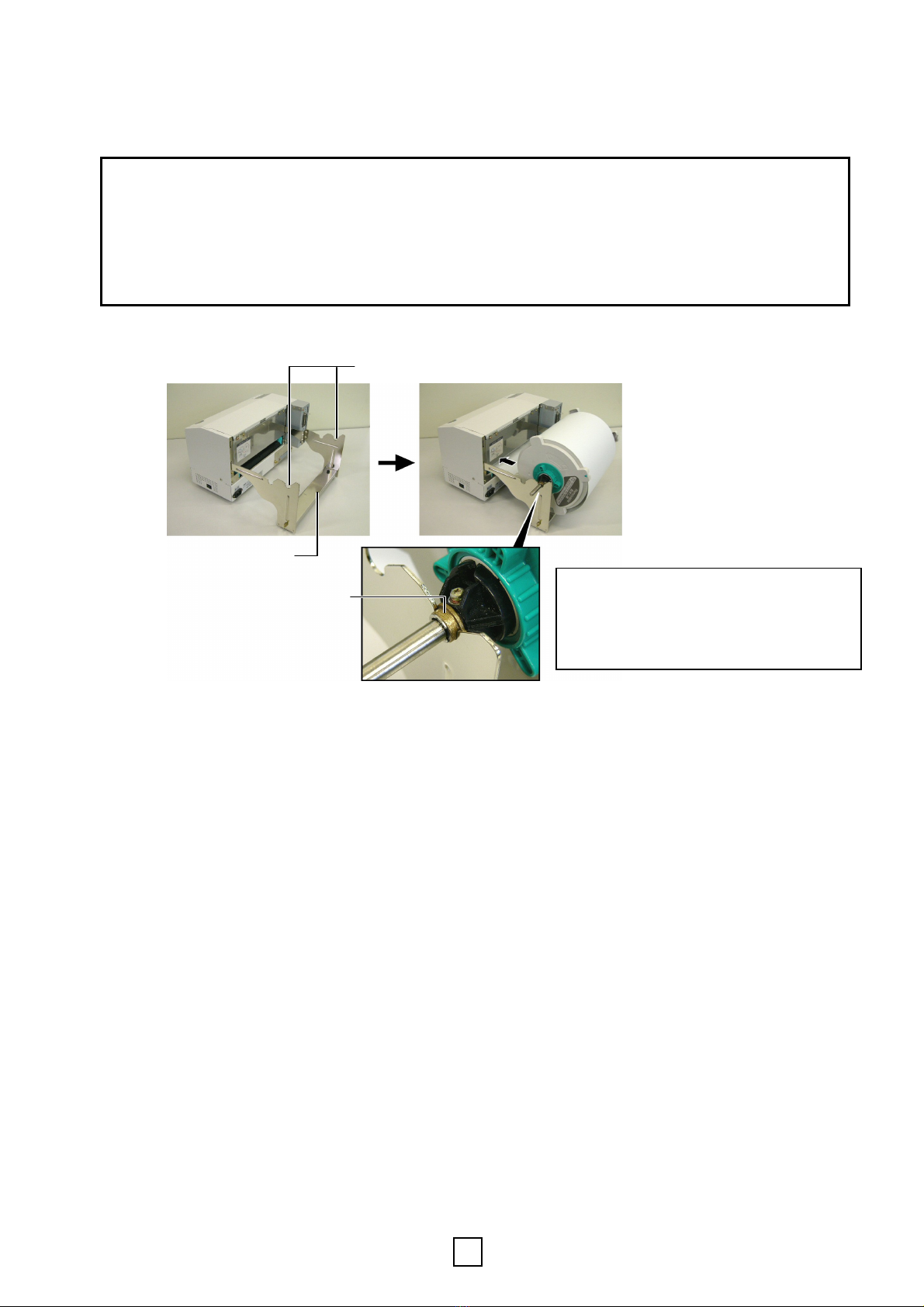

1.3 Installing the Supply Holder Unit onto the Supply Holder Frame

1. Insert the assembled Supply Holder Unit into the rear notches of the Supply Holder Frame as shown in the

diagram below.

Now feed the media from the bottom of the media roll into the media slot at the rear of the printer as shown

Rear Notch

CAUTION!

The reassembled Supply Holder Unit and media roll may be quite heavy, so be careful not to pinch

your fingers when installing the Supply Holder Unit onto the Supply Holder Frame.

ATTENTION!

Après remontage, le support media et son media peuvent être assez lourds, aussi faites attention à

ne pas vous pincer les doigts lors de l’installation.

NOTE:

Make sure that the brass bushings of the

Supply Shaft are seated into the notches so

that the entire Supply Holder Unit rotates

smoothly.

Supply Holder

Frame

Brass Bushing

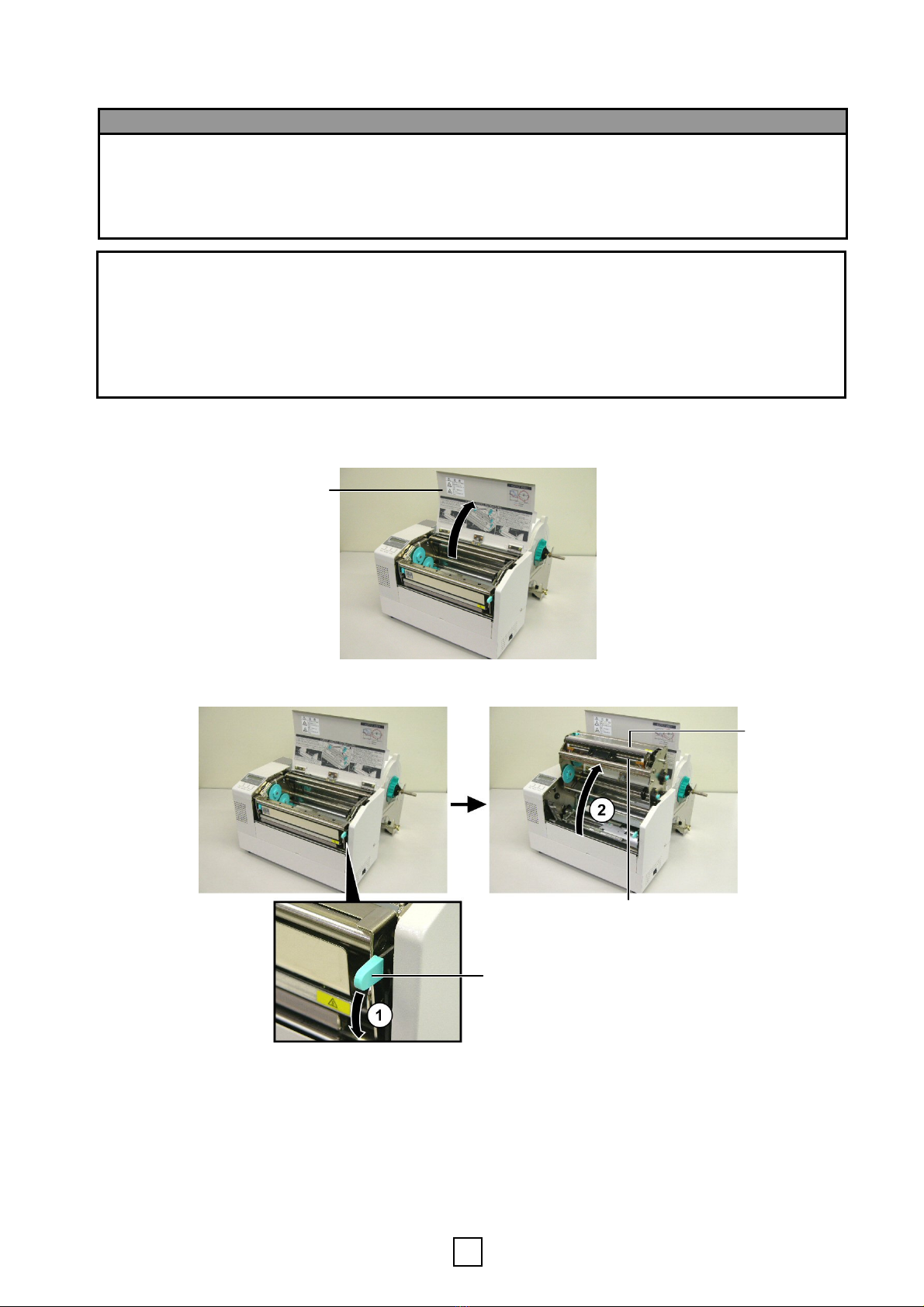

1.4 Loading Media into the Printer

1. Raise the Top Cover as shown in the diagram below.

2. Release the Print Head Block by pressing down on the Head Block Release Lever



as shown below.

3. Raise the Print Head Block to its fully open position as shown by the arrow



in the above diagram.

Top Cover

Print Head Block

Print Head Element

Head Block

Release Lever

The Top Cover can be opened during the operation for control purposes only. It should be closed

during normal operation.

AVERTISSEMENT!

Le capot supérieur peut être ouvert en fonctionnement à des fins de contrôle uniquement. Il doit être

fermé de façon habituelle.

WARNING!

CAUTION!

Be careful not touch the Print Head Element when raising the Print Head Block. Failure to do this may

cause missing dots by static electricity or other print quality problems.

ATTENTION!

Prenez garde à ne pas toucher

les éléments actifs de la tête en levant le bloc de tête. L’électricité

statique peut engendrer des problèmes de qualité d’impression ou endommager des points de tête.

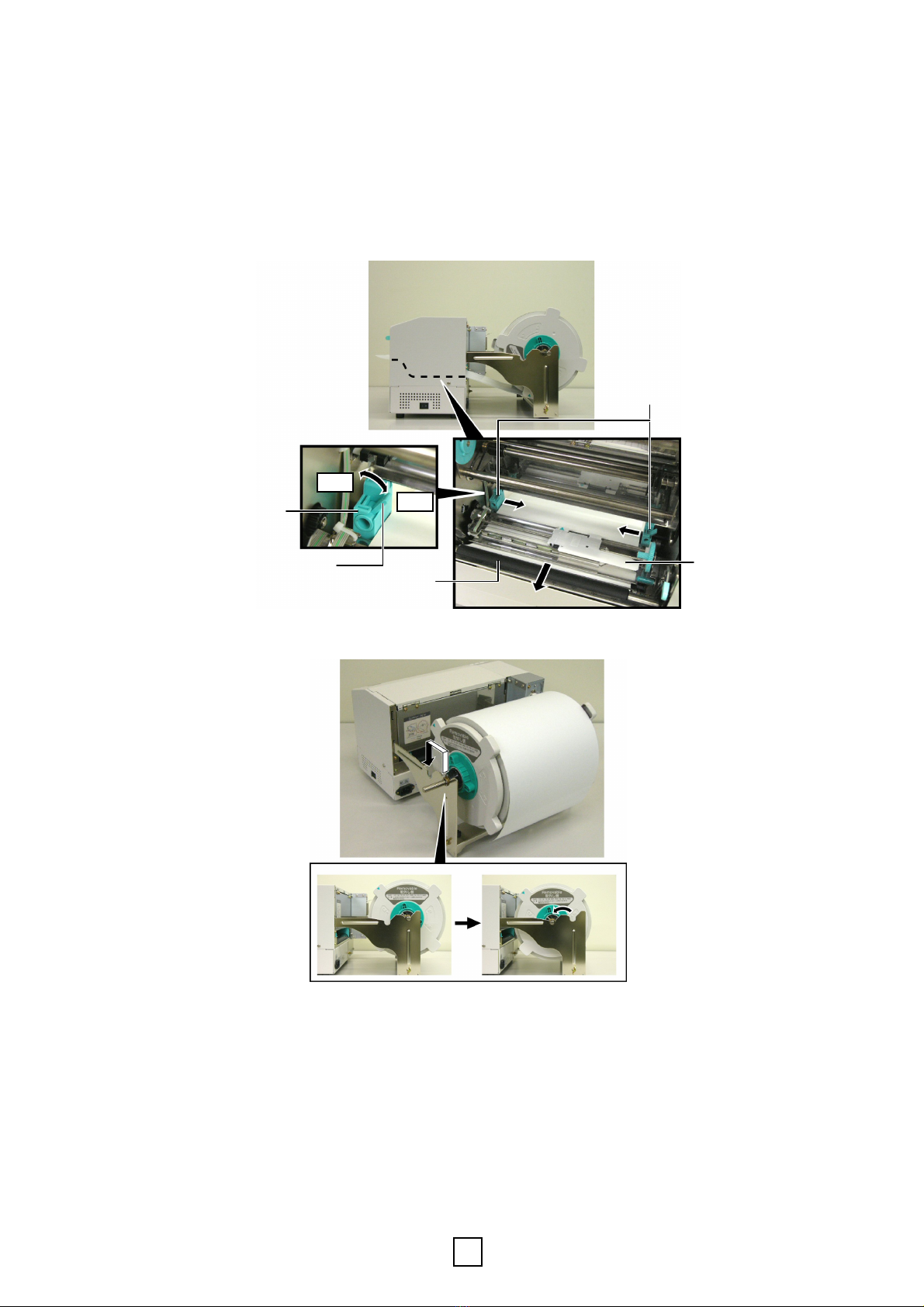

4. Release the locking levers on the two paper guides as shown in the figure below.

5. Grasp the right hand Paper Guide and move it to the right to open the Paper Guides wide enough to accept the

media.

6. Feed the media between the two guides.

7. Feed the paper under the Upper Sensor Ass’y and pull the paper until it extends past the Platen. (until it

extends past the cutter outlet when the optional cutter is attached.)

8. Grasp the right Paper Guide and move it to the left to close both Paper Guides and automatically center the

media.

9. Press the Paper Guide Locking Levers to lock the Paper Guides in place.

10. After loading the media, don’t forget to move the Supply Holder Unit to the forward notch of the Supply

Roll Frame as shown below.

Paper Guide

Platen

Paper Guide Locking Lever

Upper Sensor Ass’y

Paper Guide

Lock

Free

11. If you are using labels or thick tag paper, then it may be necessary to increase the head pressure by lowering

the Head Pressure Adjust Lever in the figure below.

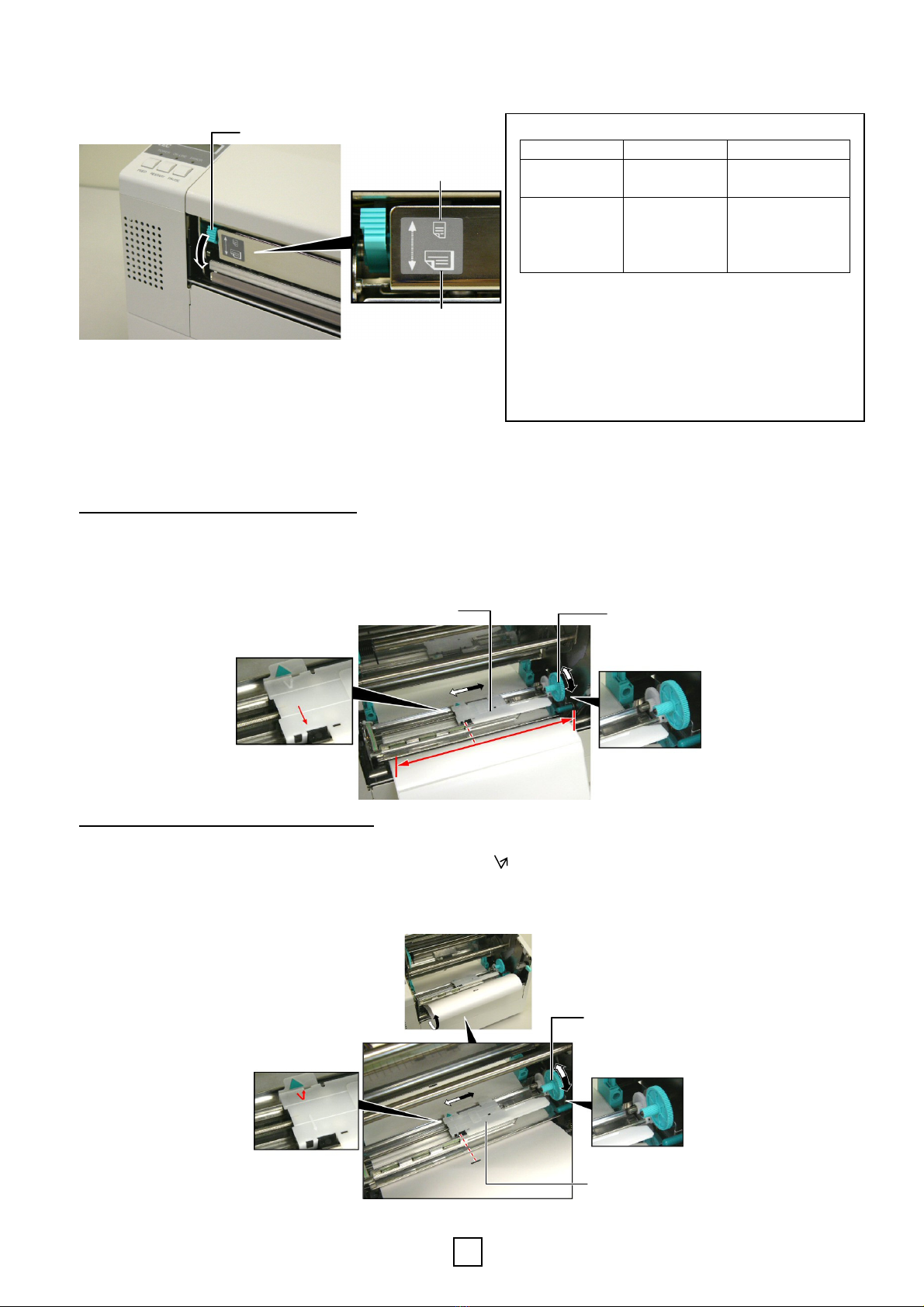

1.5 Setting Sensor Positions

After loading the media, as outlined in the previous paragraphs, it will usually be necessary to set the Media

Sensors used to detect the print start position for label or tag printing.

Feed Gap Sensor Position Adjustment

1) With the Print Head Block raised, pass the labels under the Upper Sensor Ass’y as shown in the figure below.

2) Rotate the Green Sensor Adjust Gear to move the Sensor Ass’y to the left or right to center the arrow (

↑

)

over the label.

3) With the sensor set to the center of the labels, it will be guaranteed to detect the gap between labels even if the

labels are round.

Black Mark Sensor Position Adjustment

1) If the Black Mark is printed on the top of the tag media then simply rotate the Green Sensor Adjust Gear to

move the Sensor Ass’y so that the Black Mark Indicator ( ) is directly in line with the Black Mark on the top

of the paper.

2) If the Black Mark is printed on the bottom of the tag media then fold the media back to be able to see the

Black Mark and its relationship to the Sensor Ass’y as shown in the figure below.

Head Pressure Adjust Lever

DOWN

NOTE: Head Pressure Adjust Lever Position

Lever position

Head pressure

Available media

UP Low

•

Thin tag paper

•Narrow media

DOWN High

•

Label

•Thick tag paper

•Wide media

•Full width media

•When using full width media, be sure to turn the Head

Pressure Adjust Lever to DOWN, regardless of the

thickness.

•For all kinds of media except the full width media,

turn the Head Pressure Adjust Lever to UP, if the

print quality is to be ensured.

•If the print tone is light when using thin tag paper,

turn the Head Pressure Adjust Lever to DOWN.

Upper Sensor Ass’y

Green Sensor

Adjust Gear

Upper Sensor Ass’y

Green Sensor Adjust Gear

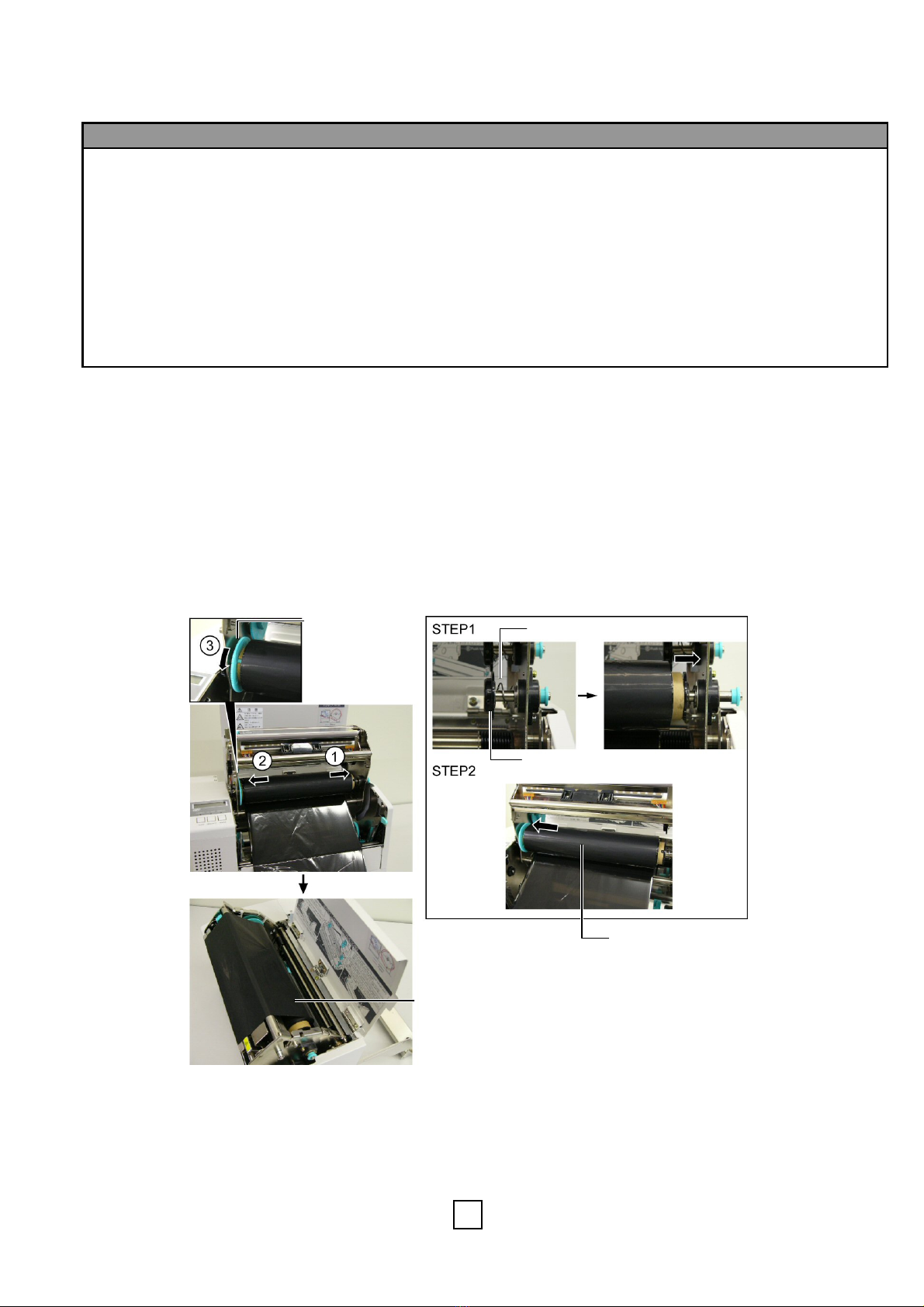

2. LOADING THE RIBBON

1. Raise the Top Cover and release and raise the Print Head Block.

2. Hold the Ribbon Supply Roll in your left hand and the Ribbon Take up Roll in your right hand.

3. Install the Ribbon Supply Roll into the Print Head Block as shown in the figure below and described in the

following paragraphs.

4. Step 1, engage the end of the Ribbon Supply Roll Core to the Ribbon Core Guide



and push to compress the

Ribbon Spring.

5. Step 2, engage the opposite end of the Ribbon Supply Roll Core to the Green Ribbon Winding Core



releasing pressure to relax the Ribbon Spring.

6. Rotate the Green Ribbon Winding Core to lock the Ribbon Supply Roll into position.



1. The Print Head may become hot. Do not touch the Print Head.

2. The Top Cover can be opened during the operation for control purposes only. It should be closed during

normal operation.

3. Risk of injuries. Do not touch moving parts. Disconnect the mains before maintenance of ribbon and

media.

AVERTISSEMENT!

1. Ne touchez pas la tête d'impression, car celle-ci peut devenir très chaude lors du fonctionnement.

2. Le capot supérieur peut être ouvert en fonctionnement à des fins de contrôle uniquement. Il doit être fermé

de façon habituelle.

3. Risques de blessures. Ne touchez pas aux parties mobiles. Déconnectez tousles câbles avant de

manipuler le film ou le media.

WARNING!

Ribbon Core Guide

Green Ribbon

Winding Core

Ribbon Spring

Ribbon Take

up Roll

Ribbon Supply Roll

PRINTED IN

INDONESIA

EO2-33019B

SPTM-0237

by TOSHIBA TEC CORPORATION

570 Ohito, Izunokuni-shi, Shizuoka-ken, JAPAN

< For EU Only >

TOSHIBA TEC Europe Retail Information Systems S.A.

Rue de la Célidée 33 BE-1080 Brussels

7. Repeat steps 4through 6with the Ribbon Take up Roll, locking it in place also.

8. Take up any slack in the ribbon by rotating the green Core Winding Gear on the take up in the direction of

arrow



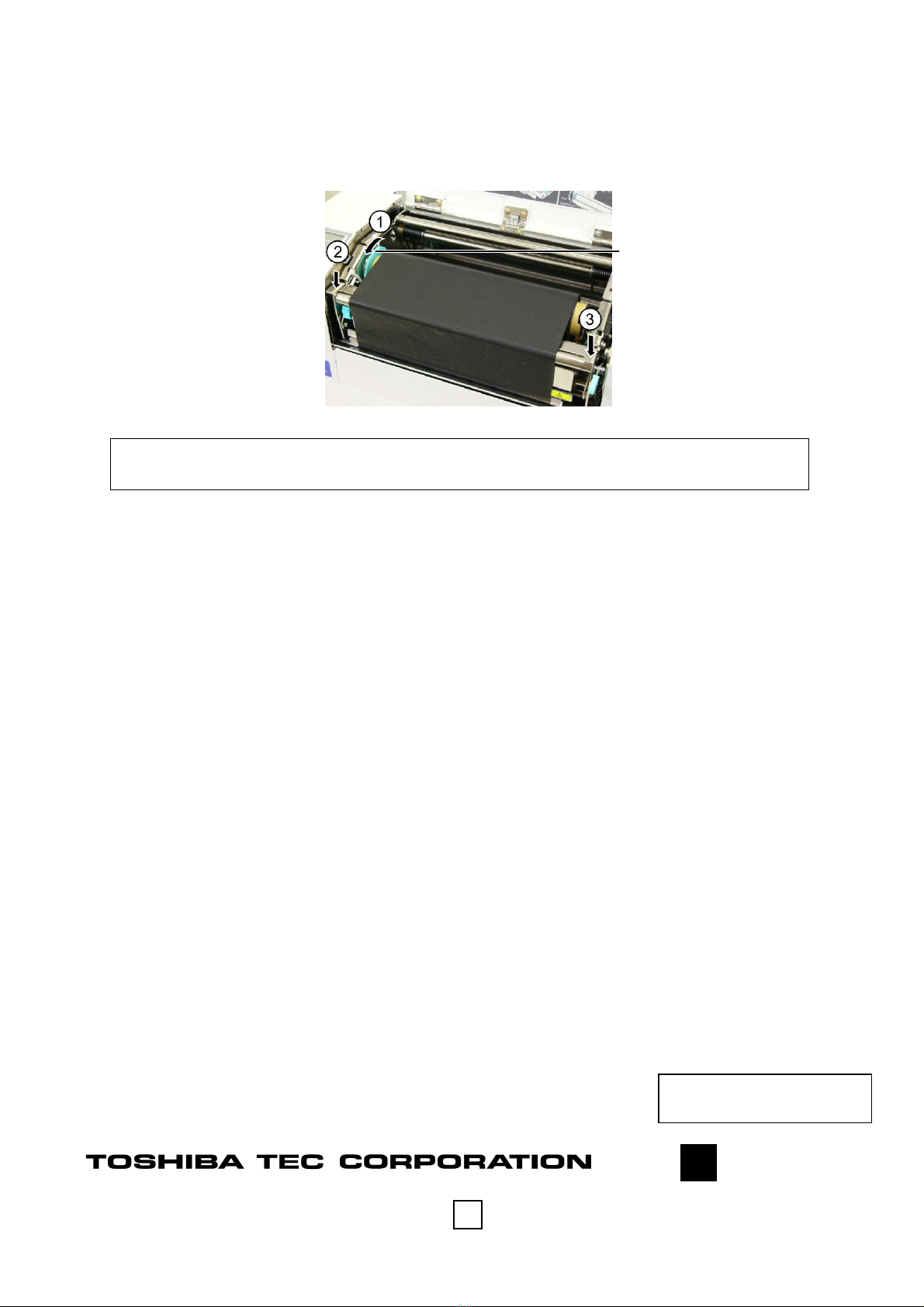

9. Close the Print Head Block and lock it in place by pressing at locations



and



in the figure below.

NOTE:

Be sure to remove any slack in the ribbon. Printing with a wrinkled ribbon will lower the print quality

Green Ribbon

Winding Core

Tabla de contenidos

Otros manuales de Impresora de Toshiba

Toshiba

Toshiba TEC B B-SX5T SERIES Manual de usuario

Toshiba

Toshiba B-FP3D SERIES Manual de usuario

Toshiba

Toshiba SureMark 4610 Manual de usuario

Toshiba

Toshiba e-studio 80f Manual de usuario

Toshiba

Toshiba B-EP2DL Series Manual de usuario

Toshiba

Toshiba B-EP2DL Series Manual de usuario

Toshiba

Toshiba B-FP2D-GH30-QM-S Manual de usuario

Toshiba

Toshiba B-852 Advance Manual de usuario

Toshiba

Toshiba B-EP2DL Series Manual de usuario

Toshiba

Toshiba TEC CB-416-T3-QQ Manual de usuario

Toshiba

Toshiba B-SA4T Especificaciones técnicas

Toshiba

Toshiba TCx 2tn Manual de usuario

Toshiba

Toshiba SureMark Instrucciones de funcionamiento y seguridad

Toshiba

Toshiba B-EX4 SERIES Especificaciones técnicas

Toshiba

Toshiba B-FV4T-GS12-QM-R Manual de usuario

Toshiba

Toshiba TRST-A10 SERIES Manual de usuario

Toshiba

Toshiba e-STUDIO400P Guía de configuración

Toshiba

Toshiba B-SP2D Series Manual de usuario

Toshiba

Toshiba HSP100 Manual de usuario

Toshiba

Toshiba B-SX600 SERIES Especificaciones técnicas

Toshiba

Toshiba B-415 Manual de usuario

Toshiba

Toshiba 1TN Manual de usuario

Toshiba

Toshiba B-SA4 Manual de usuario

Toshiba

Toshiba B-FP2D Series Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
