Toshiba TVM-1003 Manual de usuario

Instruction Manual

TVM-1003

TVM-1203

TOSHIBA

Please read this manual thoroughly before use, and keep it handy for future reference.

OPERATING INSTRUCTION

FRONT IO”

12”

’

‘;3

H-HOLD (horizontal hold) CONTROL

When the picture .has slanting horizontal bars, rotate the H-HOLD control in either direction until

a stationary picture is obtained.

V-HOLD (vertical hold) CONTROL

When the picture rolls up or down on the screen, adjust V-HOLD control until there is a single

steady picture.

BRIGHT (brightness) CONTROL

Turn clockwise for more brightness and counterclockwise for less.

CONTRAST CONTROL

Turn clockwise to increase picture contrast and counterclockwise to decrease it.

POWER SWITCH

To turn the monitor power on, press once. To turn the power off, press once again.

BACK IO”

12”

....................

’

II -9

‘-8

....................

VIDEO IN

OUT CONNECTOR

Connector to the video output of a VCR or another monitor (for loop-through

connection) or to a video camera.

Loop-through output of the VIDEO IN connector

Connector the video input of

another monitor or a VCR.

Note: The impedance is automatically set to 75 ohm by the input of a signal on the

’

input connector while operating in a single connection mode. However, if a cable

is connected to the output connector, the connection is placed into the open

status by the multiple connection and high impedance automatically selected.

Caution: Do not leave an unused cable connected to the monitor. If a single cable is

used, then it must be connected to the input connector for the 75 ohm auto-

termination selector to function properly

SCAN MODE SELECTOR (EIA

CCIR)

Set to EIA

for

EIA standard.

Set to CCIR for CCIR standard.

V-HEIGHT CONTROL

To adjust this control for the vertical size of the picture.

V-LIN. CONTROL

To adjust this control for the vertical linearity of the picture.

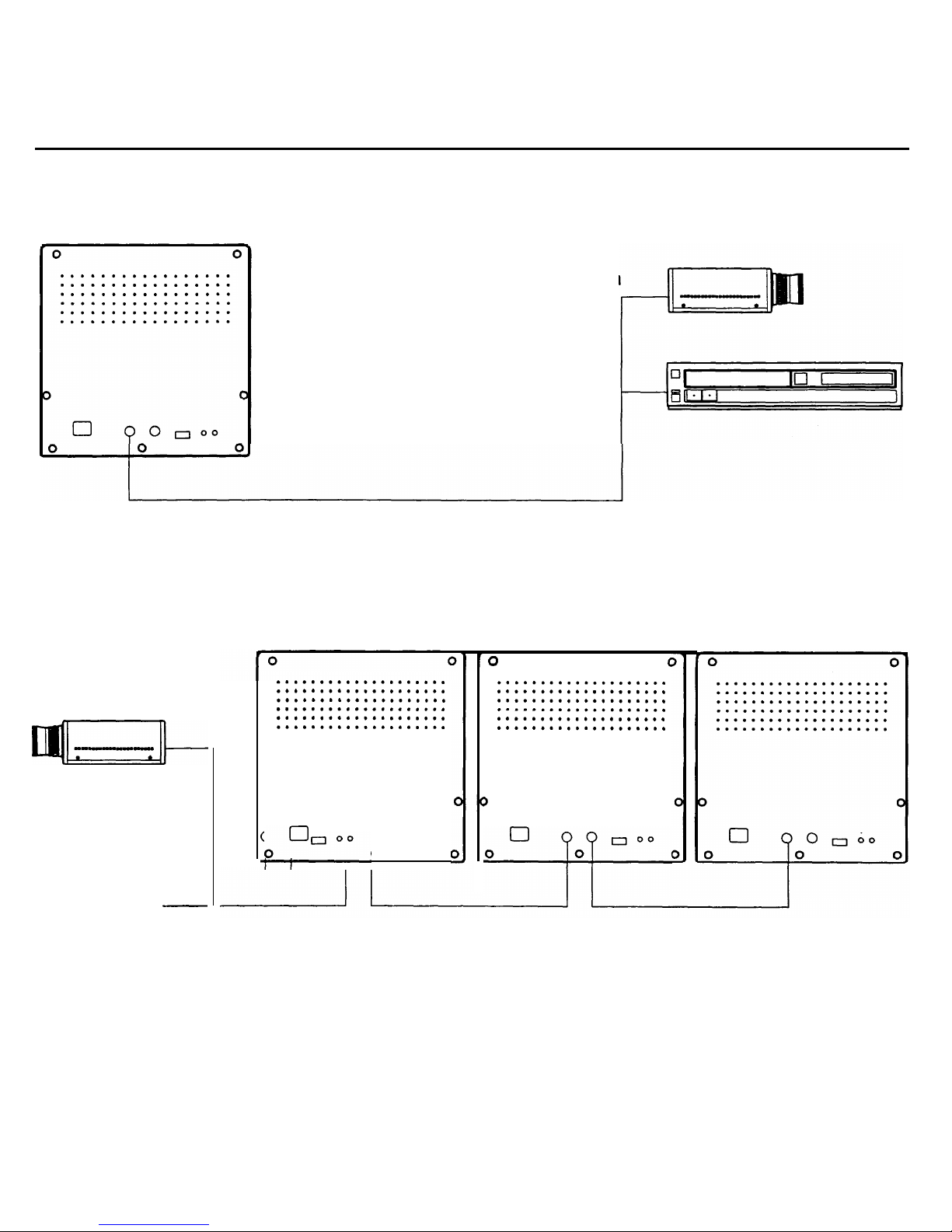

CONNECTION

SINGLE CONNECTION

MULTIPLE CONNECTION

to video camera

qzl_

to video output

....................

p?“““,

o”

to video

camera

to video output

....................

)

Up to 3 monitor can be connected using the loop-through feature of this unit.

When this monitor is connected to additional monitors, the same picture can be obtained on all the

connected monitors.

SPECIFICATIONS

PICTURE TUBE(Useful screen size)

POWER SOURCE

POWER CONSUMPTION

SYSTEM

RESOLUTION

INPUT SIGNAL

SCANNING FREQUENCY

HORIZONTAL

: VERTICAL

LINEARITY

: HORIZONTAL

: VERTICAL

ACTIVE DISPLAY AREA

HORIZONTAL

: VERTICAL.

INPUT CONNECTOR(CAMERA)

CONTROL

FRONT

: BACK

OPERATING TEMPERATURE

AMBIENT HUMIDITY

DIMENSIONS(W x D x H)

WEIGHT

IO” Diagonal,

90”

Deflection Angle

(

8.7”)

12” Diagonal,

90”

Deflection Angle (11.6”)

EIA

AC 90 to 132V 50Hz/60Hz

CCIR : AC 198 to 254V 50Hz/60Hz

18 Watts

EIA or CCIR standard

more than 800 TV lines (center)

.OVp-p

(75 ohm)

EIA

60Hz

15.734KHz

CCIR

50Hz

15.625KHz

EIA

59.94Hz

CCIR

50Hz

10% MAX.

10% overscanning

13% overscanning

BNC connector

H-HOLD, V-HOLD, BRIGHT, CONTRAST,

POWER SIW

V-LINEARITY, V-HEIGHT,

EIAICCIR SELECTOR S/W

0°C

40°C (32°F

104°F)

90%

IO”

220mm x 248mm x 234mm

12”

305mm x 302mm x 287mm

IO”

4.3Kg

12”

7.3Kg
