List of contents

Special features ..............................................................2

Safety instructions .........................................................3

Getting started ...............................................................4

Aerial connection.............................................................4

Switching on....................................................................4

Battery fitting..................................................................4

Control unit....................................................................5

Front and rear panel.........................................................5

External connections table...............................................6

Remote control ................................................................6

Using the TV ..................................................................7

Tuning the TV .................................................................8

Automatic tuning .............................................................8

Manual tuning..................................................................9

Program organising .......................................................10

TV setup .......................................................................11

Sound menu ...................................................................11

Sound Features ..............................................................12

Picture menu..................................................................13

Features Menu ...............................................................13

Using teletext...........................................................15-16

Connecting external equipment............................18-24

Help and service tips ...................................................25

Technical specifications table .....................................26

Television

Thank you for buying this television which is designed to give you many years of

satisfactory service.

You may already be familiar with using a television but do please take time to read these

instructions. They are designed to familiarise you with the unit’s many new features

and to ensure you get the very best out of your purchase.

Special features

• 15” TFT-LCD XGA Panel

• 1024x768 resolution

• 16,722,216 colors (8 bit)

• CATV

• 430 cd/ brighthness

• 400:1 Contrast ratio

• 2x2W Stereo Sound

• 124 page teletext

• Wide viewing angles

• 1 Scart, AV, Audio Out.

• Low Power Consumption

• AVL

• ATS

• Intelligent programme switch

• On timer

• Off timer

• Graphical equaliser

• On screen display

• Manual fine tuning

• 100 Programme memory

• Full function remote control

• Child Lock

Safety is Important

Your safety and the safety of others is important. Please, therefore, ensure you read

the Safetyinstructions before you operate this television.

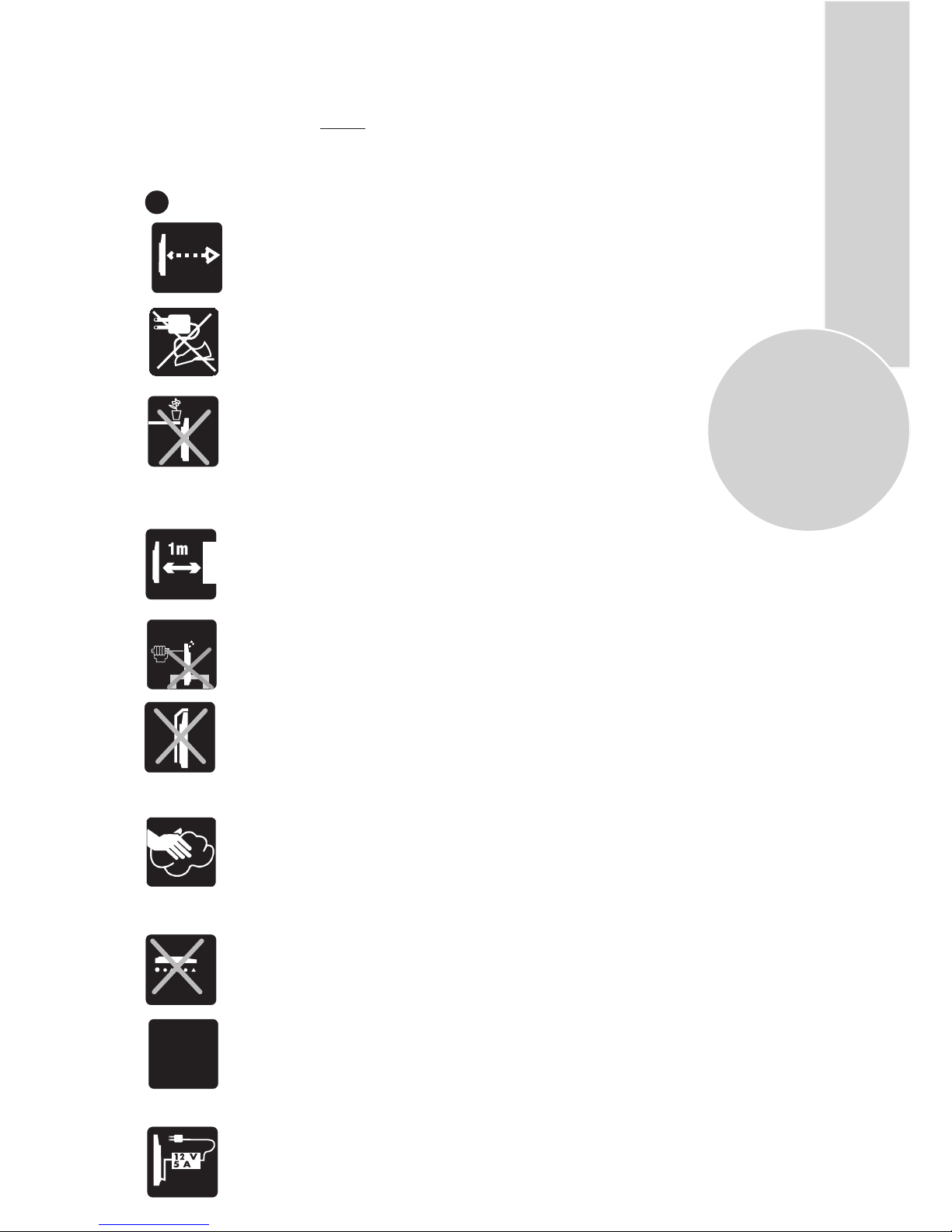

Safety instructions

Read all the safety instructions before first use of your TV.

• Position the television so that direct light does not fall on

the screen. Excessive light will cause a washed out effect.

• Position the power supply lead and other leads so that

they are not likely to be walked on or pinched by things

placed on or against them.

• Do not place objects filled with liquid such as vase or

flower pot near the television.

• Do not expose the TV to dripping or splashing of liquids.

• Do not place naked flame sources such as lighted candles

on the TV set.

• Make sure that no naked flame sources, such as lighted

candles, are placed on top of the appliance.

• The heat built up in the set escapes through ventilation

holes, so do not cover the set by drapes, clothes etc. that may

block air circulation. Do not place the television on carpet

or soft furnishings.

• Clean the TV Screen using a slightly damp cloth or chamois

leather. Never use abrasive cleaning agents like liquid or

aerosol cleaners.

• Your TV set is designed to operate with the adapter provided

12V DC.-5A. If you leave power cord at the mains plug the

adaptor will get hot altough the unit is off. Better to unplug

the cord from the mains if you will not use the unit for a long

time.

• Do not place the television near heat sources such as

radiators, ovens, stoves, etc.

• NEVER let children push anything into the holes or slots

on the case.

• Remove the mains plug from the socket outlet while cleaning.

• Do not push, hit or screw the screen of your product.

• Use the adaptor supplied with the product. Never connect

any other power sources to the product.

Turn off the TV set from mains switch before unplug the

adaptor mains. Be sure your hands are dry.

• Never apply pressure on the screen when cleaning.

• Never put your screen on hard objects. Your TFT screen

may be damaged.

12 V

5 A

Getting started

Remove your Television carefully

from the box. You may wish to

Please Note

When not in use disconnect the plug

from the mains power supply.

Switching the TV on for the first time

To install your TV, please read the sections

“TV controls” and “ Tuning the television”.

Press the Standby

button to switch

the TV to standby. The standby

indicator will brighter.

Please Note

Do not leave the television on standby

unattended or overnight.

Battery fitting

Insert the 2 AAA Batteries supplied into

the compartment on the rear of the remote

control, ensure you follow the polarity

diagram inside the compartment.

4. Press the Power button on

the front of the TV. The

standby indicator will

illuminate.

store the packaging for future use.

In the box

Inside the cartoon box you should have:

Please note

If you live in a poor reception area or use an

indoor aerial you may experience loss or

corruption of teletext transmissions.

Switching on and First Use

5. Press a Numeric button or the

Program up or Program down

button on the remote handset or

Program up, Program down

or MENU button on the front panel to

switch the TV on.

The standby indicator remains on.

The picture will appear after a

few seconds.

4Read these instructions before use.

Aerial connection

To connect an aerial, plug the aerial lead

into the aerial socket on the rear of the

TV.

1. Connect the power cord to the mains plug.

2. Connect the input socket of the adapter to the

12 V DC socket at the back panel of the LCD TV.

3. Connect adapter to the mains plug.

Note 1: Your TV will move to stand-by mode

in five minutes when there is no broadcast signal.

Note 2: Your TV is equipned to operate with front

panel buttons, “MENU”, “PR+”, “PR-”, “+”, “-”

in case your R/C is broken or you run out of

batteries.

However, if you use an indoor aerial the

quality of the reception may be reduced

and adjustment of the aerial may be

required when changing programs.

You can use an outdoor or indoor aerial.

• Accessories box

• Power cord

• Adapter

• Remote control

• Batteries

10.

Stand-by

Power on / off

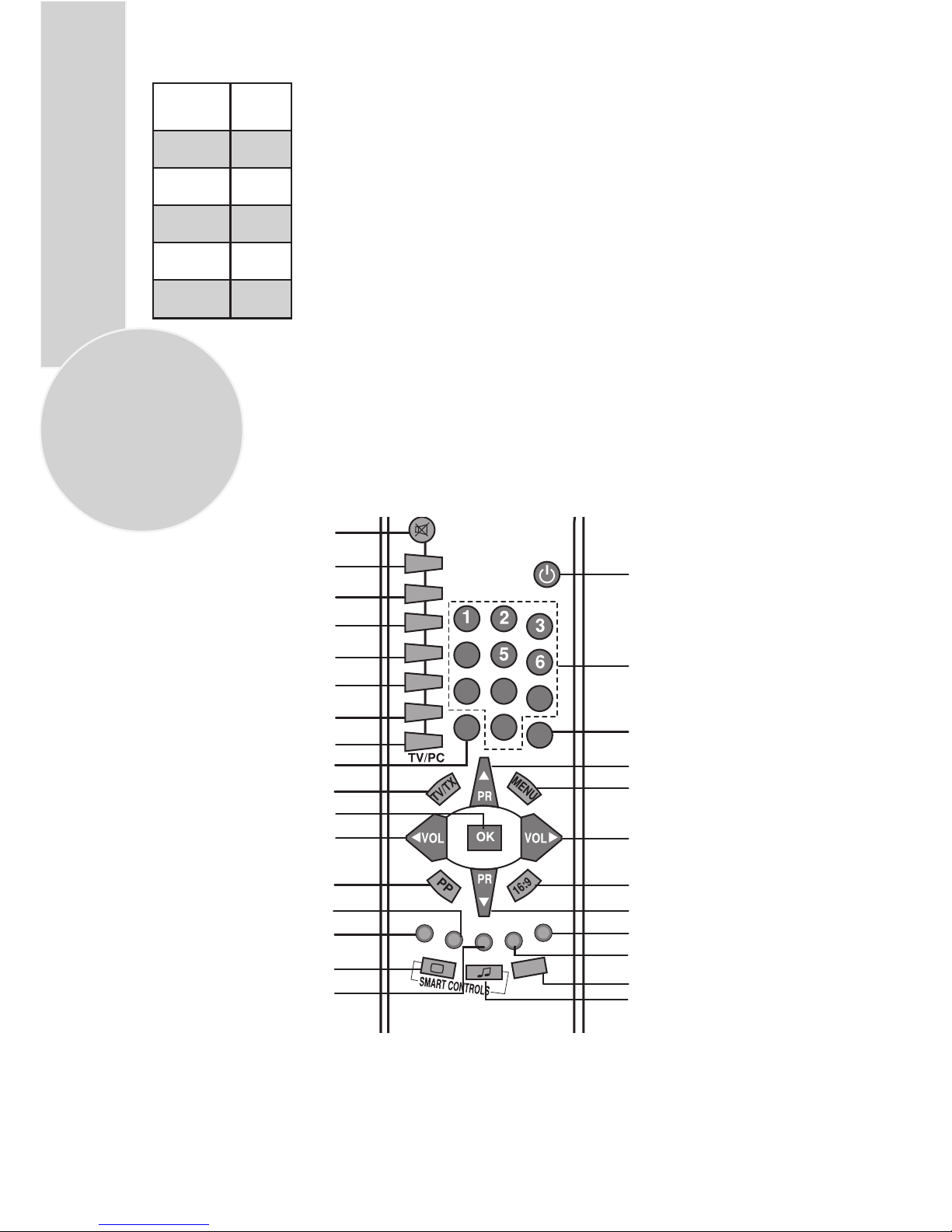

Remote control

Menu button

Volume up

Volume down

Program up

Program down

Speaker

Audio RCA (R)

11.

12.

13.

14.

15.

16.

17.

18.

19.

Audio RCA (L)

Video input CINCH connector

S-VHS

Headphone

Antenna input

Audio out (R,L)

Scart

DC 12V Power supply input

VGA

Control Unit

Please note

• See the external connections table on next page for avaible connections.

• Do not use Video RCA and S-Video connections at the same time, otherwise they will effect the

picture each other.

• RGB inputs from scart will give you better picture quality.

1011 12 1316 18 19

AUDIO OUT

AV3

L R VIDEOL R S-VHS

AVS

DC 12V VGA

141517

924 5 678

Remote control

External connections table

Picture tube

size/type

15”

4:3

AV1 Scart

Headphone

socket

Audio/Video

RCA

S-Video

socket

Back audio

out

STD.

STD

OPT

N/A

: Standart

: Optional

: Not available

Volume up

Program down

Sound smart control

Program up

Standby

Numeric

Two digit

Features Menu button

Blue teletext button

Setup Menu button

Swap

Double heigth (Text)

Sub page button (Text)

Volume down

TV/Teletext

Index page (Text)

Reveal info (Text)

TV mode button (Text)

Stop button

Picture smart control

Personal preference

Text mode button

Red teletext button

Sound Menu button

Green teletext button

Picture Menu button

Yellow teletext button

Program table button

-/--

SWAP

REVEAL

DOUBLE

HOLD

SUB

UPDATE

MIX

P100

Mute

16:9 Picture format

Using the TV

Turning on for the first time and Tuning

TV controls

Stand-By mode

Please Note: If you will not use your TV for

a long time, do not leave it on Stand-By mode,

instead switch it off from the power button

on the front panel of the TV set.

When your TV is working on, press

the red “STAND-BY” button on the

right upper corner of your remote

control to switch off and the Stand-

By indicator (Led) will be brighter.

To turn on your TV again, press one

off the numaric buttons, Program up

or Program down.

You can also select a program by

pressing in the Yellow button to

see the Program Table.

PROGRAM TABLE

05.

06.

07.

08.

09.

10.

11.

12.

13.

14.

00. ----

01.

02. BBC

03.

04.

SKIP MOVE DELETE

NAME

Programme selection

Press the Program up or Program

down buttons on the TV or remote

control or press a Numeric button

to select a programme.

To select a programme whose

number is greater than 9 using the

numeric buttons, press the -/--

button first and then press the two

Numeric buttons. For example, to

-/--select programme 12, press the

button followed by and then12.

-/--

2Mute

To mute the sound press the Mute

button on the remote control. A

loudspeaker symbol will appear on

the screen.

Use the Program up and Program

down buttons to scroll through the

programme numbers. When you

find the program number you want

press theOK button again.

Press theTV/TX button to close the

Program Table.

Volume

Press the Volume + or Volume -

button on the TV or the Vol or

Vol button on the remote control.

A sound level bar will appear on the

screen.



TV/TX

Press the Mute button again to

restore the sound. The symbol

will disappear.

Pressing Volume up buttons

will also restore the sound.

But pressing the Volume down

button will decrease the volume

without restoring.

Personal preference. Press the

PP button to revert to the

default settings for the TV.

(See TV setup).

Swap

Tuning the television

There are two ways of tuning your television:

Manual, where you control the tuning process

Autoprogram where the television does it all

automatically.

Your TV will sort all the channels with the

ATS. Sorting will be performed in the

following order:

Please Note

If the TV is set to a channel with no signal the

TV will return to standby in 5 minutes.

The last minute remaining is displayed on

the screen.

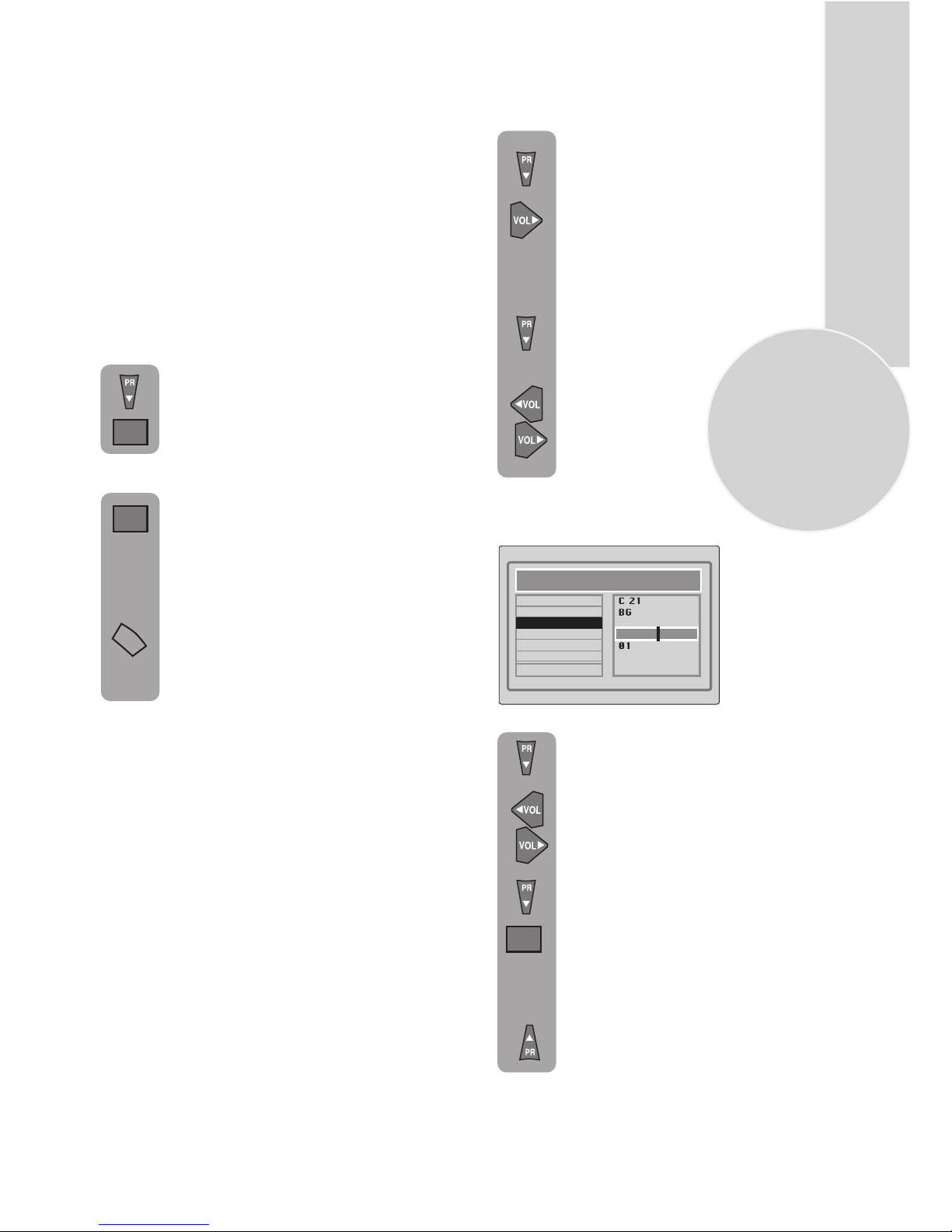

Automatic tuning (Autoprogram)

There are two ways to access the SETUP

menu:

Press the blue Setup button.

Press the Menu button and use the

Program down button to select

SETUP. Press theOK button to

enter the SETUP menu.

a- Selected country’s channels with teletext

and channel names.

b- Selected country’s channels with teletext

and without channel names.

c- Selected country’s channels without

teletext.

d- Foreign channels with teletext and channel

names.

Your TV has 1 scart so every time

you press your AV button, your input

will change as follows:

Press the AVbutton again to

return to TV.

1AV1 when using SCART socket 1

(RGB support).

2AV2 when using RCA socket.

3AVS when using the S-video socket.

Select the programme you would

like to recall by pressing SWAP

button. Selected programme

number will appear on the lower

left side of the screen. While

watching any programme, you

can recall the selected one by

pressing SWAP button again.

If you press swap button again you

can recall the last programme you

watched. You can cancel SWAP

function by pressing MENU button.

SWAP

PR 01 PR 11 PR 12

SWAP

PR 01

PR 13...

MAIN MENU

SOUND


PROGRAM TABLE

SETUP

FEATURE

SETUP

CHANNEL

SYSTEM

FINE TUNE

PROGRAM NUMBER

AUTO PROGRAM

STORE

When you are sure the aerial is

connected properly press the OK

button. Autoprogam will start.

Use the Program down button to

select AUTOPROGRAM and

the OK button. A list of

countries will appear. Select

the desired country using

Program and Volume buttons.

press

To cancel Autoprogram whilst it

isworking press the Menubutton

it will appear briefly on the screen

repetitively.

Please note:

If auto sort fails to arrange the programmes

in the required sequence please refer to

programme organising.

In the Setup menu select

PROGRAM NO

using

the Program down button

and use the Volume up

button to change the Program No

to 01.

Starting with Program 01, tune

in the first channel as follows:

Use the Program down button

to select SEARCH.

Press the Volume up or Volume

down button to start the tuning

search.

When the search finds a strong

channel signal it will stop

searching. The picture will appear.

Use the Program down

button to

select PROGRAM NO.

Use the

Volume up/down

or numeric

buttons

to select the desired

programme number.

Use the Program down button to

select STORE. Press theOKbutton

and STORED will appear on the

STORE line.

You have now stored the first

channel.

Use the Program up button to

select again SEARCH and

continue the tuning procedure

until you have tuned in all the

programmes you want or the

television can receive.

before the search continues.

Manual tuning

If you want to tune manually:

Please note

The system will be displayed automatically on

SYSTEM row i.e.BG, L, I or DK depending

the receiving broadcasting system of your

country. In some countries the broadcasting

system can be both in BG/DK or BG/LL´.

Only the TV sets produced with Pal Secam

BG/DK or Pal Secam BG/LL´ systems can

receive both BG/DK or BG/LL´ broadcasts.

In this case the user can select the required

SYSTEM using Volume up/down buttons.

the TV will exit the menu system.

Please note

If you do not press any buttons for 15 seconds

Your TV is now tuned and ready to use.

As Autoprogram stores a channel

SETUP

CHANNEL

SYSTEM

FINE TUNE

PROGRAM NUMBER

AUTO PROGRAM

STORE

Tabla de contenidos

Otros manuales de Monitor de Toshiba

Toshiba

Toshiba 42DPC85 Manual de usuario

Toshiba

Toshiba 50UL2163DT Manual de usuario

Toshiba

Toshiba TheaterWide 51HC85 Manual de usuario

Toshiba

Toshiba 27WL46 Series Manual de usuario

Toshiba

Toshiba P1710A Manual de usuario

Toshiba

Toshiba TD-E653 Manual de usuario

Toshiba

Toshiba 42HP82 Manual de usuario

Toshiba

Toshiba 27WL55A Guía del administrador

Toshiba

Toshiba 55UL3C63DT Manual de usuario

Toshiba

Toshiba 65H84 Manual de usuario

Toshiba

Toshiba 26HLC56 Manual de usuario

Toshiba

Toshiba TekBright PA3553 Series Manual de usuario

Toshiba

Toshiba TD-Y553M Manual de usuario

Toshiba

Toshiba PA3923U-1LC3 Manual de usuario

Toshiba

Toshiba 26HLC56 Manual de usuario

Toshiba

Toshiba P1550LA Manual de usuario

Toshiba

Toshiba Curvable Indoor Led Display TR2006R Manual de usuario

Toshiba

Toshiba 20DL74 Manual de usuario

Toshiba

Toshiba P32LSA Manual de usuario

Toshiba

Toshiba P42LSA - 42" LCD Flat Panel Display Manual de usuario

Toshiba

Toshiba 42WP37C Manual de usuario

Toshiba

Toshiba UM-OISPLUS-E003 Manual de usuario

Toshiba

Toshiba TD-E432 Manual de usuario

Toshiba

Toshiba TheaterWide 51HC85 Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
