Toshiba BU205M Manual de usuario

D4222901M

CMOS Camera

BU Series

BU205M

BU406M/BU406MN

BU406MC/BU406MCF

Specifications

Information contained in this document is subject to change without prior notice.

Standard name might be trade mark of each company.

D4222901M

Contents

RESTRICTION FOR USE .......................................................................................................................... 1

CASES FOR INDEMNITY (LIMITED WARRANTY) .................................................................................. 2

USAGE PRECAUTIONS ............................................................................................................................ 3

USAGE PRECAUTIONS ............................................................................................................................ 4

1. Overview ............................................................................................................................................. 5

2. Features .............................................................................................................................................. 5

3. Configuration ....................................................................................................................................... 7

4. Optional part ........................................................................................................................................ 7

5. Functions ............................................................................................................................................. 8

6. Specifications .................................................................................................................................... 16

7. Timing chart ...................................................................................................................................... 27

8. Warranty rules ................................................................................................................................... 29

9. Repair ................................................................................................................................................ 30

10. Outline Drawing ................................................................................................................................ 31

D4222901M

RESTRICTION FOR USE

 Should the equipment be used in the following conditions or environments, give consideration to

safety measures and inform us of such usage:

(1) Use of the equipment in the conditions or environment contrary to those specified, or use outdoors.

(2) Use of the equipment in applications expected to cause potential hazard to people or property,

which require special safety measures to be adopted.

 This product can be used under diverse operating conditions. Determination of applicability of

equipment or devices concerned shall be determined after analysis or testing as necessary by the

designer of such equipment or devices, or personnel related to the specifications. Such designer or

personnel shall assure the performance and safety of the equipment or devices.

 This product is not designed or manufactured to be used for control of equipment directly concerned

with human life (*1) or equipment relating to maintenance of public services/functions involving factors

of safety (*2). Therefore, the product shall not be used for such applications.

(*1): Equipment directly concerned with human life refers to.

- Medical equipment such as life-support systems, equipment for operating theaters.

- Exhaust control equipment for exhaust gases such as toxic fumes or smoke.

- Equipment mandatory to be installed by various laws and regulations such as the Fire Act or

Building Standard Law

- Equipment related to the above

(*2) :Equipment relating to maintenance of public services/functions involving factors of safety refers

to.

- Traffic control systems for air transportation, railways, roads, or marine transportation

- Equipment for nuclear power generation

- Equipment related to the above

D4222901M

CASES FOR INDEMNITY (LIMITED WARRANTY)

We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the

user in the following cases.

 Natural disasters, such as an earthquake and thunder, fire or any other act of God; acts by third

parties; misuse by the user, whether intentional or accidental; use under extreme operating conditions.

 In the case of indirect, additional, consequential damages (loss of business interests, suspension of

business activities) are incurred as result of malfunction or non-function of the equipment, we shall be

exempted from responsibility for such damages.

 In the case damage or losses are caused by failure to observe the information contained in the

instructions in this instruction manual and specifications.

 In the case damage or losses are caused by use contrary to the instructions in this instruction manual

and specifications.

 In the case damage or losses are caused by malfunction or other problems resulting from use of

equipment or software that is not specified.

 In the case damage or losses are caused by repair or modification conducted by the customer or any

unauthorized third party (such as an unauthorized service representative).

 Expenses we bear on this product shall be limited to the individual price of the product.

 The item that is not described in specifications of this product is off the subject of the guarantee.

 The attachment mistake of a cable.

D4222901M

USAGE PRECAUTIONS

 Handle carefully

Do not drop the equipment or allow it to be subject to strong impact or vibration, as such action may

cause malfunctions. Further, do not damage the connection cable, since this may cause wire

breakage.

 Environmental operating conditions

Do not use the product in locations where the ambient temperature or humidity exceeds the

specifications.

Otherwise, image quality may be degraded or internal components may be adversely affected. In

particular, do not use the product in areas exposed to direct sunlight.

 Combination of C-mount lens

Depending on the lens you use, the performance of the camera may not be brought out fully due to

the deterioration in resolution and brightness in the peripheral area, occurrence of a ghost,

aberration and others. When you check the combination between the lens and camera, be sure to

use the lens you actually use.

When installing a lens in the camera, make sure carefully that it is not tilted.

In addition, use a mounting screw free from defects and dirt. Otherwise, the camera may be unable

to be removed.

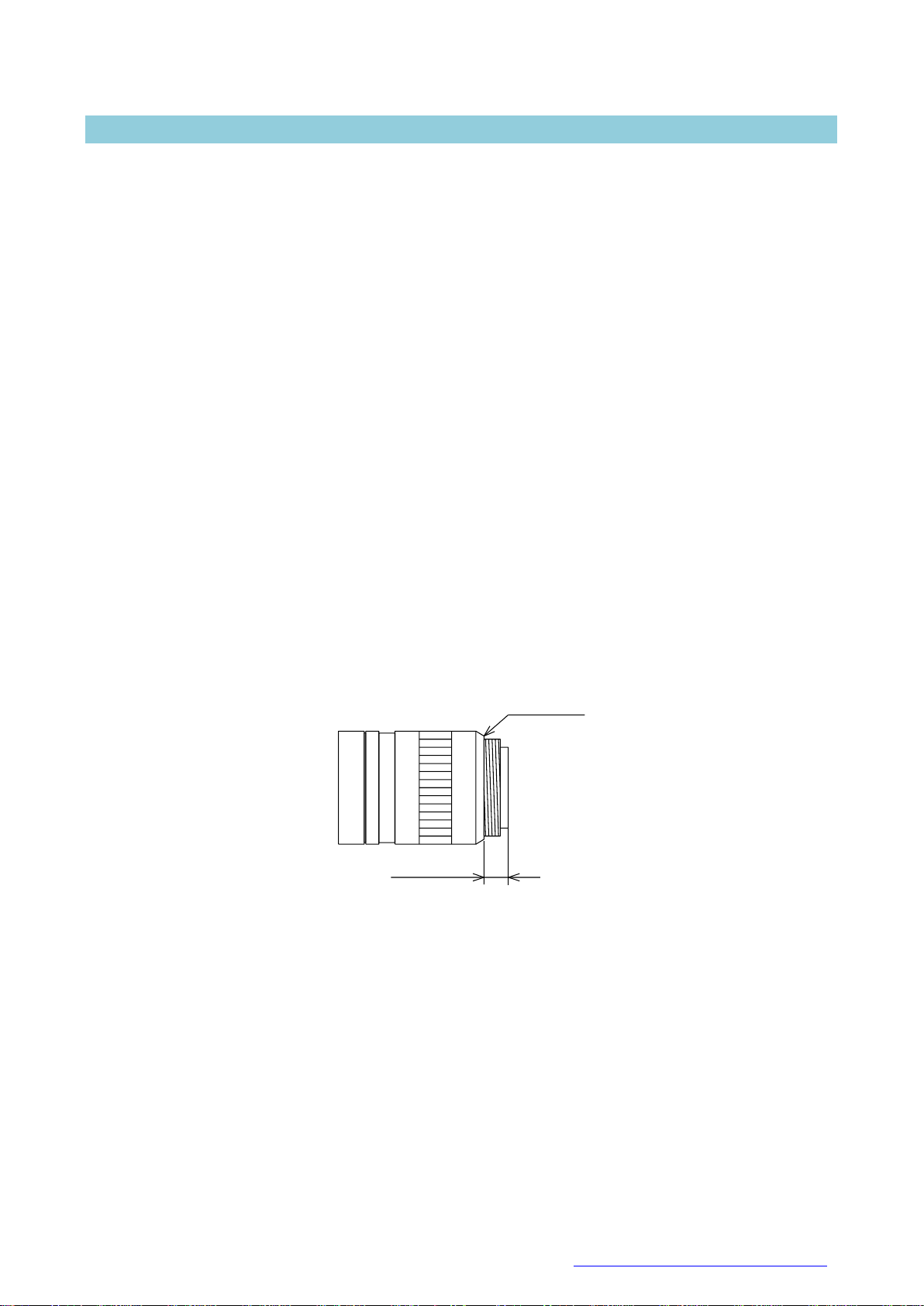

As for the C-mount lens used combining this product, the projection distance from bottom of the

screw should use 10mm or less.

10mm or less

C-mount lens

Bottom of

the screw

 Mounting to a pedestal

When mounting this product to a pedestal, make sure carefully that the lens doesn't touch with the

pedestal.

 Do not expose the camera’s image-pickup-plane to sunlight or other intense light directly.

Its inner CMOS sensor might be damaged.

 Occurrence of moiré

If you shoot thin stripe patterns, moiré patterns (interference fringes) may appear. This is not a

malfunction.

 Occurrence of noise on the screen

If an intense magnetic or electromagnetic field is generated near the camera or connection cable,

noise may be generated on the screen. If this occurs, move the camera or the cable.

D4222901M

USAGE PRECAUTIONS

 Handling of the protective cap

If the camera is not in use, attach the lens cap to the camera to protect the image pickup surface.

 If the equipment is not to be used for a long duration

Turn off power to the camera for safety.

 Maintenance

Turn off power to the equipment and wipe it with a dry cloth.

If it becomes severely contaminated, gently wipe the affected areas with a soft cloth dampened with

diluted neutral detergent. Never use alcohol, benzene, thinner, or other chemicals because such

chemicals may damage or discolor the paint and indications.

If the image pickup surface becomes dusty, contaminated, or scratched, consult your sales

representative.

 Disposal

When disposing of the camera, it may be necessary to disassemble it into separate parts, in

accordance with the laws and regulations of your country and/or municipality concerning

environmental contamination.

[Phenomena specific to CMOS sensor]

“This symbol is applicable for EU member states only”

 Defective pixels

A CMOS image sensor is composed of photo sensor pixels in a square grid array. Due to

the characteristics of CMOS image sensors, over- or under-driving of the pixels results in

temporary white or black areas (as if these are noises) appearing on the screen. This

phenomenon, which is not a defect is exacerbated under higher temperatures and long

exposure time.

 Image shading

The brightness of the upper part of the screen may be different from that of the lower part. Note

that this is a characteristic of a CMOS image sensor and is not a fault.

D4222901M

1. Overview

This BU CMOS series is an integrated-(one-body)-type camera that adopts a global shutter CMOS

sensor. These are BU205M (2M 2/3 type) BU406M (4M 1/1 type). There is BU406MN which was more

excellent in near-infrared (NIR) sensitivity in BU406M. Suffix [C] or [CF] are attached to the color

models. For video output and camera control, the USB 3.0 interface standard is adopted for high

transfer rate, and it is easy to integrate into industrial equipment.

2. Features

2.1 High frame rate

Supporting high frame rate, BU205M 170fps, BU406M/MN/MC 90fps.

2.2 Global shutter

As it employs a global electronic shutter similar to a CCD image sensor, clear images of even

fast-moving object are obtainable with less blur.

2.3 USB 3.0 interface

Video output and camera control are performed via the USB 3.0 standard interface. Data transfer

is up to 5Gbps (Maximum) that enables to output uncompressed video data at high frame rate.

2.4 USB3 Vision

This product is based on USB3 Vision Ver.1.0.

2.5 GenICam Ver.2.4, Ver.3.0

his product is based on GenICam (Generic Interface for Cameras) Ver.2.4 and Ver.3.0.

2.6 IIDC2 Digital Camera Control Specification Ver.1.1.0

This product is based on IIDC2 Digital Camera Control Specification Ver.1.1.0.

2.7 e-CON Connector adoption

The e-CON connector adoption enables to assemble the cable easily without using special tools.

2.8 Random Trigger Shutter

The Random Trigger Shutter function provides images in any timing by input of an external trigger

signal. Trigger control from PC is available as well.

D4222901M

2.9 Scalable

Selectable video output area. This mode achieves higher frame rate by reducing vertical output

area. And reduces occupied data rate of USB bus by reducing horizontal output area.

2.10 Decimation

Camera reads all effective areas at high speed by skipping lines.

2.11 Color processing

Color models have built in color processing. Color processing features like white balance are

available in Bayer output mode.

2.12 IR-cut filter

Build-in IR-cut filter models are optional for color models.

Suffix [F] is attached to the model name of built-in IR-cut filter model. (e.g. BU406MCF)

* Suffix [F] is not shown in the common part of specifications.

2.13 Compact and lightweight

This camera is compact and lightweight; it is easy to integrate into industrial equipment.

2.14 EU RoHS & Chinese RoHS

D4222901M

3. Configuration

(1) Camera body

* No application software and manuals are attached to this camera.

4. Optional part

- Camera mounting kit Model name: CPTBU

Model name: CPTBUBG

* Contact your dealer / distributor for details of option units.

D4222901M

5. Functions

5.1 Gain

Manual gain control is available up to 8 times.

Notes on gain setting:

Setting the gain value too high increases noises. When you adjust the brightness of the image, I ask

you to have final image quality checked with your environment.

5.2 Black Level

Black level is adjustable from -25% to +25% as white saturation level is 100%.

5.3 Gamma

Gamma correction curve is adjustable from 0.45 to 1.

5.4 LUT (Look up Table)

Arbitrary curve and binarization are possible by using 10 bit input and 10 bit output LUT.

5.5 Exposure Time

Manual exposure time control is available. Exposure time is adjustable by the internal sync signal.

5.6 White balance

Color models have two white balance modes, manual white balance (MWB) and one-push auto white

balance (OPWB). Select the mode to suit the subject and purpose.

5.6.1 MWB

R/B gain can be set independently.

5.6.2 OPWB

When OPWB is executed, the camera adjusts R/B gain automatically.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara digital de Toshiba

Toshiba

Toshiba PDR-2 Manual de usuario

Toshiba

Toshiba PDR-M60 Instrucciones de montaje

Toshiba

Toshiba PDR-M61 Instrucciones de montaje

Toshiba

Toshiba Sora PDR-T10 Manual de usuario

Toshiba

Toshiba BU238M Manual de usuario

Toshiba

Toshiba BU302MG Manual de usuario

Toshiba

Toshiba BU302MG Manual de usuario

Toshiba

Toshiba PDRM5 - PDR M5_duplicate Web Camera Instrucciones de montaje

Toshiba

Toshiba IK-HR1D Manual de usuario

Toshiba

Toshiba IK-HR1S Manual de usuario

Toshiba

Toshiba CSDW2M60CM28 Manual de usuario

Toshiba

Toshiba PDR-3310 Manual de usuario

Toshiba

Toshiba PDR-4300 Instrucciones de montaje

Toshiba

Toshiba PDR-M60 Manual de usuario

Toshiba

Toshiba IK-HR2D Manual de usuario

Toshiba

Toshiba Sora PDR-T10 Manual de usuario

Toshiba

Toshiba PDR-3300 - 3.2MP Digital Camera Instrucciones de montaje

Toshiba

Toshiba BU1207MG Manual de usuario

Toshiba

Toshiba PDR-M81 Manual de usuario

Toshiba

Toshiba PDR-M70 Manual de usuario

Toshiba

Toshiba PDR-M500 Manual de usuario

Toshiba

Toshiba PDR-M11 Instrucciones de montaje

Toshiba

Toshiba BU406M Manual de usuario

Toshiba

Toshiba PDR-4300 Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
