Toshiba TE3 Series Manual de usuario

Before installing the TE3 Series Low Voltage Digital Solid

State Soft Starter thoroughly read the user manual. To

download scan the QR Code to the right or visit

www.toshiba.com/tic

After all electrical connections have been made; apply power to the TE3 Series Soft Starter.

On initial power up, TE3 Series Soft Starter will show a ‘Setup Wizard’ menu – Auto and Advanced. To jump

immediately to the pre-defined parametersets, press the Auto button and follow the on-screen prompts to

select your application and set the motor Full Load Amps.

To automatically set up parameters on subsequent start-up, select the ‘Home’ menu from the status screen

and select ‘Auto Setup’.

Setup Wizard

Control Wiring –110Vac (Refer to user manual for 24Vdc Control)

2-Wire Control (110Vac) 3-Wire Control (110Vac)

DI1

DI1/2COM

DI2

DI3/4COM

DI3 DO5NO

DO5COM

FU1

EMERGENCY

STOP

120VAC

STOP

START RESET

(OPTIONAL)

LINE ISOLATION

CONTACTOR

(240V OPTIONAL)

OPTIONAL

DI1

DI1/2COM

DI2

DI3/4COM

DI3 DO5NO

DO5COM

FU1

EMERGENCY

STOP

120VAC

RUN

COMMAND

CONTACT RESET

(OPTIONAL)

LINE ISOLATION

CONTACTOR

(240V OPTIONAL)

OPTIONAL

Keypad Main Overview

Status LED

The logo LED located on the front panel of the TE3Series Soft Starter will blink once every 10 seconds to

provide visual confirmation that all microprocessors in the soft starter are operating properly.

Setup by Individual Parameter Settings

Allows the user to change parameter settings one at a time. The individual parameters are grouped by

categories on the touchscreen.

From the Setup Wizard or Home menu, select the ‘Advanced’ menu. Set the required parameters from the

displayed menus. See Section 5.8 of the user manual for detailed descriptions of the available parameters.

Configuration from the Touchscreen

Use the on-screen buttons to enter data or to scroll through setup menus, using the “Up,” Dn,” “BACK,” and

“NEXT” buttons as necessary. From the home “Menu” screen, select either “Auto Setup” or “Advanced.”

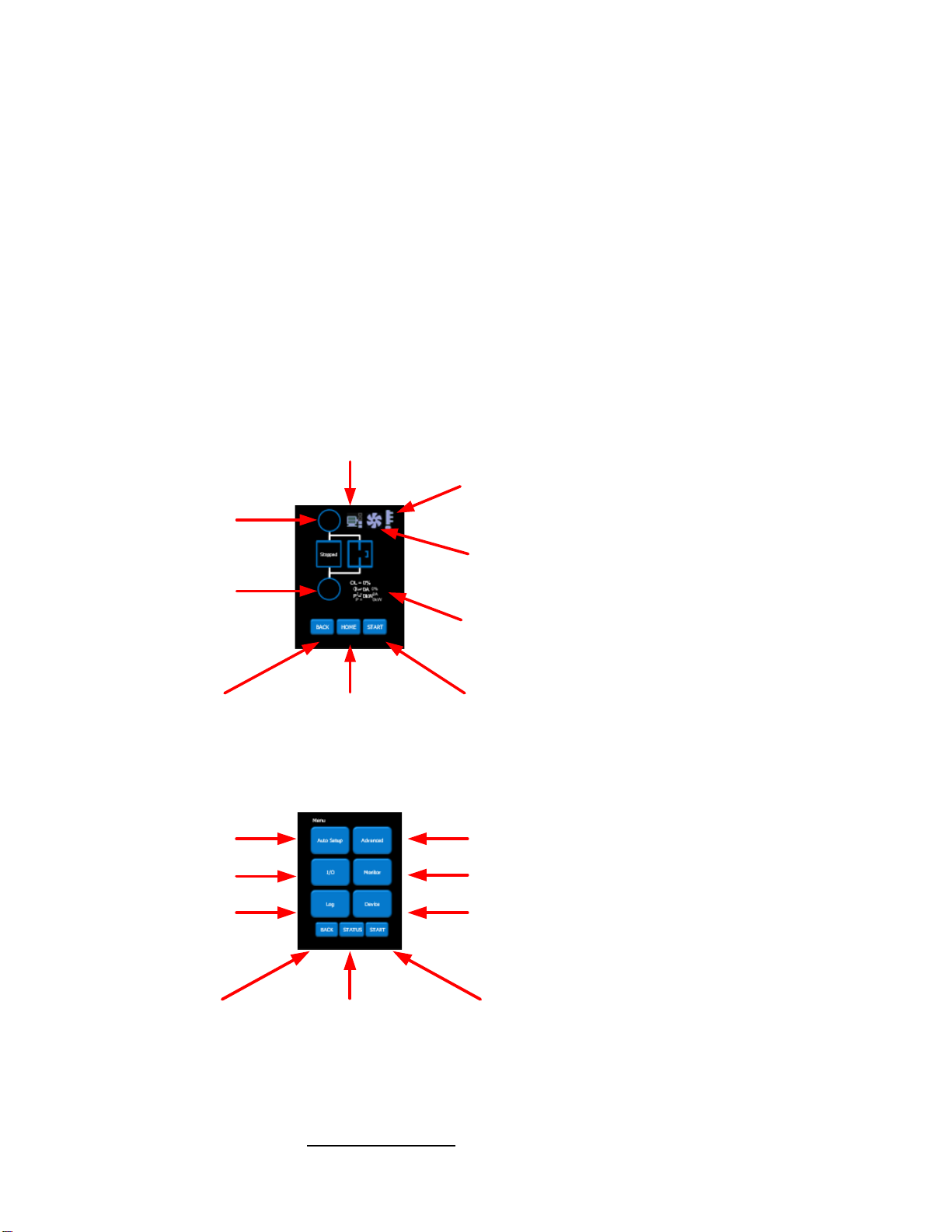

Status Screen

Supply Status

Turns RED if unit has

tripped on supply failure

Motor Overload Status

Turns RED if unit has

tripped on motor overload

Cooling Fan Status

Turns RED if unit has

tripped on fan failure

Temperature Status

Turns RED if unit has tripped

on over temperature

Motor Side Status

Turns RED if unit has

tripped on motor side

phase loss Monitor

Displays overload percentage,

instantaneous running current

and power

Return to

screen/menu Enter Sub-Menus Control

Start / Stop Motor only active when Local

control is enabled.

Home Menu Screen

Auto-Setup Menu

Logging Menus

Input/Output Menus

Advanced Menus

Device Menus

Monitor Screens

Return to

screen/menu Go to Status Menu Control

Start / Stop Motor only active when Local

control is enabled.

California Customers:

California Proposition 65 Warning

WARNING: this product and associated accessories may contain chemicals known to the State of California to cause cancer, birth defects, or other

reproductive harm. For more information visit https://p65warnings.ca.gov

TE3-A-QSL-092921
