Toshiba RemotEye III Manual de usuario

RemotEye III Quick Installation Guide

Windows Users

Document No.: 63761-002

Date: August 2015

RemotEye III Quick Installation Guide – 63761-001

RemotEye III Quick Installation Guide – 63761-002 1

Installing RemotEye III

Follow these steps to install the RemotEye III internal

card.

1) Slide the RemotEye III internal printed circuit

board into the extension option slot of the UPS.

Secure the printed circuit board using the UPS-

supplied screws.(See Figure 1)

Figure 1: RemotEye III Circuit Card

Configuration

RemotEye III must be configured for proper operation on its network.

Configuring the RemotEye III via Terminal

The RemotEye III can be configured by directly connecting to the device.

Hardware Setup

Direct configuration is accomplished through the provided PC cable. Follow these steps to setup

the hardware for direct RemotEye III configuration:

a) Connect the DB9 female end of the PC cable to the terminal or workstation COM port.

b) Connect the RJ45 end of the PC cable to the COM port of the RemotEye III/Internal.

Software Setup

The direct configuration is accomplished by using the RS232 communication protocol.

The direct communication can be performed from a workstation running Terminal

Emulator Software (TES)

Connecting to the RemotEye III via Terminal

A direct configuration session can easily be established once the hardware and software are

properly set up. Follow these steps to begin configuration:

Terminal Emulator Example

To configure the RemotEye III from a Windows platform, use Hyperterminal. Hyperterminal is a

standard terminal emulator packaged with any Windows operating system. Launch the

Hyperterminal program by navigating to:

Start →Programs →Accessories →Communications →Hyperterminal →Hyperterminal,

and follow the prompts.

Figure 1: RemotEye III

2 RemotEye III Quick Installation Guide – 63761-002

Enter a name and select an icon for the application at the Connection Dialog box.

Select a direct connection to an appropriate com port listed in the pull-down menu.

Ensure that the Properties dialog box is setup as follows:

Baud Rate —9600

Data Bits — 8

Parity — None

Stop Bits — 1

Flow Control —- None

Press [Enter] and the RemotEye III version and Password field will be displayed (See Figure 2).

Enter the password (default is “ADMIN”) and press [Enter] to display the RemotEye III Main

Menu.

Default Password (case sensitive): ADMIN

+====================================================================+

| [ TIC RemotEye III Login Menu ] |

+====================================================================+

Enter Password: ******

The seven options provided in the RemotEye III Main Menu provide access to all system

RemotEye III configuration parameters. These options (see the Main Menu Description on

Figure 3: Console Main Menu) and their submenus are discussed in more detail in the next

section.

+====================================================================+

| [ TIC RemotEye III Main Menu ] |

+====================================================================+

1. TIC RemotEye Configuration

2. SNMP Communities

3. SNMPV3 USM Table

4. Trap Receiver Table

5. Reset Configuration To Default

6. Save and Exit

7. Save and Restart Agent

Please Enter Your Choice =>

Figure 3: Console Main Menu

Figure 2: Console Login Screen

RemotEye III Quick Installation Guide – 63761-002 3

Toshiba RemotEye III Configuration

Main Menu →(1) Toshiba RemotEye III Configuration (see Figure 4: Console Configuration

Menu Description).

+==================================================================+

| [ TIC RemotEye III Configuration Menu ] |

+==================================================================+

1. System Group

2. Control Group

3. Parameter Group

4. Email Group

5. EMD Group

0. Return to previous menu

Please Enter Your Choice =>

Figure 4: Console Configuration Menu Description

System Group

Main Menu →(1)Toshiba RemotEye III Configuration →(1) System Group (see Figure 5:

Console System Group Menu Description).

The System Group provides access to the system settings listed below. The settings may be

viewed or changed from this screen. When using the Dynamic Host Configuration Protocol

(DHCP), items 1 – 3 will be retrieved automatically.

+====================================================================+

| [ System Group Menu ] |

+====================================================================+

RemotEye III Agent Version : TIC RemotEye III v1.00

Ethernet address : 00 E0 D8 08 80 0D

1. Ip Address : 172.18.1.63

2. Gateway Address : 172.18.1.1

3. Network Mask : 255.255.240.0

4. Date and Time

0. Return to previous menu

Please Enter Your Choice =>

Figure 5: Console System Group Menu Description

Making the Network Connection

Each Ethernet network is different. Therefore, the following steps should be used as an outline

for connecting the RemotEye III to a network:

1. Connect one end of a Category 5 cable to the NETWORK RJ45 receptacle of

RemotEye III.

2. Connect the other end of the Category 5 cable to a designated network switch or hub. A

network administrator will allocate an available port.

3. Verify a network link has been established. Confirm the leftmost green LED is

illuminated

4 RemotEye III Quick Installation Guide – 63761-002

Connecting to the RemotEye III via HTTP

A web session can be established once the hardware and software have been prepared. Follow

these steps to begin configuration:

1. Launch the web browser.

2. Enter the URL for RemotEye III in the browser’s address field. For example,

http://10.0.37.189. The home page of the RemotEye III will be displayed once a

connection is established (See figure 6).

Default: Login: TOSHIBA

Password (case sensitive): ADMIN

Figure 6: RemotEye III HTTP Page

RemotEye III Quick Installation Guide – 63761-002 5

Upgrading RemotEye III Firmware from Windows via Network

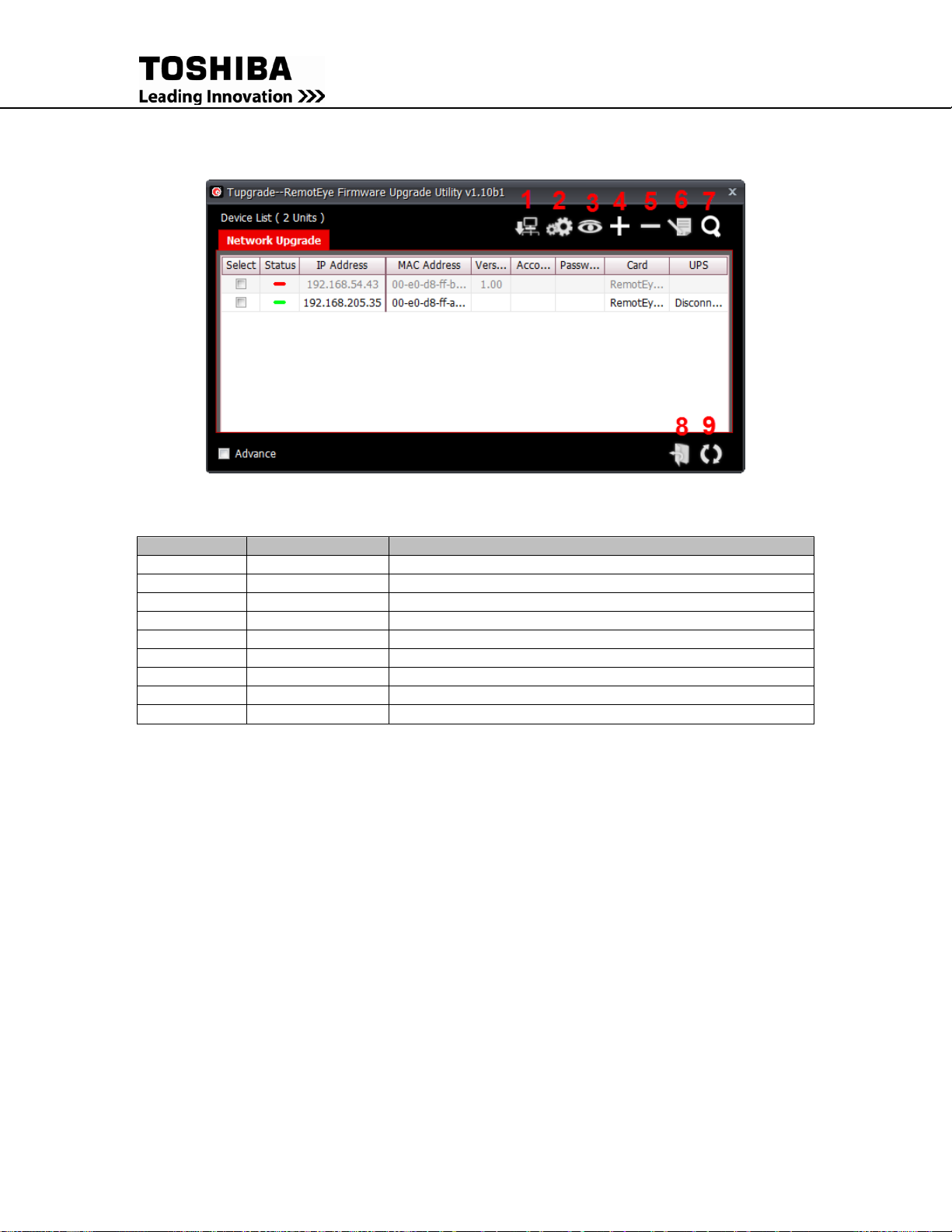

Figure 7: Tugrade, RemotEye Upgrade Utility via Network

Table 1Tupgrade Toolbar Functions

Toolbar ID

Icon Name

Description/Function

Set IP

Manually set found device IP address, subnet mask and gateway

Acquire

Get all device parameters. This generates a config file.

Browse

Use default browser to open homepage of selected device

Add

Pop-up Add dialog to add one device

Delete

Delete one or more selected devices.

Edit

Pop-up Edit dialog to modify a device configuration.

Discover

Discover all RemotEye devices on the network.

Open file

Open the location (directory) of uploaded file.

Upgrade Firmware

Upgrade firmware after unit selected and file uploaded

To perform a firmware upgrade, RemotEye III must be connected to the same network as the workstation

from which the upgrade file is to be sent. In the RemotEye III make sure the Network Upgrade Control is

enabled, under RemotEye III Control, and that users have the Admin login string information and

Password.

Here is the way to manually Upgrade RemotEye Firmware:

1) Web Interface: Go to RemotEye III Management



RemotEye III Control menu then Enable

Network Upgrade Control.

Note: To enable the Network Upgrade Control user has to change the security level to

administrator by logging in as Administrator.

2) Open the Tupgrade application software and click on the Discover icon. If no RemotEye devices

auto populate the list, press on the + icon and enter the IP, Username, and Password. If it still does

not appear check your network security and your computer firewall.

3) Select the check box right next to the RemotEye that will be updated.

4) Select the Edit button and enter the Username and Password.

5) Select the Open File button and select the firmware to be uploaded.

6) Select the Upgrade Firmware button to start the upgrade process.

7) When the upload is complete, the RemotEye will automatically reboot.

6 RemotEye III Quick Installation Guide – 63761-002

User Manual

The full RemotEye III User Manual (P/N 62330) is provided on the enclosed CD in

electronic (PDF) format.

Contacting the TOSHIBA Customer Support Center

TOSHIBA’s Customer Support Center can be contacted to obtain help in resolving any

RemotEye III system problem that you may experience or to provide application

information.

The Support Center can be reached at 877-867-8773 (toll free) or 713-466-0277. The

center is open from 8 a.m. to 5 p.m. (CST), Monday through Friday.

You may also contact TOSHIBA by writing to:

TOSHIBA International Corporation

13131 West Little York Road

Houston, Texas 77041-9990.

For further information on TOSHIBA’s products and services, please visit our website at

HTTP://WWW.TOSHIBA.COM/IND.
