Toro 108-1382 Manual de usuario

FormNo.3351-943RevA

CEKit

for72inRearDischargeMowerforGroundsmaster®300Series

TractionUnits

ModelNo.108-1382

InstallationInstructions

InstallthefollowingguardsontheGroundsmaster72

inchreardischargedeck.Usethelocationdescription

listedbelowtodeterminethecorrectplacementonthe

product.

Important:Shouldanyoftheguardsbecomedamaged,replacethemimmediately.Eachpartnumberis

listedbelow.ReplacementsmaybeorderedthroughyourauthorizedTorodistributor.

InsertthefollowingLocationTableintothe

Operator’ s Man ual

fortheowner’sreference.

EnglishPartsDescriptionLocationEnglishPartNo.EuropeanPartNo.Qty.

Bafe–RHUnderRHFrontofDeck—93-6646-011

Bafe–CenterUnderCenterFrontofDeck—93-6647-011

Bafe–LHUnderLHFrontofDeck—93-6648-011

BoltRH&LHDeckCovers—323-72

OuterGuardAssemblyDriveShaft—93-99851

InnerGuardAssemblyDriveShaft—93-99651

RetainingRingInner&OuterGuardAssembly——2

NylonBushingInner&OuterGuardAssembly——2

CE—CerticateofComplianceLoosePartsBag—105-78021

8111LyndaleAvenueSouth

Bloomington,MN55420

Registeratwww.Toro.com.OriginalInstructions(EN)

PrintedintheUSA.

AllRightsReserved

InstallingtheBafes

1.Removethe9screwsandnutsfromthemounting

holesprovidedinthefrontofthedeck.

Note:Iftheholesarenotinthedeck,locate,mark,

anddrill7holes(0.344inch(9mm)diameter)inthe

frontofthedeck,usingthedimensionsshownin

Figure1.

2.Looselysecuretheright,center,andleftbafes

totheinsideofthedeckwiththescrewsandnuts

previouslyremoved,positioningthemasshownin

Figure1.

Note:Ifnotprovided,use5/16x3/4inchange

headscrewsand5/16inchnuts.

3.Adjustthebafestothedesiredheightandtighten

themountingfasteners.

Note:Makesurethebafesarelevelandnotbent.

Abentbafecouldaffectthequalityofcut.

G01 1649

10 10

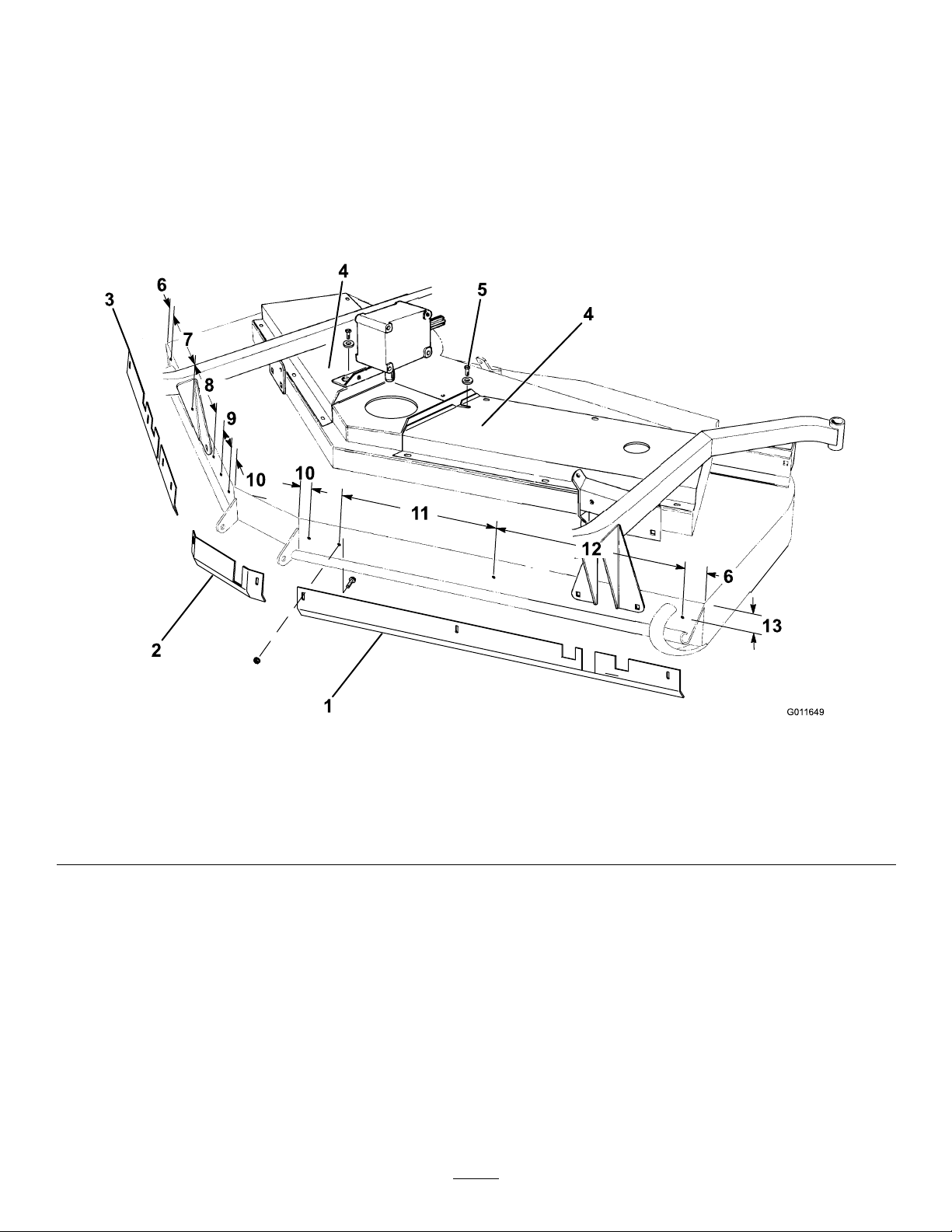

Figure1

Refertothisgurethroughouttheinstallation.

1.Leftdeckbafe5.Screwandwashers9.6.50inches(16.5cm)13.2.00inches(5cm)

2.Centerdeckbafe6.4.12inches(10.5cm)10.1.25inches(3.17cm)

3.Rightdeckbafe7.13.38inches(34cm)11.10.88inches(27.63cm)

4.Deckcovers8.7.88inches(20cm)12.18inches(45.72cm)

SecuringtheDeckCovers

1.Loosentheknobsandremovethedeckcoversfrom

thedeck.

2.Oneachsideofthegearbox,removetheknob,

washer,andlocknutsecuredtothedeckmounting

tab.Discardtheknobbutretainthewasherand

locknut.

3.Looselyinstallanewbolttoeachdeckmountingtab

withthewasherandlocknutpreviouslyremoved.

4.Installthedeckcoversandtightenthenewboltsand

theexistingknobs.

InstallingtheDriveShaft

Guard

1.Disconnectandremovethedriveshaftfromthe

cuttingunitandtractionunit(Figure2).Retainthe

mountingfasteners.

G01 1604

Figure2

1.Driveshaftslipyoketube5.Innerdriveshaftguard

2.Greasetting6.Grooveindriveshaft

guard

3.Retainingring7.Slotsinguard

4.Nylonbushing8.Grooveinsideguard

2.Removethegreasettingfromthedriveshaftslip

yoketube(Figure2).Retainthegreasetting.

3.Removetheretainingringandnylonbushingshipped

inplaceintheinnerdriveshaftguard(Figure2).

4.Slidetheretainingringallthewayontothedrive

shafttube(Figure2).

5.Insertthenylonbushingintothegrooveonthedrive

shafttube(Figure2).

6.Slidetheinnerdriveshaftguardontothedriveshaft

tube,aligningtheslotsintheguardwiththetabson

thenylonbushing(Figure2).Pushtheguardonto

thebushinguntilthetabslockintotheslots.

7.Throughtheslotsintheguard,worktheretaining

ringintothegrooveinsidetheguard,lockingthe

assembly(Figure2).

8.Installthegreasettingremovedpreviouslytothe

driveshaftslipyoketube(Figure2).

9.Repeattheprocedureonthedriveshaftslipyoke

shaft,exceptforthegreasetting(Figure2).

Important:Whenttingthedriveshaftyokes

togetherduringinstallationonthemachine,

makesurethephaselockonthesplinesis

aligned.

InstallingtheRearWeight

TwoWheelDriveGroundsmaster300SeriesTractionUnitscomplywithCEStandardswhenequippedwith

rearweight.Usethechartbelowtodeterminethecombinationsofweightrequired.Orderpartsfromyourlocal

AuthorizedToroDistributor.FourWheelDriveGroundsmaster300SeriesTractionUnitsdonotneedadditional

rearweighttocomplywithCEStandards.

TractionUnit

Description

RearWeightRequiredWeightPartNumberWeightDescriptionQty.

Groundsmaster328–D

(Model30630)

70lb.24–5780RearWeightKit(Includes

two35lb.weightsand

mountinghardware)

Groundsmaster328–D

4WheelDrive(Model

30631)

0lb.———
