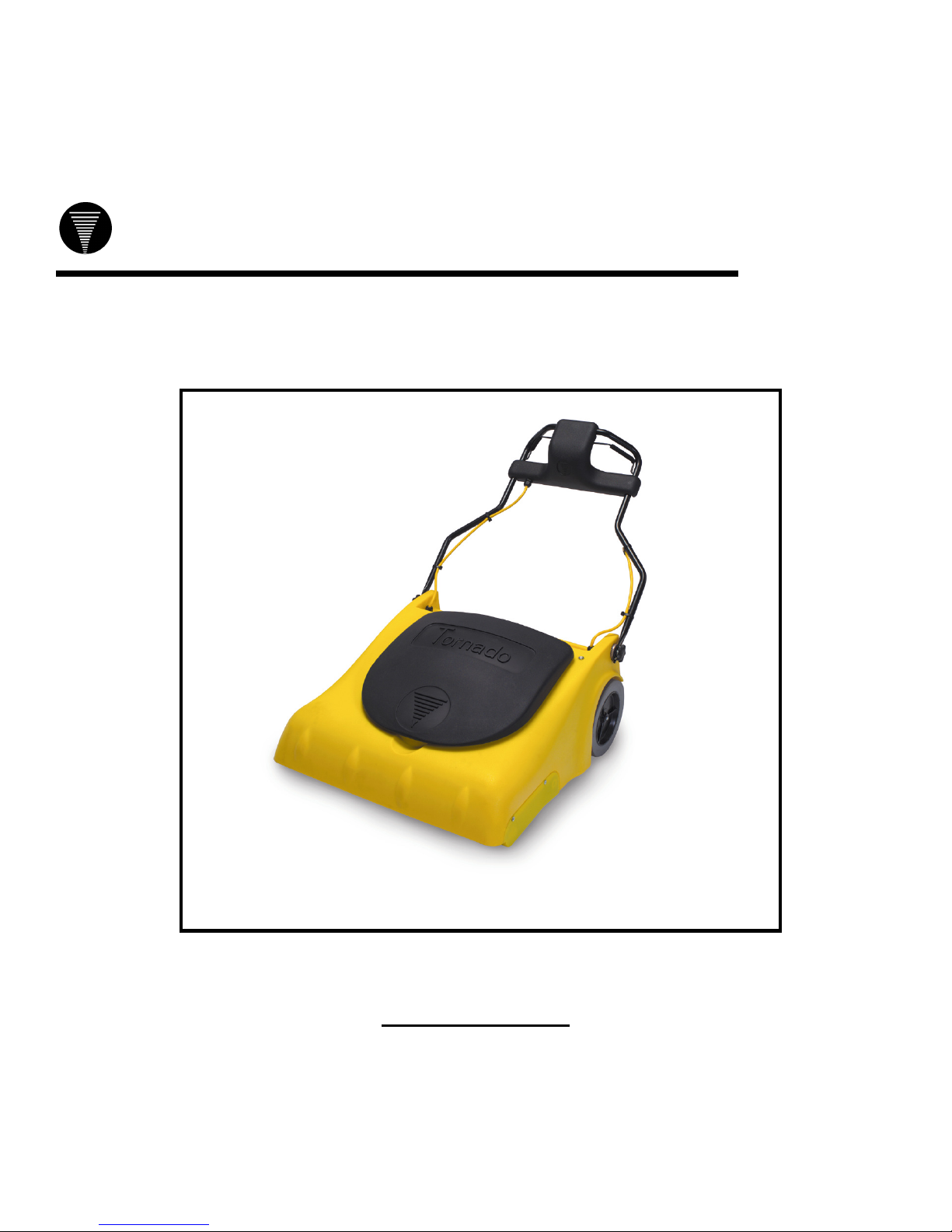

Tornado 93030 Manual de usuario

TORNADO® INDUSTRIES CORP.

7401 W. LAWRENCE AVENUE

CHICAGO, IL 60706

(708) 867-5100 FAX (708) 867-6968

www.tornadovac.com

Tornado

Operation and Maintenance Manual

For Commercial Use Only

Wide Area Vacuum Cleaner

CATALOG NOS.

93030, 93031

L3030G 04/08 2008 Tornado



Industries All rights reserved.

2

Specifications

CATALOG NO. 93030, 93031

SERIES G

CLEANING PATH (WIDTH) 30”

HP – BRUSH MOTOR .25 HP

HP – VAC MOTOR 2 X 1 HP

VOLTS 115V/230V

AMPS 15A/10A

CERTIFICATION N/A

TABLE OF CONTENTS

(L3030/L3031 MANUAL)

DESCRIPTION PAGE(S)

Performance Features……………………… 2

Machine Specifications / Warranty………… 3

Safety / Grounding Instructions……………. 4-6

Assembly Instructions………………………. 7-8

Bag Installation Instructions………………… 9

Brush Height Adjustment Instructions……... 10

Basic Operation Instructions………………...11

Filter Replacement Instructions…………….. 12

Belt Adjustment / Replacement…………….. 13

PERFORMANCE FEATURES:

•Advanced Styling With Durable Construction

•Clean Air Filtration

•30” Wide Cleaning Path

•Height-Adjustable Folding Handle

•4-Row Chevron Brush (28” Long x 3” Diameter)

•PMDC Brush Motor, ½ HP, 2.3 Amps, 2600 RPM

•(2) Ametek Vacuum Motors:

1 HP, 6.7 Amps, 98 CFM, 63” Waterlift

•4 Stage “Clean Air” Filtration:

Stage 1: Disposable Paper Bag

Stage 2: High Efficiency Reusable Cloth Bag

Stage 3: Vacuum Motor Intake Filter

Stage 4: Motor Exhaust Filter Cartridge

•Rotationally Molded Housing and Lid

•10” Diameter, 125 Lb. Rated Main Wheels

•5 Foot-operated Brush Height Adjustment Levels

•Easy Access Poly-V Drive Belt

•Zinc Plated Brush Shoe

•

75 Foot Power Cord

Thank you for choosing Tornado products. We are proud to offer the most

complete line of commercial and industrial cleaning equipment in the industry.

Our reputation for quality, innovation and durability is unsurpassed.

Effective January 1st, 2005. Terms subject to change without notice.

Windshear Blower-Dryer, Insulation Blowers, T191, T201, T12/1, CV 30, CV 38, CW 50, CW

100, Pro PAC Vacs, Duo-Upright Carpetkeepers , Gas & Electric Pressure Washers, and all

chargers are warranted for 1 (one) year for both parts and labor.

Warranties on all riding sweepers including the ICC1, KM 100/100 R, KMR 1250, and KMR

1700 are 24 months parts/6 months labor OR 1000 hours of operation, whichever comes

first. Warranties on the 75/140 & 90/140 are 24 months parts/12 months’ labor OR 1,000

hours of operation whichever comes first.

All non-wear item parts purchased after warranty expiration are warranted for 90 days.

Warranty starts from the date of sale to the consumer or, at Tornado’s discretion, 6 months

after dealer purchased the unit from Tornado, whichever comes first.

Note: Tornado, The Latest Dirt, Floorkeeper, Carpetkeeper, Carpetrinser, Carpetrinser/Dryer,

Headmaster, Taskforce, PAC-VAC, T-Lite, Glazer, Windshear, Max-Vac, CV 30, CV 38, and

Trot-Mop are trademarks of Tornado Industries.

1-800-VACUUMS

Chicago area: (708) 867-5100

Fax: (708) 867-6968

7401 W. awrence Avenue

Chicago, I 60706
