Topfield TF 7700 HSCI Manual de usuario

TOPFIELD

TF 7700 HSCI

User Guide

High Deﬁnition

Digital Satellite Receiver

Extensible to Personal Video Recorder

The lighting ﬂash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufﬁcient magnitude

to consititute a risk of electric shock to a person.

The exclamation point, within an equilateral triangle, is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the product.

iv Contents

Contents

Contents iv

1 Introduction 1

1.1 Features ............................... 1

1.2 Controlling the digital receiver .................. 2

1.2.1 The front panel ....................... 3

1.2.2 The remote control ..................... 4

1.3 What is common interface? .................... 6

2 Setup 8

2.1 Unpacking .............................. 8

2.2 Safety precautions ......................... 8

2.3 Rear panel connections ....................... 10

2.4 Connecting up your digital receiver ............... 11

2.4.1 Connecting the antenna .................. 12

2.4.2 Connecting to your television .............. 12

2.4.3 Connecting to your video cassette recorder ....... 15

2.5 Switching on for the ﬁrst time ................... 15

2.5.1 Inserting batteries in the remote control ......... 15

2.5.2 Powering on and checking picture ............ 16

3 Preference Settings 17

3.1 Language settings .......................... 17

3.2 Video and audio settings ...................... 19

3.2.1 Colour model ........................ 19

Contents v

3.2.2 Video cassette recorder .................. 19

3.2.3 Television aspect ratio ................... 20

3.2.4 High deﬁnition television ................. 21

3.2.5 Audio mode ........................ 22

3.3 Local time setting .......................... 22

3.4 Parental control ........................... 25

3.5 Adjusting the on-screen display .................. 26

3.6 To turn on the time shift feature .................. 26

4 Service Search 27

4.1 Searching broadcasting services .................. 27

4.1.1 Conﬁguring LNB settings ................. 27

4.1.2 Conﬁguring DiSEqC 1.2 settings ............. 30

4.1.3 Conﬁguring USALS settings ............... 31

4.1.4 Searching services ..................... 32

4.2 Editing the transponder list .................... 35

4.3 Resetting to factory settings .................... 36

5 Daily Usage 37

5.1 Volume control ........................... 37

5.2 Watching television ......................... 37

5.2.1 The services list ....................... 37

5.2.2 The favourite services list ................. 40

5.2.3 Viewing programme information ............ 41

5.2.4 Selecting audio tracks ................... 42

5.2.5 Selecting subtitle tracks .................. 42

5.2.6 Viewing teletext ...................... 42

5.3 Viewing electronic programme guide .............. 43

5.4 Watching multifeed programme ................. 43

5.5 Using time shift ........................... 44

6 Listing Services 46

6.1 Editing the services list ....................... 46

6.2 Editing the favourite list ...................... 48

6.3 How to use on-screen keyboard .................. 50

6.4 Transferring receiver data ..................... 50

vi Contents

7 Recording and Playing 52

7.1 Recording a programme ...................... 52

7.1.1 Instant recording ...................... 53

7.1.2 Timer recording ...................... 54

7.1.3 Scheduling recordings using the programme guide . . 57

7.1.4 Recording a pay service programme ........... 57

7.2 File archive ............................. 58

7.2.1 To delete a recording .................... 59

7.2.2 To sort recordings ..................... 59

7.2.3 To lock a recording ..................... 59

7.2.4 To rename a recording ................... 60

7.2.5 To make a new folder ................... 60

7.2.6 To move a recording to another folder .......... 60

7.3 Playing back a recording ...................... 60

7.3.1 To navigate using the progress bar ............ 61

7.3.2 To play in slow motion .................. 61

7.3.3 To play in fast motion ................... 62

7.3.4 To make a bookmark .................... 62

7.3.5 To play back a recording repeatedly ........... 62

7.3.6 To play back a scrambled recording ........... 63

7.4 Formatting the hard disk ...................... 63

8 Firmware Update 65

8.1 Checking the ﬁrmware information ............... 65

8.2 From a USB memory ........................ 66

8.3 From your computer via RS-232 port ............... 67

8.4 From another digital receiver via RS-232 port .......... 68

8.5 Over the air ............................. 69

Index 70

Chapter 1

Introduction

The TF 7700 HSCI digital receiver is fully compliant with the

international Digital Video Broadcasting (DVB) standard, and

thus is able to receive digital broadcasts of that standard. For

its operation you need an antenna, which must be installed

appropriately.

NOTE

In general we equate a channel with a frequency. Unlike ana-

logue broadcasts, however, digital broadcasts are not all as-

signed to their own frequencies; instead, multiple television

broadcasts are transmitted through a single frequency. The fre-

quency in digital broadcasting is usually called transponder. To

reduce confusion in this manual, the word

service

is preferably

used than

channel

as a term to indicate one television or radio

broadcast.

1.1 Features

The TF 7700 HSCI digital receiver has the following features:

•

Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-

ALS.

2 Introduction

• Can store up to 5000 television and radio services.

• You can edit the services list.

•

You can create favourite lists of your favourite services.

•

You can view information about the current television or

radio programme.

•

Has an electronic programme guide that provides an

overview of scheduled programmes.

•

If you have an external hard disk drive connected to

the digital receiver via the USB port, you can record

television programmes into it.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control

and the buttons on the front panel.

NOTE

When the digital receiver is off but plugged into a wall outlet,

we say that it is in standby mode; on the other hand, when it is

on, it is in operation mode. Even when you are not using the

digital receiver, you should keep it plugged into a wall outlet

to be in standby mode so that it can run timer events at any

time.

1.2 Controlling the digital receiver 3

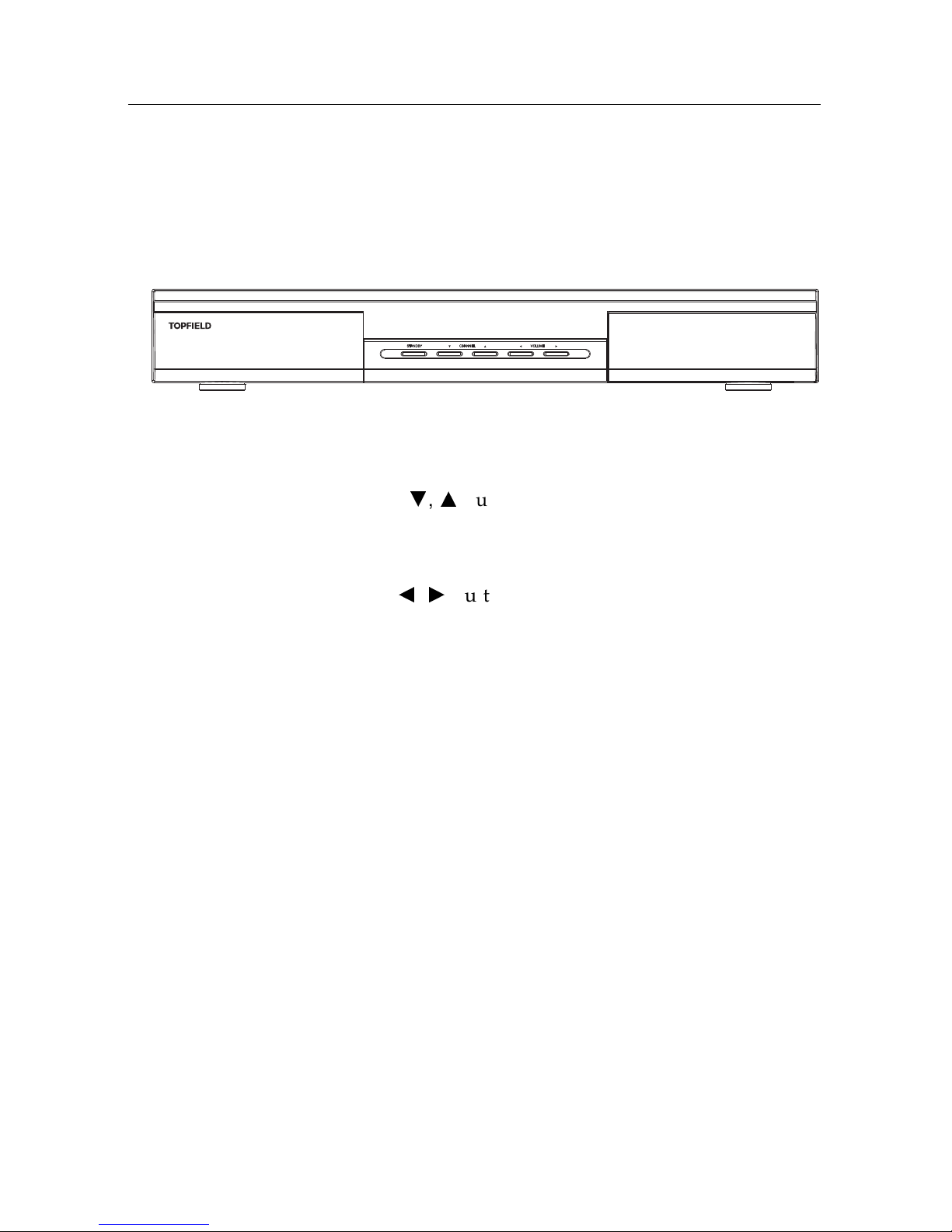

1.2.1 The front panel

The front panel of the digital receiver has buttons to control the

digital receiver, and speciﬁc lamps and a display to indicate its

status. The following indicates what they mean.

STANDBY

button switches the digital receiver between

standby mode and operation mode.

CHANNEL

buttons switch to previous or next service.

They are also used to navigate in menus and interactive

screens.

VOLUME

buttons decrease or increase the volume.

They are also used to change values for menu options.

Front display

displays the current time in standby mode,

and displays the current service in operation mode.

4 Introduction

1.2.2 The remote control



button switches the digital re-

ceiver between standby mode and

operation mode.



is used to set a sleep timer in 10

minute increments.









V−









V+

buttons decrease or in-

crease the volume. They are also

used to change values for menu op-

tions.



mutes the sound. Press again

to switch it back on.









P−









P+

buttons switch to previous

or next service. They are also used

to navigate in menus and interac-

tive screens.



switches between the current

service and the previously viewed

one.



Numeric buttons are used to en-

ter a service number for service

change or to specify values for

menu options.









displays the services list. See

5.2.1 for more details. It is also

used to select a menu item.









FAV displays the favourite lists.



displays the service information box. It is also used

to display more information about a programme.



is used to select an audio track and a sound mode, or
