Toa SL-60W Manual de usuario

WEATHERPROOF SPEAKER SYSTEM

Model SL-60W

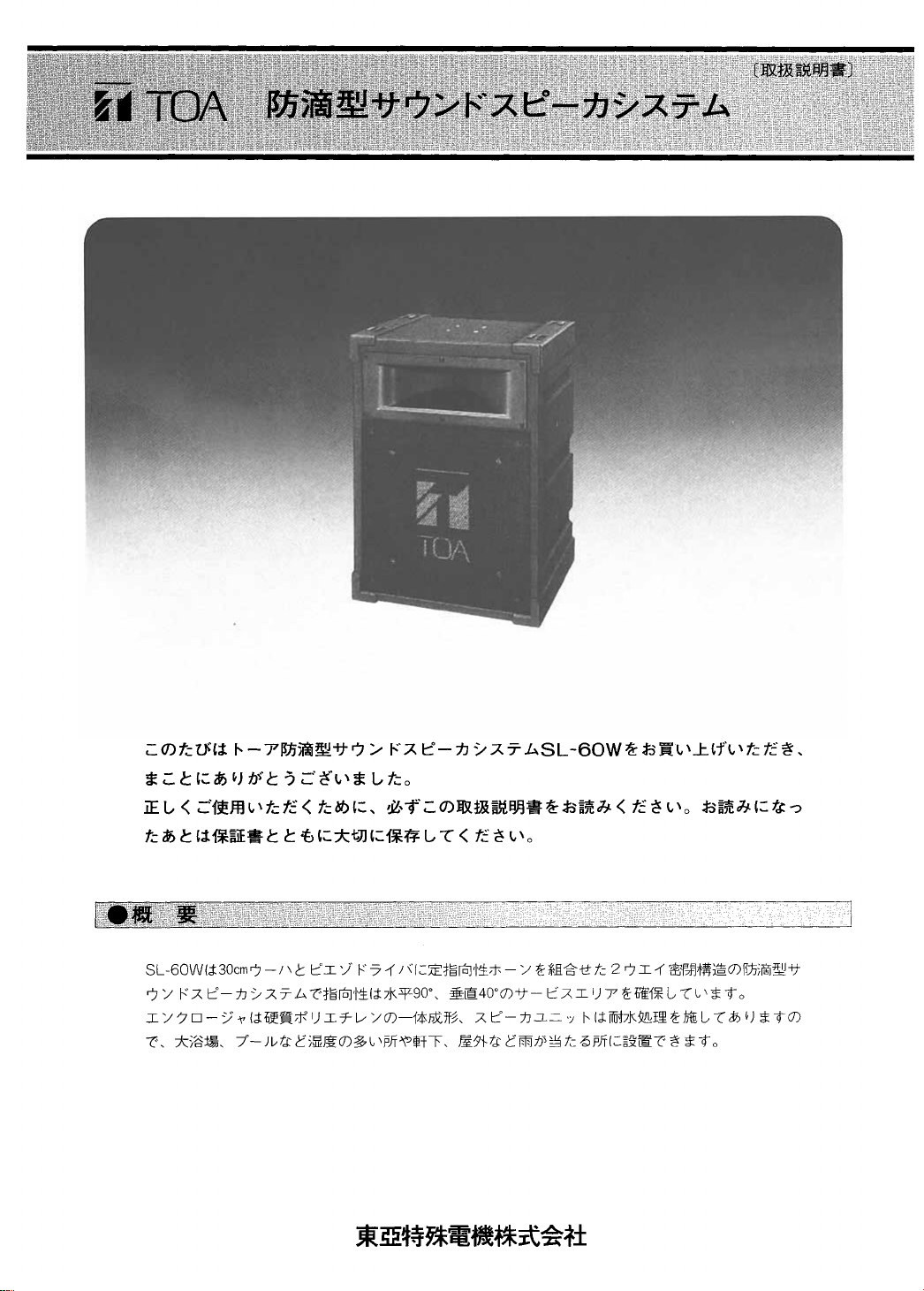

GENERAL DESCRIPTION

The Toa SL-60W is a weatherproof 2-way speaker system having a 30 cm woofer and a

constant directivity horn with a pie o driver unit. Its directivity coverage is 90° hori ontal and

40° vertical. A sealed enclosure is made of polyethylene and a speaker unit is weath-

erproofed, making the SL-60W most ideal both for indoor (even in such moist places as in-

door swimming pools) and outdoor applications.

Toa Electric Co., Ltd.

KOBE, JAPAN

Instruction Manual

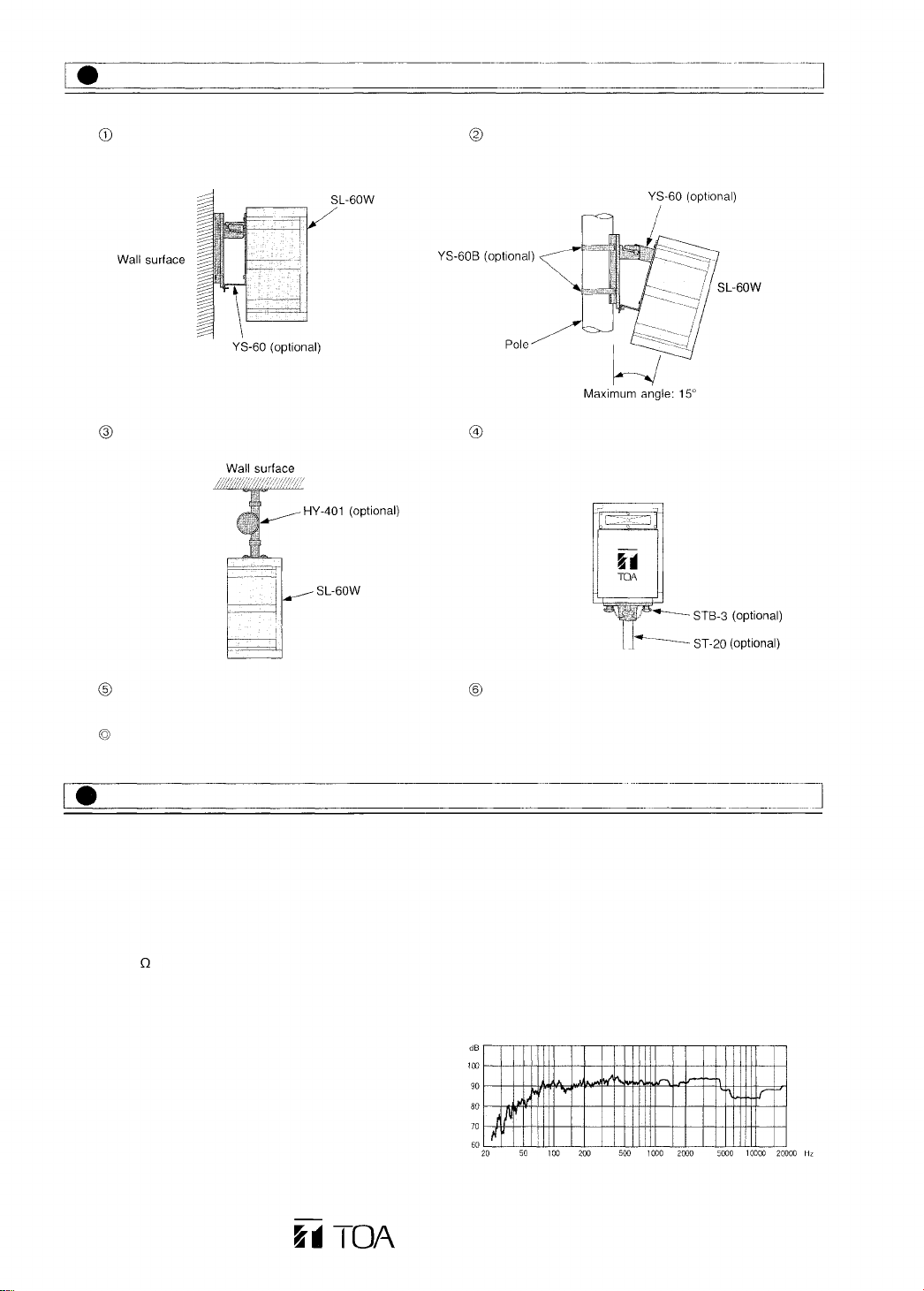

Insta ation and optiona mounting devices

Wa mounting.

Use the YS-60 (optional).

Mounting on the po e.

Use the optional mounting kits YS-60 and YS-

60B.

Cei ing suspension.

Use the HY-401 (optional).

Mounting the speaker on the speaker

stand.

Use the optional mounting kits STB-3 and ST-

20.

When changing to high impedance, use the

optional matching transformer MT-648.

Use the SL-60SRK kit (optional) for on-the-

road applications.

For the above optional mounting devices, refer to each corresponding manual.

Specifications and characteristic diagram

Enc osure:

Sealed type

Woofer:

Weather proofed 30 cm cone speaker

Tweeter:

CD horn 90° × 40° with Weather proofed pie o driver

Impedance:

8

Output sound pressure eve :

92 dB/w/m

Frequency response:

50 H - 20 kH

Hand ing Power Capacity:

Continuous pink noise

80 watts RMS of band-limited pinknoise

Continuous program

240 watts

Instantaneous peak

800 watts

Operating temperature range:

—20°C to +55°C

Materia :

Enclosure Polyethylene

Punched Metal Net Painted on inc-plated-steel

Name Plate, Screws Stainless steel

Dimensions:

510 (H) x 367 (W) x 310 (D) mm

20.1 (H) x 14.4 (W) x 12.2 (D) inches

Weight:

10.3

kg

22.7 pounds

Characteristic diagram

(1W/1m : 1/3 Octave Pink Noise)

Toa Electric Co, Ltd.

KOBE, JAPAN

Model SL-60W

*Please see the reverse side for English manual.

510(H)×367(W)×310(D)

133-01-265-50
