INSTALLATION INSTRUCTIONS FOR SYSTEM

MANAGEMENT AMPLIFIERS VM-2120 AND VM-2240

This manual gives qualified service technicians the instructions for the work in the TABLE OF

CONTENTS below.

Use this manual referring to the instruction manual supplied with the VM-2120 or VM-2240 System

Management Amplifier.

Note that the section numbers and names in this manual are the same as those in the VM-2120/-2240

instruction manual.

TABLE OF CONTENTS

13. CHOKE COIL INSTALLATION ............................................................................................ 2

14.

INPUT TRANSFORMER INSTALLATION AND ITS BOARD MODIFICATION

14.1. Transformer Installation ......................................................................................................... 3

14.2. Switching Off the Phantom Power Supply ............................................................................. 4

14.3. Instructions When the Sub- and Master VM Amplifiers Are Connected ................................ 4

15. MOUNTING AN OPTIONAL EV-200 VOICE ANNOUNCEMENT BOARD ............ 5

16. MOUNTING AN OPTIONAL SV-200M SURVEILLANCE BOARD ........................... 7

20. CHANGING THE SPEAKER LINE VOLTAGE ................................................................ 9

23. FUNCTION SWITCH OPERATION

23.2. VM Amplifier's Internal Function Switches .......................................................................... 10

USE OF VR COVERS (Described only in this manual) ..................................................... 11

English: page 1

Deutsch: seite 13

Français: page 25

13. CHOKE COIL INSTALLATION

Caution: Leave the following work to a qualified service technician.

Be sure to unplug the AC power cord before the work.

If a checkbox for the indication of "The choke coil is installed." on the rear panel of the VM amplifier is marked

with "X", this represents that the choke coil has been installed. Therefore, the following tasks are not

necessary. When you installed the choke coil, mark the checkbox with "X".

To suppress harmonic component radiation from the power line of the unit, install the optional Chock Coil CT-

200M.

Note: In the countries where use of the CE Marking conformity is obligated, the Choke Coil must be installed.

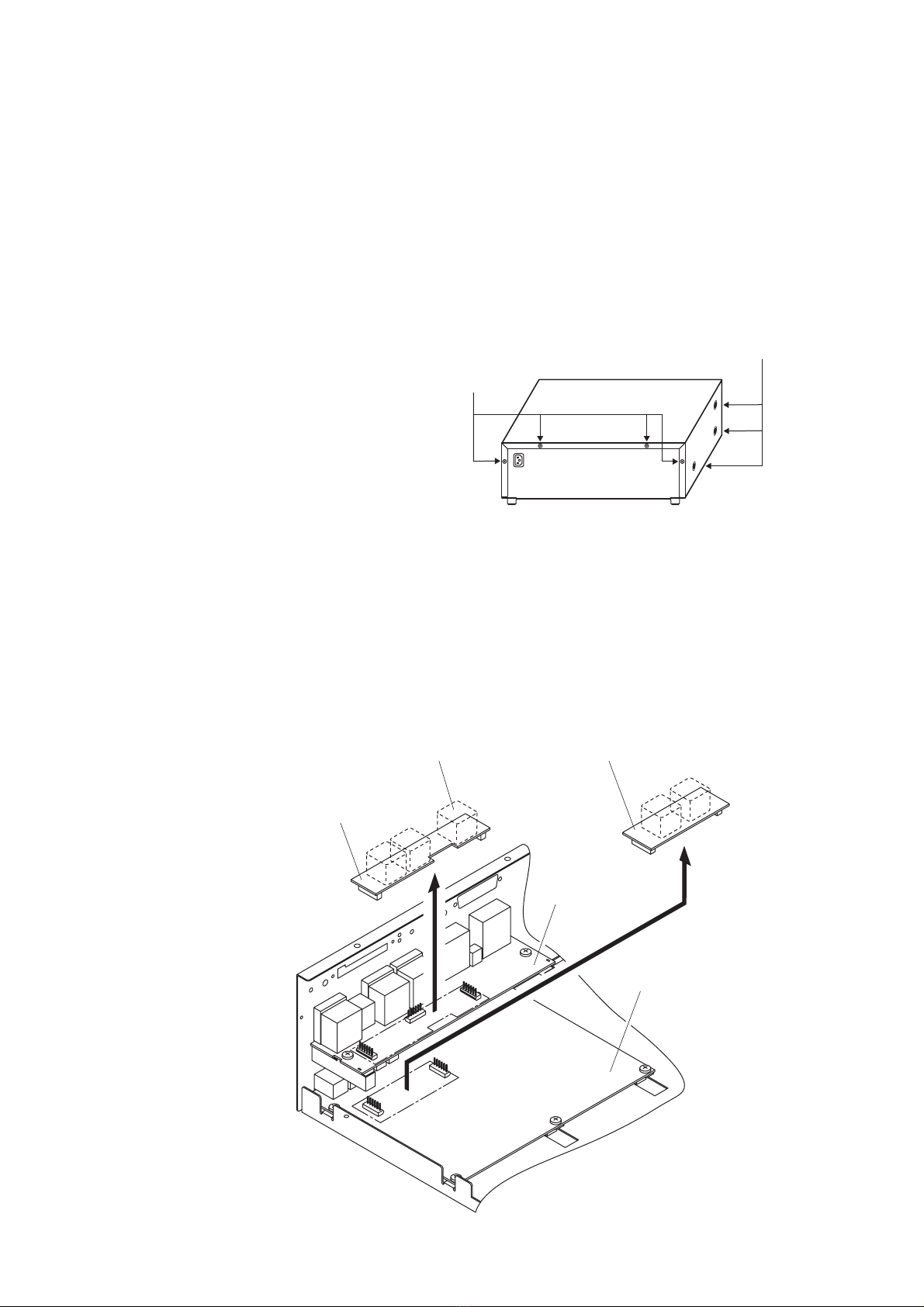

Step 1. Remove 4 screws on the amplifier rear panel and a total of 6 screws on the sides to remove the

cover.

Step 2. Install the Chock Coil near the AC inlet inside the unit.

Fix the Choke Coil with its accessory screws from the unit bottom side.

Step 3. Remove the jumper connector from the

power input board connector (CN1202).

Step 4. Plug the Choke Coil connector into the

power input board connector (CN1202).

Step 5. Using the 4 rear panel screws and 6 side panel screws removed in Step 1, replace the amplifier

cover.

Side: M4 x 8 machine screw ..... 3 pieces each

Rear: M3 x 6 machine screw and M3 plain washer ..... 4 pieces

Rear panel

Bottom side

CT-200M Choke coil

Tapping screw 4 x 10

Jumper connector

Choke coil connector

Power input board

AC inlet

Rear panel

CT-200M Choke coil

14. INPUT TRANSFORMER INSTALLATION AND ITS BOARD MODIFICATION

Caution: Leave the following work to a qualified service technician.

Be sure to unplug the AC power cord before the work.

14.1. Transformer Installation

You can convert the audio input section in Input 1 –3 terminals, Remote Microphone (RM) terminal, and

Telephone Paging (TEL) terminal on the unit from electronically-balanced input to transformer-balanced type.

Solder the optional IT-450 input transformer to the required input section.

Step 1. Remove 4 screws on the amplifier rear panel and a total of 6 screws on the sides to remove the

cover.

Step 2. Removing the input transformer board

[Inputs 1 – 3]

Remove the Inputs 1 –3 input transformer board, which is installed on the rear upper circuit board in

the unit.

[Remote Microphone (RM) or Telephone Paging (TEL)]

Remove the RM/TEL input transformer board, which is installed on the rear lower circuit board in the

unit.

Side: M4 x 8 machine screw ..... 3 pieces each

Rear: M3 x 6 machine screw and M3 plain washer ..... 4 pieces

Inputs 1 –3 input transformer board

Rear upper

circuit board

Rear lower circuit board

RM/TEL input transformer board

Input transformer

Step 3. Solder the input transformer to the removed input transformer board (5 places).

Note: Be sure not to mistake the solder side for the mounting side.

Step 4. Cut off jumper wires (2 places marked with X for each input).

Note: The jumpers are on the back of the circuit board in the figure below.

[Inputs 1 –3 input transformer board]

[RM/TEL input transformer board]

Step 5. Replace the input transformer board on the circuit board.

Step 6. Using the 4 rear panel screws and 6 side panel screws removed in Step 1, replace the amplifier

cover.

14.2. Switching Off the Phantom Power Supply

By cutting the following jumper wires on the Inputs 1 –3 Input Transformer Board, the corresponding input's

phantom power can be switched off. (See the figure above.)

Input 1: SJP1301

Input 2: SJP1304

Input 3: SJP1307

14.3. Instructions When the Sub- and Master VM Amplifiers Are Connected

•Be sure to cut the jumper wires SJP1401, SJP1402, and SJP1403 on the RM/TEL input transformer board in

the sub-VM amplifier.

•To make the Remote Microphone (RM) input transformer-isolated, be sure to install the input transformer on

the RM/TEL input transformer board in the master VM amplifier. In addition, cut the jumper wires SJP1402

and SJP1403 while remaining SJP1401 intact.

INPUT 1 INPUT 2 INPUT 3

(SJP1303)

(SJP1301)

(SJP1302)

(SJP1306)

(SJP1305)

(SJP1304)

(SJP1307)

(SJP1308)

(SJP1309)

Jumpers for Input 1 Jumpers for Input 2

Jumper for Input 1

phantom power supply Jumper for Input 3

phantom power supply

Jumper for Input 2

phantom power supply

Jumpers for Input 3

RM TEL

(SJP1402)

(SJP1401)

(SJP1403)

(SJP1404)

(SJP1405)

Jumpers for RM

Jumper for DC power supply to the RM

Jumpers for TEL

15. MOUNTING AN OPTIONAL EV-200 VOICE ANNOUNCEMENT BOARD

Caution: Leave the following work to a qualified service technician.

Be sure to unplug the AC power cord before the work.

Step 1. Set the DIP switch on the EV-200 Board as shown in the figure.

EV-200 surveillance signal output (Switch No. 2)

The EV-200 board always transmits a 1 kHz sine wave signal to an amplifier when the EV-200 Board is not

reproducing audio signals. The amplifier detects the existence of the 1 kHz signal. When the signal does not

exist, the amplifier judges the board's failure and causes the FAULT indicator to light.* (The signal indicating

the EV-200's failure is transmitted from the CONTROL I/O connector.)

* If Switch No. 2 is set to the OFF position, the FAULT indicator lights even when the board is operating

correctly.

Step 2. Remove 4 screws on the amplifier rear panel and a total of 6 screws on the sides to remove the

cover.

Step 3. Insert the EV-200 connection cable coming from the EV-200 Board into connector CN8 in the

amplifier.

SW 1

EV-200 surveillance signal output on-off (Switch No. 2)

Be sure to set to ON. (A 1 kHz signal output)

DIP switch DIP switch

OFF

EV-200 Board

Always set to OFF.

(ON position is for factory test.)

Side: M4 x 8 machine screw ..... 3 pieces each

Rear: M3 x 6 machine screw and M3 plain washer ..... 4 pieces

Rear panel

EV-200 connection cable

CF card connector

EV-200 Board

CN8

CN6

Do not handle unless your body is static-free because some of the assembled components are

sensitive to static electricity.

Step 4. Using 2 screws supplied with the EV-200, mount the EV-200 in the amplifier.

Step 5. Check the DIP switch on the EV-200 Board again for correct setting. (See Step 1.)

Step 6. Using the 4 rear panel screws and 6 side panel screws removed in Step 2, replace the amplifier

cover.

CF Card security cover

Remove 2 screws to detach the security cover when inserting the CF Card into the card slot. Be sure to

replace the cover after inserting the card.

CN8

M3 x 6 machine screw ..... 2 pieces (supplied with the EV-200)

EV-200 connection cable

EV-200 Board

M3 x 4 machine screw (2 pieces)

EV-200 Board

CF Card security cover

CF Card

16. MOUNTING AN OPTIONAL SV-200M SURVEILLANCE BOARD

Caution: Leave the following work to a qualified service technician.

Be sure to unplug the AC power cord before the work.

Step 1. Set the DIP switch on the SV-200M Board as shown in the figure.

SW 1 SW 2

SV-200M Board

Communication with VM amplifiers

Be sure to set to ON.

Speaker line surveillance activation time

SW1-1 SW1-2 SW2-1 Setting contents

OFF OFF OFF Automatic activation

disabled

ON OFF OFF 10 minutes intervals

OFF ON OFF 20 minutes intervals

ON ON OFF 30 minutes intervals

OFF OFF ON 30 minutes intervals

ON OFF ON 40 minutes intervals

OFF ON ON 50 minutes intervals

ON ON ON 60 minutes intervals

This setting executes failure detection by means of

the "speaker line surveillance activation" signal from

the external control input (SURVEILLANCE I/O 25-

pin D-sub connector).

Speaker lines are automatically monitored at set

time intervals.

SW2-2 Setting contents

OFF Disabled (communications impossible)

ON Enabled (when SV-200M Board is

installed in VM amplifier)

Communications with VM (VM-2120 or VM-2240) amplifier

Step 2. Remove 4 screws on the amplifier rear panel and a total of 6 screws on the sides to remove the

cover.

Side: M4 x 8 machine screw ..... 3 pieces each

Rear: M3 x 6 machine screw and M3 plain washer ..... 4 pieces

Do not handle unless your body is static-free because some of the assembled components are

sensitive to static electricity.

Step 3. Detach the surveillance I/O blank panel on the

amplifier rear panel by removing 2 fixing snap rivets.

Step 4. Unscrew 2 hexagonal sleeves mounted on the 25-pin

D-sub connector on the SV-200M Board.

Step 5. Connect the SV-200M Board to the VM amplifier's boards with the connection cables.

5-1. Plug out the jumper connector from the relay board connector (CN1003) shown below.

5-2. Connect the 2 cables attached to the SV-200M to the connectors in the VM amplifier's boards shown

below.

Step 6. Using the removed 2 hexagonal sleeves,

mount the SV-200M in the amplifier.

Step 7. Check the DIP switch on the SV-200M Board again

for correct setting. (See Step 1.)

Step 8. Using the 4 rear panel screws and 6 side panel screws removed in Step 2, replace the amplifier

cover.

Surveillance I/O blank panel

Snap rivet

SV-200M Board

Hexagonal sleeve

D-sub connector

Rear panel

CN6 connection cable

CN1003 connection cable

CN8

CN6

SV-200M Board Relay board

D-sub connector Jumper connector

5-1

5-2

CN1003

Hexagonal sleeve

SV-200M Board

20. CHANGING THE SPEAKER LINE VOLTAGE

Caution: Leave the following work to a qualified service technician.

Be sure to unplug the AC power cord before the work.

The VM amplifier's speaker line voltage is set for 100 V line output. For 50 V or 70 V line applications, change

internal connector wiring as shown below.

Step 1. Remove 4 screws on the amplifier rear panel and a total of 6 screws on the sides to remove the

cover.

Step 2. Pull the cable connector (9-pin) connected to CN1102

connector on the circuit board with the zone volume control

(selector switch).

Step 3. Change wires inserted into the cable connector for different

wires according to color-coding shown in the table below to

switch to the desired line voltage.

Step 4. Connect the cable connector to the circuit board.

Step 5. Using the 4 rear panel screws and 6 side panel screws

removed in Step 1, replace the amplifier cover.

Connector pin assignment

Speaker line voltage/impedance

How to remove cables from connector

Pull out the cable pressing the lock spring with a pointed object like tweezers as shown below.

VM amplifier's front panel

CN1102 connector

Pull out the cable.

Press the lock spring.

Speaker line voltage CN1102 Connector Pin Number

123456789

100 V White Violet Blue Green Yellow Orange Red Brown Black

70 V Violet Blue Green Yellow Orange Red Brown White Black

50 V Blue Green Yellow Orange Red Brown White Violet Black

Speaker line voltage VM-2120 VM-2240

100 V 83 Ω42 Ω

70 V 42 Ω21 Ω

50 V 21 Ω10 Ω

23. FUNCTION SWITCH OPERATION

23.2. VM Amplifier's Internal Function Switches

Caution: Leave the following work to a qualified service technician.

Be sure to unplug the AC power cord before the work.

Step 1. Remove 4 screws on the amplifier rear panel and a total of 6 screws on the sides to remove the

cover.

Step 2. Set the amplifier's internal DIP switches SW2, SW3, and SW4 according to the table below.

Step 3. Replace the amplifier cover using the screws removed in Step 1.

SW2 switch setting (All switches are factory-preset to OFF position.)

SW3 switch setting (All switches are factory-preset to OFF position.)

* This function is set in relation to the SW2-8 switch. (For details, see p. 26 "GENERAL-PURPOSE

BROADCAST PRIORITY" of the instruction manual supplied with the VM-2120 or VM-2240.)

Side: M4 x 8 machine screw ..... 3 pieces each

Rear: M3 x 6 machine screw and M3 plain washer ..... 4 pieces

12345678

SW4 SW3

SW3

SW4

SW2

VM amplifier's front panel

Internal DIP switches

Switch No. 1 2 3 4 5 6 7 8

Function

Input 1 Input 2 Input 3 Message 3 Message 4 Message 5

ON 1 1 1 1 3 3 3

OFF 2 2 2 2 1 1 1

Priority Mode

for Same

Priority Unit

Unit No. Priority

(Numerical order)

First/Last

Priority

Inputs 1 –3

Broadcast Priority Level

Voice Announcement Board's

Message Priority Level

TEL Paging

Priority Level

Switch No. 1 2 3 4 5 6 7 8

Function

ON Mixed Silent On Sub-unit

(off)

OFF Off

(on)

First/Last

Priority*

First-come

first-served

Last-come

first-served

Not mixed

Evacuation

message

Master

unit

Priority 2

Mixing

Mode after

Emergency Talk

Input 3/LINE

(Input 3/MIC)

Chime On/Off

Unit Type No. of Connected

Units

See the Connected

unit No. table on the

next page.

Otros manuales para Venas VM-2120

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Amplificador de Toa

Toa

Toa A-1031 Manual de usuario

Toa

Toa BG-115 Manual de usuario

Toa

Toa P-150M Manual de instrucciones

Toa

Toa P-3248D-EB 1CE Manual de usuario

Toa

Toa DA-250FH CU Manual de usuario

Toa

Toa BG-220 Instrucciones de funcionamiento e instalación

Toa

Toa DA-X1000S Instrucciones de montaje

Toa

Toa A-5006A Manual de usuario

Toa

Toa CA-200 Manual de usuario

Toa

Toa MX-6224D Manual de usuario

Toa

Toa A-2030D SERIES Manual de usuario

Toa

Toa A-1803 Manual de usuario

Toa

Toa KD-2 Manual de instrucciones

Toa

Toa 900 II Series Manual de usuario

Toa

Toa A-9060DH Manual de usuario

Toa

Toa BG-220 Manual de usuario

Toa

Toa BG-2480D-AM Manual de usuario

Toa

Toa P-9120DH Manual de usuario

Toa

Toa DA-250F CU Manual de usuario

Toa

Toa A-2030 CE-AU Manual de usuario

Toa

Toa A-2060 CU Manual de usuario

Toa

Toa A-3606D Manual de usuario

Toa

Toa A-9120DL Manual de usuario

Toa

Toa A-503A Manual de usuario

Manuales populares de Amplificador de otras marcas

ASTRO

ASTRO HVO V40 P Manual de usuario

Marantz

Marantz SUPERSCOPE BLA-545 Instrucciones de montaje

NAD

NAD CI980 Manual de usuario

Technics

Technics SE-CH770 Manual de usuario

Harman Kardon

Harman Kardon HK6300 Manual de usuario

NAD

NAD T975 Manual de usuario

McIntosh

McIntosh MA6850 Manual de usuario

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manual de usuario

Viatron

Viatron Autrix Manual de usuario

GME

GME GA9800 Manual de usuario

Atlas

Atlas CP700 Manual de usuario

Roland

Roland KC-1000 Manual de usuario

Pyle

Pyle PFMRA350BW Manual de usuario

Advantage

Advantage S-250 Manual de usuario

IRT Electronics

IRT Electronics DVA-3007 Manual de usuario

Dimavery

Dimavery BA-100 Series Manual de usuario

Sony

Sony XM-S400D Manual de usuario

Schertler

Schertler ROY X Manual de usuario
