Timeguard SLDD1000 Manual
INSTALLATION & OPERATING
INSTRUCTIONS
1000W DUSK TO DAWN
LIGHT CONTROLLER
Cat No. SLDD1000
iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 8
1
Introduction
The SLDD1000 features an integral daylight sensing
photocell which will automatically switch connected
lights on at dusk and off at dawn.
It incorporates an adjustable operation delay to prevent
mis-operation due to e.g. car headlamps.
C
Top
Cable
clamp
Mains in Output
LED
Common
Cable clamp
fixing screws
x 2
B
Insert
screwdriver
and twist
Front cover
hinges
upwards
A
iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 1
2
Parts included
• Photocell (Dusk/Dawn) Switch.
• Instruction manual. Please keep safe for future
reference.
• Accessory Pack.
Tools and parts needed
• 3 core cable
• Electric/hand-held drill & bits.
• Terminal or Electricians screwdriver
• Wire cutters
Unit can be used indoors or outdoors, but is specifically
designed for outdoor use.
Do not attempt to install during wet weather, if you are
suffering from nausea or dizzy spells or if you are
taking any medication with similar side effects.
Do not attempt to install during wet weather, if you are
suffering from nausea or dizzy spells or if you are
taking any medication with similar side effects.
If in any doubt, consult a qualified electrician.
D
Lux Time delay
View on underside of unit shows adjustments.
s
iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 2
3
Installation
The unit is suitable for connection to a 240 V ac 50Hz
electricity supply. It is suggested that 3-core round
flexible cable of 1sq.mm gauge is used. An internal
switch should be installed to switch the power to the
unit ON & OFF. This allows the sensor to be easily
switched off when not required or for maintenance
purposes.
IMPORTANT
Switch off the electricity at the fuse box by removing the
relevant fuse or switching off the circuit breaker before
proceeding with the installation.
Open the unit by gently prying the “ears” on each side
of the unit. See diagram A. This can be done without a
tool, but if you prefer use a flat blade screwdriver, but
be careful not to damage the clips. They should release
easily. The front cover is hinged at the top, the front
cover will swing open upwards.
Using the unit as a template, drill the holes. Insert the
wall plugs into the holes. See diagram B.
It is recommended that the grommet is pierced with a
screwdriver to ensure a better seal.
Fix the unit to its mounting surface. Do not overtighten
the mounting screws as this could damage the unit. If
using a power screwdriver, use the lowest torque setting.
Remove the cable clamp. See diagram C
Pierce and pass the cables through the grommet. We
recommend you use a screwdriver to pierce the
grommet as this will give a better seal.
iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 3
Isolation
switch
Mains in
4
Connection
Connect the incoming mains cable to the terminal block
on the unit as follows (see connection diagram):
NEUTRAL (Blue) N
EARTH (Green/Yellow)
LIVE (Brown) L
Connect the lighting load cable to the terminal block.
NEUTRAL (Blue) N
EARTH (Green/Yellow)
LIVE (Brown) L1
Please note the the N terminals are common.
Ensure that the connections are secure.
Re-attach the cable clamp and secure.
Close the front cover.
Installation is complete.

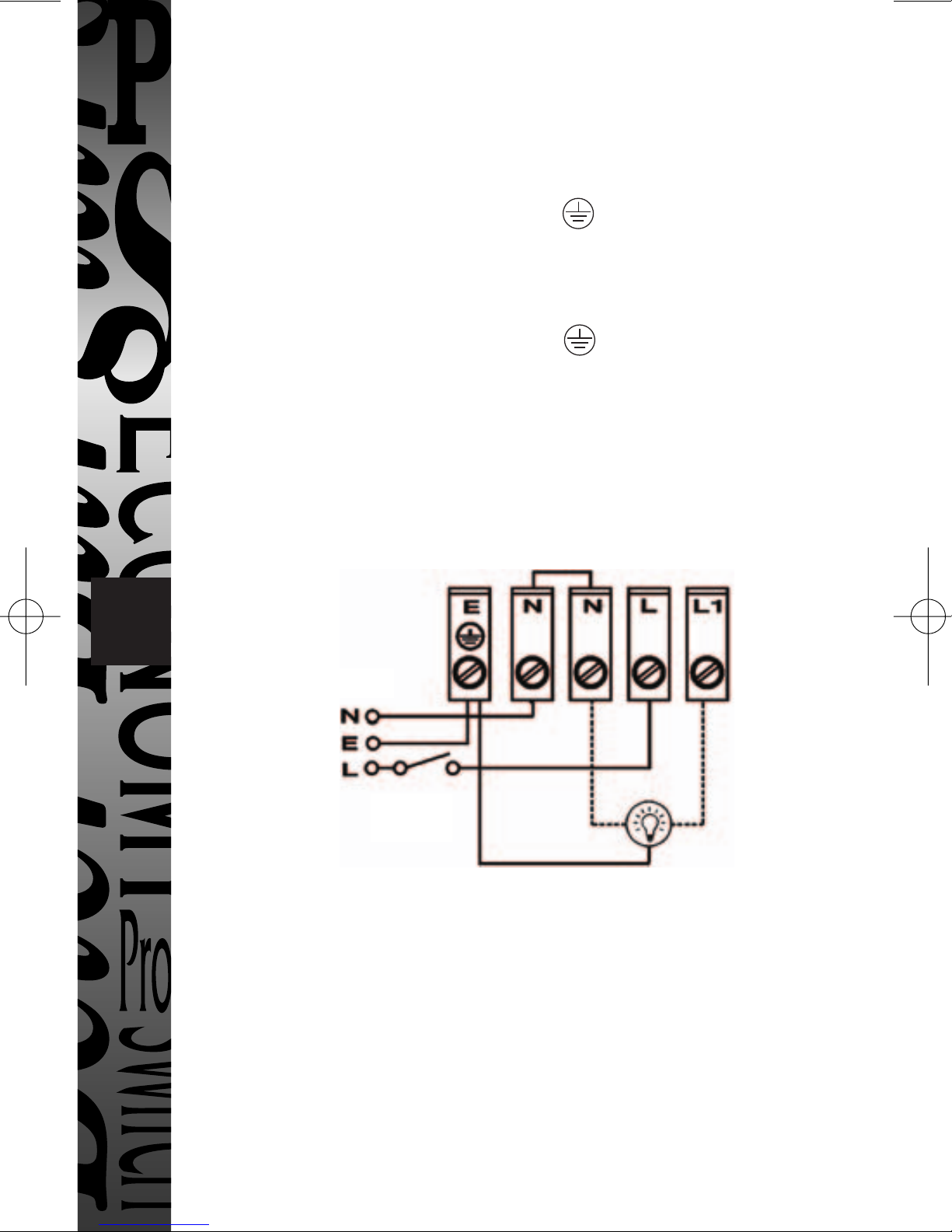

Connection Diagram
Testing
Set the adjustment knobs as follows:-
See diagram D.
Dusk setting, fully anti-clockwise (daylight setting)
Time Delay setting fully anti-clockwise (minimum 2 sec)
The Dusk setting determines at which light level the
switch will turn its connected load “ON”
Turning this setting fully anti-clockwise allows you to
test the circuit during daylight.
iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 4
5
Connect the unit to the mains and switch power on.
After a short delay, the unit will switch ON. This is
indicated by the red LED see diagram C. Any attached
lights will also illuminate.
Setting up for automatic operation
The DUSK (LUX) control determines the level of
darkness required for the unit to start operating.
The setting is best achieved by the procedure below:
Set the Dusk and Time Delay control knob fully anti-
clockwise. Wait until darkness falls.
When the ambient light level reaches the level of
darkness at which you wish the lamps to become
operative (ie. At dusk), SLOWLY (a small step at a
time) rotate the control in a clockwise direction until a
point is reached where the lamp illuminates. Leave the
control set at this point.
At this position, the unit should become operative at
approximately the same level of darkness each evening.
Observe the operation of the unit. If the unit is starting
to operate too early (ie. when it is quite light), adjust
the control slightly anti-clockwise. If the unit starts to
operate too late (ie. only when it is very dark), adjust
the control slightly clockwise.
Continue to adjust until the unit operates as desired.
The Time Delay setting allows the user to determine at
which time after the required darkness level is reached
the lights will illuminate. This is beneficial in areas
where intermittent light/darkness exposure is possible
ie:- car headlights, or shadows.
Turning the adjustment knob fully anticlockwise will
illuminate the lamps 2 seconds after the lower lux level
is reached.
Turning the adjustment knob fully clockwise will
illuminate the lamps 5 minutes after the lower lux level
is reached. This will eliminate possible on/off
switching due to intermittent light/darkness exposure.
iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 6
6
230 V AC ~ 50Hz
Filament/incandescent 1000W
Fluorescent 250W (iron ballast
only), not suitable for
electronic high frequency
ballast units including low
energy/compact fluorescent
lamps)
Not suitable for discharge
lighting
Dusk - Dawn (adjustable
daylight sensing)
IP44 (suitable for outdoor use)
73/23/EEC and 89/336/EEC
Technical specifications
Solution
The level of ambient light in the area may
be too bright to allow operation at the
current DUSK setting. During the hours of
darkness first turn the Time Delay knob to
minimum then adjust the DUSK control
slowly clockwise until the lamp illuminates.
Refer to previous section for more details.
Adjust the setting anti-clockwise to lower
the level of ambient light required for
activation.
Problem
• The sensor
will not
operate at
night.
• Unit
activates
during the
daytime.
Troubleshooting guide
Power Supply:
Maximum Switching
capacity:
Operation:
Environmental Protection:
Conforms to Directives:
iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 7
For a product brochure please contact:
Timeguard Ltd.
Victory Park, 400 Edgware Road,
London NW2 6ND
020-8452-1112
or email csc@timeguard.com
3 Year Guarantee
In the unlikely event of this product becoming faulty due to
defective material or manufacture within 3 years of the date
of purchase, please return it to your supplier in the first year
with proof of purchase and it will be replaced free of charge.
For the second and third years or any difficulty in the first
year telephone the helpline on 020 8450 0515.
THREE YEAR
GUARANTEE
3
HELPLINE
020-8450-0515
iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 5
