Thule BIG MOUTH 599XTR Manual de usuario

BIG MOUTH™UPRIGHT CARRIER 599XTR

wheel tray

upright carrier

road bike adapter

wheel strap

end cap

lever

lock plug

t-bolt

l-clamp

barrel nut

hex key

carriage bolt

3 wing knob

washer plate

square nut

bolt M6 x 8

part

853542356

753239003

8535426

7533001

7533236

8533506

8531671

853204004

8535551

8530446

8530930

915064511

7530745

8530333

853010702

919060811

description

part number qty.

C D E

H I

PARTS INCLUDED

FOR DRIVER’S SIDE MOUNTING

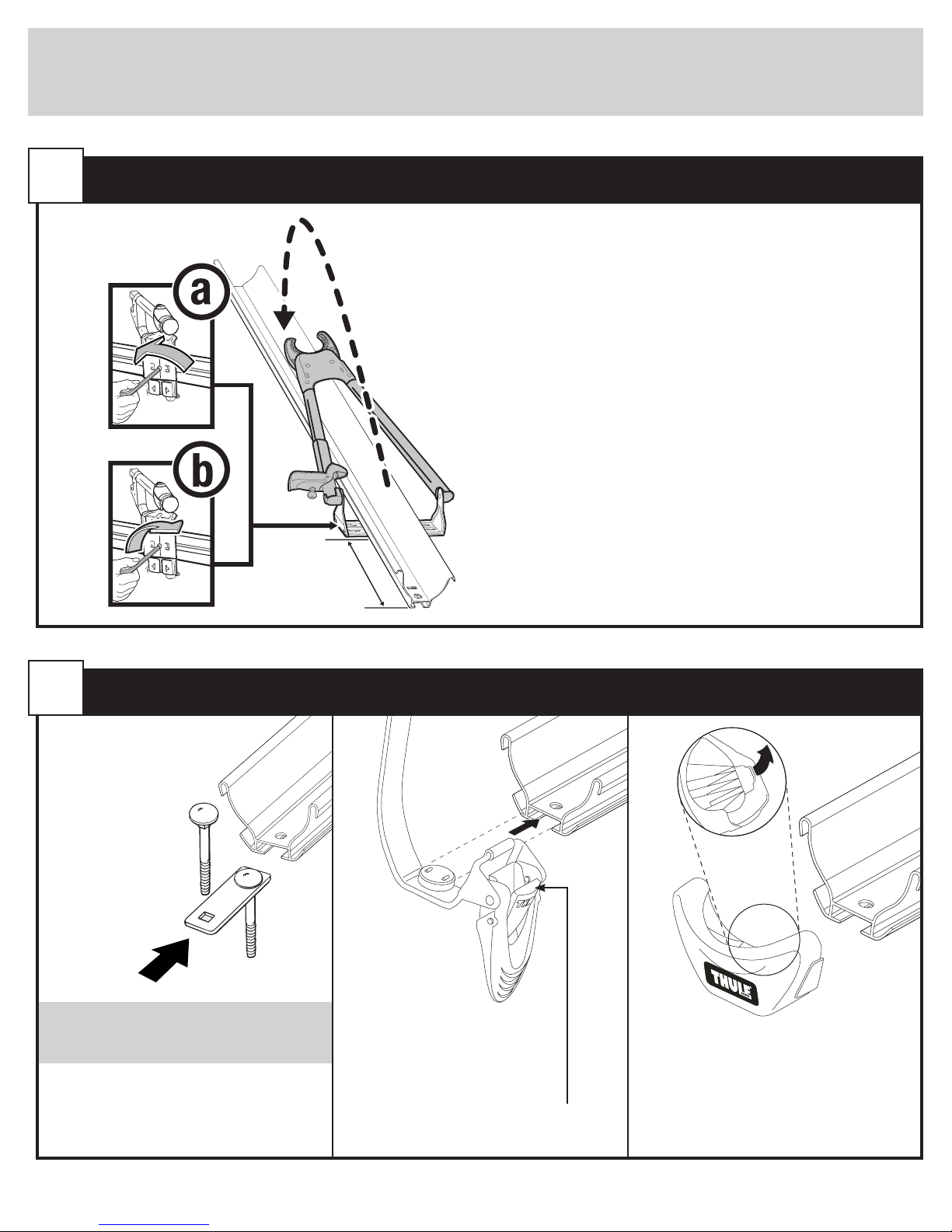

Carrier has been assembled for passenger side mounting. If you wish to mount carrier on the opposite side of vehicle follow

step 1.

a. Loosen down tube holder assembly on bottom of tray

with hex key and slide down to the opposite end

of tray.

b. Position front edge of down tube holder plate 12"

(30.5cm) from the end of the tray and re-tighten.

12"

(30.5cm)

• Drop carriage bolts

into washer plate.

CAUTION: Tray may have sharp edges.

• Slide bolts/plate into channel under wheel tray.

• Slide strap into

tray channel.

• Buckle on same side as lock.

• Flex tab up.

• Slide end cap on.

CARRIER INSTALLATION

NOTE: There should be firm pressure on handle

when closing. Adjust as necessary.

• Install barrel nut into

cam handle.

• Install l-clamp into mounting

plate.

PREASSEMBLY

• Fasten carrier to bar with t-bolt as shown.

a. Open handle.

b. Rotate handle to tighten.

c. Close handle.

FRONT HARDWARE

• Attach tray with washer plate and knobs. Tighten firmly.

REAR HARDWARE

• Center downtube in middle of jaws. a. Release handle from open position

(jaws will clamp downtube).

b. Push down on slider.

c. Engage handle with slider and close fully.

CAUTION: Make sure handle is fully closed and jaws are

secure on bike downtube.

CAUTION: Fits bike frames up to 3 3/8" in diameter.

BIKE INSTALLATION

• Invert or remove for

mountain bikes.

• Slide on adapter.

Mountain bike

• Remove lock plug and install lock cylinder.

LOCK CARRIER

SECURE REAR TIRE

Road bike
