Thule 9028XT Manual de usuario

QUICK START

GUIDE for:

VERTEX

(2 BIKE CARRIER)

9028XT

(4 BIKE CARRIER)

9029XT

- Fold down stinger and install

ﬂathead bolts (STEP 1).

- Install in receiver and bolt with

washer and lock washer (STEP

2).

- Load heaviest bike ﬁrst - front to

the right (STEP 6).

- Alternate bike direction.

- Secure bicycle to rack with

rubber straps and black safety

strap through the frames and

around the mast of the rack

(STEP 8).

- Check tightness of all bolts and

knobs periodically (every 6

months).

- Check rubber straps for wear

and replace if worn.

- Install on a trailer or other towed

vehicle.

- Put more than 200 lbs. on a class

1 hitch.

- Do not “overstretch” the straps.

- Use the rack while traveling on

dirt roads.

- Use the rack to carry tandems or

recumbents.

- Put more than the intended

number of bikes on the rack.

DO NOT

506-7077

North American English

PARTS INCLUDED

J I H C

D E

F G

L K B

VERTEX

(2 BIKE CARRIER)

9028XT

(4 BIKE CARRIER)

9029XT

506-7077

part description part number 9028XT qty.9029XT qty.

AVertex bike carrier — 1 1

Badapter sleeve short 8537489 1 1

Cripple strap 8523006001612

Danti-sway cage 8522903001 2 4

Eanti-sway angled extension 85231080012 2

Fbuckle strap 753203017 1 1

Ghitch tool 8535524 1 1

HM6 x 25mm button head screw 85231150012 2

Ihex key 853243002 1 1

JM6 ﬂat head screw 853578702 1 1

Klock washer M12 956122159 1 1

Lwasher M12 951122454 1 1

Mhex bolt M12 908124054 1 1

Nhold fast cradle 8523005002 4 8

Olock cylinder and 2 keys — — —

Plock cylinder change key 8531251 1 1

Qlocking end cap 85232940011 1

Rnon-locking end cap

8523293001 1 1

506-7077

SET UP

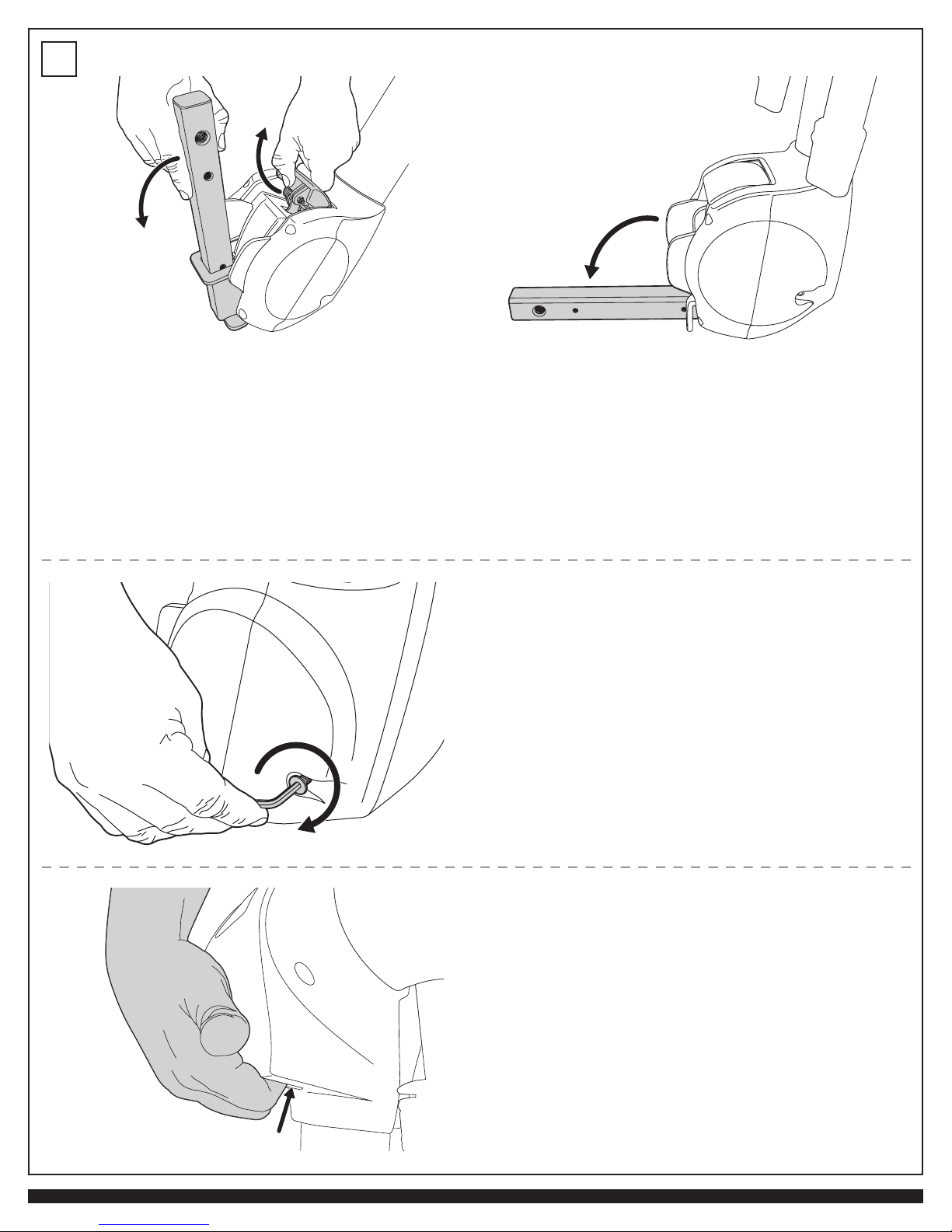

- A. & B. Pull up on lower Hitch Switch and rotate stinger perpendicular

to Vertex mast.

- C. Fasten Button Head Screws with 5mm hex key into left and right

holes at the base of carrier.

- D. Carrier can be easily handled / carried using handhold at the back

of the carrier.

506-7077

STINGER INSTALLATION / FOR 2" INSTALLATION

- A. Slide Adapter Sleeve onto stinger - align holes in adapter with holes

in stinger.

- B. Secure Adapter with M6 Flat Head Screw and Hex Key.

- C. Slide stinger into receiver until hole in stinger aligns with hole in receiver.

Secure in position with M12 receiver bolt, M12 lock washer and M12 ﬂat

washer as illustrated. Firmly tighten using Thule tool.

STINGER INSTALLATION / FOR 1-1/4" INSTALLATION

- Slide stinger into receiver until hole in stinger aligns with hole in receiver.

Secure in position with M12 receiver bolt, M12 lock washer

and M12 ﬂat washer as illustrated. Firmly tighten using Thule tool.

506-7077

BICYCLE TRANSPORTATION

- A. Lift Hitch Switch Lever as illustrated.

- B. With the other hand lift bike arm assembly upward until the Hitch

Switch “clicks” into position.

- Reverse operation to store or when traveling with no bike attached.

- Attach cradle strap to cradle.

506-7077

Attach anti-sway angled extension to underside of cradles 1 and 4

as illustrated.

5A B C

- A. Load heaviest bike ﬁrst onto the inner most cradles - handle bars facing

passenger side of vehicle.

B. Fasten cradle straps.

- Use 982XT Frame Adaptor (#982XT, sold separately) for bikes without

traditional top tubes.

506-7077

ATTACHING HOLD FAST ANTI-SWAY CAGES

- A. To attach anti-sway cage, hold horizontal with smooth edge facing

down and slide C-slot opening onto Anti-sway Extension / Cradle.

- B. Swing down to vertical position. Place smooth curved surface against

bicycle and attach strap as shown.

- Mount bikes in alternate directions.

- Secure bikes to mast of carrier with black strap.

506-7077

NOTE: BIKES MUST BE REMOVED TO LOWER CARRIER.

- To lower the mast for rear-of-vehicle access, ﬁrmly hold the mast of the

carrier with one hand.

- Lift lower Hitch Switch lever as illustrated.

SECURITY / INSTALLING END CAP LOCK CORE

- Install lock cylinder into locking end cap with Change Key.

SECURITY / USING LOCKING CABLE

- Lock bikes to carrier with cable lock.

A B

506-7077

SECURITY / SNUG-TITE RECEIVER LOCK

Using Snug-Tite™ Receiver Lock (STL2, sold separately) carrier can be

locked to vehicle hitch.
