The remote control requires two batteries size AAA as supplied with the unit.

Unclip the cover at the rear and insert the batteries the correct way round as

shown. The ends are usually marked + and –. Replace the batteries when the unit

no longer operates at normal viewing distances.

For a cleaner environment, please dispose of used batteries in the containers

provided for this purpose.

When replacing batteries do not mix old and new - do not mix makes and types.

Alkaline types are recommended for long life. Never risk damage to the remote

control by extreme heat - do not leave close to a radiator or on a window ledge

in direct sunshine.

REMOTE BATTERIES

MAINS CONNECTION

The TV is suitable for use on a.c. mains supply, 220-240V, 50 Hz only. It must not

be connected to d. c. mains.

The mains lead of the TV is fitted with a moulded plug. If the mains sockets are

not compatible or if for any reason the plug is removed please follow these

directions:

The moulded plug cannot be rewired and if removed must be disposed of safely.

DO NOT under any circumstances plug the severed plug into any mains socket as this could result in

electric shock.

IMPORTANT : If the plug is removed rewire new plug as follows:

The wires in the mains plug are coloured in accordance with the following code : BLUE - NEUTRAL

BROWN - LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows : BLUE wire to the terminal coded N

(Neutral) or coloured black.

BROWN wire to the terminal coded L

(Live) or coloured red.

DO NOT make any connection to the terminal in the plug which is marked by the letter E or by the safety

earth symbol or coloured green or green and yellow.

A fused plug must be fitted with a 5A fuse approved by ASTA or BSI to BS 1362 and fuse covers must

always be securely replaced.

000 Précautions 3/06/96 14:55 Page 1

PROGRAMME

Set-up - Preferences -

Browse - Clock - Lock -

Tuning - AV1 - AV2 - AV3.

SOUND

Speaker configuration - Balance - Loudspeakers -

Headphone - AV (Audiovisual).


Picture - PIP - Format.

TELETEXT / TOPTEXT / FASTEXT

PERSONAL ADJUSTMENTS

and scrolling back through the menus.

TO REMOVE THE MENU DISPLAY

or to display programme information, the type of sound

transmission (MONO, STEREO or DUAL),

the programme name and number, the time.

PICTURE FREEZE

ZOOM FUNCTION

TO CALL UP PREVIOUSLY VIEWED PROGRAMME

TO CALL UP ALL PROGRAMMES IN TURN

VOLUME

- Horizontal movement in the menus

- -/+ adjustments of other functions.

Keys 1 to 0 are used to :

- Select the programmes (from 1 to 99)

- Enter the channels numbers

- The 0 key is used to call AV inputs 1, 2 and 3.

MUTE

STAND-BY

When a red, green or yellow button is pressed for the first

time, the contents of the menu are displayed at the top of

the screen and the menu of the function selected is

displayed at the bottom of the screen.

Moving horizontally along in the menus

selects the required function on the contents

line if it has not been already selected.

- The selected function is displayed in the same colour as

the button pressed (red, green, yellow).

Press the coloured button repeatedly to move down

through the menus selecting different lines.

- The line selected in the menus is displayed in the same

colour as the button pressed (red, green, yellow).

Make any adjustments.

Changes are saved when you quit the menus, except in

the PROGRAMME menu.

CONNECTIONS AND COMMANDS 5/6

AUTO-PROGRAMMING 7/9

Switching on - Automatic station search

Programme organiser - New region

INSTALLATION 9/10

Volume limitation - Menu language -

Programme number display - Time reference -

Preferred settings

PICTURE ADJUSTMENTS 11/14

PIP - Format

SOUND ADJUSTMENTS 15/19

Pro Logic - Loudspeakers - Balance - Headphone - AV

DAY TO DAY OPERATION 20/21

Switching on/Selecting programmes - Browse

OTHER FUNCTIONS - EXTRAS 22/25

Clock - Child lock - Lock

CONNECTIONS 26/28

Video recorder connections - Calling up audiovisual

programmes - Copying video tapes -

Speakers connections

TELETEXT 29/31

Calling up Teletext - Options - Alarm - How to select -

Subtitles - New flash

MANUAL PROGRAMMING 32/33

Norm - Decoder - Channel/Cable - Programme - Fine

Tuning - Station name - Store/Erase - Access to the

organiser.

contents

remote control

functions

remote control

using

PROG

–

ZOOM

–

........

123

456

789

a z z a

SOMMAIRE 3/06/96 15:57 Page 1

television set

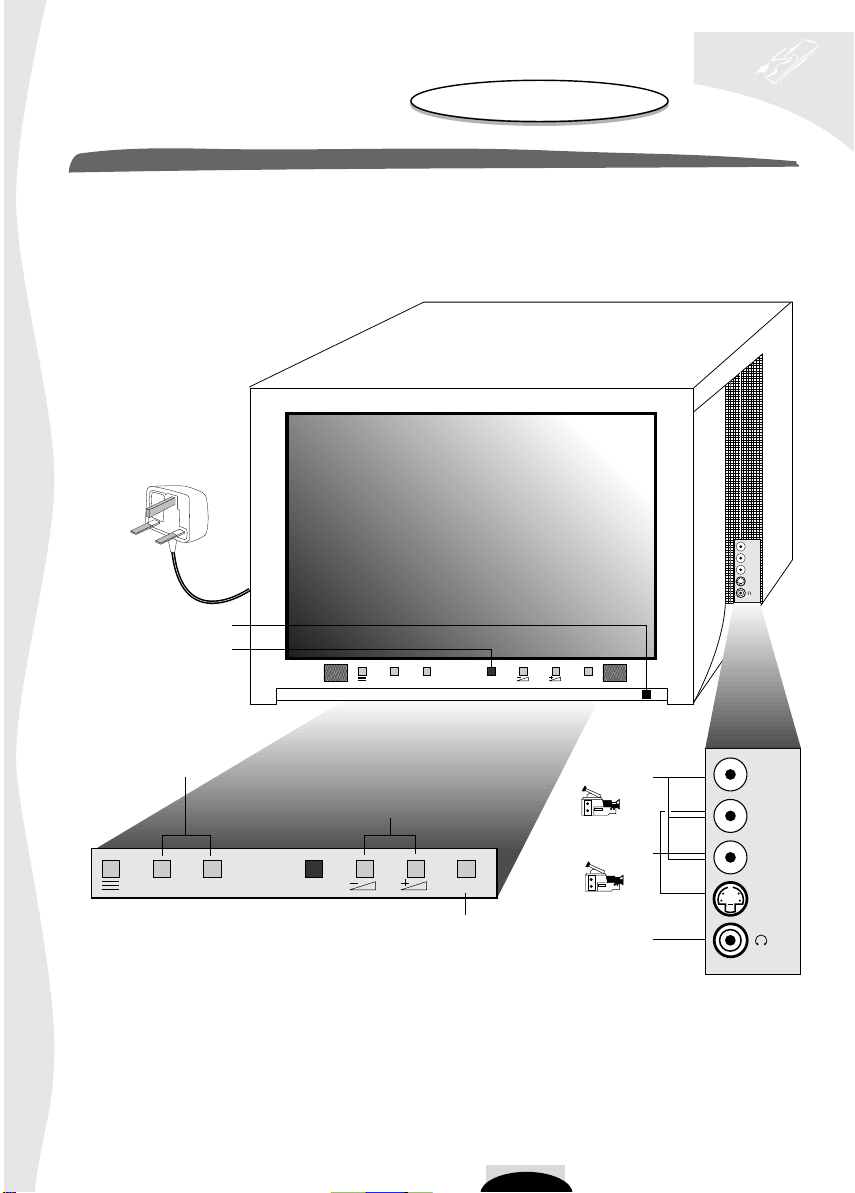

connections and commands

S-VIDEO and 

AUDIO Sockets

VIDEO and 

AUDIO Sockets

Headphone

socket

Ø 6,35 mm

PR- PR+ INSTAL

On/Standby light :

Green = On

Red = Standby

Volume adjustments

Programme

selection

Installation-menu access button

On/Off switch

PR- PR+ INSTAL

VIDEO

AUDIO

S-VIDEO

VIDEO

AUDIO

S-VIDEO

AV 3

Connect to A.C. main 

supply 220-240 V ~ 50 Hz

FRONT AND RIGHT SIDE

For further details,

see page 26.

C10) 00 DOLBY GB 3/06/96 14:58 Page 5

AV 2

AV 1

Ψ75 S-Video Video Audio

Video recorder

Décoder

Satellite receiver

Camcorder

Camescope

Inoperative in

Pro Logic mode

Front speaker

Surround speaker

Front speaker

Surround speaker

Unit 1 Unit 2

(IN)

(OUT)

or VHS

Camcorder

S-VHS

Aerial*

Video games consoleCDV player

AV2

AV1

television set

connections and commands

Connect respectively the red and black terminals of the

supplied speakers to the television’s red and black terminals.

BACK CONNECTIONS

* We recommend that you use an aerial cable with double isolation.

Front speakers

Surround speakers

Listening

area

Ideal setting

C10) 00 DOLBY GB 3/06/96 14:58 Page 6



NETHERLANDS : [ 1 ] 

BELGIUM : [ 2 ]

LUXEMBOURG : [ 3 ]

SWEDEN : [ 4 ]

DANMARK : [ 5 ]

FINLAND : [ 6 ]

NORWAY : [ 7 ]

OTHERS : [ 8 ]

Previous page : [ 9 ]

CHOOSE YOUR COUNTRY :

UK : [ 1 ]

FRANCE : [ 2 ]

GERMANY : [ 3 ]

ITALY : [ 4 ]

SPAIN : [ 5 ]

PORTUGAL : [ 6 ]

SWISS : [ 7 ]

AUTRIA : [ 8 ]

Next page : [ 9 ]

Turn on the television set main power.

The WELCOME menu is displayed.

If it is not,

Press the INSTAL button on the television set control panel.

Briefly press the remote control button number corresponding to

the number of the language you require for the menus.

A list of countries appears (on two pages).

To go to the next or previous pages, press

Briefly press the remote control button corresponding to the

country in which you are located.

For example : England, press

The menu which then appears permits the user to :

• start an automatic search,

• search for new channels,

• access channel organisation.

You can always leave the menus at any time by pressing

the button.

For the first time or after a change of region :

start automatic channel search by pressing the button

Searching for stations and storing them in the memory depends

on the language chosen from the WELCOME menu.

The previously memorised stations are erased.

AUTO-PROGRAMMING is completed when the cursor is at

the extreme right.

To interrupt the search, press briefly on the key,

this displays the channel management menu.

WELCOME

television set

auto-programming

This set is equiped with an automatic station search system which is used for :

• Searching for all the stations received in your region and storing them in memory

• Automatically searching for the name of the station

• Automatically allocating a programme number.

WELCOME

BIENVENUE

WILLKOMMEN

BIENVENIDO

BENVENUTO

VÄLKOMMEN

WELKOM

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

SVENSKA

NEDERLANDS

Press

Appuyer

Drücken

Pulse

Premere

Tryck

Druk op

key number

sur la touche

Sie die Taste

tecla numero

il tasto

knapp nummer

knop nummer

[1]

[2]

[3]

[4]

[5]

[6]

[7]

AUTO - PROGRAMMING

Searching for stations

10 stations found

To help you, follow the instructions at the

bottom of the menu (grey background).

AUTO-PROGRAMMING

INSTAL

a z

z a

a z

AERIAL INSTALLATION

Make sure that the aerial cable

and decoder (if any)

are connected to this TV set.

[ 1 ] Launch terrestrial installation

[ 2 ] Update the terrest. installation

[ 3 ] Access to the organiser

C11) 1 GB 3/06/96 18:40 Page 7

PR+, PR- Select a station

+, -, 0..9 Move this programme

Blue Change the name

Yellow Erase this station

To exit, press the (TV) key

+, - Next/Previous position

PR+, PR- Select a character

Green Confirm new name

Red Cancel new name

+, - Next/Previous name page

PR+, PR- Select a new name 

Green Create station name

Red Cancel change

PR+, PR- Select a station

+, -, 0..9 Move this programme

Blue Change the name

Yellow Erase this station

To exit, press the (TV) key

01 

02 

03

04

05

06

07

08

Moving PR 06 BBC to PR 04

+, -, 0..9 Give it another number

Green Confirm change

Red Cancel change

television set

auto-programming

PR.- PR.+

When the automatic search is completed, the

Programme Organiser menu appears.

Scan through to check that the stations found are correctly

numbered and named as you want than:

• IF YES ➡press briefly

the menu disappears and is replaced by the picture of the

programme selected.

• IF NO ➡you make changes as follows

Select the programme number to be changed.

Bring the cursor to the new programme number.

You may also use the number buttons 0 to 9.

Confirm the change (green button).

Press the blue button briefly.

A list of station names per country appears

United Kingdom Nederlands

France Belgique

Deutschland Luxembourg

Italia Sverige

España Danmark

Portugal Finland

Schweiz Norge

Österreich

Select the country you require.

If the name appears in the list displayed,

select the name

Confirm the selection (green button).

If the name does not appear in the list displayed,

select the "- - - - - -"line

You have 6 characters to enter a station name

To enter a station name,

Press the green button briefly and

the first character flashes.

Select the first character of the new name.

Enter the next character

and repeat the process up to the last character.

Confirm your choice (green button). The new name is

stored in the memory and the list disappears.

Programme Organiser

PR.- PR.+

- The programme number

- The station name

Programme Organiser

PR+, PR- Select a station

+, -, 0..9 Move this programme

Blue Change the name

Yellow Erase this station

To exit, press the (TV) key

01 

02 

03

04 

05

06

07

08

Programme Organiser

01 

02 

03

04

05

06

07

08

+, - Next/Previous name page

PR+, PR- Select a new name

Green Confirm change

Red Cancel change

United Kingdom

SKYONE

DISCOV

UKGOLD

SKYSPO

BRAVO

ESPORT

S-NEWS

M T V

EUNEWS

- - - - - - -

BBC 1

BBC 2

I T V

CHAN 4

CHAN 5

SKY +

M-GOLD

M-CHAN

CHILD

C N N

PR.- PR.+

This menu is used to :

• change the programme number,

• change the station number,

• delete a programme.

C11) 1 GB 3/06/96 18:41 Page 8

television set

auto-programming

Select the programme to be deleted.

Press the yellow button.

Confirm your choice (green button).

The programme is deleted

the following programme is selected.

You may cancel any unconfirmed command (change of

programme number or channel name, programme erasure)

by pressing the red button .

To search only for new channels :

Press the INSTAL. button on the televisions set key pad.

Select the country and press the button

When search is finished, the Programme Organiser menu appears.

Reorganise the programmes.

To do this, follow the instructions given on the previous page.

To make menu disappear, press on

01 BBC 1

02 BBC 2

03

04

05

06

07

08

09 CANAL+

Erase PR 04 CANAL+

Green Confirm erase

R ed Cancel erase

PR.- PR.+

To delete a programme

INSTAL

z a

New channels Turn on the television set by pressing

one of the buttons from 1 to 9.

Press the yellow button then the (-) button.

The SET-UP menu is displayed

Select the Max. Volume line (yellow button).

Set the maximum volume with the cursor.

The volume cannot be set to zero when using this function.

installation

SET-UP

Maximum Volume Limitation

Par ce menu, vous pouvez :

• Limiter le volume sonore maximum.

• Modifier la langue des menus (allemand, espagnol, français, anglais, italien, suédois).

• Obtenir l'affichage du numéro de programme regardé.

• Mémoriser le numéro de programme de référence horaire.

With this menu you may:

• Limit the maximum volume.

• Change the menu language (German, Spanish, French, English, Italian, Swedish, Dutch),

• Permanently display the number of the programme being watched,

• Store the time reference programme number,

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

IR download (-)No Yes(+) PR --

Teletext Fine Tuning Off On

PREFERENCES SET-UP

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

IR download (-)No Yes(+) PR --

Teletext Fine Tuning Off On

PREFERENCES SET-UP

C11) 1 GB 3/06/96 18:41 Page 9

television set

installation

Select the Language line (yellow key).

Select

All the menus will be displayed in the language selected.

Select the Programme Display line (yellow key).

Select : • Off no permanent display.

•On the programme number

is permanently displayed

Select the Time reference (yellow key).

The television’s internal clock must be set.

This synchronises automatically when the television set is

turned on to a programme broadcasting Teletext, you can

opt to select any one of the 4 channels - BBC1, BBC2, ITV, CH4.

Select the corresponding programme number.

The IR download line has no effect on your TV set.

This adjustment allows writing errors (missing letters) on the

teletext pages of French networks (L Standard) to be reduced.

To do this,

On must be selected in the Teletext Fine Tuning line.

This adjustment is not active for B, G, D, K, K' and

I standards.

This menu enables you to save your preferred settings.

Press the yellow or pink key repeatedly to return to the

Menu contents line.

Press to display the PREFERENCES menu.

Select the line required with the yellow key.

Set with the key.

Erase the menu.

To return to your preferred settings at any time,

press the pink key.

Menu language

Programme number display

Time reference

Teletext Fine Tuning

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

IR download (-)No Yes(+) PR --

Teletext Fine Tuning Off On



PREFERENCES SET-UP

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

IR download (-)No Yes(+) PR --

Teletext Fine Tuning Off On



PREFERENCES SET-UP

Volume

Brightness

Colour

Contrast

Resets to these preferences

PREFERENCES SET-UP

PREFERENCES

GB : English

F : French

D : German

E : Spanish

I : Italian

S : Swedish

NL : Dutch

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

IR download (-)No Yes(+) PR --

Teletext Fine Tuning Off On



PREFERENCES SET-UP

Teletext Fine Tuning Off On



Volume

Brightness

Colour

Contrast

Resets to these preferences

PREFERENCES SET-UP

C11) 2 TVA PIP DM GB 3/06/96 15:05 Page 10

Tabla de contenidos

Otros manuales de TELEVISOR de THOMSON

THOMSON

THOMSON 20MF15GT Manual de usuario

THOMSON

THOMSON 28VT68NE Manual de usuario

THOMSON

THOMSON TCL 21A71A Manual de usuario

THOMSON

THOMSON CR20300 Manual de usuario

THOMSON

THOMSON CHASSIS MT62L Manual de usuario

THOMSON

THOMSON RCA CR29TF420 Instrucciones de montaje

THOMSON

THOMSON TX807 Manual de usuario

THOMSON

THOMSON 21DU21C Manual de usuario

THOMSON

THOMSON 30LCDB03B Guía del administrador

THOMSON

THOMSON 44DLP54X Manual de usuario

THOMSON

THOMSON ITC008-V2 Manual de usuario

THOMSON

THOMSON 27LB052B5 Manual de usuario

THOMSON

THOMSON LCD03B Manual de usuario

THOMSON

THOMSON 28WS23E Manual de usuario

THOMSON

THOMSON ITC008B+ Manual de usuario

THOMSON

THOMSON TX 807 C Manual de usuario

THOMSON

THOMSON TX807 C Manual de usuario

THOMSON

THOMSON 72DF88N Manual de usuario

THOMSON

THOMSON ZPN054102 Manual de usuario

THOMSON

THOMSON CR14300 Guía de instalación

THOMSON

THOMSON ICC20 Manual de usuario

THOMSON

THOMSON 20MH15CX Manual de usuario

THOMSON

THOMSON 14MS15FT Manual de usuario

THOMSON

THOMSON 27LB125B5 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
