About this manual

This document is common to several television models. Therefore, certain functions or settings may not apply to

the model you have purchased

About the switch

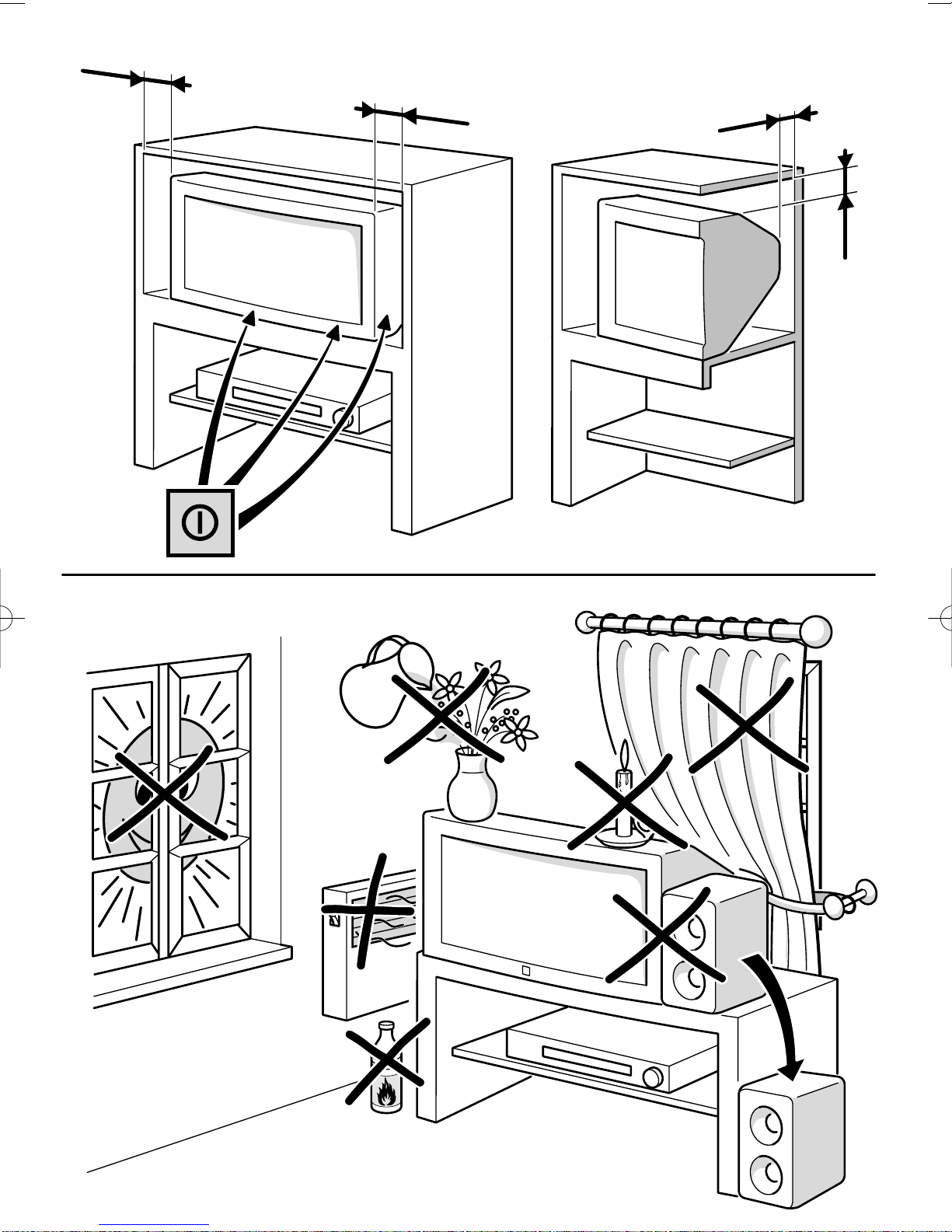

The position of the ON/OFF switch differs depending on the model. It may be located on the front or on the

right-hand side of your set (see the drawing inside the cover page of your manual).

About safety

To ensure your own safety and safe operation of the equipment, observe the following instructions

thoroughly.

TV sets requiresufficient ventilationtoprevent theircomponents fromoverheating, whichwill causefailure. Donot

block the ventilation openings at the rear. If you place your TV set in a special piece of furniture, make sure there

is enough space for unhindered air circulation. Do not place the TV set in the close vicinity of a heater.

The TV set has been designed for use in dry rooms. Should you use it, in exceptional circumstances in the open

air (example: on the balcony, in the veranda or tent), you must absolutely protect it against moisture (dew, rain,

splash water). Before switching on a cold TV set in a warm room, you should wait until any condensation in the

screen has dried by itself.

Maximum ambient temperature: 35°C

Maximum humidity: 85%

By the end of your TV evening or when away from home for a long period, we recommend that you turn off the TV

set with the On/Off-switch.

The mains plug must be easily accessible.

In the following cases, we recommend that you pull out the mains connector:

1. During athunderstorm. Insuch acase, it is advisablethat you also disconnect the TV set from the aerialsocket.

2. When odour or smoke emanates from the set.

Never attempt to open your TV set yourself.

Further information:

The TV set shielding is sufficient to prevent X-radiation to the exterior.

Any operation performed by a non skilled person, change of high voltage or replacement of the picture tube by a

model not complying with themanufacturers’ specification arelikely tocause considerable increase inX-radiation.

A TV set modified in such a way no longer complies with the manufacturers’ specification and must not be used.

About cleaning

The screen is to be cleaned with liquid glass cleaners.

Never use abrasive products.

Clean the cabinet with a soft cloth soaked with neutral cleaner. Do not use solvents, such as white spirit or

alcohol-based cleaning products since they may damage your television.

At regular intervals, clean the ventilation grids at the rear of the TV set.

About degaussing

The terrestrial magnetic field may have an influence on your TV set. This influence is revealed by the coloured

spots, which appear on the screen.

Should this be the case:

Turn the equipment off by means of the On/Off-switch.

Wait about one hour before switching the set on again.

This procedure performs automatic degaussing of the screen. Should there still be coloured spots on the screen,

repeat the operation.

The pages of this publication are printed on recycled paper.

Contents

Page 4

Using the remote control

and fitting the batteries.

Page

How to call up a menu

and how to select a

function, a setting or an

option.

Installation

About this manual 1...................

About the switch 1.....................

About safety 1........................

About cleaning 1......................

About degaussing 1...................

Basic connections 3....................

TV / VCR / Antenna connections 4.......

TV / Antenna 4.......................

TV / VCR / Antenna 4..................

Remote control 5.......................

Television Functions 5.................

Other Connections 5....................

Video Recorder Functions 6............

Navigation principles 7.................

Calling up the INSTALLATION

MAIN MENU 7........................

Calling up the SUMMARY 7.............

Calling up a Menu 7...................

Navigating within the Menus 7...........

Installing your television

for the first time 8......................

Automatic installation 9.................

Programme organisation 10............

Manual programming 11...............

Channel number guide 12.............

Channel number guide (Ireland) 13......

Personal settings 14...................

Preferences 15........................

Instructions for Use

Daily viewing 16.......................

Picture Adjustment 16................

Sound Settings 16....................

Time 17.............................

List of Channels 18...................

Selecting Programmes 19.............

Scrolling the Programmes 19...........

Audio-visual (AV) Programmes 19......

Volume Control 19....................

Muting the Sound 19..................

Zoom (16/9 models only) 19...........

Displaying Information 19..............

Television Lock 19....................

Switching Off the Television 19.........

Teletext 20............................

Standard Functions 20................

Other Connections 21..................

Other Possibilities 21.................

Connecting a HiFi or AV amplifier 21....

Euro-AV socket connections 22.........

C17 /

4100

GB-TBA

/I6.3/C



Continental

Europe

United Kingdom

The plug is fitted with a fuse which protects your

television. If your television does not work, the fuse may

be blown. In this case, replace it with an identical 5 Amp

ASTA or lr BSI (BS 1362) certified fuse.

Note: the mains lead of your television is fitted with a

moulded plug. This lead contains all the safety equipment,

so you are advised when replacing it notto use a

non-specific commercially-available model.

Basic connections

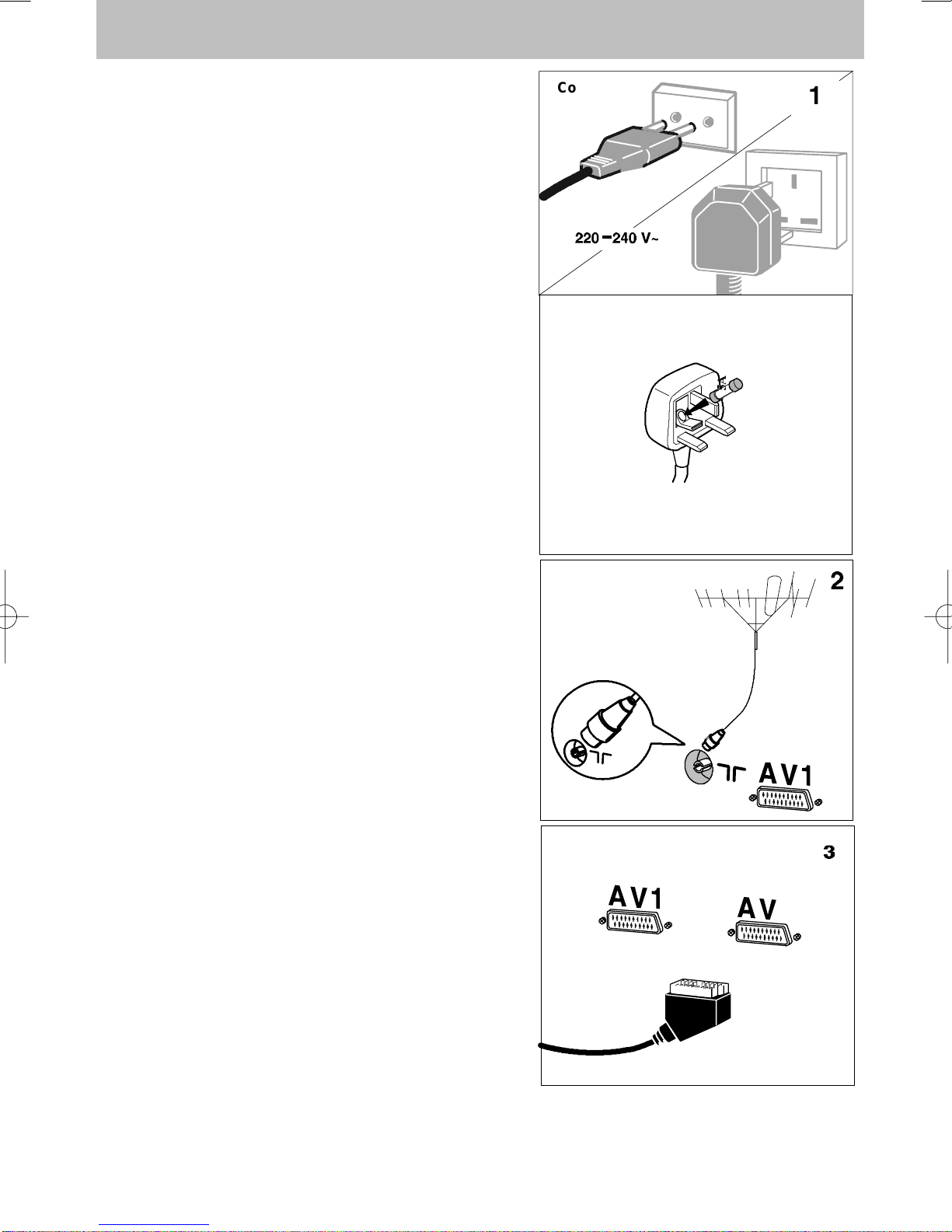

The mains plug (1) supplies power to the television. The

television must only be plugged in to a 220-240 V - 50 Hz

power supply. It must never be plugged in to a DC source.

Should the plug become separated from the lead, never

attempttoplugitintoamainssocket.Thiscouldcause

electrocution.

The aerial socket (2), located ontherear ofthetelevision,can

be used to connect an external aerial or other appliance

equipped with a modulator such as a VCR, satellite receiver,

etc.

If you connect an appliance to the aerial jack, you must give

it a channel number. Todo this, switch on the appliance, then

use the television to find the modulator channel (see the

appliance manual). Now give it a programme number and

memorise it (see Manual Programming of channels). Then,

when you wish to use the appliance, simply select its

programme number on the television. This procedure is not

required for VCR’s not equipped with a modulator.

The SCART socket AV1 (3), located on the rear of the

television, is intended to connect a VCR or a camcorder

(VHS, 8 mm), a Canal+ decoder, a video games console or

RGB-signal emitting appliances.

The SCART socket AV2 (3), located on the rear of the

television, is intended to connect a VCR or a camcorder

(VHS, 8 mm, S-VHS or Hi-8).

We strongly recommend the use of this type of connection,

which gives a better picture quality. To use the peripheral

appliance that you haveconnected, press theAVkey onyour

remote control (press once to select AV1; twice to select

AV2; three times for AV3: see ”Other Connections”). This

selection is automatic for some appliances. Pressing “”play”

on a VCR, or switching on a satellite receiver connected to

AV1 or AV2 will automatically switch on your television.

When you stop the VCR, if you have not changed channels

while watching the VCR, the television automatically

switches back to the channel youwere watchingbeforehand.

If the television has been switched on from the VCR, it

switches to standby when the VCR is switched off. The

television automatically switches to 16/9 format if the

connected appliance delivers the corresponding signal.

TV / VCR / Antenna connections



TV / VCR / Antenna connections

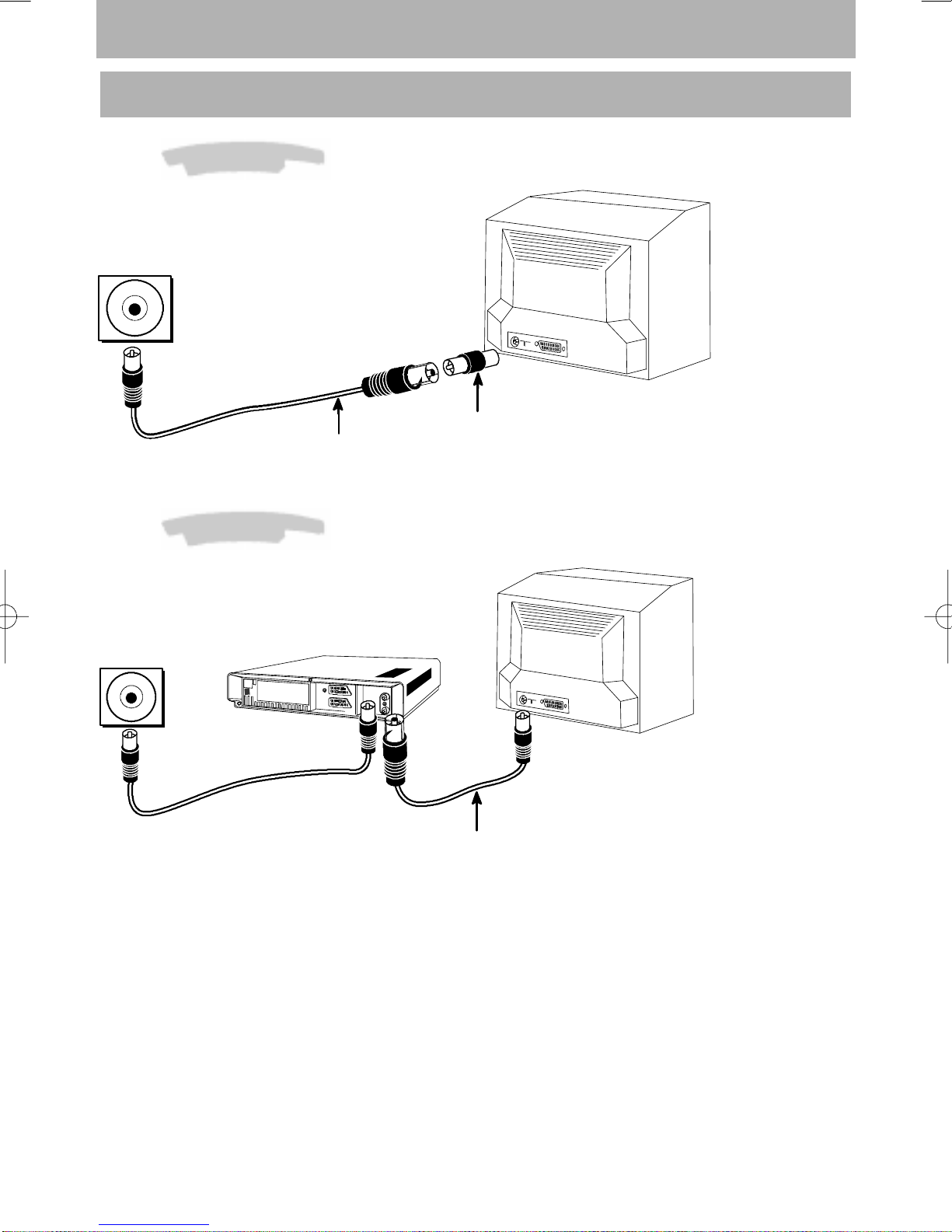

In order to avoid any interference, use the male to male adaptor and the male to female cable supplied

with your TV set as shown below:

TV / Antenna

Male to female cable

Maletomaleadaptor

TV / VCR / Antenna

AUDIO/VIDEO 1

Male to female cable

(supplied with TV)

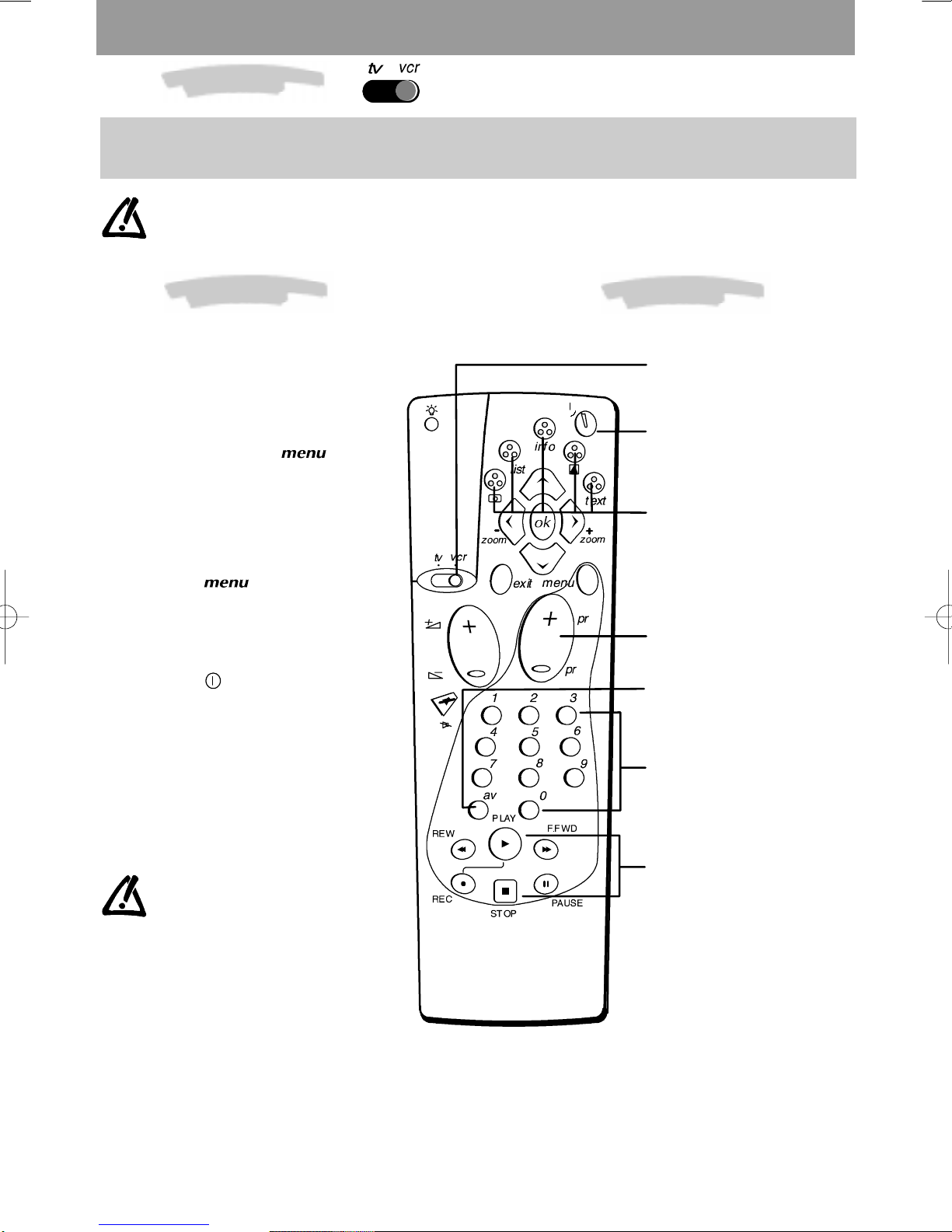

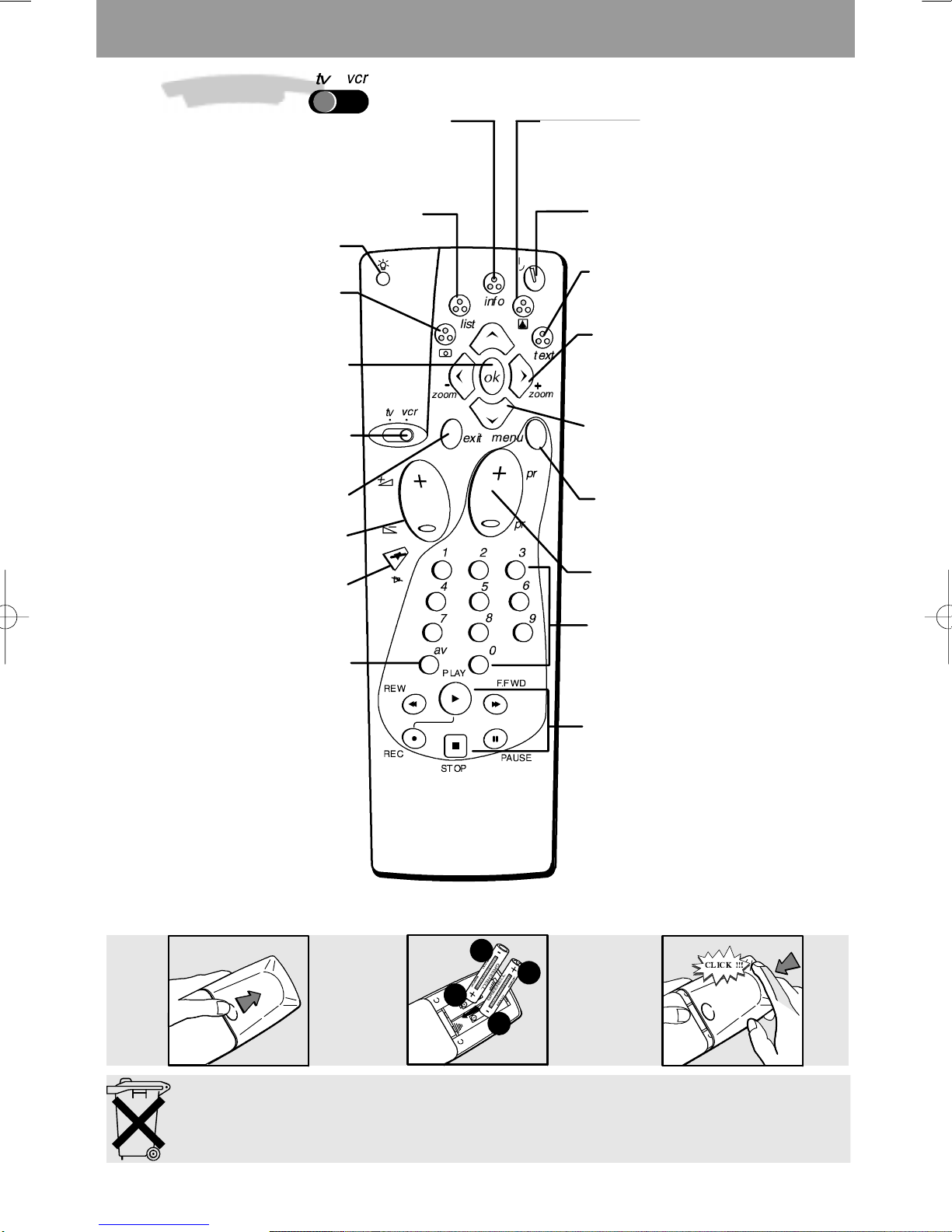

Call up Teletext / Toptext / Fastext

function (purple button)

To leave a menu or Teletext

Display of channel, time, sound (yellow

button) (and zoom for models with zoom)

To use the remote control for

your TV set or video recorder

Video recorder functions

This key is active only when using the

Teletext (blue key)

Illumination of remote control

buttons

Call up programme list

(green button)

Reminder of picture preferences

(red button)

Confirm an action or validate a

menu option

Volume adjustment

Sound mute

Selecting appliances

connected to the television

(AV1, AV2 ...)

For programme numbers higher

than 10, press the

key on the

remote control: ”- -” appears on the

screen. Now use the number keys

on the remote control to enter first

the tens digit then the units digit.

Go to programmes and enter

numerical values in menus

Change programme

Move Up/Down in menus

Standby

Right/Left Selection within menus and

Zoom Function (for models with this

function)

The red, green, yellow and

blue keys are also used for

the Teletext.

Go to adjustment function MENU

Please respect the environment! Before throwing any batteries away, consult your

distributor who may be able to take them back for specific recycling.









Remote control



Remote control

Television Functions

Set the remote control to

VCR.

Selecting appliances con-

nected to the VCR (AV1,

AV2...)

To change programme

These buttons have the

same functions as some of

thoseonyourvideo

recorder remote control (if

it is from our brand)

To switch your video

recorder on or off

Go to programmes and

enter numerical values in

menus

VCR functions

(rewind, play, forward, ...)

Remote control



Video Recorder Functions

You can use your remote control for some functions on most brands of video recorders. Before

using it, you must enter the code of your video recorder in the table on the next page, following the

adjustment procedure described below.

You may find that this remote control is not compatible with your brand of video recorder or

that some functions are not available.

Entering your code Using the Video Recorder

1.Set the remote control to VCR.

2.While holding down the but-

ton enter a 3-digit code correspon-

dingtothebrandofyourvideorecor-

der.

3.Release the button

4.Switch off your video recorder by

pressing the button

5.If the VCR does not switch off, try

one of the other codes correspon-

ding to your video recorder.

When you change the bat-

teries, you will have to

enter the maker’s code

again

Remote control



YOUR BRAND OF VIDEO

RECORDER MANUFACTURER’S CODE

AIWA 067 - 068

AKAI 003-004-005-006-007-008

BLAUPUNKT 008-009-062

BRANDT 001-012-002-059-010

DAEWOO 040 - 041 - 042 - 043 - 044 - 045 - 046 - 047

FERGUSON 001-002-060-012-053-055-057-059-010

FISHER 035-036-037

FUNAI 030

GOLDSTAR 023 - 034

GRUNDIG 061-069-070

HITACHI 010-012-022-023

JVC 006-010-011-012-013

MITSUBISHI 048 - 049

NEC 039

NOKIA 003-010-035-038

NORDMENDE 001 - 002 - 012 - 054 - 057 - 058 - 059 - 010

ORION 024-025-026-027-028-029

PANASONIC 008-009-062

PHILIPS 061-062-063-064-065-066

RADIOLA 061-062-063-064-065-066

SABA 001-002-012-053-055-057-058-059-010

SAMSUNG 033

SANYO 019-020-021

SCHNEIDER 061-062-063-064-065-066

SHARP 031 - 032

SONY 015-016-017-018

TELEAVIA 001-012-059-010

TELEFUNKEN 001-002-012-055-059-010

THOMSON 001 - 002 - 012 - 054 - 057 - 058 - 059 - 010

TOSHIBA 010-011-014

If you cannot see the brand of your video recorder on this list, try the codes of the other brands.

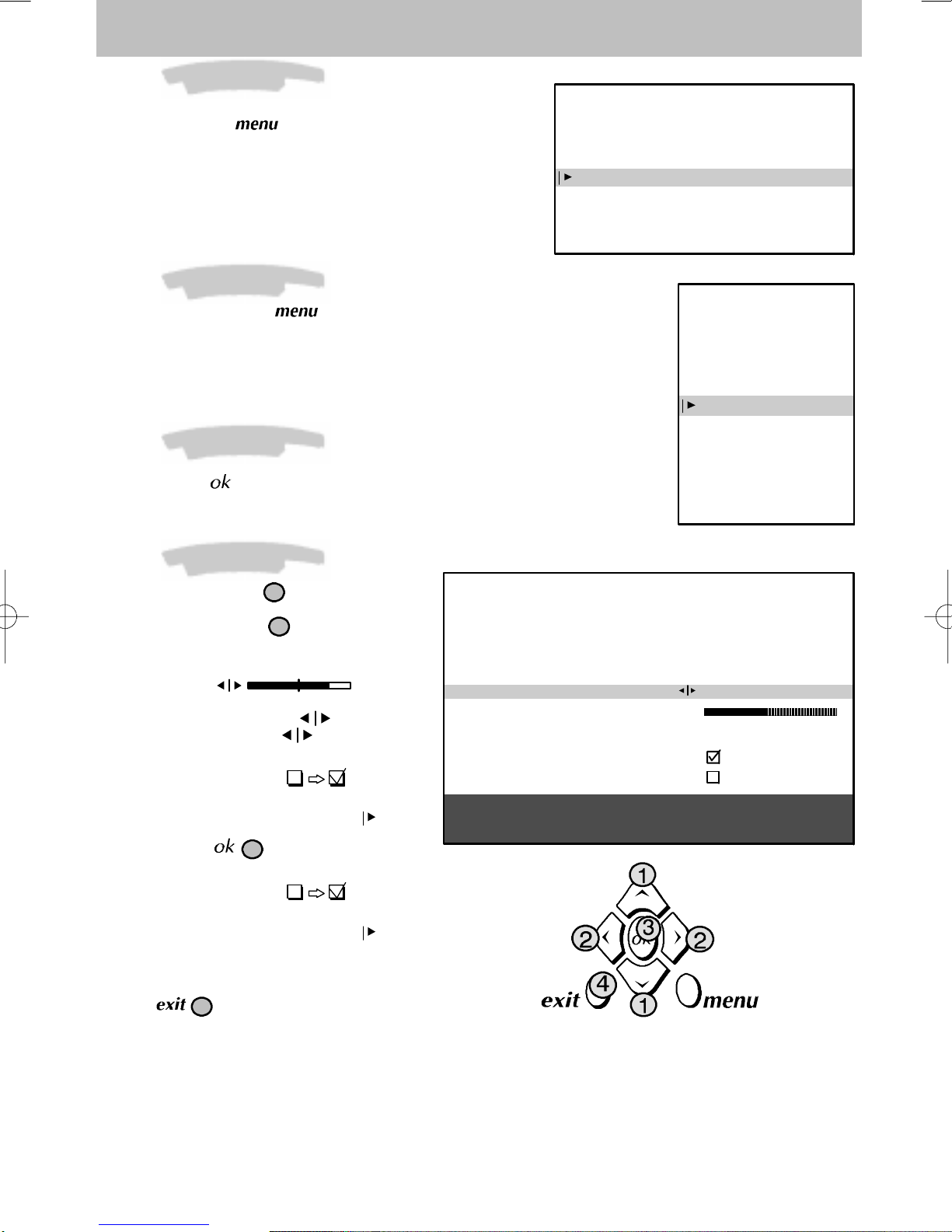

INSTALLATION MAIN MENU

Exit

Manual programming

Auto installation

Programme organisation

Personal settings

SUMMARY

Exit

Teletext


Sound

List

Time

Preferences

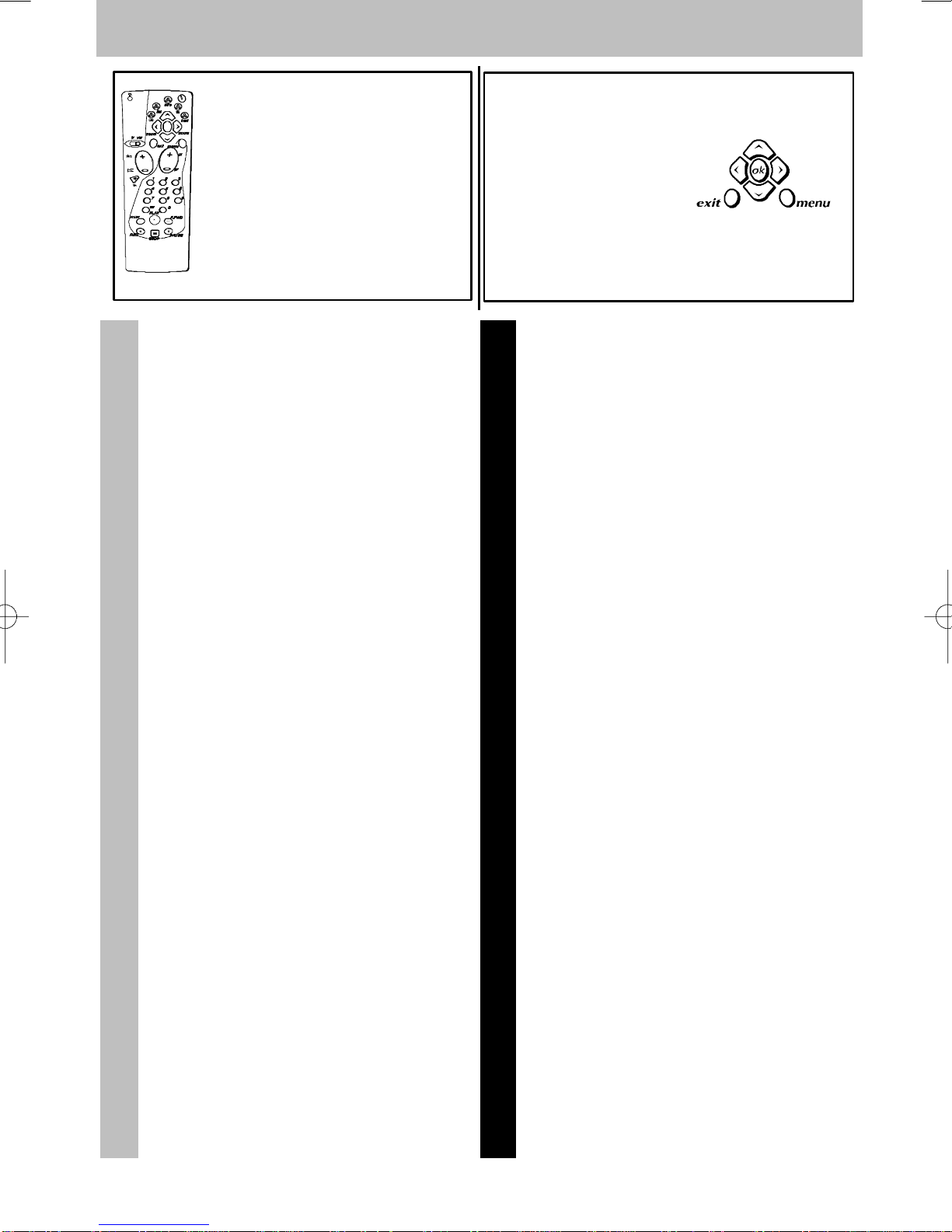

Navigation principles

Calling up the INSTALLATION MAIN MENU

If there is no menu displayed on the screen,

press and hold the key on the remote

control. The settings SUMMARY is displayed

first, followed by the INSTALLATION MAIN

MENU which you can use to operate your

television.

Calling up the SUMMARY

Press and release the key on the

remote control to display the list of menus

available for using your television functions or

adjusting your television

Calling up a Menu

SelectthemenuyouwishusingtheUp/Down

keys. Press the key to validate..

Navigating within the Menus

Use the Up/Down keys 1to select a line.

Use the Left/Right keys 2to:

- Increase or decrease a value:

for example:

Fine tuning

- Select an option:

for example: Reception Aerial

Reception Cable

- Activate or deactivate an option:

for example: Decoder

- Access a sub-menu:

for example: Picture preferences

You can use the 3key to:

- Activate or deactivate an option:

for example: Decoder

- Access a sub-menu:

for example: Picture preferences

- Validate an action:

for example: Store on PR number

Use the 4key to exit a menu.

MANUAL PROGRAMMING

Return

Standard

Reception

Autosearch

Fine tuning

Store on PR number

Name

Decoder

External sound path

Aerial

CH- -

----

Enter channel number or start

autosearch with < or >.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de THOMSON

THOMSON

THOMSON TX92F Manual de usuario

THOMSON

THOMSON 23LB220S4 Manual de usuario

THOMSON

THOMSON ITC008B+ Manual de usuario

THOMSON

THOMSON 28VT68ND Manual de usuario

THOMSON

THOMSON 72MK89D Manual de usuario

THOMSON

THOMSON 14MS73F Manual de usuario

THOMSON

THOMSON DTH 8540 - Manual de usuario

THOMSON

THOMSON CR20300 Manual de usuario

THOMSON

THOMSON 29MH50N Manual de usuario

THOMSON

THOMSON 28VT68NE Manual de usuario

THOMSON

THOMSON CHASSIS MT62B Manual de usuario

THOMSON

THOMSON ETC310 Manual de usuario

THOMSON

THOMSON LCD03B Manual de usuario

THOMSON

THOMSON DTH 8543 - ADDITIF Manual de usuario

THOMSON

THOMSON 37LB330B5/U Manual de usuario

THOMSON

THOMSON 27LB125B5 Manual de usuario

THOMSON

THOMSON Intuiva Manual de usuario

THOMSON

THOMSON CHASSIS MT62L Manual de usuario

THOMSON

THOMSON G27693 Manual de instrucciones

THOMSON

THOMSON 20MH15CX Manual de usuario

THOMSON

THOMSON 25DG16ET Manual de usuario

THOMSON

THOMSON 21DU21C Manual de usuario

THOMSON

THOMSON easytv 24HD2S13 Manual de usuario

THOMSON

THOMSON ETC009 Manual

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
