THOMSON MEC 320 Manual de usuario

9087A – 198th Street, Langley, BC Canada V1M 3B1 Telephone (604) 888-0110

Telefax (604) 888-3381 E-Mail: info@thomsontechnology.com www.thomsontechnology.com

MEC 320

SW version 3.3.X.X

OPERATOR’S MANUAL

•Display readings

•Push-button functions

•Alarm handling

•Log list

PM106 Rev 0 10/02/02

PM106 Rev0 10/02/02 Thomson Technology Page 1 of 20

Table of Contents

1. ABOUT THIS DOCUMENT...................................................................................................... 2

GENERAL PURPOSE ............................................................................................................................. 2

INTENDED USERS ................................................................................................................................ 2

CONTENTS/OVERALL STRUCTURE ....................................................................................................... 2

2. WARNINGS AND LEGAL INFORMATION.......................................................................... 3

LEGAL INFORMATION AND RESPONSIBILITY ........................................................................................ 3

ELECTROSTATIC DISCHARGE AWARENESS .......................................................................................... 3

SAFETY ISSUES ................................................................................................................................... 3

DEFINITIONS ....................................................................................................................................... 3

3. DISPLAY PUSH-BUTTONS AND LEDS................................................................................. 4

PUSH-BUTTON FUNCTIONS.................................................................................................................. 4

LED FUNCTIONS................................................................................................................................. 6

4. DISPLAY AND MENU STRUCTURE ..................................................................................... 8

LCD DISPLAY ..................................................................................................................................... 8

MENU STRUCTURE ............................................................................................................................. 8

STATUS LINE TEXT ............................................................................................................................ 12

5. ALARM HANDLING AND LOG LIST.................................................................................. 17

ALARM HANDLING............................................................................................................................ 17

LOG LIST........................................................................................................................................... 18

MEC 320 OPERATOR’S MANUAL

PM106 Rev0 10/02/02 Thomson Technology Page 2 of 18

1. About this document

General purpose

This document is the Operator’s Manual for THOMSON TECHNOLOGY’s Automatic Gen-

set Controller, the MEC320. The document mainly includes general product information,

display readings, push-button and LED functions, alarm handling descriptions and

presentation of the log list.

The general purpose is to give the operator important information to be used in the daily

operation of the unit.

Intended users

This Operator’s Manual is mainly intended for the daily user. On the basis of this document,

the operator will be able to carry out simple procedures such as start/stop and control of the

generator set.

Contents/overall structure

The document is divided into chapters, and in order to make the structure simple and easy to

use, each chapter will begin from the top of a new page.

Please make sure to read this handbook before working with the MEC320

controller and the gen-set to be controlled. Failure to do this could result in

damage to the equipment or human injury.

MEC 320 OPERATOR’S MANUAL

PM106 Rev0 10/02/02 Thomson Technology Page 3 of 18

2. Warnings and legal information

Legal information and responsibility

THOMSON TECHNOLOGY takes no responsibility for installation or operation of the

generator set. If there is any doubt about how to install or operate the generator set

controlled by the unit, the company responsible for the installation or the operation of the set

must be contacted.

Electrostatic discharge awareness

Sufficient care must be taken to protect the terminals against static discharges during the

installation. Once the unit is installed and connected, these precautions are no longer

necessary.

Safety issues

Installing the unit implies work with dangerous currents and voltages. Therefore, the

installation should only be carried out by authorised personnel who understand the risks

involved in working with live electrical equipment.

Definitions

Throughout this document a number of notes and warnings will be presented. To ensure that

these are noticed, they will be highlighted in order to separate them from the general text.

Notes

Warning

The notes provide general information which will be helpful for the reader to

bear in mind.

The warnings indicate a potentially dangerous situation which could result in

death, personal injury or damaged equipment, if certain guidelines are not

followed.

Be aware of the hazardous live currents and voltages. Do not touch any AC

measurement inputs as this could lead to injury or death.

The units are not to be opened by unauthorised personnel. If opened anyway, the warranty will

be lost.

MEC 320 OPERATOR’S MANUAL

PM106 Rev0 10/02/02 Thomson Technology Page 4 of 18

3. Display push-buttons and LEDs

Push-button functions

The display unit holds a number of push-button functions which are described below.

ALARM STATUS: Shifts the display 3 lower lines to show the alarm list.

JUMP: Enters a specific menu number selection. All settings have a specific number

attached to them. The JUMP button enables the user to select and display any

setting without having to navigate through the menus (see later).

VIEW: Shifts the first line displaying in the setup menus. Push 2 sec. to switch to

master display in case more than 1 display is connected.

LOG: Displays the LOG SETUP window where you can choose between the Event,

Alarm and Battery logs. The logs are not deleted when the auxiliary supply is

switched off.

: Moves the cursor left for maneuvering in the menus.

: Increases the value of the selected set point (in the setup menu). In the daily

use display, this button function is used for scrolling the View lines in V1 or the

second line (in the setup menu) displaying of generator values.

ENTER: Is used to select the underscored entry in the fourth line of the display.

: Decreases the value of the selected set point (in the setup menu). In the daily

use display, this button function is used for scrolling the second line displaying

of generator values.

: Moves the cursor right for maneuvering in the menus.

EXIT: Jumps one step backwards in the menu (to previous display or to the entry

window).

Reset/Silence: Resets an alarm and or silence the horn

Event log: Shift the display three lower lines the alarm list

Lamp test: Push to test the LED’s on display unit and on EPA300 units.

RUN/Manual: Start of the gen-set if ‘SEMI-AUTO’ or ‘MANUAL’ is selected.

OFF: Stop of the gen-set if ‘SEMI-AUTO’ or ‘MANUAL’ is selected.

(GB) CLOSE: Manual activation of close breaker sequence if ‘SEMI-AUTO’ is selected.

(GB) TRIP: Manual activation of open breaker sequence if ‘SEMI-AUTO’ is selected.

(MB) CLOSE: Manual activation of close breaker sequence if ‘SEMI-AUTO’ is selected.

(MB) TRIP: Manual activation of open breaker sequence if ‘SEMI-AUTO’ is selected.

AUTO/MODE: Place the controller in “AUTO” mode.

MEC 320 OPERATOR’S MANUAL

PM106 Rev0 10/02/02 Thomson Technology Page 5 of 18

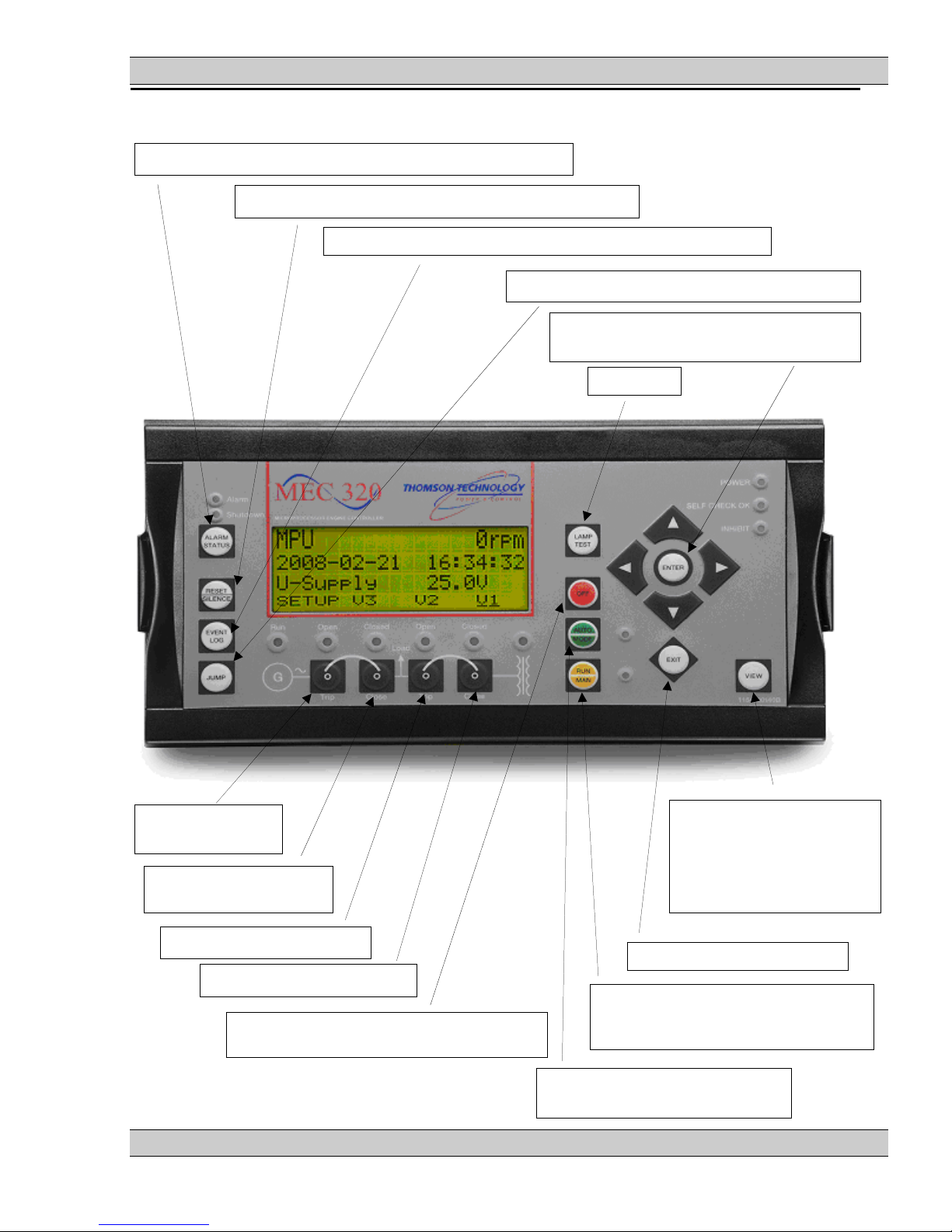

The push-buttons are placed as follows:

Alarm Status: Shift the display three lower lines the alarm list

Reset/Silence: Resets an alarm and or silence the horn

Event log: Shift the display three lower lines th

e alarm list

Trip the generator

breaker

Closes the generator

breaker

Trip the mains breaker

Closes the mains breaker

Off: Stop the gen-set if Semi-auto or

Manual is selected

View Shifts the first line

displaying in the setup

menus. Push 2 sec. to switch

to master display in case

more than 1 display is

connected.

Exit:: Jumps one step back

Enter: Selects the underscored entry in

the fourth display line.

Jump: Enter a specific menu number selection.

Lamp test

Auto/Mode: Place the controller in

“Auto” mode.

Run/Manual: Start the gen-set if

Semi-auto or Manual is selected

MEC 320 OPERATOR’S MANUAL

PM106 Rev0 10/02/02 Thomson Technology Page 6 of 18

LED functions

The display unit holds 10 LED functions. The colour is green or red or a combination in

different situations.

Alarm: LED flashing indicates that unacknowledged alarms are present.

LED fixed light indicates that all alarms are acknowledged, but some are still

present.

Power: LED indicates that the auxiliary supply is switched on.

Self check OK: LED indicates that the unit is OK.

Inhibit: LED fixed light indicates that an alarm is enabled but inhibited. Please refer

to Help in the PC utility software for description of inhibit settings.

Run/Manual: LED indicates that the generator is in semi-auto mode.

Run: LED green light indicates that the generator voltage/frequency is present

and OK.

(GB) Open: LED green light indicates that the generator breaker is closed.

LED yellow light indicates that the generator breaker has received a

command to close on a black BUS, but the breaker is not yet closed due to

interlocking of the GB.

LED is flashing yellow if the ‘Enable GB black close’ or the ‘GB spring

loaded’ signal is missing or the GB load time has not expired.

(GB) Closed: LED green light indicates that the generator breaker is closed.

LED yellow light indicates that the generator breaker has received a

command to close on a black BUS, but the breaker is not yet closed due to

interlocking of the GB.

LED is flashing yellow if the ‘Enable GB black close’ or the ‘GB spring

loaded’ signal is missing or the GB load time has not expired.

(MB) Open: LED indicates that the mains breaker is closed.

LED is flashing yellow if the ‘MB spring loaded’ signal from the breaker is

missing or the MB load time has not expired.

(MB) Closed: LED indicates that the mains breaker is closed.

LED is flashing yellow if the ‘MB spring loaded’ signal from the breaker is

missing or the MB load time has not expired.

(Mains) OK: LED is green, if the mains is present and OK.

LED is red at a measured mains failure.

LED is flashing green when the mains returns during the ‘mains OK delay’

time.

Auto: LED indicates that auto mode is selected.

Shutdown: The engine was shutdown.

MEC 320 OPERATOR’S MANUAL

PM106 Rev0 10/02/02 Thomson Technology Page 7 of 18

The display LEDs are indicating as follows:

Alarm:

Flashing: Unacknowledged

alarms present.

Fixed: Acknowledged

alarms present.

Power: Indicates auxiliary supply ON

Self check OK: Indicates self check OK

Inhibit: Indicates alarm inhibit active.

Generator OK.

Generator breaker Open

Generator breaker Closed

Mains breaker Open

Mains breaker Closed

Mains voltage OK

Run mode: Semi-auto ON.

Auto: ON. Semi-auto: OFF

MEC 320 OPERATOR’S MANUAL

PM106 Rev0 10/02/02 Thomson Technology Page 8 of 18

4. Display and menu structure

LCD display

The display is a backlit LCD text display containing 4 lines with 20 characters in each line.

There is no control of the display light intensity (no dimmer). Basically, all measured and

calculated values can be read in the display. These may be selected via the PC utility

software (TSP300).

Menu structure

The display includes two menu systems which can be used without password entry:

View menu system

This is the commonly used menu system. 15 windows are configurable and can be

entered by using the arrow push-buttons.

Setup menu system (not commonly used by the operator)

This menu system is used for setting up the unit, and if the operator needs detailed

information that is not available in the view menu system.

Changing of parameter settings is password protected.

Entry window

When the unit is powered up, an entry window appears. The entry window is the turning point in the menu structure

and as such the gateway to the other menus. It can always be reached by pushing the EXIT push-button 3 times.

The event and alarm list will appear at power up if an alarm is present.

For selection of values, see the Designer’s Reference Handbook.

MEC32

Otros manuales para MEC 320

Tabla de contenidos

Otros manuales de Controladores de THOMSON

THOMSON

THOMSON TSC 80E - V2.1 Manual de usuario

THOMSON

THOMSON TSC 800 - V2.2 Manual de usuario

THOMSON

THOMSON Electrak 1 Series Manual de usuario

THOMSON

THOMSON ECT Series Manual

THOMSON

THOMSON MEC 2 - V1.4 Manual de usuario

THOMSON

THOMSON MEC 20 - V1.82 Manual de usuario

THOMSON

THOMSON MEC 310 - APLLICATION NOTES EXTERNAL I-O... Manual de usuario

THOMSON

THOMSON TSC 80 - V2.2 Manual de usuario

THOMSON

THOMSON MEC 310 - WITH OPTION A AUTOMATIC MAINS... Manual de usuario

THOMSON

THOMSON MEC 310 - APLLICATION NOTES EXTERNAL I-O... Manual de usuario

THOMSON

THOMSON MEC 310 - APLLICATION NOTES EXTERNAL I-O... Suplemento

THOMSON

THOMSON Electrak GX Manual de usuario

THOMSON

THOMSON MEC 310 - APLLICATION NOTES EXTERNAL I-O... Manual de usuario

THOMSON

THOMSON Generator Set Annunciator EAP 110 Manual de usuario

THOMSON

THOMSON MEC 310 - APLLICATION NOTES EXTERNAL I-O... Suplemento

THOMSON

THOMSON TSC 80E - V2.2 Manual de usuario

THOMSON

THOMSON MEC 320 Manual de usuario

THOMSON

THOMSON TSC 80 - V2.1 Manual de usuario

THOMSON

THOMSON MK68590 Manual de usuario

THOMSON

THOMSON MEC 310#GENSET CONTROLLER OPTION J-CANBUS... Manual de usuario

THOMSON

THOMSON Electrak LL Manual de usuario

THOMSON

THOMSON MEC 310 - APLLICATION NOTES EXTERNAL I-O... Suplemento

THOMSON

THOMSON TSC 900 Manual de servicio

THOMSON

THOMSON WhisperTrak Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
