Thinkware QXD5000 Manual de usuario

This product records videos while the vehicle is operating.

Read and follow the instructions in this guide to properly use and maintain the product.

QHD

RECORDER

Format Free 2.0

User Guide

2Channel Dash Cam

Before using the product

About the product

This product records videos while the vehicle is operating. Use this product only for reference when

investigating incidents or road accidents. This product is not guaranteed to record or process cloud data

for all events. The device may not record accidents with impacts that are too minor to activate the impact

sensor or accidents with massive impacts that cause the vehicle’s battery voltage to deviate.

Video recording does not begin until the product is completely turned on (booted up). To ensure that all

vehicle events are recorded, wait until the product is completely booted up after turning it on, and then

begin operating the vehicle.

THINKWARE is not responsible for any loss caused by an accident, nor is it responsible for providing any

support regarding the outcome of an accident.

Depending on the vehicle's configuration or operating conditions, such as the installation of remote door

lock devices, ECU settings, or TPMS settings, some product features may not be supported, and different

firmware versions may influence the product's performance or features.

About the user guide

The information provided in the guide may change when the manufacturer updates its service policy. This

user guide is intended for THINKWARE QXD5000 models only, and it may contain technical errors,

editorial errors, or missing information.

Copyrights

All rights for the content and maps in this guide are reserved by THINKWARE and are protected under

written consent from THINKWARE is prohibited and is eligible for criminal charges.

Registered trademarks

THINKWARE QXD5000 is a registered trademark of THINKWARE.

Other product logos and service names in this guide are trademarks of the relevant companies.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

FCC CAUTION: Any changes or modifications to the equipment not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

Information to user : RSS-247

This device complies with Industry Canada’s licence-exempt RSSs.

Please be cautioned the changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Notice: Operation is subject to the following two conditions : (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that may cause

undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Contents

Safety information 6

1. Product overview 7

1.1 Included items 7

1.1.1 Standard items

1.1.2 Accessories (sold separately) 7

1.2

Part names

1.2.1 Front camera(main unit) - front view 8

1.2.2 Front camera(main unit) - rear view 9

1.2.3 Rear camera 9

1.3 Removing and inserting the memory card 10

2. Installing the product 11

2.1 Installing the front camera (main unit) 11

2.1.1 Selecting an installation location 11

2.1.2 Securing the product 11

2.1.3 Connecting the power cable 13

2.2 Installing the rear camera 14

2.2.1 Selecting an installation location 14

2.2.2 Securing the rear camera 14

2.2.3 Connecting the rear camera cable 15

3. Using recording features 19

3.1 Turning the product on or off 19

3.2 Turning the LCD on or off 20

3.3 Learning about the file storage location 20

3.4 Using the continuous recording feature 21

3.5 Recording manually 21

3.6 Using parking mode 22

3.7 Using the Super Night Vision 23

3.8 About the screen layout 24

3.8.1 Live view screen 24

3.8.2 Home screen 25

3.9 Playing the videos 26

3.9.1 Playing on the product 14

2.2.3 Connecting the rear camera cable 15

5. Settings 33

5.1 Setting the camera 33

Setting the brightness of the camera

(brightness camera)

5.2 Setting recording features 33

- Cont. Sensitivity

- Night Vision

- Parking Mode

- Parking Sensitivity

- Motion Sensitivity

- Off Timer

- Battery Protection

- Off Voltage

- Wt Bty Protection

5.3 System Settings 35

- Language

- Volume

- Calibrate Touchscreen

- LCD Brightness

- LCD Auto-Off

- Security LED

- Set Date and Time

- Partition Settings

- Format Memory

- Restore Settings

6. Accessing the product information 46

6.1 Understanding the product features 46

6.2 Viewing the product information 46

7. Upgrading the firmware 47

8. Using the PC viewer 48

8.1 System requirements 48

8.2 PC viewer for Windows 48

8.3 PC viewer for Mac 52

9. Troubleshooting 56

10. Specifications 57

Safety information

Read the following safety information to properly use the product.

Safety symbols in this guide

"Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death.

"Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage.

"Note" - Provides useful information to help users better utilize the product's features.

Safety information for proper use

•Do not operate the product while driving a vehicle. Distraction while driving may cause accidents and

result in injury or death.

•Install the product in places where the driver's view is not obstructed. Obstruction of the driver’s vision

may cause accidents and result in injury or death.

•Do not use damaged power cables. Doing so may result in electrical fire or electrocution.

•Disconnect the power cable from the product when it will not be used for an extended period. Failure to do

so may result in electrical fire or battery depletion.

•Ensure that the product is out of the reach of children and pets. If the product breaks, it may result in fatal

damage.

•Do not expose product to direct sunlight or intense light. The lens or internal circuitry may fail otherwise.

•Avoid excessive humidity and do not allow any water to enter the product. Electronic components inside

the product may fail if exposed to humidity or water.

•Do not disassemble the product or subject the product to impact. Doing so may damage the product.

Unauthorized disassembly of the product voids the product warranty.

•Do not apply excessive force when pressing the buttons. Doing so may damage the buttons.

•Ensure you are inserting the memory card correctly before inserting it to the product. The memory card

slot or the memory card may be damaged if it is inserted incorrectly.

•When connecting the power cable to the product, ensure that the connection between the cable plug

and the power cable connector on the product is secure. If the connection is loose, the power cable may

become disconnected due to vehicle vibration. Video recording is not available if the power connector is

disconnected.

1. Product overview

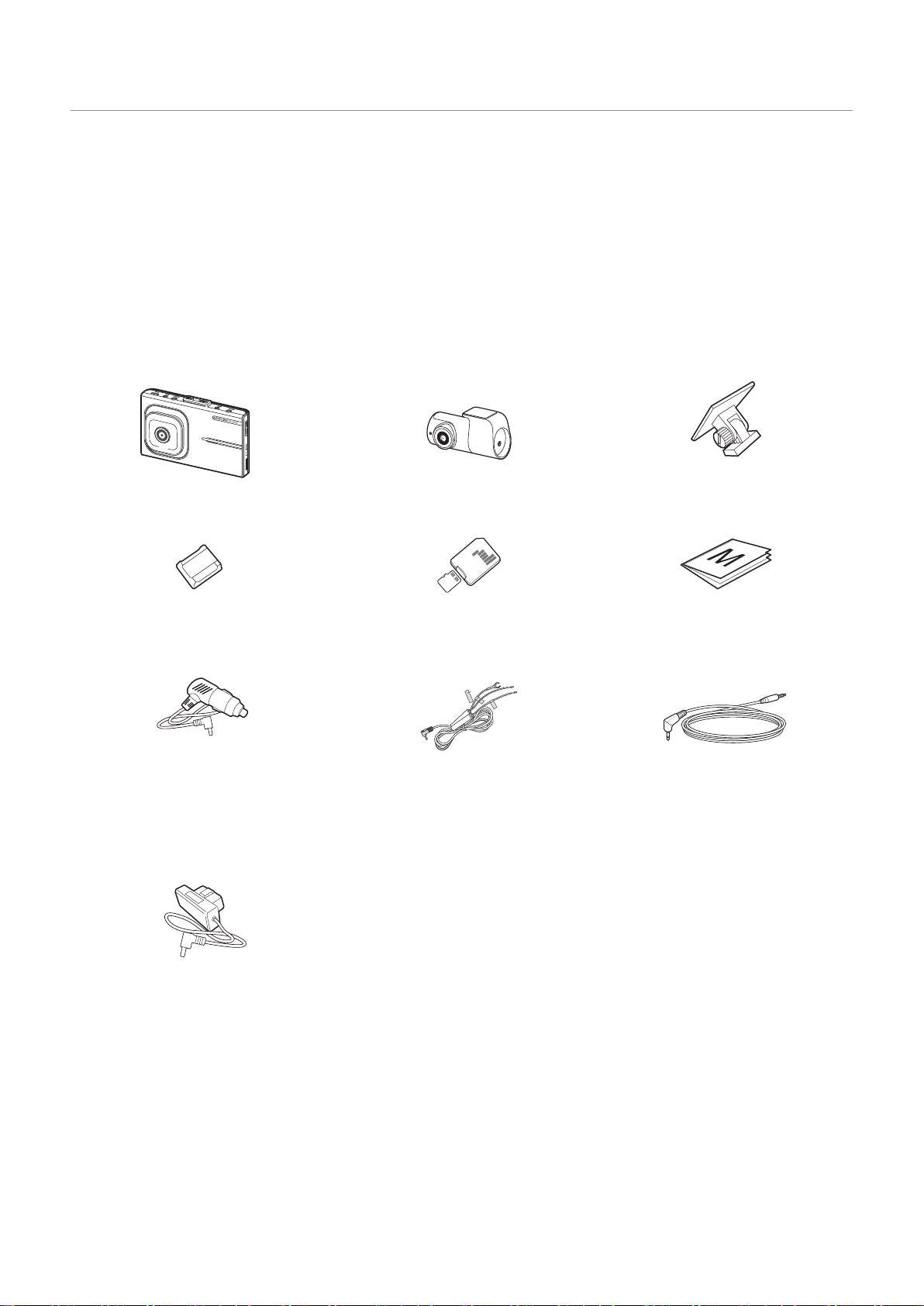

1.1 Included items

Ensure that all the items are included when you open the product box.

1.1.1 Standard items

1.1.2 Optional items

Front camera (main unit) Mount

12V Power Cable

OBD-II Cable

Adhesive cable holder

MicroSD memory card with adapter

(MicroSD Card is inserted in the front camera)

Warranty

GND

ACC

BATTERY

Hardwiring cable Rear Camera cable

Rear camera

QHD

RECORDER

QHD

RECORDER

Product overview

1.2 Part names

1.2.1 Front camera (main unit) - front view

DC-IN power connector

Used to connect the

power cable.

V-IN input port

Used to connect the

rear camera.

Mount connector

Used to connect the mount

Radar connector

Speaker

Outputs the voice guide and buzzer

sounds to indicate the product’s status.

Security LED

Indicates that the video is

being recorded.

Front camera lens

Records the front view.

Reset

Insert the tip of a sharp

object to reset the product

if an error occurs.

Microphone

Used for voice recording.

Memory card slot

Insert a memory card

to save recordings.

Memory card slot

Insert a memory card

to save recordings.

Product overview

1.2.2 Front camera (main unit) - rear view

Touchscreen

Used for setting the product or

viewing the recorded videos.

Status LED

Indicates the operating

status of the product.

Recording LED

Indicates the recording

status.

Gently touch the screen to make inputs on the touchscreen. The screen may be damaged if you apply

excessive force to the screen or if you touch the screen with a sharp object.

1.2.3 Rear camera

Adhesive mount

Used to fix the rear camera in the vehicle.

Rear camera lens

Records the rear view.

Security LED

Indicates that the video is

being recorded.

Connection port

Used to connect the rear camera cable.

Product overview

1.3 Removing and inserting the memory card

The memory cards are installed in the product at the factory. Follow the instructions to remove the memory

card from the product or to insert the memory card into the product.

Removing the memory card

Ensure that the product is turned off, and then gently

push the bottom of the memory card with your

fingernail. The lower part of the memory card will be

exposed.

Remove it from the product.

Inserting the memory card

Insert the memory card into the memory card slot,

paying attention to the direction of the memory card,

and then push the memory card into the slot until

you hear a click.

Before inserting the memory card, ensure that the

metal contacts on the memory card are facing

toward the lens of the product.

•Ensure that the product is turned off before removing the memory card. The recorded video files may be

corrupted or lost if you remove the memory card while the product is on.

•Ensure that the memory card is in the correct direction before inserting it into the product. The memory

card slot or the memory card may be damaged if it is inserted incorrectly.

•Use only authentic memory cards from THINKWARE. THINKWARE does not guarantee compatibility and

normal operation of third-party memory cards.

To prevent loss of recorded video files, periodically back up the video files on a separate storage device.

2. Installing the product

2.1 Installing the front camera (main unit)

Follow the instructions to properly install the product.

2.1.1 Selecting an installation location

Select an installation location that can record the

entire view in front of the vehicle without obstructive

the driver’s vision. Ensure that the front camera lens

is located in the center of the windshield.

If a GPS navigating device installed on the dashboard is

present, its GPS reception may be affected depending

on the dashboard camera's installation location.

Adjust the installation location of the GPS navigating

device to ensure that the two devices are separated by

at least 8 inches.

2.1.2 Securing the product

Follow the instructions to secure the product at the installation location.

Align the mount to the mount connector on the

product, and then slide it until you hear a click (

➊

Then, carefully remove the protective film keeping

the lens clean (

➋

20 cm

QHD

RECORDER

Tabla de contenidos

Otros manuales de Cámara de salpicadero de Thinkware

Thinkware

Thinkware Q1000 Manual de usuario

Thinkware

Thinkware DASH CAM F200 PRO Manual de usuario

Thinkware

Thinkware BAB-95 Manual de usuario

Thinkware

Thinkware F790 Manual de usuario

Thinkware

Thinkware X1000 Manual de usuario

Thinkware

Thinkware Q850 Manual de usuario

Thinkware

Thinkware DC-M2-FG Manual de usuario

Thinkware

Thinkware Q200 Manual de usuario

Thinkware

Thinkware F50 Manual de usuario

Thinkware

Thinkware X330 Manual de usuario

Thinkware

Thinkware X350 Manual de usuario

Thinkware

Thinkware iNAVI BLACK Clair2 Manual de usuario

Thinkware

Thinkware QA100 Manual de usuario

Thinkware

Thinkware F200 PRO Manual de usuario

Thinkware

Thinkware VHL3Z-19G490-C Manual de usuario

Thinkware

Thinkware X800 Manual de usuario

Thinkware

Thinkware M1 Manual de usuario

Thinkware

Thinkware X150 Manual de usuario

Thinkware

Thinkware X700 Manual de usuario

Thinkware

Thinkware X1000 Manual de usuario

Thinkware

Thinkware X500 Manual de usuario

Thinkware

Thinkware QX800 Manual de usuario

Thinkware

Thinkware D2K64D Manual de usuario

Thinkware

Thinkware F750 Manual de usuario

Manuales populares de Cámara de salpicadero de otras marcas

Cansonic

Cansonic UltraDuo Z2 Manual de usuario

Gazer

Gazer F720 Manual de usuario

HP f500g Manual de usuario

Xblitz

Xblitz TANGO 4K Manual de usuario

Rexing

Rexing M1 Manual de usuario

Maka Technologies

Maka Technologies Marbella MXPro Manual de usuario

NESA

NESA NRC-80DLM Instrucciones de instalación y funcionamiento

Kaiser Baas

Kaiser Baas R20 Manual de usuario

Boyo

Boyo VTM43TC Manual de usuario

Minolta

Minolta MNCD37 Manual de usuario

Momento

Momento MD-5200 Manual de usuario

BlackVue

BlackVue DR590X-1CH Manual de usuario

HP F300 Manual de usuario

CammSys

CammSys BlackSys BH-300 Manual de usuario

Snooper

Snooper DVR-2HD Manual de usuario

Lukas

Lukas Q900 Manual de usuario

RVS

RVS 450C Manual de usuario

BlackVue

BlackVue 750G PRO Guía de referencia
