THERMOROSSI CHIC Manual de usuario

CHIC –CHIC SUPREME

INSTALLATION GUIDE.

Installation, use and maintenance guide

CASING CHIC –CHIC SUPREME

Page 1

ENG

Installation, use and maintenance guide

CASING CHIC –CHIC SUPREME

Page 2

ENG

INDEX

INSTRUCTIONS VALID ONLY FOR CHIC................................................................................................ 3

1 –INTRODUCTION.................................................................................................................................. 3

2 –COMPONENTS ................................................................................................................................... 3

3 –ASSEMBLING THE CASING .............................................................................................................. 4

INSTRUCTIONS VALID ONLY FOR CHIC SUPREME ............................................................................. 7

1 –INTRODUCTION.................................................................................................................................. 7

2 –COMPONENTS ................................................................................................................................... 7

3 –ASSEMBLING THE CASING .............................................................................................................. 8

Installation, use and maintenance guide

CASING CHIC –CHIC SUPREME

Page 3

ENG

INSTRUCTIONS VALID ONLY FOR CHIC

1 –INTRODUCTION

1.1 GENERAL GUIDELINES

ATTENTION: The majolica elements are handcrafted so they could contain subtle surface imperfections, crazing or

shade variations. The layer of glaze has an expansion factor that is different to that of the majolica tiles which is what

causes the hairline cracks. This phenomenon is a natural process and is not a defect. We recommend cleaning the

majolica tiles with a dry microfibre cloth. Using moist or wet cleaning cloths would show up the natural crazing even

more.

Thermorossi S.p.A. retains copyright on theses service instructions. These instructions may not be reproduced or communicated to

third parties or used in any other way without the necessary authorisation.

1.2 TRANSPORTATION AND STORAGE

TRANSPORTATION AND HANDLING

Take special care to protect all the fragile parts from mechanical impact which could damage them.

STORAGE

The casing must be stored in a humid-free environment and sheltered from the weather; avoid placing the casing directly on the

ground. The company is not responsible for damages caused by negligence.

2 –COMPONENTS

The kit includes the following elements:

A - B

Protective polystyrene

Upper side panels

Protective cardboard

Lower side panels

Upper majolica

Lower majolica

Support bracket

I-L-M-N

Compensating profiles

Attention: The majolica elements are delicate and must be handled with extreme

care. Use soft cotton gloves when handling them. Clean with soft dry microfibre

cloths for delicate surfaces such as lenses or glasses.

Installation, use and maintenance guide

CASING CHIC –CHIC SUPREME

Page 4

ENG

DETTAGLIO C

DETTAGLIO D

DETTAGLIO A

DETTAGLIO B

3 –ASSEMBLING THE CASING

DETTAGLIO A

DETTAGLIO B

2 - Undo the 4 screws (4) and remove the

majolica support bracket.

DETTAGLIO A

DETTAGLIO B

1 - Fasten the support bracket (H) to the hole

(3) using the screw (1) and nut (2).

ATTENTION: If your appliance has a

NATURAL body do not carry out this operation;

start directly from the next point.

4 - Adjust the two teeth illustrated in the DETAIL

B box to firmly secure the majolica to the

bracket. Lastly fasten the bracket with the

majolica using the 4 screws (4) removed earlier.

3 - Insert the lower majolica (G) on the bracket

that you have just removed.

Installation, use and maintenance guide

CASING CHIC –CHIC SUPREME

Page 5

ENG

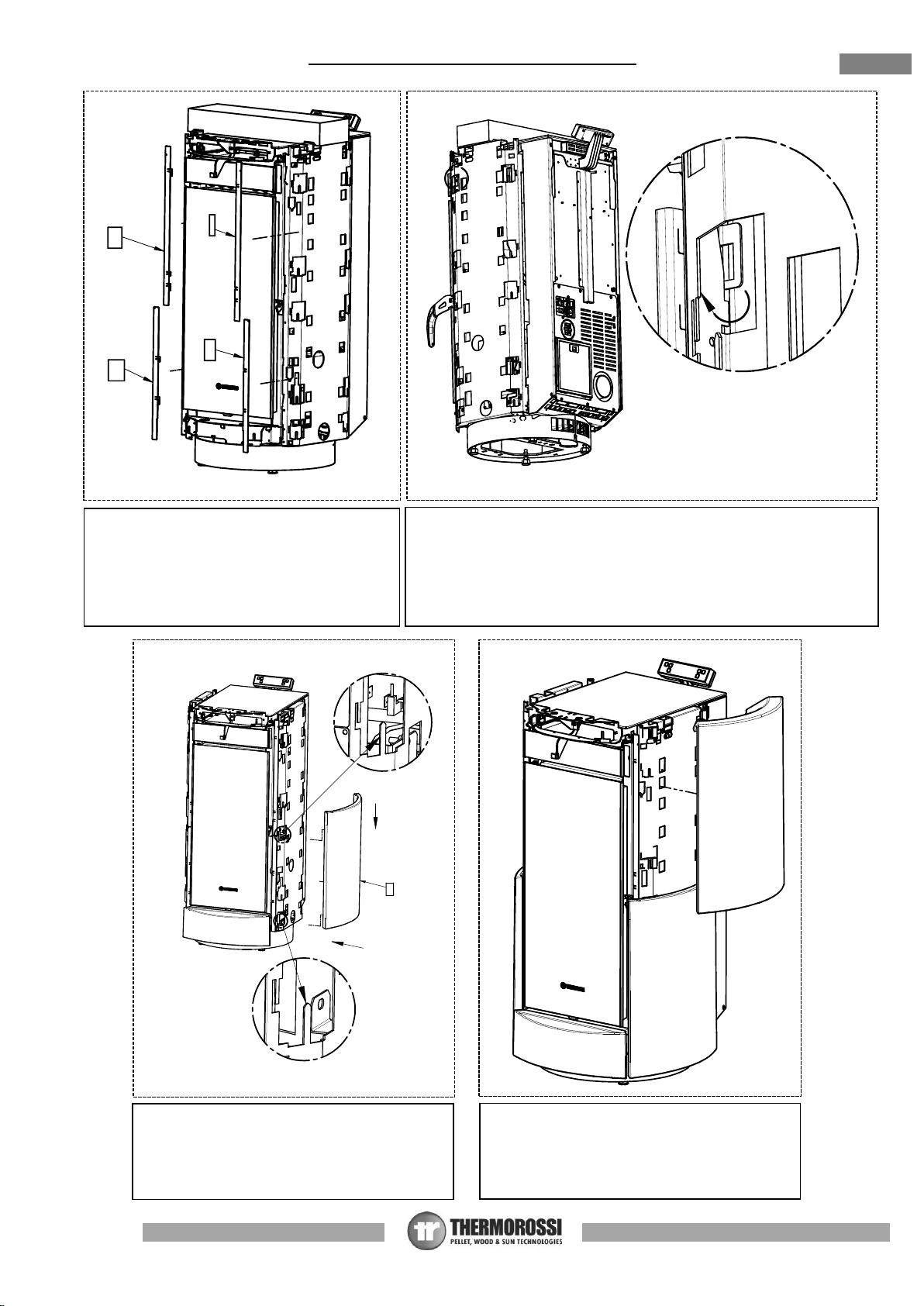

5 - Mount the four compensating profiles, (I-L-

M-N), by inserting the hooks in the slots

provided on the body of the appliance. In some

cases it may be necessary to break off the last

hook at the bottom of the upper profile.

6 - Detail A shows the hook correctly inserted in the slot. Then use a

screwdriver to turn the hooks outwards to firmly secure the

compensating profiles to the appliance.

7 - Insert the lower side panel (E) on the teeth

provided, as illustrated in details C and D.

Slightly bend the teeth so as to firmly secure the

majolica to the body. Carry out the same

procedure on the opposite side.

8 - Insert the upper side panel (C) on the teeth

provided, as in the previous point. Slightly bend

the teeth so as to firmly secure the majolica to

the body. Carry out the same procedure on the

opposite side.

DETTAGLIO C

DETTAGLIO D

DETTAGLIO F

0.8

DETTAGLIO A

DETTAGLIO B

DETTAGLIO E

DETTAGLIO C

DETTAGLIO D

Installation, use and maintenance guide

CASING CHIC –CHIC SUPREME

Page 6

ENG

10 - Insert the upper majolica (F) on the teeth

provided. Slightly bend the teeth so as to firmly

secure the majolica to the body.

ATTENTION: If your appliance has a

NATURAL body do not carry out this operation;

start directly from the next point.

DETTAGLIO E

11 - Insert the upper majolica (F) on the teeth

provided. Slightly bend the teeth so as to firmly

secure the majolica to the body.

ATTENTION: This operation is only to be

carried out on appliances with a NATURAL

body.

ADETTAGLIO A

DETTAGLIO B

Installation, use and maintenance guide

CASING CHIC –CHIC SUPREME

Page 7

ENG

INSTRUCTIONS VALID ONLY FOR CHIC

SUPREME

1 –INTRODUCTION

1.1 GENERAL GUIDELINES

ATTENTION: The majolica elements are handcrafted so they could contain subtle surface imperfections, crazing or

shade variations. The layer of glaze has an expansion factor that is different to that of the majolica tiles which is what

causes the hairline cracks. This phenomenon is a natural process and is not a defect. We recommend cleaning the

majolica tiles with a dry microfibre cloth. Using moist or wet cleaning cloths would show up the natural crazing even

more.

Thermorossi S.p.A. retains copyright on theses service instructions. These instructions may not be reproduced or communicated to

third parties or used in any other way without the necessary authorisation.

1.2 TRANSPORTATION AND STORAGE

TRANSPORTATION AND HANDLING

Take special care to protect all the fragile parts from mechanical impact which could damage them.

STORAGE

The casing must be stored in a humid-free environment and sheltered from the weather; avoid placing the casing directly on the

ground. The company is not responsible for damages caused by negligence.

2 –COMPONENTS

The kit includes the following elements:

Compensating profiles

Lower majolica

Upper majolica

Lower side panels

Upper side panels

Central majolica (only for air products)

G-H

Protective cardboard

Protective polystyrene

Compensating bracket

Attention: The majolica elements are delicate and must be handled with

extreme care. Use soft cotton gloves when handling them. Clean with soft dry

microfibre cloths for delicate surfaces such as lenses or glasses.

Installation, use and maintenance guide

CASING CHIC –CHIC SUPREME

Page 8

ENG

3 –ASSEMBLING THE CASING

4 - Insert the upper majolica (C) on the teeth

provided. Slightly bend the teeth so as to firmly

secure the majolica to the body.

ATTENTION: This operation is only to be

carried out on appliances with a NATURAL

body.

3 - Remove the tray and insert the upper

majolica (C) on the teeth provided. Slightly bend

the teeth so as to firmly secure the majolica to

the body.

ATTENTION: If your appliance has a

NATURAL body do not carry out this operation;

start directly from the next point.

2 - Undo the 4 screws (2) and remove the

majolica support bracket. Insert the lower

majolica (B) on the bracket that you have just

removed. Lastly fasten the bracket with the

majolica using the 4 screws (2) just removed.

DETTAGLIO A

1 - Assemble both compensating profiles (A)

using screws (1) on the sides of the appliance,

as indicated in the figure.

Installation, use and maintenance guide

CASING CHIC –CHIC SUPREME

Page 9

ENG

7 –Insert the central majolica (F) as indicated in

the figure (only for air products). Fix it with

screws (4) and washers (3).

8 –ATTENTION:

The compensating bracket (L) has to be applied

only in those cases where the appliance body is

deeper than the central majolica (F) in order to

close the remaining gap.

5 - Insert the lower side panel (D) on the teeth

provided. Slightly bend the teeth so as to firmly

secure the majolica to the body. Carry out the

same procedure on the opposite side.

6 - Insert the upper side panel (E) on the teeth

provided, as in the previous point. Slightly bend

the teeth so as to firmly secure the majolica to

the body. Carry out the same procedure on the

opposite side.
