Thermaltake TOUGHLIQUID Ultra 420 RGB Manual de usuario

Intel Installation Guide

AMD Installation Guide

Parts List

A x 1

B x 3 C x 1 D x 1 F x 2 G x 4

E x 1 H x 4

N x 1 O x 1 P x 1 Q x 1

I x 4

J x 1 2 K x 1 2 L x 1 M x 1

LGA 2066/2011

LGA 1700 LGA 1700/1200/115X

LGA 1200/115X

31700/1200/1156/1155/1151/1150 2066/2011-3/2011

Tighten screw to the halfway.

Tighten screw again to ensure your

waterblock is secure enough.

1700

1200/115X

DC or

1700 1200/115X

Scan Here

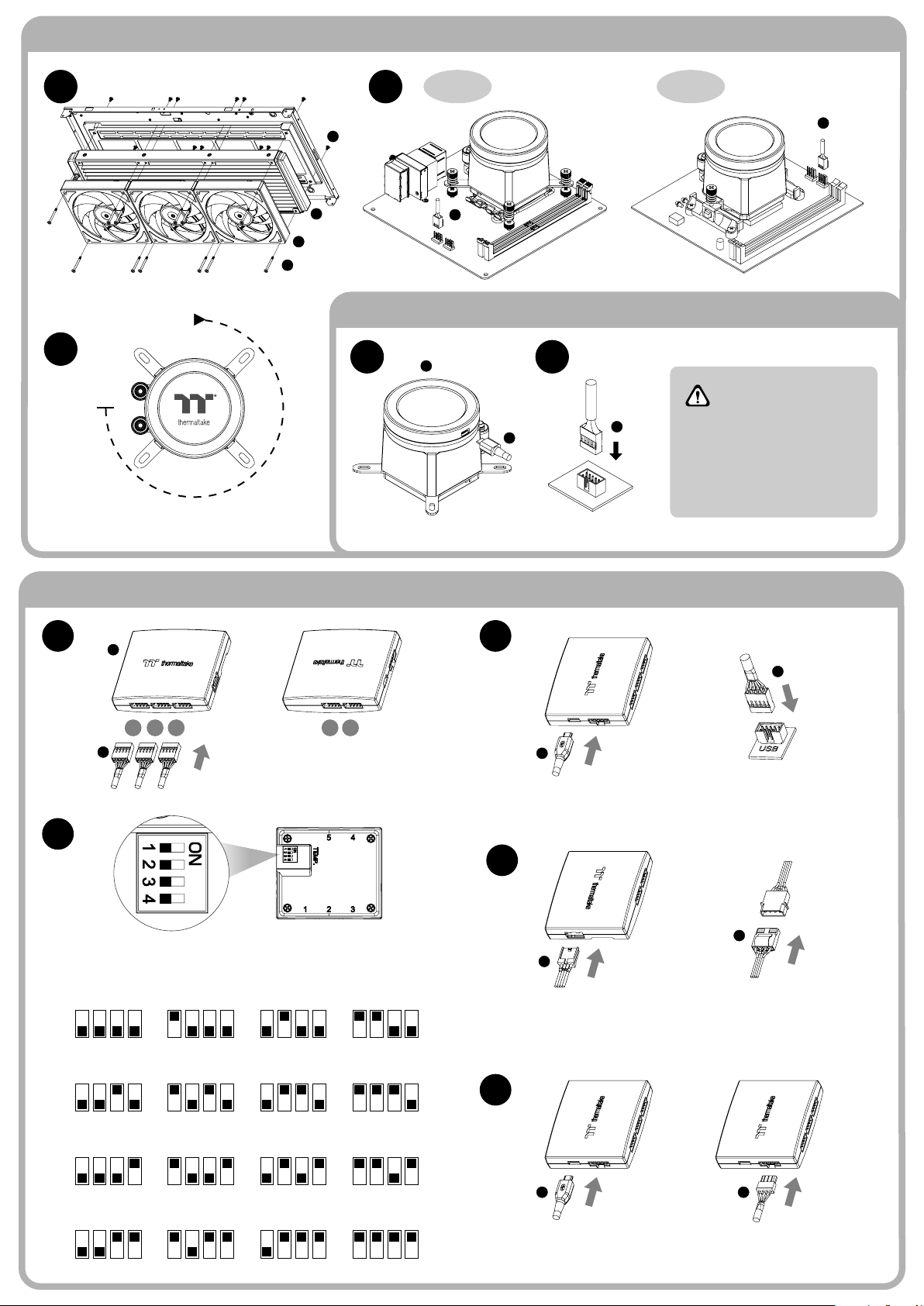

Installation Guide

Black

Silver

TOUGHLIQUID Ultra 420 RGB

LCD Display Setup Guide

CAUTIONCAUTION

Installation Guide

1 2

Intel

AMD

PUMP

AIO_PUMP

Adjust the display to fit your PC build

in clockwise rotation

Start

stop

To control the LCD display by

TT RGB PLUS Software,

please connect the water block

and motherboard with cable O.

PUMP

AIO_PUMPAIO_PUMP

Controller Installation Guide

1 3

Comnect the fans to the controller.

Set the DIP switch on the back side of the controller

to assign the number of the controller

NO.1

1 2 3 4

NO.3

1 2 3 4

NO.2

1 2 3 4

NO.4

1 2 3 4

NO.9

1 2 3 4

NO.11

1 2 3 4

NO.10

1 2 3 4

NO.12

1 2 3 4

NO.5

1 2 3 4

NO.7

1 2 3 4

NO.6

1 2 3 4

NO.8

1 2 3 4

NO.13

1 2 3 4

NO.15

1 2 3 4

NO.14

1 2 3 4

NO.16

1 2 3 4

Connect the controller cable onto the motherboard

(USB 2.0 9 pin) and controller.

If you want to connect two or more controllers,

you can sync the controllers with the bridge connector.

Connect the power cable to the 4pin Molex

connecter and controller.

123 45
