THE WORLD MODELS ZEN 50 Manual de usuario

Wing Span

Wing Area

Flying Weight

Fuselage Length

54.0 in / 1370mm

564 sq in / 36.4 sq dm

6.0 lbs / 2650g

54 in / 1370mm

Warning !This model is not a toy.

It is designed for maximum performance. Please seek advice if one is not familiar with this kind

of engine powered precision model. Operating this model without prior preparation may cause

injuries. Remember, safety is the most important thing. Always keep this instruction manual at

hand for quick reference.

THE WORLD MODELS

MANUFACTURING CO. LTD.

FACTORY PRE-FABRICATED

ALMOST-READY-TO-FLY (ARF) SERIES

MADE IN CHINA

www.theworldmodels.com

0.40 cu.in. displacement 2-cycle

0.52 cu.in. displacement 4-cycle

Radio required : 5 channels, 6 servos airplane radio

* Specifications are subject to change without notice.*

Specifications

INSTRUCTION MANUALINSTRUCTION MANUAL

P. 1

I N D E XI N D E X

BEFORE YOU BEGINBEFORE YOU BEGIN

PARTS LISTPARTS LIST

ASSEMBLYASSEMBLY

SAFETY PRECAUTIONSSAFETY PRECAUTIONS

P. 1P. 1

P. 2P. 2

P. 3 - 10P. 3 - 10

P. 11P. 11

BEFORE YOU BEGIN

Do not overlook this symbol!

Cut off shaded portion.

Ensure smooth non-binding

movement while assembling.

Apply instant glue

(C.A.glue, super glue.)

Assemble left and right

sides the same way.

Peel off shaded portion

covering film.

Pay close attention here!

Apply epoxy glue.

Pierce the shaded portion

covering film.

Must be purchased separately!

Drill holes with the specified

diameter (here: 3mm).

3mm

Warning!

Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT

and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you

find to be defective after the gluing process may be difficult to remove for warranty replacement. The

manufacturer will replace any defective parts. but will extend to the parts that are good before

not

gluing to defective parts during assembly.

Read through the manual before you begin, so you will have an overall idea of what to do.

Symbols used throughout this instruction manual comprise of the following : -

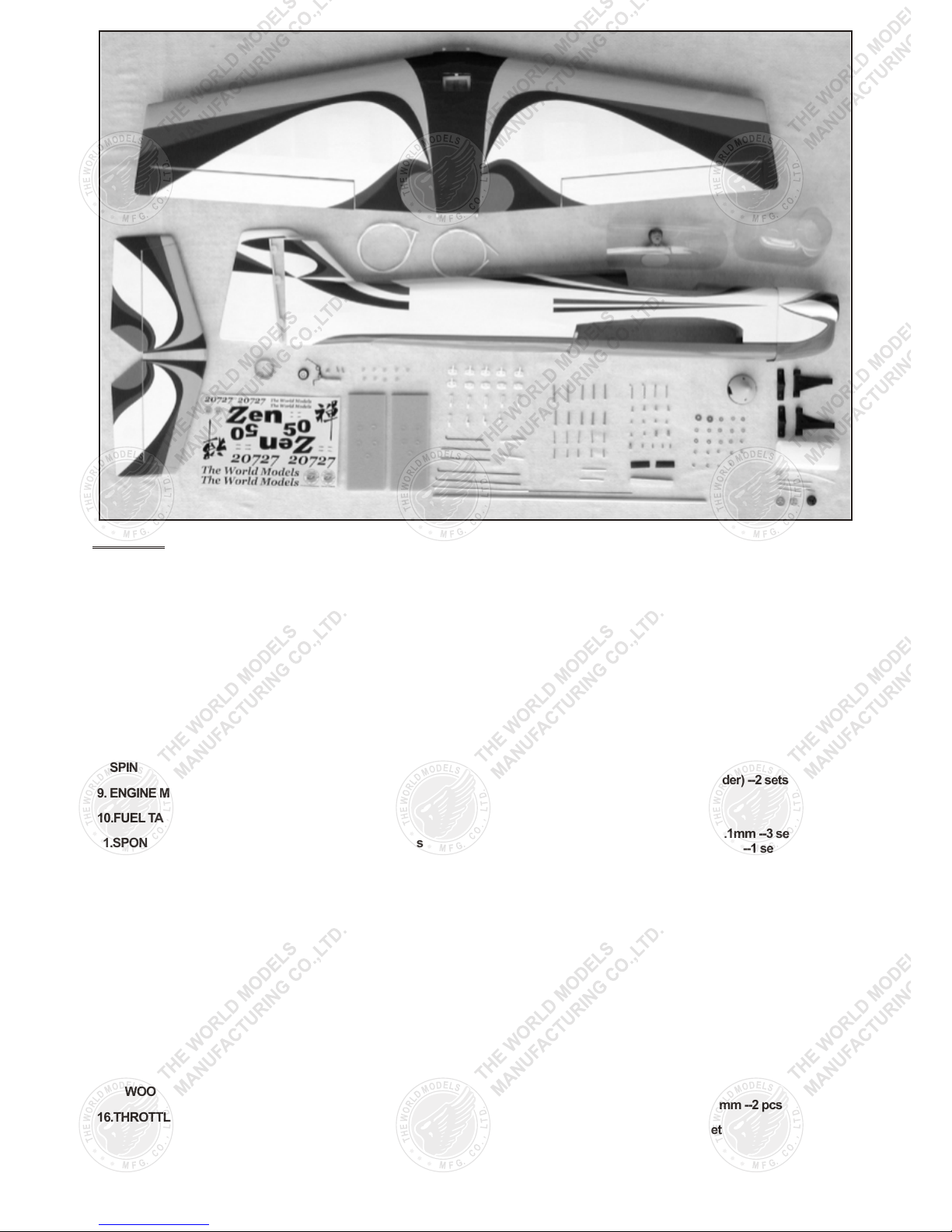

Parts List

P. 2

1. FUSELAGE & BELLY PAN --1 set

2. MAIN WING --1 pc.

3. STABILIZER & ELEVATOR --1 set

4. RUDDER --1 set

5. CANOPY --1 set

6. COWLING --1 pc.

TRANSPARENT DUMMY COWLING --1 pc.

7. PILOT (#PC001050A) --1 pc.

8. SPINNER Ø62mm --1 pc.

9. ENGINE MOUNT PL5111-050 --1set

10.FUEL TANK 320cc --1 set

11.SPONGE 10x80x200mm (For Radio Equipment) --2 pcs

12.TAIL LANDING GEAR --1 set

13.MAIN WHEEL Ø50mm --2 pcs

14.TAIL WHEEL Ø23mm --1 pc.

15.PUSHROD , PUSHWIRE & PULLWIRE:--

COPPER TUBE d2.0xD2.4x8mm (For Rudder) --4 pcs

METAL ROD Ø1.8x27mm (For Rudder) --2 pcs

METAL ROD Ø1.8x27mm w/Threads (For Rudder) --2 pcs

METAL ROD Ø1.8x80mm (For Elevator) --1 pc.

METAL ROD Ø1.8x105mm w/Threads (For Aileron) --2 pcs

METAL ROD Ø1.8x160mm w/Threads (For Elevator) --1 pc.

METAL ROD Ø1.8x165mm w/Threads (For Elevator) --1 pc.

PLASTIC TUBE d2xD3x700mm (For Elevator) --2 pcs

PLASTIC TUBE d2.5xD3x50mm (For Rudder) --2 pcs

WOODEN ROD Ø8x580mm (For Elevator) --1 pc.

16.THROTTLE PUSHWIRE Ø1.2x420mm

w/Plastic tubed2xD3x200mm --1 set

17.WOODEN PARTS:--

BALSA 10x10x91mm (For Fixing Fuel Tank) --1 pc.

PLYWOOD 1x10x20mm (For Belly Pan ) --2 pcs

PLYWOOD 6x20x33mm (For Belly Pan) --2 pcs

PLYWOOD 3x61x85.5mm (Rudder Servo Stand) --1 pc.

PLYWOOD 3x61x87.5mm

(Throttle & Elevator Servos Stand) --1 pc.

PLYWOOD 3x10x77mm (For Rudder Servo) --2 pcs

PLYWOOD 3x10x79mm

(For Throttle & Elevator Servos) --2 pcs

18.PLASTIC PARTS:--

CLEVIS --8 pcs

SILICON GROMMET d1.5xD6.5mm

(For Cowling, Canopy & Belly Pan)--12 pcs

HORN --4 sets

HORN (w/o-Base For Rudder) --2 sets

STRAPER --3 pcs

19.METAL PARTS:--

LINKAGE CONNECTOR 2.1mm --3 sets

COLLAR 2.1mm w/set screw --1 set

COLLAR 4.1mm w/set screw --2 sets

NUT2mm --2 pcs

NUT 3.5mm --8 pcs

SCREW PA 3x12mm --2 pcs

SCREW PM 2x16mm --4 pcs

SCREW PM 2x20mm --2 pcs

SCREW PM 2x25mm --4 pcs

SCREW PM 3.5x30mm --4 pcs

SCREW PM 4x25mm --4 pcs

SCREW PM 4x35mm --2 pcs

SCREW PWA2.3x8mm --6 pcs

SCREW PWA2.3X12mm--4 pcs

WASHER d3.5xD8mm --8 pcs

WASHER d4xD9mm --4 pcs

WASHER d4xD15mm --2 pcs

20.FUEL TUBE Ø6x5mm --9 pcs

HEAT-SHRINK TUBE Ø8x40mm --2 pcs

21.DECALS: ST 200 035 --1 set

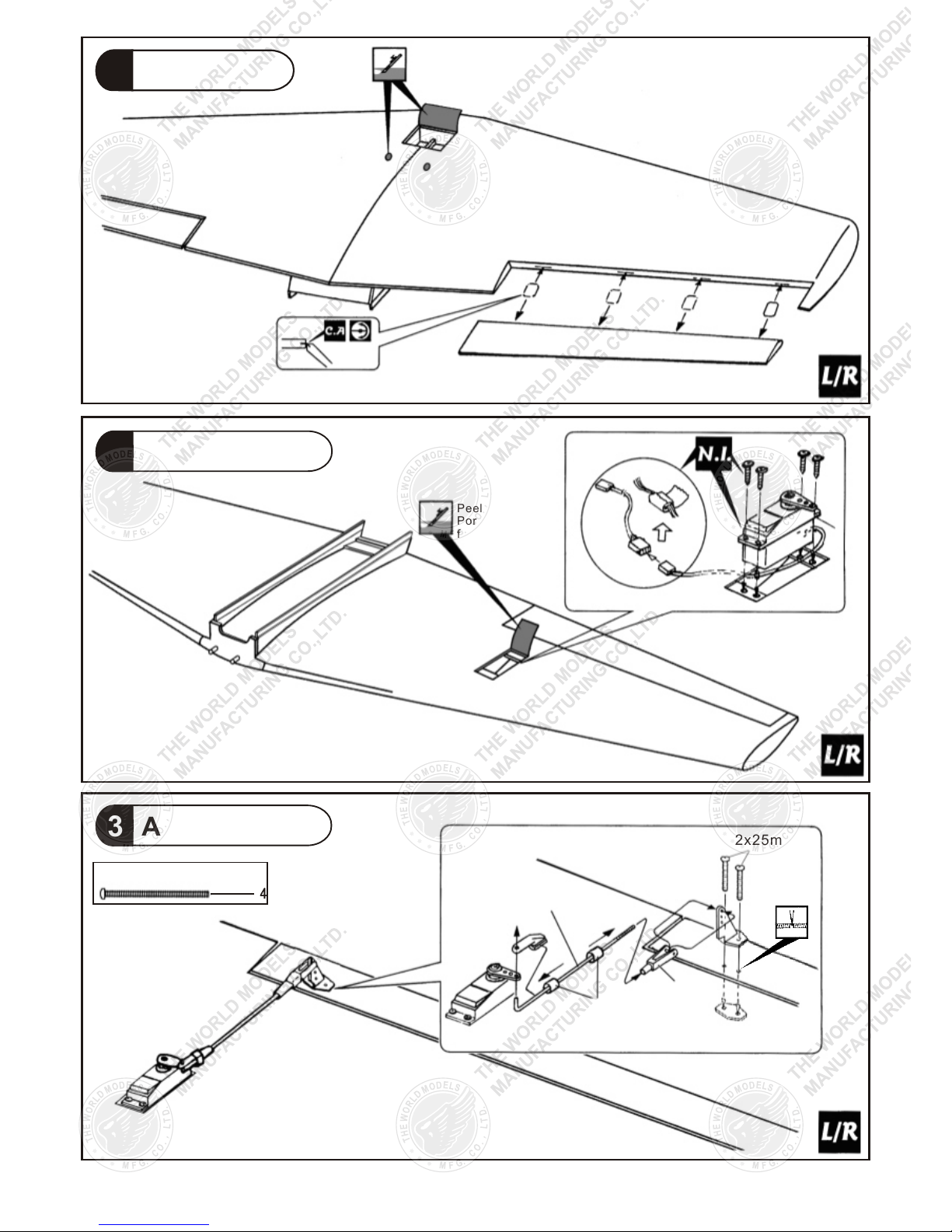

P.3

Aileron Servo

Main Wing Peel off shaded portion

covering film.

Peel shaded

Portion covering

film.

PM 2x25mm Screw

Ø1.8x105mm

PM 2x25mm

Clevis

Fuel Tube

Ø6x5mm

Stabilizer

Landing Gear Servo

Main Landing Gear

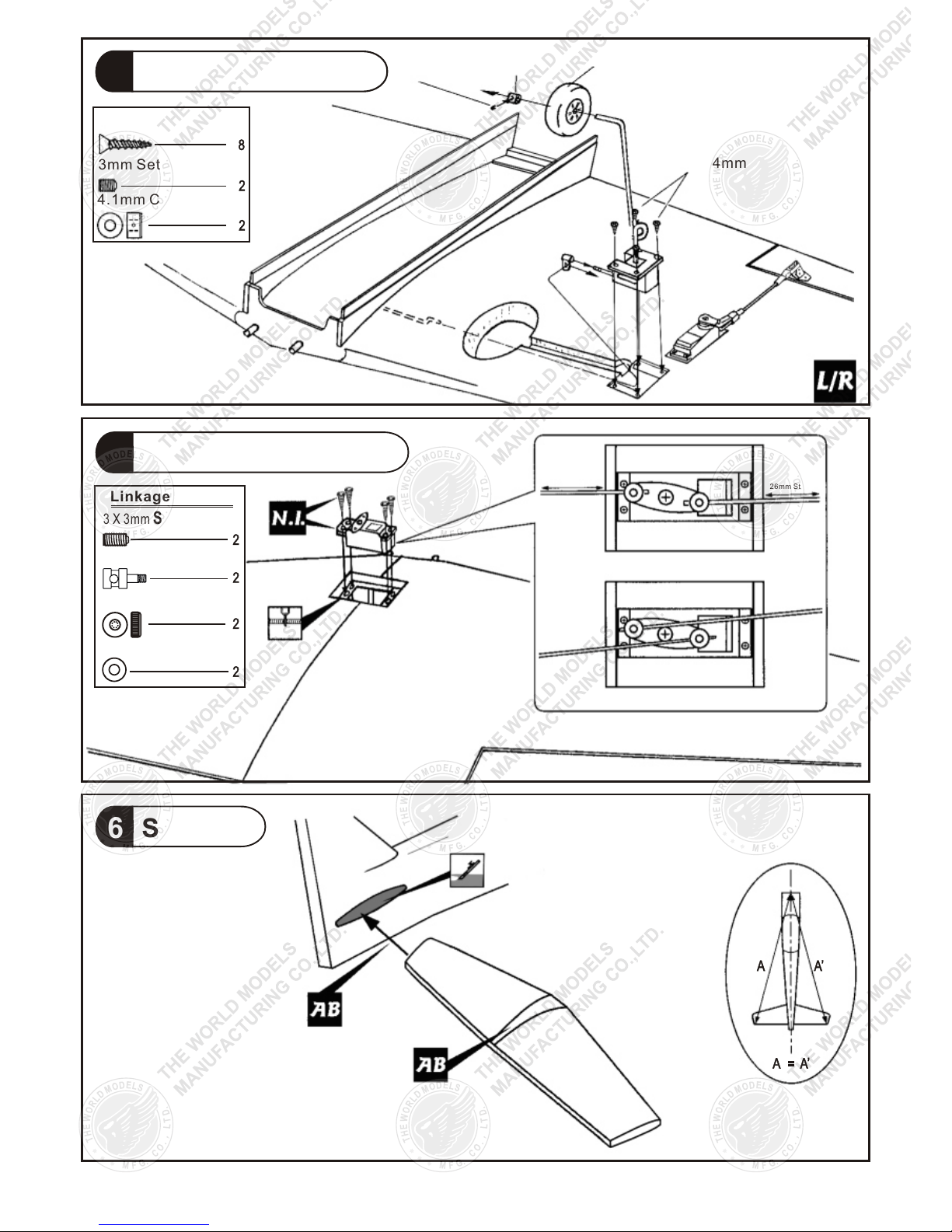

P.4

Linkage Stopper

3 X 3mm Set Screw

L i n k a g e C o n n e c t o r

2mm Nut

2mm Washer

KA 3x14mm Screw

3mm Set Screw

4.1mm Collar

Wheel Ø50mm

1.5mm

26mm Storke

Wheels up position

T L-s do i e

To R-side

Wheels down position

3mm Set Screw KA 3x14mm

4.1mm Collar

26mm Storke

Engine Mount

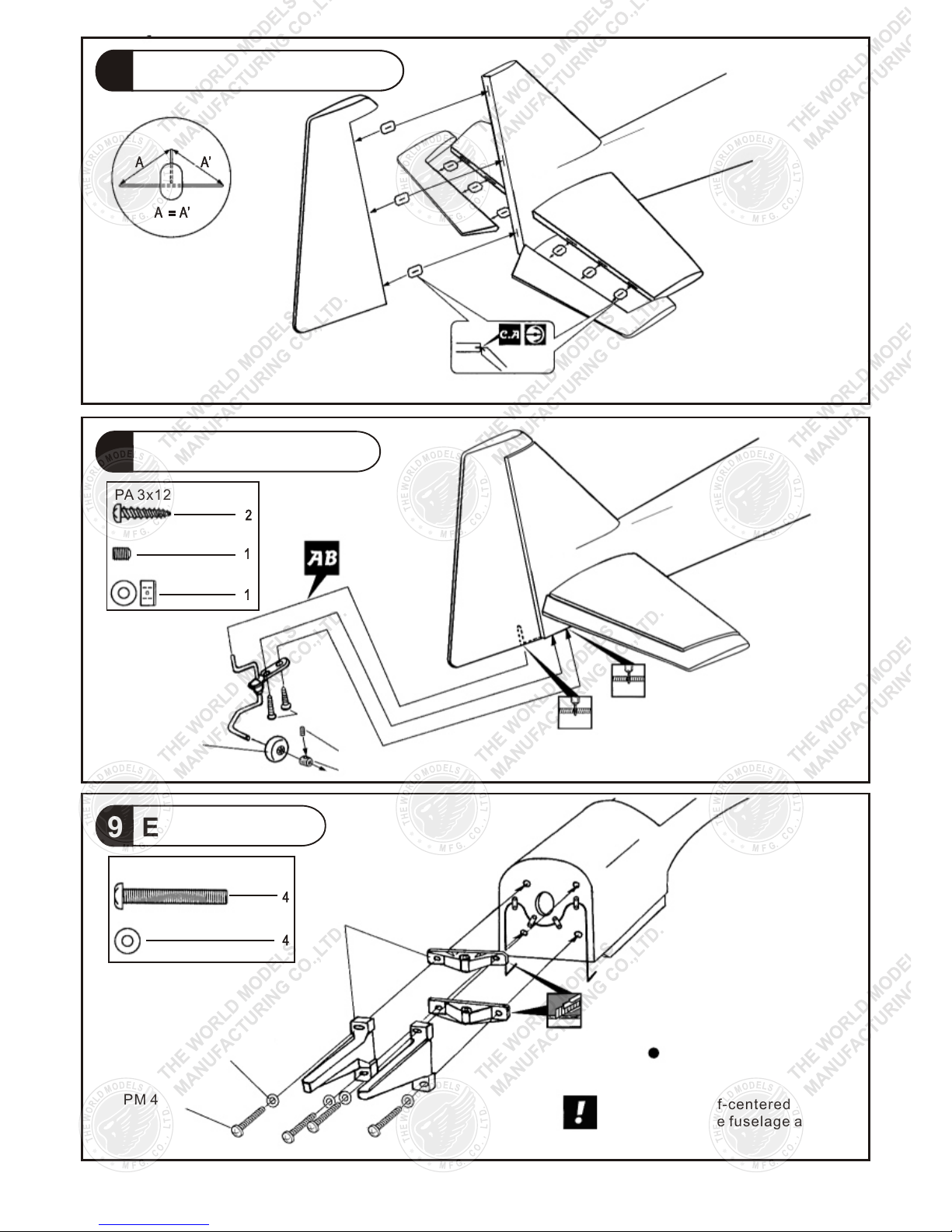

Tail Landing Gear

Vertical Fin/Rudder

P.5

PA 3x12m Screw

3mm Set Screw

2.1mm Collar

Wheel Ø23mm

PA 3x12mm 2mm

1.5mm

PM 4x25mm Screw

4mm Washer

Engine Mount

PL5111-050

4mm

PM 4x25mm

Apply thread locker

to screws.

Blind nuts are off-centered to keep

the spinner at the fuselage axis.

3mm Set Screw

2.1mm Collar

Elevator Pushrod

Engine

Fuel Tank

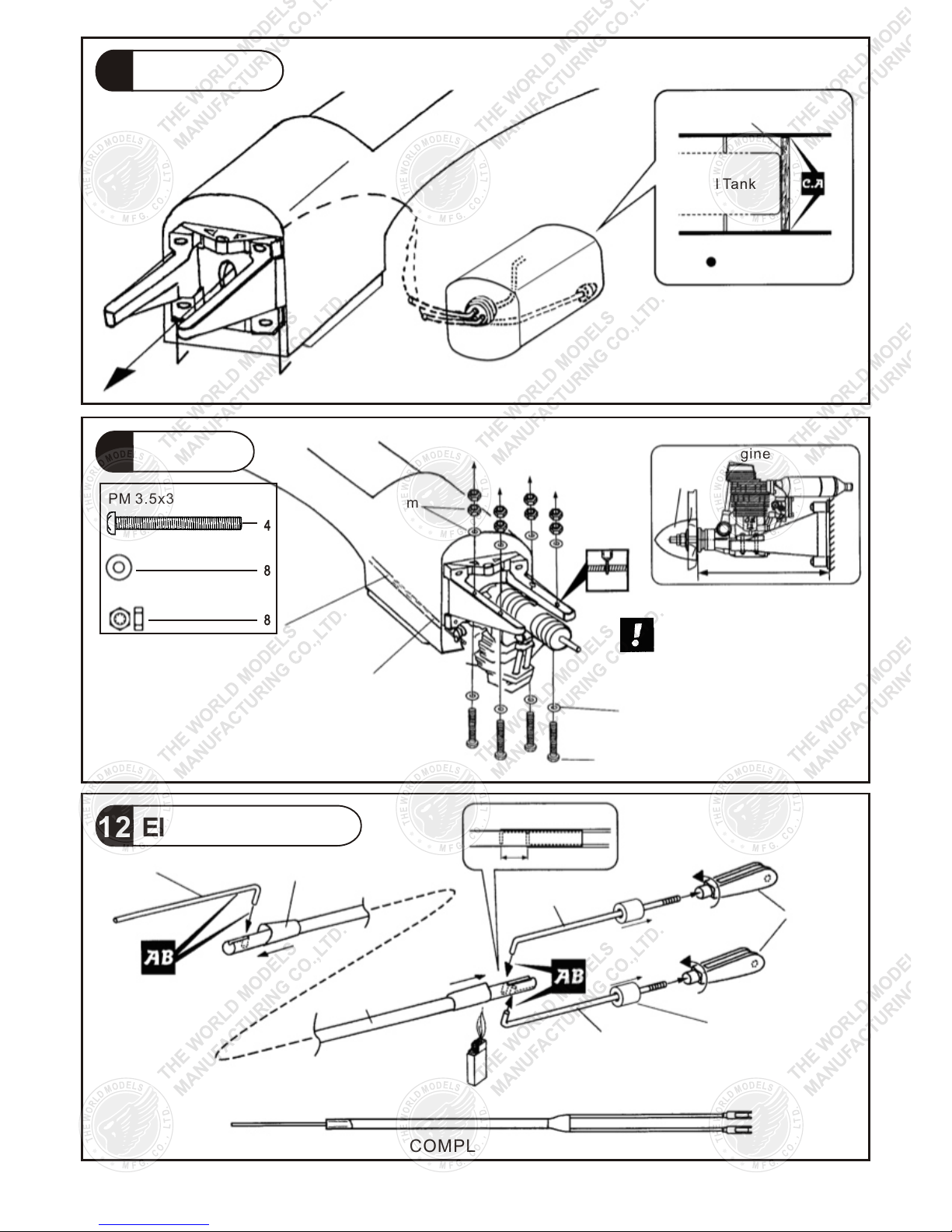

P.6

Install Balsa & Plywood for fixing fuel tank

Balsa 10x10x91mm

Fuel Tank

Bottom View

Fuel Tank 320cc

PM 3.5x30mm Screw

d3.5xD8mm Washer

d3.5mm Nut

3.5mm

Plastic tube

d2xd3x200mm

Throttle Pushwire

Ø1.2x420mm

PM 3.5mmx30mm

Install Engine position

Spinner

Ø62mm

Fire

Wall

115mm

4.5in.

Illustratuin is for inverted mounting.

You can mount the engine upright

or sideways simply by rotating the

engine mount. thrust angles will

not be affected.

3.5mm

1.8x80mm heat-shrink Tube

8x580mm

Ø1.8x165mm

Ø1.8x160mm

5mm

1.8x165mm

1.8x160mm

Clevis

Fuel Tube

Ø6x5mm

Be careful not to scorch

the heat-shrink tube!

COMPLETED

Servo Set

Elevator Pushrod

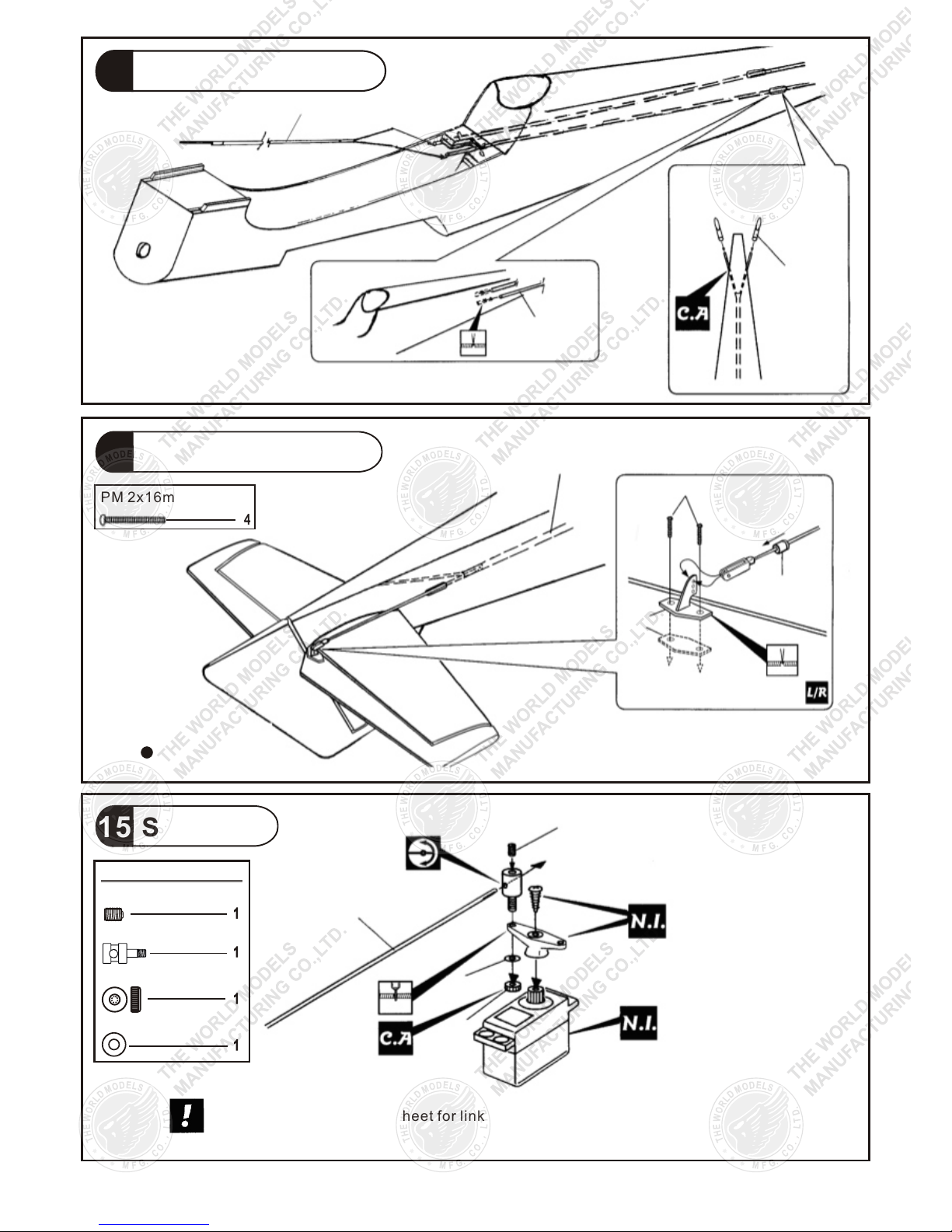

P.7

Linkage Connector

3 X 3mm Set Screw

L i n k a g e C o n n e c t o r

2mm Nut

2mm Washer

Elevator Pushrod

Plastic Tube

d2xD3x700mm

Plastic Tube

d2.5xD4x50mm

Elevator Pushrod

PM 2x16mm

Fuel Tube

Ø6x5mm

PM 2x16mm Screw

Bottom ViewBottom View

Throttle Pushwire

3mm

2mm

Included with the Radio Set.

Throttle Servo

Please refer to attachecd sheet for linkage connector installation.

2mm

Main Wing

Radio Equipment

Rudder Pullwire

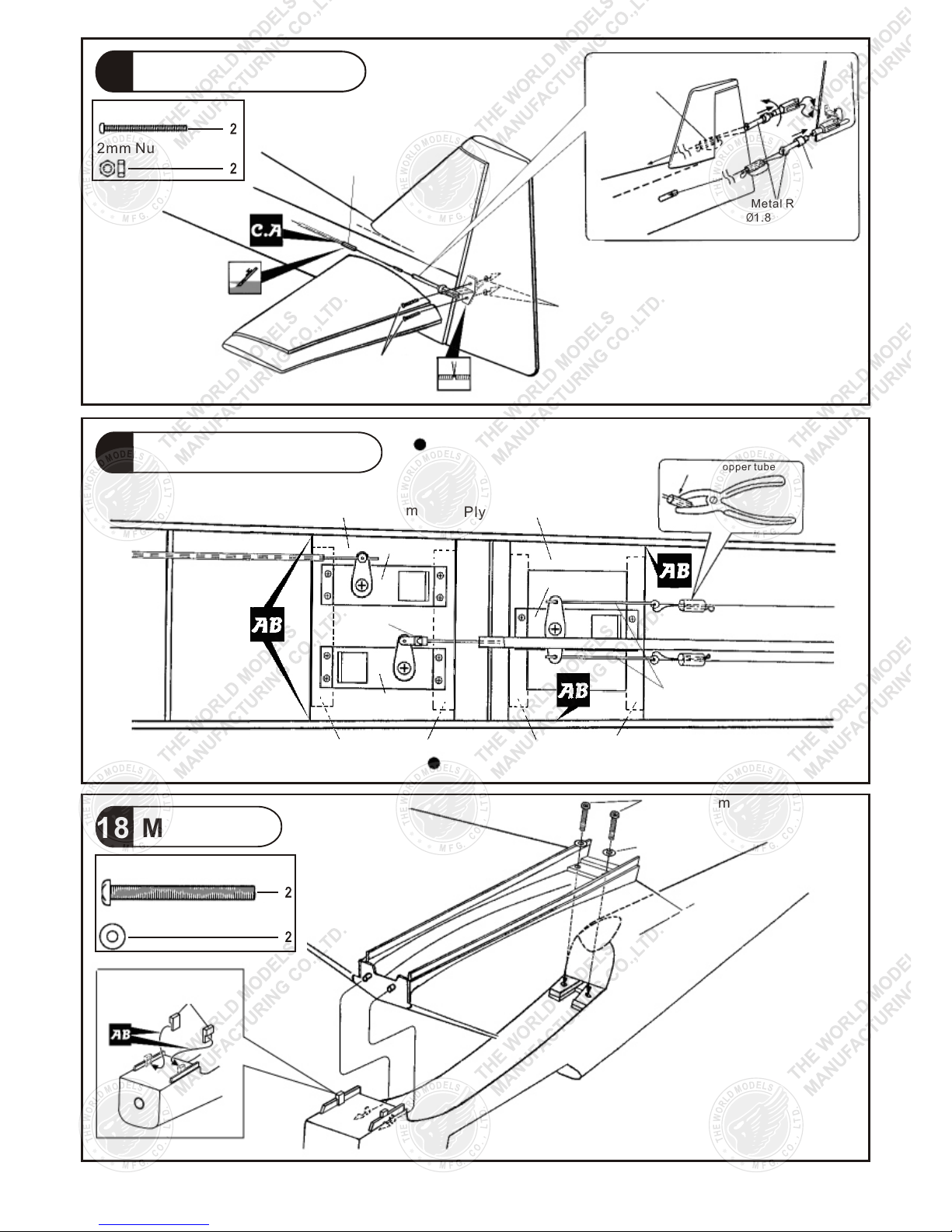

P.8

PM 2x20mm Screw

2mm Nut Plastic Tube

d2xD3x50mm

PM 2x20mm

Copper Tube

Fuel Tube

Ø6x5mm

Metal Rod

Ø1.8x27mm

w/Threads

Install and arrange the servo as shown in the diagram.

Plywood3x61x87.5mm Plywood3x61x85.5mm

Clamp the copper tube

Throttle

Servo

Fuel Tube

Ø6x5mm

Elevator

Servo

Rudder

Servo

Metal Rod

Ø1.8x27mm

Plywood3x10x79mm Plywood3x10x77mm

Bottom ViewBottom View

PM 4x35mm Screw

d4xD15mm Washer

Plywood

6x20x33mm

PM 4x35mm

d4xD15mm

2mm Nut

Canopy

Cowling

Belly Pan

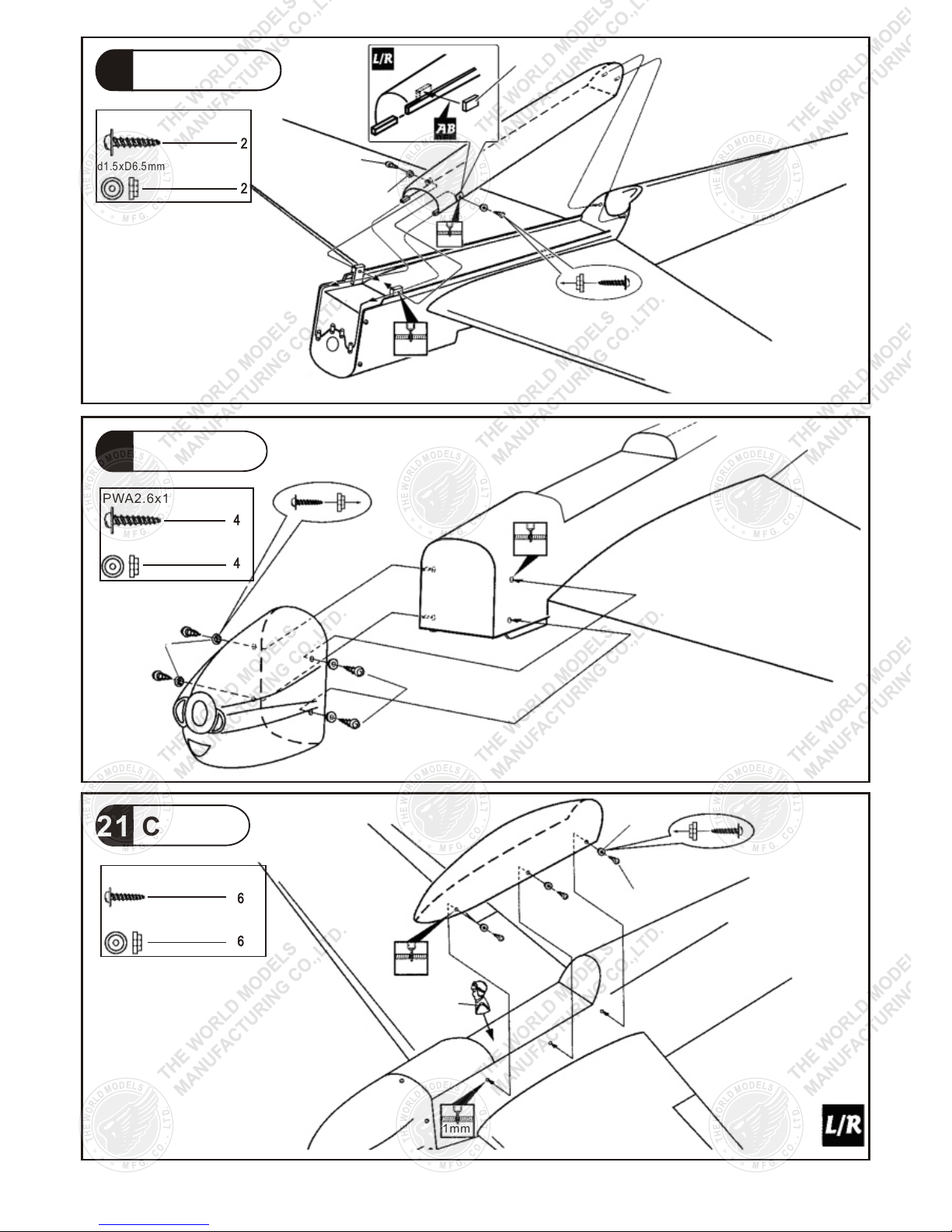

P.9

PWA2.3x12mm Screw

d1.5xD6.5mm Silicon Grommet

PWA2.3x12mm

Plywood

1x10x20mm

Silicon Grommet

d1.5x6.5mm

1.5mm

PWA2.6x12mm Screw

d1.5xD6.5mm Silicon Grommet

1mm

PWA2.6x12mm

PWA2.3x8 Screw

d1.5x D6.5m m Silico n Grom met

Silicon Grommet

d1.5xD6.5mm

PWA2.3x8mm

3mm

Pilot

1mm

Silicon Gr omme t

d1.5x6.5mm

1.5mm
