WIRELESS 868 MHz WEATHER STATION
Instruction Manual
Cat. No. 35.1089.IT
Thank you for choosing this wireless weather station from TF .
BEFORE YOU USE IT
Pl as b sur to r ad th instruction manual car fully.
This information will help you to familiarise yourself with your new device, learn
all of its functions and parts, find out important details about its first use and
how to operate it, and get advice in the event of faults.
Following the instruction manual for use will prevent damage to the device and
loss of your statutory rights arising from defects due to incorrect use.
W shall not b liabl for any damag occurring as a r sult of not
following th s instructions.
Pl as tak particular not of th saf ty advic !
Pl as look aft r this manual for futur r f r nc .
SCOPE OF SUPPLY:
•
Weather station (basic unit)
•
Outdoor transmitter
•
Batteries (5 x , IEC LR6, 1.5V)
•
Instruction manual
FIELD OF OPERATION AND ALL OF THE BENEFITS OF YOUR NEW
WEATHER STATION AT A GLANCE:
•
DCF-77 Radio controlled time function with manual time setting options
•
DCF time reception ON/OFF
•
24 hour display
•
larm function with snooze
•
Time zone +/- 12 hours
•
Temperature display in degree Celsius (°C)
•
Indoor and outdor temperature with MIN/M X records
•
Manual reset of MIN/M X records
•
3 weather forecast with weather tendency indicator
•
Wireless transmission at 868 MHz
20
•
Signal reception intervals at 4 seconds
•
Low battery indicator
•
Wall mounting or table standing (foldout stand)
FOR YOUR SAFETY:
•
The product is exclusively intended for the field of application described
above. The product should only be used as described within these
instructions.
•
Unauthorised repairs, modifications or changes to the product are
prohibited.
•
The product is not to be used for medical purpose or for public
information, but is intended solely for home use.
Caution!
Risk of injury:
•
Keep this instrument and the batteries out of reach of children.
•
Batteries must not be thrown into the fire, short-circuited, taken apart or
recharged. Risk of explosion!
•
Batteries contain harmful acids. Low batteries should be changed as
soon as possible to prevent damage caused by a leaking battery. Never
use a combination of old and new batteries together or batteries of
different types. Wear chemical-resistant protective gloves and glasses
when handling leaked batteries.
! Important information on product saf ty!
•
Do not expose the instrument to extreme temperatures, vibration or
shock.
•
The outdoor transmitter is protected against splash water, but is not
watertight. Choose a shady and dry position for the transmitter.
21
LCD
Display
ELEMENTS
Th W ath r station
Th Outdoor T mp ratur Transmitt r
•
Remote transmission of outdoor temperature
to weather station by 868 MHz signals
•
Shower proof casing
•
Wall mounting and table-standing
HOW TO INSTALL AND REPLACE BATTERIES IN THE
TEMPERATURE TRANSMITTER
The temperature transmitter uses 2 x , IEC LR6, 1.5V
battery. To install and replace the batteries, please follow
the steps below:
1. Remove the battery compartment cover at the back
of the transmitter.
Function keys
Foldout stand
Battery
compartment
cover
Hanging hole
22
2. Insert the batteries, observing the correct polarity (see marking).
3. Replace the battery compartment cover on the unit.
HOW TO INSTALL AND REPLACE BATTERIES IN THE WEATHER
STATION
The weather station uses 3 x , IEC LR6, 1.5V batteries. When batteries will
need to be replaced, the low battery
icon will appear on the LCD. To install
and replace the batteries, please
follow the steps below:
1. Lift up the battery compartment
cover.
2. Insert batteries observing the
correct polarity (see marking).
3.
Replace compartment cover.
Batt ry r plac m nt
•
Replace the batteries when the battery symbol of the weather station
appears above the indoor temperature.
•
When the batteries of the transmitter are used up, the low battery icon
appears above the outdoor temperature display.
Not :
In the event of changing batteries in any of the units, all units need to be reset
by following the setting up procedures. This is because a security code is
assigned by the transmitter at start-up and this code must be received and
stored by the Weather station in the first 3 minutes of power being supplied to
it.
23
SETTING UP:
Note: This w ath r station r c iv s only on outdoor transmitt r.
1. First, insert the batteries into the Temperature transmitter. (see “Install
and r plac batt ri s in th t mp ratur transmitt r“).
2. Immediately after and within 30 seconds, insert the batteries into
Weather station (see “Install and r plac batt ri s in th w ath r
station”). Once the batteries are in place, all segments of the LCD will
light up briefly. Following the time as 0:00 and the weather icon will be
displayed. If these are not displayed after 60 seconds, remove the
batteries and wait for at least 30 seconds before reinserting them.
3. fter inserting the batteries, the Weather station will start receiving data
from the transmitter. The outdoor temperature and the signal reception
icon should then be displayed on the Weather station. If this does not
happen after 3 minutes, the batteries will need to be removed from both
units and reset from step 1.
4. In order to ensure sufficient 868 MHz transmission however, this should
under good conditions be a distance no more than 100 meters between
the final position of the weather station and the transmitter (see notes on
“Mounting” and “868 MHz R c ption”).
5. Once the remote temperature has been received and displayed on the
weather station, the DCF time (radio controlled time) code reception is
automatically started. This takes typically between 3-5 minutes in good
conditions.
DCF RADIO CONTROLLED TIME
The time base for the radio controlled time is a Cesium tomic Clock operated
by the Physikalisch Technische Bundesanstalt Braunschweig which has a time
deviation of less than one second in one million years. The time is coded and
transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5
kHz) and has a transmitting range of approximately 1,500 km. Your radio-
controlled weather station receives this signal and converts it to show the
precise time in summer or wintertime.
24
SET key
The quality of the reception depends greatly on the geographic location. In
normal cases, there should be no reception problems within a 1,500 km radius
of Frankfurt.
DCF reception is done twice daily at 02:00 and 03:00 am. If the reception is
not successful at 03:00 am, then the next reception takes place the next hour
and so on until 06:00am, or until the reception is successful. If the reception is
not successful at 06:00 am, then the next attempt will take place the next day
at 02:00 am.
If the tower icon flashes, but does not set the time or the DCF tower does not
appear at all, then please take note of the following:
•
Recommended distance to any interfering sources like computer
monitors or TV sets is a minimum of 1.5 - 2 meters.
•
Within ferro-concrete rooms (basements, superstructures), the received
signal is naturally weakened. In extreme cases, please place the unit
close to a window and/ or point its front or back towards the Frankfurt
transmitter.
•
During nighttime, the atmospheric disturbances are usually less severe
and reception is possible in most cases. single daily reception is
adequate to keep the accuracy deviation below 1 second.
FUNCTION KEYS:
W ath r station:
The weather station has four easy to use function keys.
SET k y
•
Press the key to enter manual setting modes: Time zone, Time
reception ON/OFF and Manual time
MIN/M X
RESET key L RM key
+ key
25
Outdoor Reception
Signal icon*
MIN/M X indoor
temperature
MIN/M X outdoor
temperature
•
Stop the alarm
+ k y
•
To make adjustment for various settings
•
Stop the alarm
ALARM k y
•
Enter the alarm setting mode
•
Switch the alarm ON/ OFF
•
Stop the alarm
MIN/MAX RESET k y
•
Press and hold to reset the MIN/M X temperature records
•
ctivate the snooze
•
Exit manual setting modes
LCD SCREEN AND SETTINGS:
* When the outdoor signal is successfully received by the Weather Station,
this icon will be switched on. (If not successful, the icon will not be shown in
LCD) So user can easily see whether the last reception was successful (icon
on) or not (icon off).
Time
Indoor
Temperature in °C Outdoor
Temperature in °C
Weather tendency
indicator
Weather forecast icon
Low battery indicator
(weather
station)
Low battery indicator
(transmitter)
Radio controlled time
reception icon
larm icon
26
MANUAL SETTINGS:
The following manual settings can be done in the setting mode:
•
Time zone
•
Time reception DCF ON/OFF
•
Manual time
Press and hold the SET key for about 3 seconds to advance to the setting
mode:
TIME ZONE SETTING:
The time zone default is "0" hour. To set a different time zone:
1. The current time zone value starts flashing.
2. Use the + key to set the time zone. The range runs from 0, -1, -2…
-12, 12, 11, 10… 2, 1, 0, in consecutive 1-hour intervals.
3.
Confirm with the SET key and enter the Tim r c ption On/Off s tting.
TIME RECEPTION ON/OFF SETTING
In area where reception of the radio-controlled time (DCF time) is not possible,
the time reception function can be turned OFF. The clock will then work as a
normal Quartz clock. (Default setting is ON).
1. The digit “ON” digit will start flashing on the LCD.
2. Use the + key to turn OFF the time reception function if necessary.
3. Confirm with the SET key and enter the Manual tim s tting.
Not :
If the Time Reception function is turned OFF manually, the clock will not
attempt any reception of the radio-controlled time (DCF time) as long as the

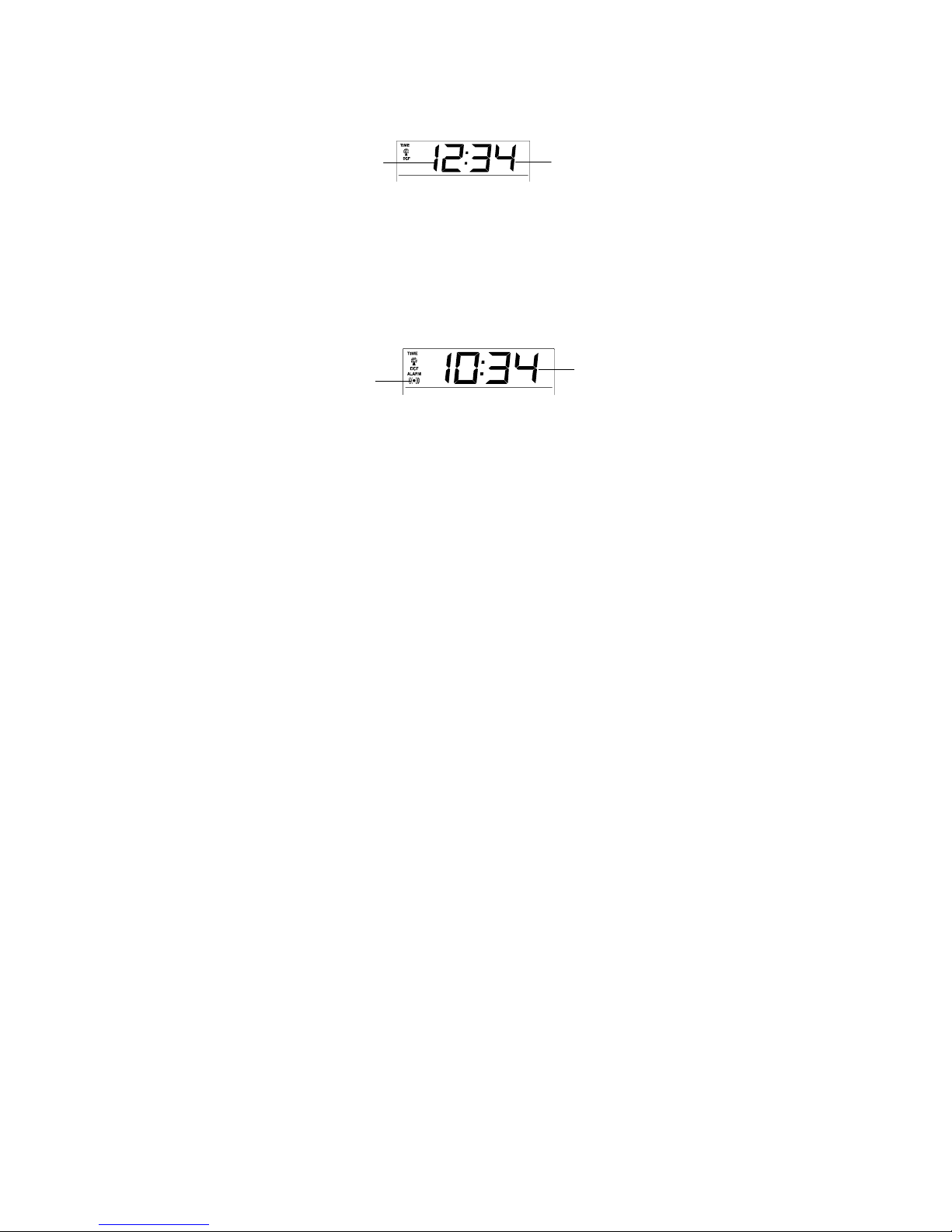

Time zone (flashing)
flashing
27
Minutes (flashing)
Hours (flashing)
larm icon (ON)
larm time
Time Reception OFF function is activated. The Time Reception icon and the
DCF icon will not be displayed on the LCD.
MANUAL TIME SETTING
In case the weather station is not able to detect the radio-controlled time (DCF
time) signal (disturbances, transmitting distance, etc.), the time can be
manually set. The clock will then work as a normal Quartz clock.
To set the clock:
1. The hour digits start flashing in the time display section.
2. Use the + key to adjust the hours and then press SET key to go to the
minute setting.
3. The minute will be flashing. Press the + key to just the minutes.
4.
Confirm with the SET key and exit the setting mode.
Not :
The unit will still try to receive the signal despite a manual setting. When the
signal is received, the manually set time will automatically be replaced by the
received time. During reception attempts, the DCF tower icon will flash. If
reception has been unsuccessful, the DCF tower icon will not appear but
reception will still be attempted.
ALARM SETTING
To set alarm:
1. Press and hold ALARM for about 3 seconds until the alarm time display
flashes.
2. The hour digit and the alarm icon will be flashing. Press the + key to
adjust the hour.
28
3. Press ALARM button once and minute digit will be flashing. User shall
then press + button to set the minute.
4. Press ALARM button once to confirm the setting.
5.
To activate/ deactivate the alarm function, press the ALARM button
once. The display of the alarm icon represents that the alarm is "ON".
Not : The duration of alarm sounding is 85 seconds
TO ACTIVATE THE SNOOZE FUNCTION AND STOPPING THE
ALARM:
1. When the alarm is sounding, press the MIN/MAX RESET key to activate
the snooze function. The alarm will stop and re-activate after the snooze
interval of 10 minutes.
2.
To stop the alarm completely, press any keys other than the MIN/MAX
RESET key.
WEATHER FORECAST AND TENDENCY
THE WEATHER FORECASTING ICONS :
There are 3 weather icons in the second section of LCD which can be
displayed in any of the following combinations :
For every sudden or significant change in the air pressure, the weather icons
will update accordingly to represent the change in weather. If the icons do not
change, then it means either the air pressure has not changed or the change
has been too slow for the Weather station to register. However, if the icon
displayed is a sun or raining cloud, there will be no change of icon if the
weather gets any better (with sunny icon) or worse (with rainy icon) since the
icons are already at their extremes.
Rainy
Cloudy with
sunny int rvals
Sunny
Tabla de contenidos
Otros manuales de Estación meteorológica de TFA
TFA
TFA WEATHERHUB Manual de usuario
TFA
TFA 30.3054 Manual de usuario
TFA
TFA 35.1093 Manual de usuario
TFA
TFA 30.3057.01 Manual de usuario
TFA
TFA 35.1123 Manual de usuario
TFA
TFA 35.1090 IMAGE Manual de usuario
TFA
TFA 35.1149 Manual de usuario
TFA
TFA 35.1130 Manual de usuario
TFA
TFA WS-9630N Manual de usuario
TFA
TFA TWIN PLUS Manual de usuario
TFA
TFA HORIZON Manual de usuario
TFA
TFA 35.1117.IT Manual de usuario
TFA
TFA 35.1066 Meteo Max Manual de usuario
TFA
TFA 35.1113.IT Manual de usuario
TFA
TFA EXACTO Manual de usuario
TFA
TFA 35.1151 Manual de usuario
TFA
TFA QUADRO 35.1098.54 Manual de usuario
TFA
TFA METEO SENS Manual de usuario
TFA
TFA Dostmann Linea Plus 35.1144.01.IT Manual de usuario
TFA
TFA 47.3005 Manual de usuario
Manuales populares de Estación meteorológica de otras marcas
National Geographic
National Geographic VA Colour RC Manual de usuario
Renkforce
Renkforce 1208067 Manual de usuario
Levenhuk
Levenhuk Discovery Report WA40 Manual de usuario
Instant Transmission
Instant Transmission MA 10410 Manual de usuario
Lutron Electronics
Lutron Electronics PHB-318 Manual de usuario
WAREMA
WAREMA EWFS Weather station eco Manual de usuario
