WEATHER STATION
Instruction manual
Cat. No. 35.1084.IT
Thank you for choosing this wireless weather station from TF .
BEFORE YOU USE IT
Please be sure to read the instruction manual care ully.
This information will help you to familiarise yourself with your new device, learn all of its functions
and parts, find out important details about its first use and how to operate it, and get advice in the
event of faults.
Following the instruction manual for use will prevent damage to the device and loss of your
statutory rights arising from defects due to incorrect use.
We shall not be liable or any damage occurring as a result o not ollowing these
instructions.
Please take particular note o the sa ety advice!
Please look a ter this manual or uture re erence.
SCOPE OF SUPPLY:
•
Weather station (basic unit)
•
Outdoor transmitter
35
•
Instruction manual
FIELD OF OPERATION AND ALL OF THE BENEFITS OF YOUR NEW WEATHER
STATION AT A GLANCE
•
DCF Radio controlled time function or manual time setting options
•
DCF time reception ON/OFF setting
•
12/24 hour display
•
Calendar display
•
Time zone option ±12 hours
•
Display indoor humidity (% RH)
•
Weather forecasting with 15 easy-to-read weather forecast signs featured by "Weather boy"
•
Indoor comfort level indicator
•
Temperature displayed in degrees Celsius (°C) or Fahrenheit (°F) selectable
•
Indoor and outdoor temperature display with MIN/M X recording
•
ll MIN/M X recordings can be reset
•
Low battery indicator
•
Signal reception intervals at 4-second
•
Table standing/ wall mounting
36
FOR YOUR SAFETY:
•
The product is exclusively intended for the field of application described above. The product
should only be used as described within these instructions.
•
Unauthorised repairs, modifications or changes to the product are prohibited.
•
The product is not to be used for medical purpose or for public information, but is intended
solely for home use.
Caution!
Risk o injury:
•
Keep this instrument and the batteries out of reach of children.
•
Batteries must not be thrown into the fire, short-circuited, taken apart or recharged. Risk of
explosion!
•
Batteries contain harmful acids. Low batteries should be changed as soon as possible to
prevent damage caused by a leaking battery. Never use a combination of old and new
batteries together or batteries of different types. Wear chemical-resistant protective gloves
and glasses when handling leaked batteries.
! Important in ormation on product sa ety!
•
Do not expose the instrument to extreme temperatures, vibration or shock.
37
LCD display
Function keys
•
The outdoor transmitter is protected against splash water, but is not watertight. Choose a
shady and dry position for the transmitter.
ELEMENTS

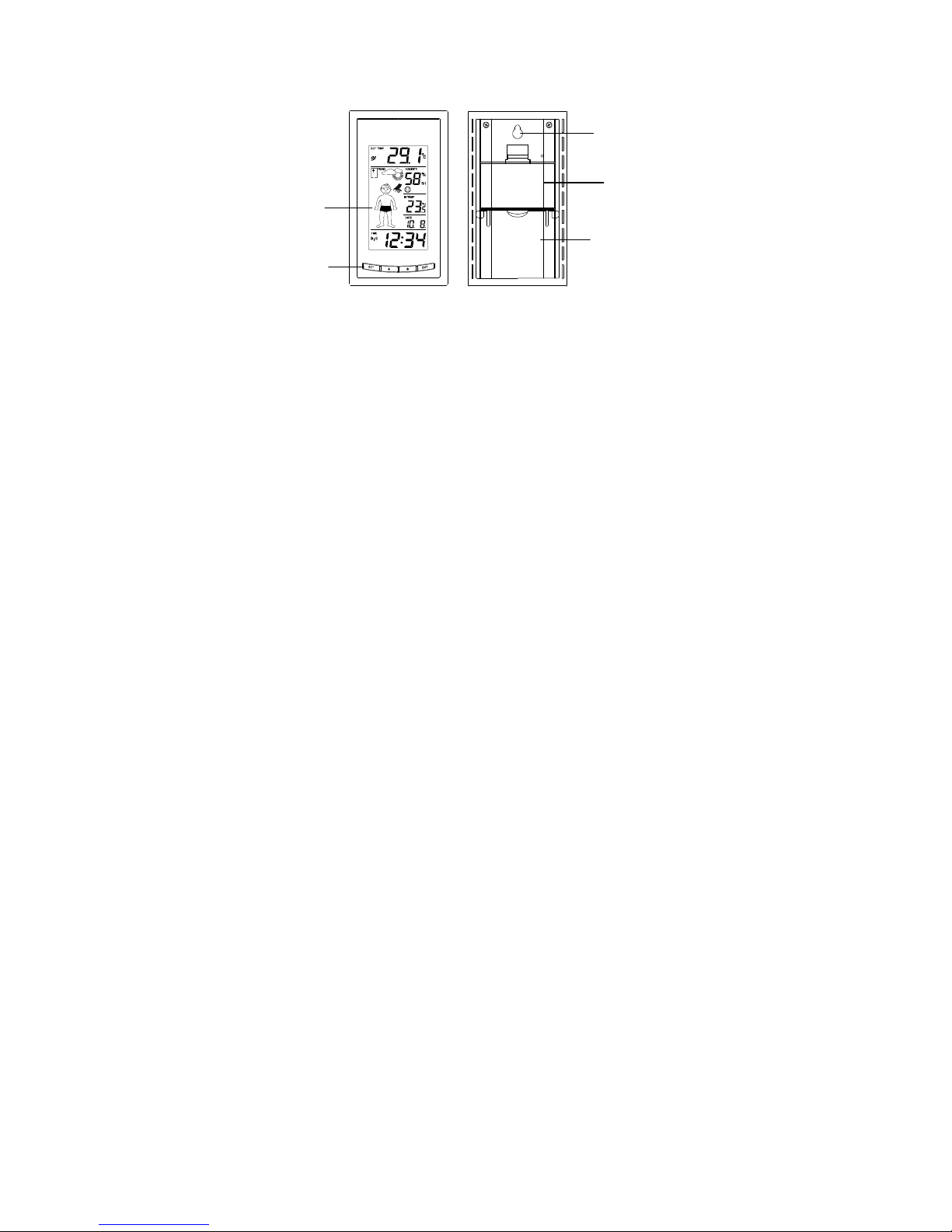

The weather station
Foldout stand
Battery
compartment
cover
Hanging hole
38
The Outdoor Temperature Transmitter
•
Remote transmission of outdoor temperature to weather station by
868 MHz
•
Shower proof casing
•
Wall mounting case (Mounting at a sheltered place. void direct rain
and sunshine)
INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER
The temperature transmitter uses 2 x , IEC LR6, 1.5V battery. To install and
replace the batteries, please follow the steps below:
1. Remove the battery compartment cover at the back of the transmitter.
2. Insert the batteries, observing the correct polarity (see marking).
3. Replace the battery compartment cover on the unit.
39
INSTALL AND REPLACE BATTERIES IN THE WEATHER STATION
The weather station uses 2 x , IEC LR6, 1.5V batteries. To
install and replace the batteries, please follow the steps below:
1. Remove the cover at the back of the weather station.
2. Insert batteries observing the correct polarity (see
marking).
3. Replace compartment cover.
Battery replacement
•
Replace the batteries when the battery symbol of the weather station appears above the
humidity display.
•
When the batteries of the transmitter are used up, the low battery icon appears on the upper
display, near the outdoor temperature display.
Note:
In the event of changing batteries in any of the units, all units need to be reset by following the
setting up procedures. This is due to a random security code assigned by the transmitter at start-
40
up. This code must be received and stored by the weather station in the first 3 minutes of power
being supplied to the transmitter.
SETTING UP:
Note: This weather station receives only one outdoor transmitter.
1. First, insert the batteries into the Temperature transmitter. (see “Install and replace
batteries in the temperature transmitter“).
2. Immediately after and within 30 seconds, insert the batteries into weather station (see
“Install and replace batteries in the weather station”). Once the batteries are in place, all
segments of the LCD will light up briefly. Following the time as 0:00 and the "Weather boy"
icon will be displayed. If these are not displayed after 60 seconds, remove the batteries and
wait for at least 10 seconds before reinserting them.
3. fter inserting the batteries, the weather station will start receiving data from the transmitter.
The outdoor temperature and the signal reception icon should then be displayed on the
weather station. If this does not happen after 3 minutes, the batteries will need to be
removed from both units and reset from step 1.
4. In order to ensure sufficient 868 MHz transmission however, this should under good
conditions be a distance no more than 100 meters between the final position of the weather
station and the transmitter (see notes on “Mounting” and “868 MHz Reception”).
41
5. Once the remote temperature has been received and displayed on the weather station, the
DCF time (radio controlled time) code reception is automatically started. This takes typically
between 3-5 minutes in good conditions.
DCF RADIO CONTROLLED TIME
The time base for the radio controlled time is a Cesium tomic Clock operated by the Physikalisch
Technische Bundesanstalt Braunschweig which has a time deviation of less than one second in
one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency
signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-
controlled weather station receives this signal and converts it to show the precise time in summer
or wintertime.
The quality of the reception depends greatly on the geographic location. In normal cases, there
should be no reception problems within a 1,500 km radius of Frankfurt.
DCF reception is done twice daily at 02:00 and 03:00 am. If the reception is not successful at
03:00 am, then the next reception takes place the next hour and so on until 06:00am, or until the
reception is successful. If the reception is not successful at 06:00 am, then the next attempt will
take place the next day at 02:00 am.
If the tower icon flashes, but does not set the time or the DCF tower does not appear at all, then
please take note of the following:
42
•
Recommended distance to any interfering sources like computer monitors or TV sets is a
minimum of 1.5 - 2 meters.
•
Within ferro-concrete rooms (basements, superstructures), the received signal is naturally
weakened. In extreme cases, please place the unit close to a window and/ or point its front
or back towards the Frankfurt transmitter.
•
During nighttime, the atmospheric disturbances are usually less severe and reception is
possible in most cases. single daily reception is adequate to keep the accuracy deviation
below 1 second.
FUNCTION KEYS:
Weather station:
The weather station has four easy to use function keys.
SET key
IN key
+ key
OUT key
43
SET key
•
Press and hold the key to enter manual setting modes: time zone, manual time, calendar,
time reception ON/OFF, 12/24 hour display and temperature unit °C/°F setting
+ key
•
To make adjustment for various settings
IN key
•
Press to display the MIN and M X indoor temperature records
•
Press and hold to reset the indoor MIN/M X temperature records
OUT key
•
Press to display the MIN and M X outdoor temperature records
•
Press and hold to reset the outdoor MIN/M X temperature records
