TEXIO PPX Series Manual del propietario

Front cover

PROGRAMMING MANUAL

B72-0578-10

PROGRAMMABLE HIGH

PRECISION DC POWER SUPPLY

PPX SERIES

PPX Series Programming Manual

■About Brands and Trademarks

“TEXIO” is the product brand name of our industrial electronic

devices.

All company names and product names mentioned in this

manual are the trademark or the registered trademark of each

company or group in each country and region.

■About the Instruction Manual

Permission from the copyright holder is needed to reprint the

contents of this manual, in whole or in part. Be aware that the

product specifications and the contents of this manual are

subject to change for the purpose of improvement.

Table of Contents

SAFETY INSTRUCTIONS ...........................................4

GETTING STARTED ...................................................7

PPX Series Overview........................8

Appearance.................................... 11

Theory of Operation........................19

REMOTE CONTROL.................................................29

Command Syntax ...........................70

Command List ................................73

Status Register Overview.............. 131

Error List...................................... 141

PPX Series Default Settings.................................. 148

PPX Series Programming Manual

SAFETY INSTRUCTIONS

This chapter contains important safety

instructions that you must follow during operation

and storage. Read the following before any

operation to insure your safety and to keep the

instrument in the best possible condition.

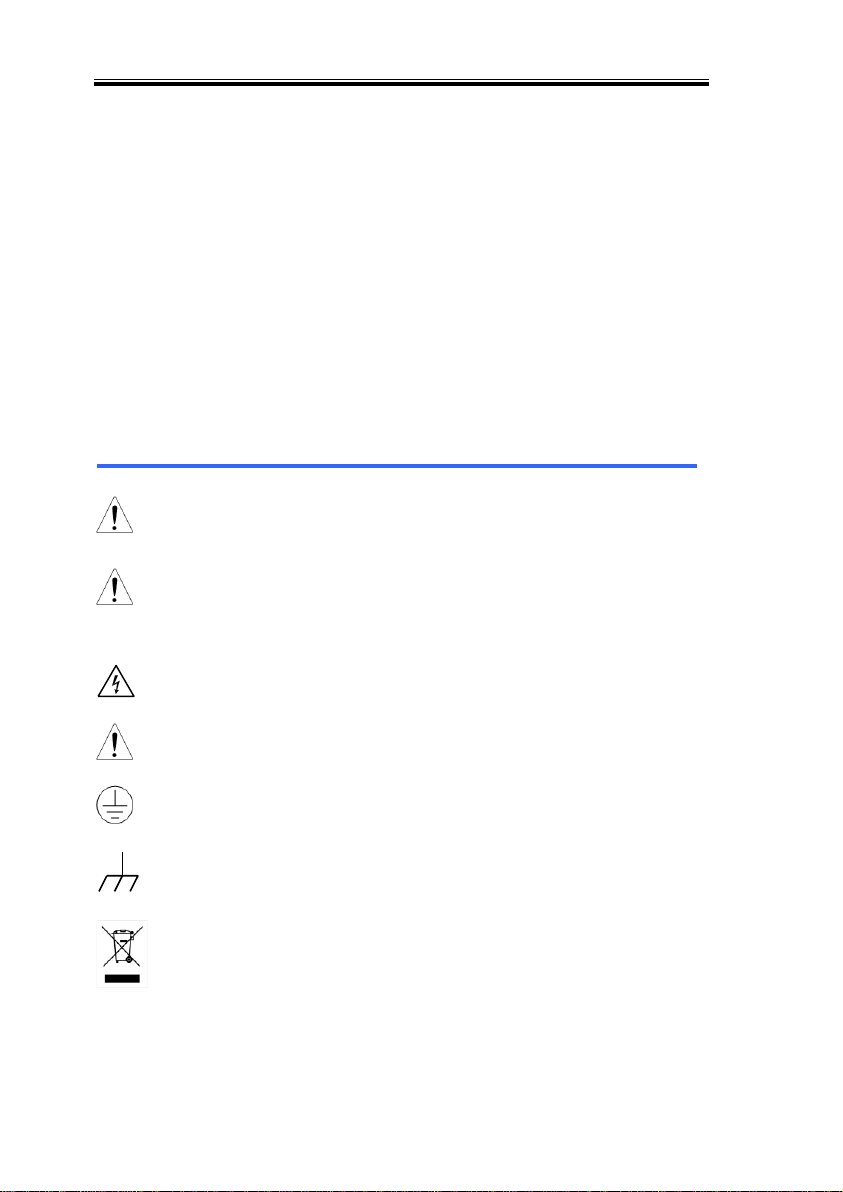

Safety Symbols

These safety symbols may appear in this manual or on the

instrument.

WARNING

Warning: Identifies conditions or practices that

could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that

could result in damage to the PPX or to other

properties.

DANGER High Voltage

Attention Refer to the Manual

Protective Conductor Terminal

Earth (ground) Terminal

Do not dispose electronic equipment as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased.

PPX Series Programming Manual

Safety Guidelines

General

Guideline

CAUTION

Do not place any heavy object on the PPX.

Avoid severe impact or rough handling that

leads to damaging the PPX.

Do not discharge static electricity to the PPX.

Use only mating connectors, not bare wires, for

the terminals.

Do not disassemble the PPX unless you are

qualified.

Power Supply

CAUTION

WARNING

AC Input Voltage:

100Vac/120Vac/220Vac/240Vac, 50Hz/60Hz,

single phase

Frequency: 47Hz to 63Hz

Before connecting the power plug to an AC line

outlet, make sure the voltage selector switches

of the bottom panel in the correct position.

Disconnect power cord and test leads before

replacing fuse.

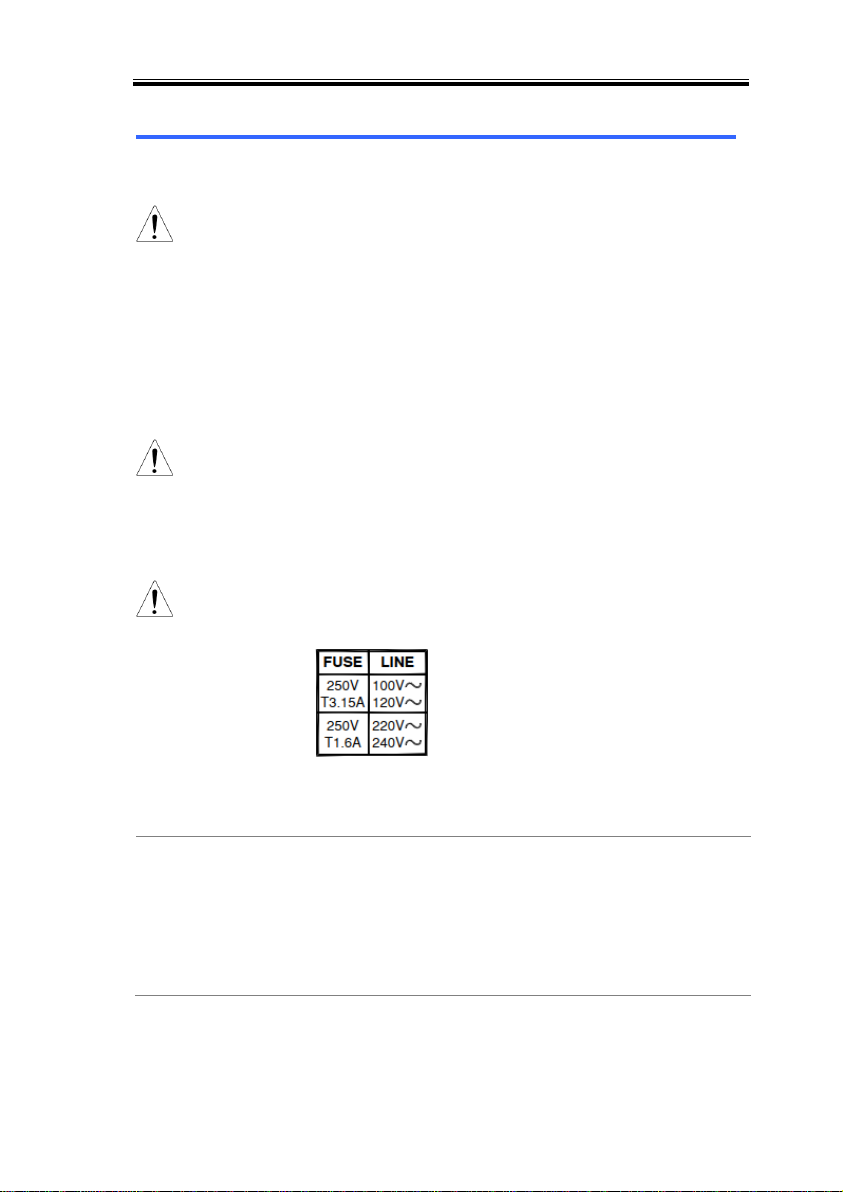

The fuse specification is as following:

To avoid electrical shock connect the protective

grounding conductor of the AC power cord to an

earth ground.

Cleaning the

PPX

Disconnect the power cord before cleaning.

Use a soft cloth dampened in a solution of mild

detergent and water. Do not spray any liquid.

Do not use chemicals containing harsh material

such as benzene, toluene, xylene, and acetone.

PPX Series Programming Manual

Operation

Environment

Location: Indoor, no direct sunlight, dust free,

almost non-conductive pollution (Note below)

Relative Humidity: 20%~ 80% (no condensation)

Altitude: < 2000m

Temperature: 0°C to 40°C

(Pollution Degree) EN61010-1:2010 specifies the pollution

degrees and their requirements as follows. The PPX falls under

degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or

gaseous (ionized gases), that may produce a reduction of

dielectric strength or surface resistivity”.

Pollution degree 1: No pollution or only dry, non-conductive

pollution occurs. The pollution has no influence.

Pollution degree 2: Normally only non-conductive pollution

occurs. Occasionally, however, a temporary conductivity

caused by condensation must be expected.

Pollution degree 3: Conductive pollution occurs, or dry, non-

conductive pollution occurs which becomes conductive due

to condensation which is expected. In such conditions,

equipment is normally protected against exposure to direct

sunlight, precipitation, and full wind pressure, but neither

temperature nor humidity is controlled.

Storage

environment

Location: Indoor

Temperature: -20°C to 70°C

Relative Humidity: 20 to 85%(no condensation)

Disposal

Do not dispose this instrument as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased. Please make sure

discarded electrical waste is properly recycled to

reduce environmental impact.

PPX Series Programming Manual

GETTING STARTED

This chapter describes the power supply in a

nutshell, including its main features and front /

rear panel introduction. After going through the

overview, please read the theory of operation to

become familiar with the operating modes,

protection modes and other safety considerations.

PPX Series Programming Manual

PPX Series Overview

Series lineup

The PPX series consists of 12 models, covering a number of

different current, voltage and power capacities:

Equipped with various interfaces as standard,

G type also supports GP-IB control.

Model name

Operation

Voltage

Operation

Current

Rated Power

GP-IB

PPX10-5

0-10V

0-5A

50W

－

PPX20-2

0-20V

0-2A

40W

－

PPX20-5

0-20V

0-5A

100W

－

PPX36-1

0-36V

0-1A

36W

－

PPX36-3

0-36V

0-3A

108W

－

PPX100-1

0-100V

0-1A

100W

－

PPX10-5G

0-10V

0-5A

50W

〇

PPX20-2G

0-20V

0-2A

40W

〇

PPX20-5G

0-20V

0-5A

100W

〇

PPX36-1G

0-36V

0-1A

36W

〇

PPX36-3G

0-36V

0-3A

108W

〇

PPX100-1G

0-100V

0-1A

100W

〇

PPX Series Programming Manual

Main Features

Features

2.4" TFT-LCD Panel.

Preset memory function.

Output ON/OFF delay function.

CV, CC priority start function. (prevents

overshoot with output ON)

Adjustable voltage and current slew rates.

Bleeder circuit ON/OFF setting. (to prevent over-

discharging of batteries)

OVP, OCP, AC Alarm and OTP protection.

Supports test sequence.

Web server monitoring and control. (The

function is activated when connecting to LAN

Interface)

Analog monitor output.

Remote sensing to compensate for voltage drop

in load leads.

Support K type thermocouple temperature

measurement.

With 4 measuring currents and Manual / Auto

shift function.

Interface

Built-in USB, RS-232C/485 and LAN interface.

External analog control function.

GP-IB interface.(Only G Type)

PPX Series Programming Manual

Accessories

Before using the PPX power supply unit, check the package

contents to make sure all the standard accessories are included.

Standard

Accessories

Part number

Description

Qty.

GTL-104A

Test leads for PPX10-5/PPX20-

5/PPX36-3 (Binding Posts

Terminal), 1m, 10A

GTL-105A

Test leads for PPX20-2/PPX36-1,

1m, 3A

Short Bar (Binding Posts Terminal)

GTL-203A

Test leads for PPX100-1, 1m, 3A

GTL-201A

Ground lead for Jack Terminal

Power Cord

Optional

Accessories

Part number

Description

GRA-441-J

Rack for PPX (JIS)

GRA-441-E

Rack for PPX (EIA)

GTL-205A

Temperature probe adaptor with

thermocouple K type

GTL-246

USB Cable (USB 2.0 Type A- Type B

Cable, 4P)

GTL-258

GP-IB Cable, 2000mm

GTL-259

RS-232C cable with DB9 connector to

RJ45, repeater unit, terminal unit

GTL-260

RS-485 cable with DB9 connector to

RJ45, repeater unit, terminal unit

GTL-261

RS-485 master cable , repeater unit,

terminal unit

GTL-262

RS-485 slave cable
