Texas Instruments TPIC74100EVM Manual de usuario

User’s Guide

TPIC74100EVM User's Guide

Table of Contents

1 Introduction.............................................................................................................................................................................2

2 Setup........................................................................................................................................................................................3

2.1 Input/Output Connector Description...................................................................................................................................3

2.2 Setup..................................................................................................................................................................................4

2.3 Operation........................................................................................................................................................................... 4

3 Board Layout...........................................................................................................................................................................6

4 Schematic................................................................................................................................................................................8

5 Revision History......................................................................................................................................................................9

List of Figures

Figure 2-1. Slew Rate Jumper Settings....................................................................................................................................... 3

Figure 2-2. Low Power Mode Jumper Settings............................................................................................................................4

Figure 2-3. Enable Jumper Settings............................................................................................................................................ 4

Figure 2-4. 5Vg Regulated Output Jumper Settings....................................................................................................................4

Figure 2-5. Low Pass Filter Inductor Bypass Jumper Settings.................................................................................................... 4

Figure 3-1. Top Assembly Layer.................................................................................................................................................. 6

Figure 3-2. Bottom Assembly Layer (viewed from bottom)..........................................................................................................6

Figure 3-3. Top Layer Routing..................................................................................................................................................... 7

Figure 3-4. Bottom Layer Routing (viewed from bottom).............................................................................................................7

Figure 4-1. TPIC74100EVM Schematic.......................................................................................................................................8

List of Tables

Table 1-1. Device and Package Configurations...........................................................................................................................2

Table 4-1. TPIC74100EVM Bill of Materials.................................................................................................................................9

Trademarks

PowerPAD™ is a trademark of Texas Instruments.

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

TPIC74100EVM User's Guide 1

1 Introduction

The Texas Instruments TPIC74100EVM evaluation module (EVM) helps designers evaluate the operation and

performance of the TPIC74100 Switch Mode Power Supply – Buck Regulator. The EVM contains one DC/DC

converter (See Table 1).

Table 1-1. Device and Package Configurations

CONVERTER IC PACKAGE

U1 TPIC74100QPWPRQ1 PWP-20

Introduction www.ti.com

2TPIC74100EVM User's Guide SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

2 Setup

This section describes the jumpers and connectors on the EVM as well and how to properly connect, set up, and

use the TPIC74100EVM.

2.1 Input/Output Connector Description

J1 – VBAT is the power input terminal for the converter. The terminal provides power (Vbat).

J2 – GND is the ground terminal for the EVM.

J3 – 5Vg is the power output terminal for the 5Vg regulator output.

J4 – VOUT is the regulated output voltage for the converter.

J5 – GND is a ground terminal for the EVM.

JP1, JP2 – SCR1, SCR0 are jumpers used to set the slew rate of the switching transistor for the L1 terminal

switch pin. Jumpers allow the slew rate to be set to four set points.

SCR1

slow

SCR0

SCR1

medium -slow

SCR0

SCR1

medium-fast

SCR0

SCR1

fast

SCR0

Figure 2-1. Slew Rate Jumper Settings

www.ti.com Setup

SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

TPIC74100EVM User's Guide 3

JP3 – LPM is the jumper used to enable Low Power Mode. The jumper allows LPM to be enabled or disabled.

The device will operate in Normal mode when LPM is disabled.

LPM

disabled

LPM

enabled

Figure 2-2. Low Power Mode Jumper Settings

JP4 – Enable is the jumper used to enable the converter. The converter is enabled when the Enable is high and

disabled when low. The jumper placement allows the converter to be enabled or disabled.

disabled

enabled

Figure 2-3. Enable Jumper Settings

JP5 – 5VgEN is the jumper used to enable switched 5V regulated output. The output is enabled when the

Enable is high and disabled when low. The jumper placement allows the converter to be enabled or disabled.

5Vg

disabled

5Vg

enabled

Figure 2-4. 5Vg Regulated Output Jumper Settings

JP6 – Bypass is the jumper used to bypass the low pass filter inductor on the power supply input to the device.

This allows the user to remove the filter from the circuit. The jumper placement allows the inductor to be active or

shorted.

BYPASS

active

BYPASS

shorted

Figure 2-5. Low Pass Filter Inductor Bypass Jumper Settings

2.2 Setup

The input voltage range for the converter is 1.5 volts to 40 volts. The input voltage must be at least 5 V during

start up.

2.3 Operation

For proper operation of the TPIC74100, JP1, JP2, JP3, JP4, JP5, and JP6 should be properly configured. The

recommended setting, using shorting blocks:

JP1 and JP2 to Fast

JP3 to Enabled

Setup www.ti.com

4TPIC74100EVM User's Guide SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

JP4 to Enabled

JP5 to Enabled, if 5Vg is used

JP6 to Shorted

In this configuration, the device powers up when power is applied. JP1, JP2 SCR0, SCR1 select how switch pin

slew rate is set: slow, medium-slow, medium-fast, or fast. JP3 LPM selects how Low Power Mode is set: Enabled

or Disabled. JP4 EN turns the device on or off. JP5 5Vg turns the regulated 5-V output on or off. JP6 Bypass

disables the low-pass filter located on the input supply to the device.

www.ti.com Setup

SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

TPIC74100EVM User's Guide 5

3 Board Layout

Figure 6, Figure 7, Figure 8, and Figure 9 show the board layout for the TPIC74100EVM PWB. The EVM offers

resistors, capacitors, and jumpers to program the switch pin slew rate and regulator turn-on Delay. Jumpers are

also provided to enable the device and to enable the low-power mode option.

The TPIC74100 offers high efficiency but does dissipate power. The PowerPAD™ package offers an exposed

thermal pad to enhance thermal performance. This must be soldered to the copper landing on the PCB for

optimal performance. The PCB provides 1-oz copper planes on the top and bottom to dissipate heat.

Figure 3-1. Top Assembly Layer

Figure 3-2. Bottom Assembly Layer (viewed from bottom)

Board Layout www.ti.com

6TPIC74100EVM User's Guide SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

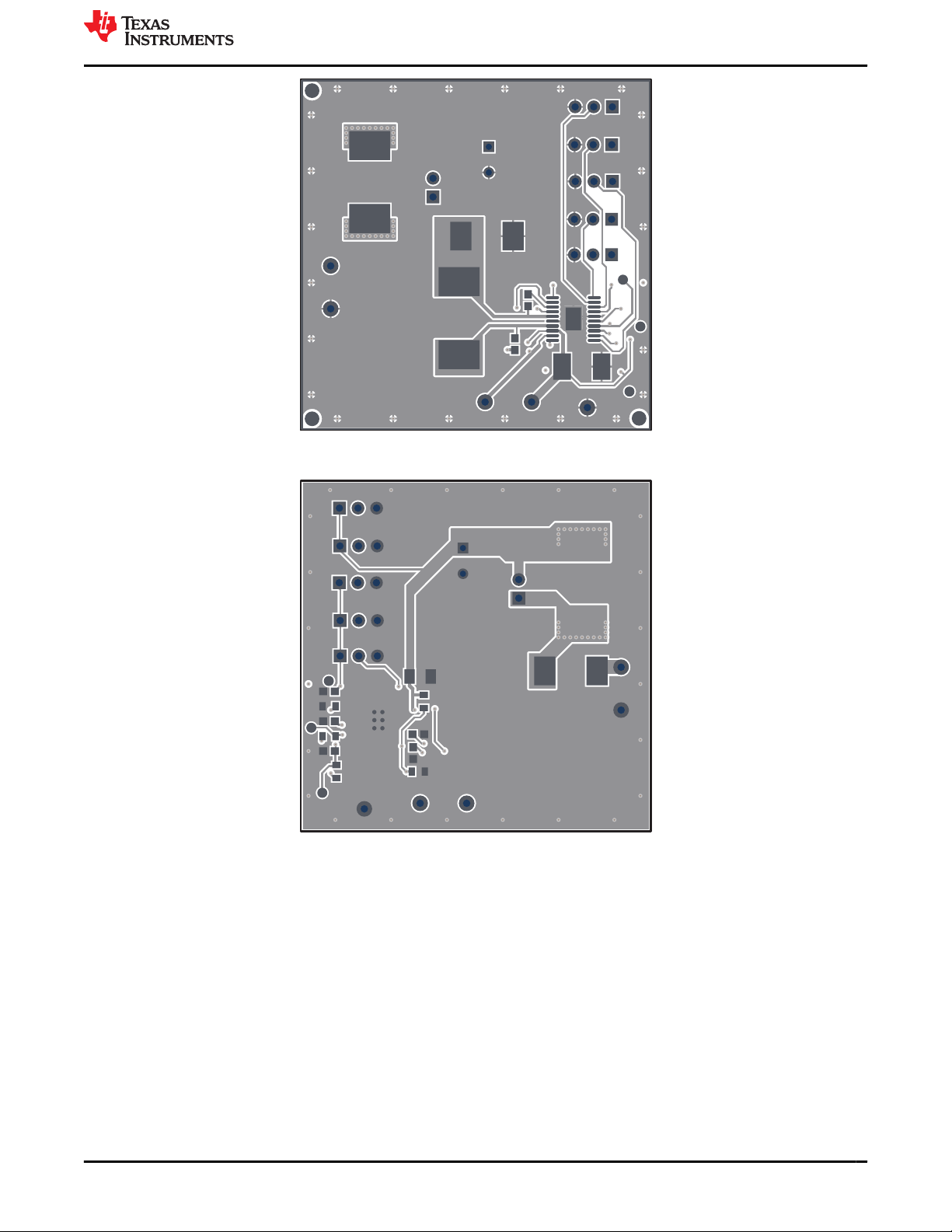

Figure 3-3. Top Layer Routing

Figure 3-4. Bottom Layer Routing (viewed from bottom)

www.ti.com Board Layout

SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

TPIC74100EVM User's Guide 7

4 Schematic

GND

Aout 13

Cboot2

25Vg_ENABLE 19

Rmod 15

GND 16

PGND

Vdriver

Cboot1

SCR1

ENABLE 18

Vlogic 17

SCR0 20

5Vg

Ain

Vout

RESET 12

PAD

REST 14

TPIC74100PWP

CLP 11

GND

C10

VOUT

JP1

2 1

GND

VDRIVER

AIN

VBAT

VDRIVER

AIN

VLOGIC

SCR1

GND

JP2

VLOGIC

SCR0

VLOGIC

GND

VOUT

GND

ENABLE

VDRIVER

ENABLE

5VG_ENABLE

GND

JP5

5VG_ENABLE

VDRIVER

GND

JP6

5Vg

2 1

+C6

2 1

+C8

GND

REST

AOUT

RESET

GND

JP3

VLOGIC

LPM

JP4

Figure 4-1. TPIC74100EVM Schematic

Schematic www.ti.com

8TPIC74100EVM User's Guide SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

Table 4-1. TPIC74100EVM Bill of Materials

COUNT REF

DES DESCRIPTION SIZE MFR PART NO.

2 C1, C2 Capacitor, ceramic, 4.7nF,

50V, 10% 0603 muRata GRM188R71H472KA01B

1 C3 Capacitor, ceramic, 470nF,

16V, 10% 0603 muRata GRM188R71C474KA88B

2 C4, C7 Capacitor, ceramic, 100nF,

16V, 10% 0603 muRata GRM188R71C104KA01J

1 C5 Capacitor, ceramic, 100nF,

50V, 10% 1206 muRata GCM319R71H104KA37B

1 C6 Capacitor, electrolytic, 470uF,

50V, 10% 10mm Panasonic EEU-FC1H471L

1 C8 Capacitor, tantalum, 47uF,

16V, 20% 6032 Kyocera AVX TPSD476K016T0100V

1 C9 Capacitor, ceramic, 1uF, 16V,

10% 0603 muRata GRM188R71C105KA12B

1 C10 Capacitor, ceramic, 10nF, 16V,

10% 0603 muRata GRM188R71C103KA01B

2 D1, D2 Diode, Schottky, 3A, 100V SMC IR 30BQ100

5 J1, J2, J3, J4, J5 Test point, 42-mil 0.042 Std Std

5JP1, JP2, JP3, JP4,

JP5

Header, 3-pin, 100-mil

spacing, (36-pin strip) 0.100 x 3 Sullins PTC36CAAN

1 JP6 Header, 2-pin, 100-mil

spacing, (36-pin strip) 0.100 x 2 Sullins PTC36CAAN

2 L1, L2 Inductor, SMT, 33-uH, 4.34,

54.9-mΩ 12.3mm x 12.3mm Coilcraft MSS1260T-333

1 R1 Resistor, chip, 12.1-kΩ,

1/16W, 1% 0603 Std Std

1 R2 Resistor, chip, 68.1-kΩ,

1/16W, 1% 0603 Std Std

2 R3, R4 Resistor, chip, 20-kΩ, 1/16W,

1% 0603 Std Std

1 R5 Resistor, chip, 33.2-kΩ,

1/16W, 1% 0603 Std Std

1 U1 IC, TPIC74100QPWPRQ1 TI TPIC74100QPWP

5 Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from Revision * (September 2008) to Revision A (October 2022) Page

• Updated the numbering format for tables, figures, and cross-references throughout the document..................2

• Layout figures updated to match physical board Rev. E.....................................................................................6

• Updated BoM to match components of board Rev. E.........................................................................................8

www.ti.com Revision History

SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

TPIC74100EVM User's Guide 9

STANDARD TERMS FOR EVALUATION MODULES

1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or

documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance

with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.

1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility

evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not

finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For

clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions

set forth herein but rather shall be subject to the applicable terms that accompany such Software

1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,

or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production

system.

2Limited Warranty and Related Remedies/Disclaimers:

2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License

Agreement.

2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM

to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by

neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have

been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications

or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control

techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM.

User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10)

business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.

2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit

User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty

period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or

replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be

warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day

warranty period.

WARNING

Evaluation Kits are intended solely for use by technically qualified,

professional electronics experts who are familiar with the dangers

and application risks associated with handling electrical mechanical

components, systems, and subsystems.

User shall operate the Evaluation Kit within TI’s recommended

guidelines and any applicable legal or environmental requirements

as well as reasonable and customary safeguards. Failure to set up

and/or operate the Evaluation Kit within TI’s recommended

guidelines may result in personal injury or death or property

damage. Proper set up entails following TI’s instructions for

electrical ratings of interface circuits such as input, output and

electrical loads.

NOTE:

EXPOSURE TO ELECTROSTATIC DISCHARGE (ESD) MAY CAUSE DEGREDATION OR FAILURE OF THE EVALUATION

KIT; TI RECOMMENDS STORAGE OF THE EVALUATION KIT IN A PROTECTIVE ESD BAG.

Tabla de contenidos

Otros manuales de Placa madre de Texas Instruments

Texas Instruments

Texas Instruments LM2105EVM Manual de usuario

Texas Instruments

Texas Instruments AM64 SK EVM Series Manual de usuario

Texas Instruments

Texas Instruments BoosterPack BOOSTXL-IOLINKM-8 EVM Manual de usuario

Texas Instruments

Texas Instruments TPS65986EVM Manual de usuario

Texas Instruments

Texas Instruments ADCx120Q1EVM-PDK Manual de usuario

Texas Instruments

Texas Instruments ADS794x EVM Series Manual de usuario

Texas Instruments

Texas Instruments LMX2820EVM Manual de usuario

Texas Instruments

Texas Instruments TPS562231EVM Manual de usuario

Texas Instruments

Texas Instruments TPS7H500-SP Series Manual de usuario

Texas Instruments

Texas Instruments SoundPlus OPA1622EVM Manual de usuario

Texas Instruments

Texas Instruments PurePath TPA3251D2EVM Manual de usuario

Texas Instruments

Texas Instruments TPA0212 Manual de usuario

Texas Instruments

Texas Instruments TPA5051EVM Manual de usuario

Texas Instruments

Texas Instruments DRV2700EVM Manual de usuario

Texas Instruments

Texas Instruments LM63625EVM Manual de usuario

Texas Instruments

Texas Instruments bq24295EVM-549 Manual de usuario

Texas Instruments

Texas Instruments INA220EVM Manual de usuario

Texas Instruments

Texas Instruments TIDA-050038 Guía

Texas Instruments

Texas Instruments LMK01000 Manual de usuario

Texas Instruments

Texas Instruments ADS8354EVM-PDK Manual de usuario

Texas Instruments

Texas Instruments RF430RL15 H Series Manual de usuario

Texas Instruments

Texas Instruments TLV752-EVM Manual de usuario

Texas Instruments

Texas Instruments LM5005 Manual de usuario

Texas Instruments

Texas Instruments ADS1263EVM-PDK Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
