LMK03328EVM

User's Guide

Literature Number: SNAU184

August 2015

Contents

1 Overview............................................................................................................................. 6

2 Features.............................................................................................................................. 6

3 Modes of Operation.............................................................................................................. 7

4 Configuring the EVM ............................................................................................................ 7

4.1 Configuring the Power Supply.......................................................................................... 9

4.2 Configuring the Control Pins .......................................................................................... 11

4.3 Configuring the PLL Loop Filters ..................................................................................... 15

4.4 Configuring the Reference Inputs .................................................................................... 16

4.5 Configuring the Clock Outputs........................................................................................ 17

4.6 Configuring the Status Outputs ....................................................................................... 17

4.7 Using the USB Interface Connection................................................................................. 17

5 EVM Quick Start Guide........................................................................................................ 18

6 EVM Layout ....................................................................................................................... 20

7 EVM Schematic.................................................................................................................. 33

8 EVM Bill of Materials........................................................................................................... 39

9 Recommended Test Instruments.......................................................................................... 42

10 Example Performance Measurements................................................................................... 43

11 Using TI’s USB2ANY Module for In-System Programming of LMK03328 ................................... 47

11.1 USB2ANY Board Connections........................................................................................ 47

11.2 Ordering a USB2ANY Module ........................................................................................ 51

2Table of Contents SNAU184–August 2015

Submit Documentation Feedback

www.ti.com

List of Figures

1 LMK03328EVM Photo....................................................................................................... 5

2 Power, Input, and Output Connections ................................................................................... 8

3 Power Terminals and Jumpers............................................................................................. 9

4 Control Pin Interfaces (Default Jumper Settings) ...................................................................... 11

5 Interfacing a 3.3-V LVCMOS Clock Input to SECREF_P............................................................. 16

6 Top Overlay................................................................................................................. 20

7 Top Solder Mask ........................................................................................................... 21

8 Layer 1 (Top Side) ......................................................................................................... 22

9 Layer 2....................................................................................................................... 23

10 Layer 3....................................................................................................................... 24

11 Layer 4....................................................................................................................... 25

12 Layer 5....................................................................................................................... 26

13 Layer 6....................................................................................................................... 27

14 Layer 7....................................................................................................................... 28

15 Layer 8 (Bottom Side, View from Top) .................................................................................. 29

16 Bottom Solder Mask ....................................................................................................... 30

17 Bottom Overlay ............................................................................................................. 31

18 Drill Drawing ................................................................................................................ 32

19 Soft Pin Mode, EEPROM Page 5, OUT0 – 156.25 MHz LVPECL (Spurs On) .................................... 43

20 Soft Pin Mode, EEPROM Page 5, OUT3 – 125 MHz LVPECL (Spurs On) ........................................ 44

21 Soft Pin Mode, EEPROM Page 5, OUT5 – 133.33 MHz LVPECL (Spurs On) .................................... 45

22 Soft Pin Mode, EEPROM Page 5, OUT7 – 125 MHz LVPECL (Spurs On) ........................................ 46

23 USB2ANY Module.......................................................................................................... 47

24 USB2ANY Board Connections ........................................................................................... 48

25 10-pin Cable Connection to J4 ........................................................................................... 49

26 10-pin Cable Pinout........................................................................................................ 49

27 USB2ANY Board Connector Pinout Diagram .......................................................................... 50

SNAU184–August 2015 List of Figures

www.ti.com

List of Tables

1 Ordering Information ........................................................................................................ 6

2 Power Configurations...................................................................................................... 10

3 Control Pin Interfaces for Soft Pin Mode or Register Default Mode (JP18 HWCTRL = LO)..................... 12

4 Control Pin Interfaces for Hard Pin Mode (JP18 HWCTRL = HI).................................................... 15

5 PLL Loop Filter C2 Selection ............................................................................................. 15

6 Soft Pin Mode - EEPROM Page Configurations (EVM-Default EEPROM Image) ................................ 19

7 Output RMS Jitter Summary – Soft Pin Mode, EEPROM Page 5................................................... 43

8 USB2ANY Board Connector J4 and 10-pin Cable Pinouts........................................................... 50

4List of Tables SNAU184–August 2015

Submit Documentation Feedback

User's Guide

SNAU184–August 2015

LMK03328EVM User’s Guide

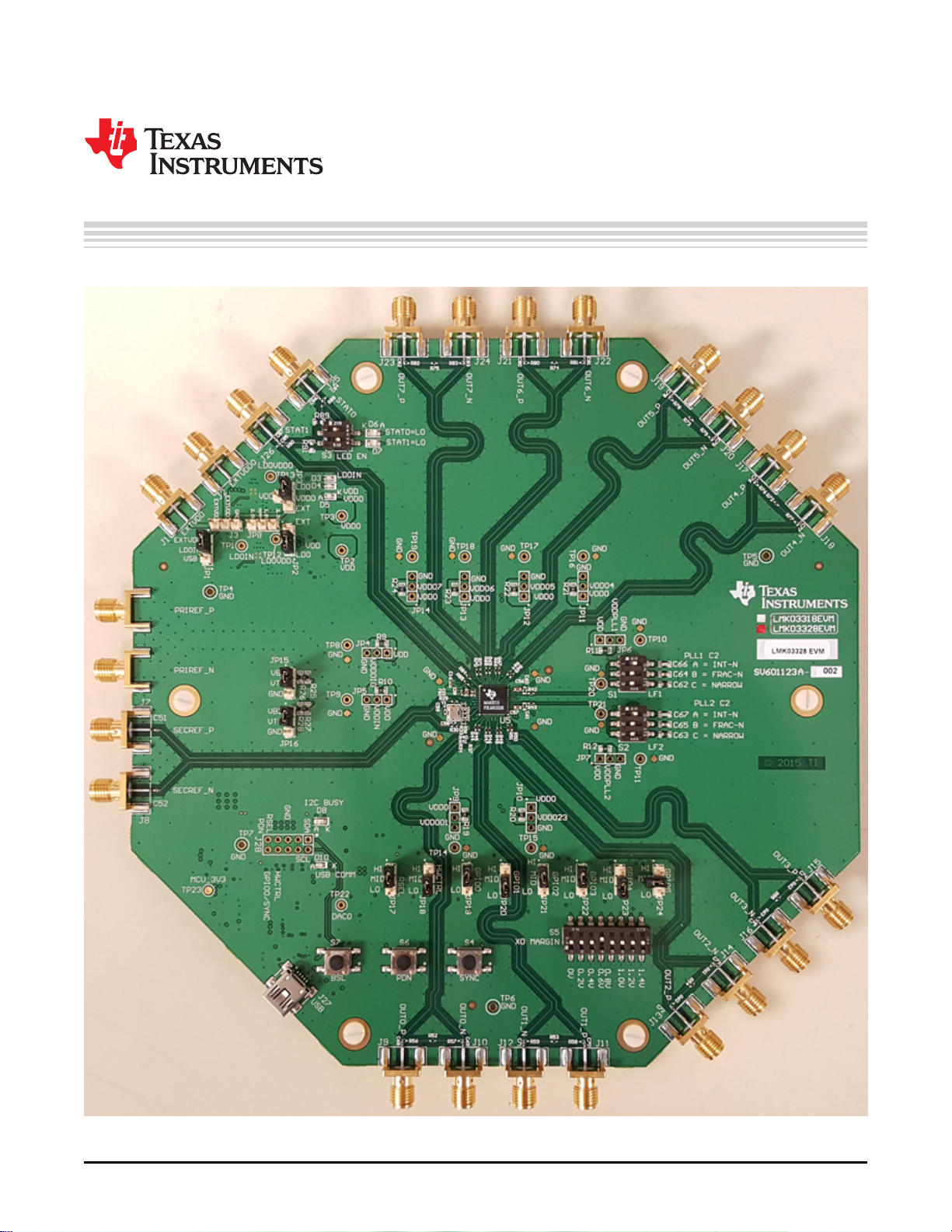

Figure 1. LMK03328EVM Photo

SNAU184–August 2015 LMK03328EVM User’s Guide

Overview

www.ti.com

Table 1. Ordering Information

EVM ID DEVICE ID DEVICE PACKAGE

LMK03328EVM LMK03328RHS QFN-48

1 Overview

The LMK03328EVM evaluation module provides a complete clocking platform to evaluate the clock

performance and pin-/software-configuration modes and features of the Texas Instruments LMK03328

Ultra-Low-Jitter Clock Generator with Dual PLLs, 8 outputs, 2 inputs, and integrated EEPROM.

The LMK03328EVM can be used as a flexible, multi-output clock source for compliance testing,

performance evaluation, and initial system prototyping. The onboard edge-launch SMA ports provide

access to the LMK03328 clock inputs and outputs for interfacing to test equipment and reference boards

using commercially available coaxial cables, adapters, or baluns (not included). This connectivity enables

integrated system level testing between TI’s LMK03328 and third-party FPGA/ASIC/SoC reference

boards. A software graphical user interface (GUI) platform can be installed on a Host PC to access the

LMK03328 device registers and EEPROM via the on-board USB-to-I2C interface. The GUI platform can

also be used to export / import Register and EEPROM data files to facilitate factory or in-system

programming of custom device configurations.

2 Features

• Two independent clock domains in Dual PLL operation for clocking multiple interface

standards/protocols

• Outputs up to 8 pairs of Differential or 1.8V LVCMOS clocks, or any combination of both

– 100 Ωdifferential and 50 Ωsingle-ended output drivers

• PLLs can lock to a common reference clock or two separate reference clocks

– Differential / single-ended clock or crystal input (50 MHz crystal on-board)

– Automatic or pin-controlled input selection

• Flexible pin modes offers multiple start-up register configuration (jumper selectable)

– Soft Pin Modes: 6 pre-programmed settings in EEPROM (100+ programming cycles)

– Hard Pin Modes: 64 predefined settings in ROM

– Register Default Mode

• Clock frequency margining

– Up to ±50 ppm adjustment of output frequencies via on-board pullable crystal

• Jumper-configurable power using direct or on-board regulator supplies: VDD = 3.3V, VDDO =

1.8/2.5/3.3V

• GUI platform for full access to device registers and EEPROM

• On-board USB-to-I2C programming interface

• LEDs indicators: Loss of Reference and Lock Detection per PLL, and USB / I2C activity

6LMK03328EVM User’s Guide SNAU184–August 2015

Submit Documentation Feedback

www.ti.com

Modes of Operation

3 Modes of Operation

The LMK03328 can be configured to start-up in one of three modes upon power-on/reset (POR). The

mode of operation and associated control pins determine which on-chip memory type and memory page

settings are used to initialize the active registers to configure the Input, PLL, Output, Device Control, and

Status blocks for full operation:

1. Soft Pin Modes (EVM Default) – Loads all registers with one of the 6 page settings in EEPROM. In

the EVM-default EEPROM image, all 6 EEPROM pages have pre-programmed register settings to

demonstrate the various clock configurations in Soft Pin Mode using the default EVM hardware. The

EEPROM settings can be easily re-programmed by the user through the GUI platform.

2. Hard Pin Modes – Loads all registers from one of the 64 page settings in ROM. All 64 ROM pages

are “hard-coded” with predefined register settings by TI.

NOTE: Refer to the ROM page configurations for Hard Pin Mode in the LMK03328 datasheet. Some

ROM page settings may not operate with the default EVM configuration, and modification of

the EVM may be necessary to operate the intended mode. EVM modification areas may

include the crystal (Y1), PRIREF / SECREF input interfaces, OUT / STATUS output

interfaces, and PLL1 / PLL2 loop filter C2 capacitor selection (switches S1 / S2).

3. Register Default Mode – Loads all registers from the register default setting. The Register Default

Mode is hard-coded with predefined settings.

NOTE: Refer to the Register Default Mode in the LMK03328 datasheet. The Register Default Mode

will NOT operate using the on-board 50 MHz crystal (Y1) as the device expects a 25 MHz

reference input. To operate in Register Default Mode using a crystal input, Y1 must be

changed to a 25-MHz, 9-pF crystal (example P/N: TXC 7M25072001).

Once the LMK03328 is start-up in any of these modes, the I2C interface is enabled to provide (optional)

access to all device register for full control of the LMK03328 settings. For convenience, a USB-to-I2C

interface is integrated on-board and can be controlled by the GUI platform.

4 Configuring the EVM

The LMK03328 is a highly-configurable clock generator with multiple power domains and input & output

clock domains. To support a wide range of evaluation use cases, the EVM was designed for maximum

flexibility so it has more functionality than actually needed to implement the clock solution in a typical

system application.

This section describes the jumpers and connectors on the EVM, as well as how to connect, set-up, and

use the LMK03328EVM. When operating the LMK03328EVM, the power supply, clock inputs, and clock

outputs can be connected to the SMA ports shown in Figure 2. These SMA ports are labeled in the top

silkscreen layer.

SNAU184–August 2015 LMK03328EVM User’s Guide

Configuring the EVM

www.ti.com

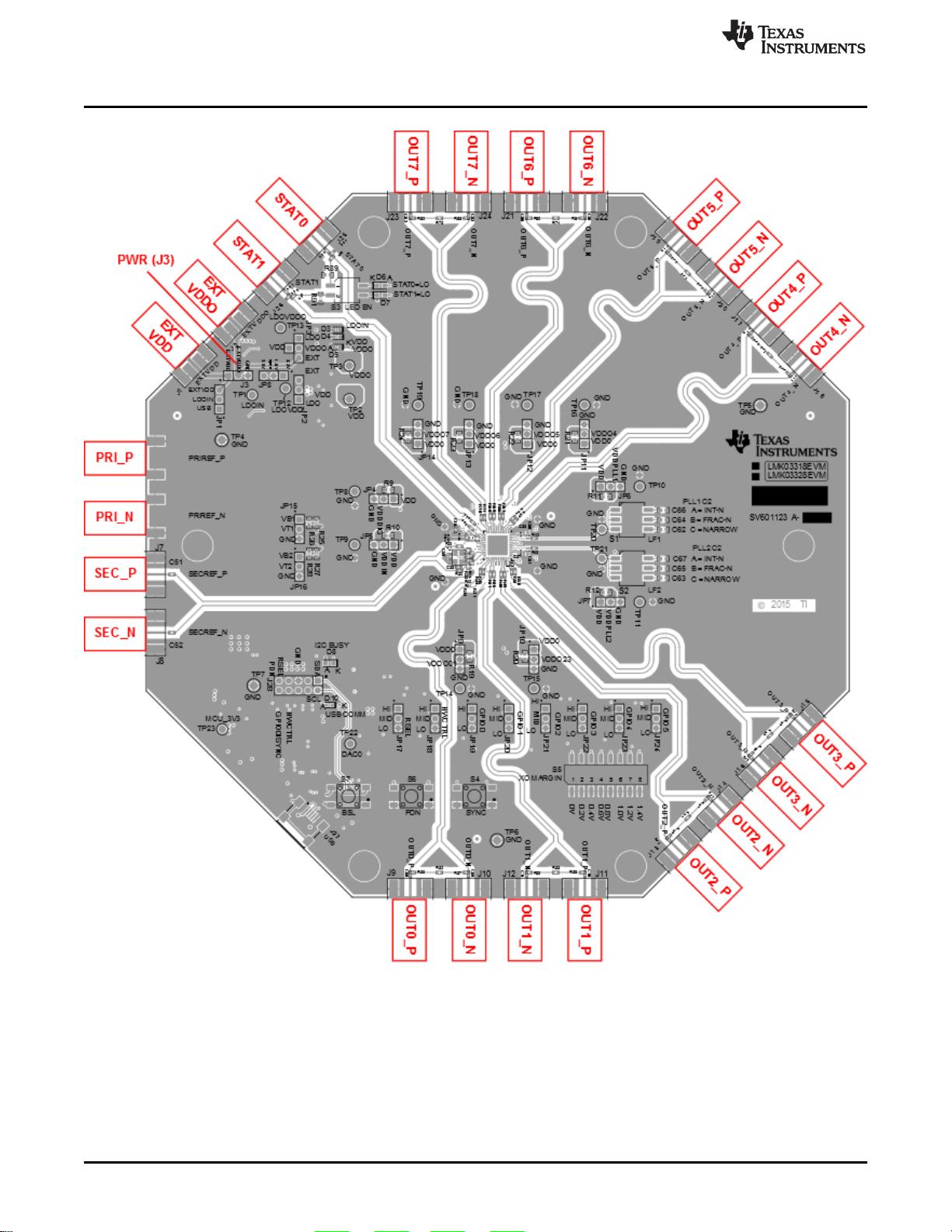

Figure 2. Power, Input, and Output Connections

8LMK03328EVM User’s Guide SNAU184–August 2015

Submit Documentation Feedback

www.ti.com

Configuring the EVM

4.1 Configuring the Power Supply

The LMK03328 has four analog/digital VDD core supply pins that operate from 3.3V (+/- 5%) and six

VDDO output supply pins that operate from 1.8V to 3.3V (+/- 5%). The VDD and VDDO power planes on

the EVM can be powered from a single supply (3.3 V) or dual supplies (3.3 V and 1.8/2.5/3.3 V). Each

plane can be powered directly from an external supply or an on-board LDO regulator. Although the

LMK03328 has integrated LDO regulators for excellent power-supply-ripple-rejection (PSRR), the EVM’s

on-board regulators (U3 & U4) can allow a higher supply voltage (like 5 V) to power the EVM and jumper-

selection of the VDDO voltage. The direct external supplies or on-board regulator supplies can be

independently routed for the VDD and VDDO planes by configuring the power terminals and jumpers

shown in Figure 3.

J3 (PWR) is the main power terminal block for the EVM for connecting power and GND leads from an

external power supply. Power SMA ports EXTVDD (J1) and EXTVDDO (J3) provide an alternative

connector style to apply power using coax cables.

NOTE: Some power connections will NOT be used or required to operate the EVM.

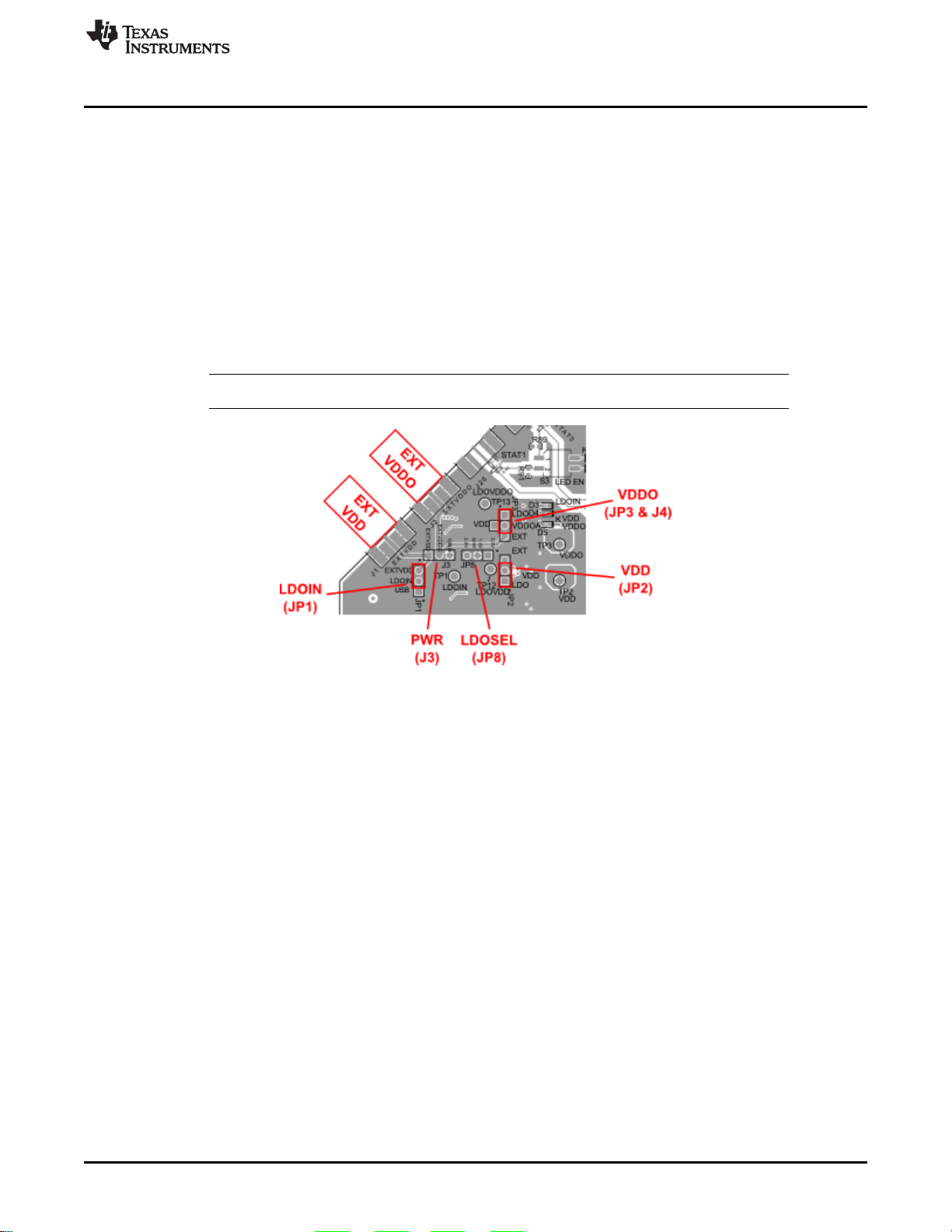

Figure 3. Power Terminals and Jumpers

SNAU184–August 2015 LMK03328EVM User’s Guide

Configuring the EVM

www.ti.com

Table 2 summarizes the EVM power configurations to connect and route power to the VDD and VDDO

supply domains of the LMK03328. Refer to Section 7 for more details.

Table 2. Power Configurations

On-board Regulators

CONNECTION NAME Direct Single Supply Direct Dual Supply

(Default)

LMK03328 VDD[x] 3.3 V 3.3 V 3.3 V

VDD pins

LMK03328 VDDO[x] 1.8 / 2.5 / 3.3 V 3.3 V 1.8 / 2.5 / 3.3 V

VDDO pins

J1 EXTVDD Alternative SMA power connection to J3 pins 1 & 3

J2 EXTVDDO Alternative SMA power connection to J3 pins 2 & 3

-Pin 1 (EXTVDD): Connect to

-Pin 1 (EXTVDD): Connect to -Pin 1 (EXTVDD): Connect to 3.3-V supply

5-V supply 3.3-V supply -Pin 2 (EXTVDDO): Connect to

J3 PWR -Pin 2: N/A -Pin 2: N/A 1.8 / 2.5 / 3.3 V supply

-Pin 3 (GND): Connect to GND -Pin 3 (GND): Connect to GND -Pin 3 (GND): Connect to GND

supply supply supply

Tie pins 2-3:

JP1(1) LDOIN Selects 5 V from EXTVDD to N/A N/A

operate regulators Tie pins 2-3: Tie pins 2-3:

Tie pins 1-2:

JP2 VDD Selects 3.3 V directly from Selects 3.3 V directly from

Selects VDD = 3.3 V from U3 EXTVDD EXTVDD

Tie pins 1-2: Tie pins 2-3:

Tie pins 2-4:

JP3 & J4(2) VDDO Selects VDDO = 1.8 / 2.5 / 3.3 Selects 1.8 / 2.5 / 3.3 V

Selects 3.3 V from VDD

V from U4 directly from EXTVDDO

-Open (JP8 Default):

Selects VDDO = 1.8 V

-Tie pins 1-2:

JP8 LDOSEL (U4) N/A N/A

Selects VDDO = 3.3 V

-Tie pins 2-3:

Selects VDDO = 2.5 V

(1) In typical configurations, the LMK03328EVM can consume more current than USB 2.0 limit of 0.5 A. Thus, it is advised to not

use the USB5V rail to power the on-board LDO regulators (i.e. do not tie pins 1-2 on JP1), unless the LMK03328 device

configuration and peripheral circuitry are assured to never exceed 0.5 A current limit set by the TPS2553 USB switch (U10). The

LMK03328 may not initialize / operate properly when current limited.

(2) JP3 and J4 form a 3-way header where J4 is pin 4.

10 LMK03328EVM User’s Guide SNAU184–August 2015

Submit Documentation Feedback

Tabla de contenidos

Otros manuales de Placa madre de Texas Instruments

Texas Instruments

Texas Instruments mmWaveICBoost Manual de usuario

Texas Instruments

Texas Instruments DLP3030-Q1 Manual de usuario

Texas Instruments

Texas Instruments ADS9218EVM-PDK Manual de usuario

Texas Instruments

Texas Instruments OPA928 Manual de usuario

Texas Instruments

Texas Instruments TPL5111EVM Manual de usuario

Texas Instruments

Texas Instruments INA2290EVM Manual de usuario

Texas Instruments

Texas Instruments BQ24351EVM Manual de usuario

Texas Instruments

Texas Instruments bq3060EVM-001 Manual de usuario

Texas Instruments

Texas Instruments DRV604PWPEVM Manual de usuario

Texas Instruments

Texas Instruments UCC3580EVM Manual de usuario

Texas Instruments

Texas Instruments BQ2430 Series Manual de usuario

Texas Instruments

Texas Instruments ADS1258EVM-PDK Manual de usuario

Texas Instruments

Texas Instruments PCIE16X-800EVK Manual de usuario

Texas Instruments

Texas Instruments AFEDRI8201EVM Manual de usuario

Texas Instruments

Texas Instruments EZShunt INA780 Manual de usuario

Texas Instruments

Texas Instruments ADS1178EVM Manual de usuario

Texas Instruments

Texas Instruments TPS7H5001-SP Manual de usuario

Texas Instruments

Texas Instruments TMS320DM6437 Manual de usuario

Texas Instruments

Texas Instruments MSP430FG4618/F2013 Manual de usuario

Texas Instruments

Texas Instruments RF430F5978EVM Manual de usuario

Texas Instruments

Texas Instruments TPS65982 Manual de usuario

Texas Instruments

Texas Instruments TPS62869EVM-118 Manual de usuario

Texas Instruments

Texas Instruments TAS5766MRMTEVM Manual de usuario

Texas Instruments

Texas Instruments ADC32RF5xEVM Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
