EVM User's Guide: BQ25756EEVM

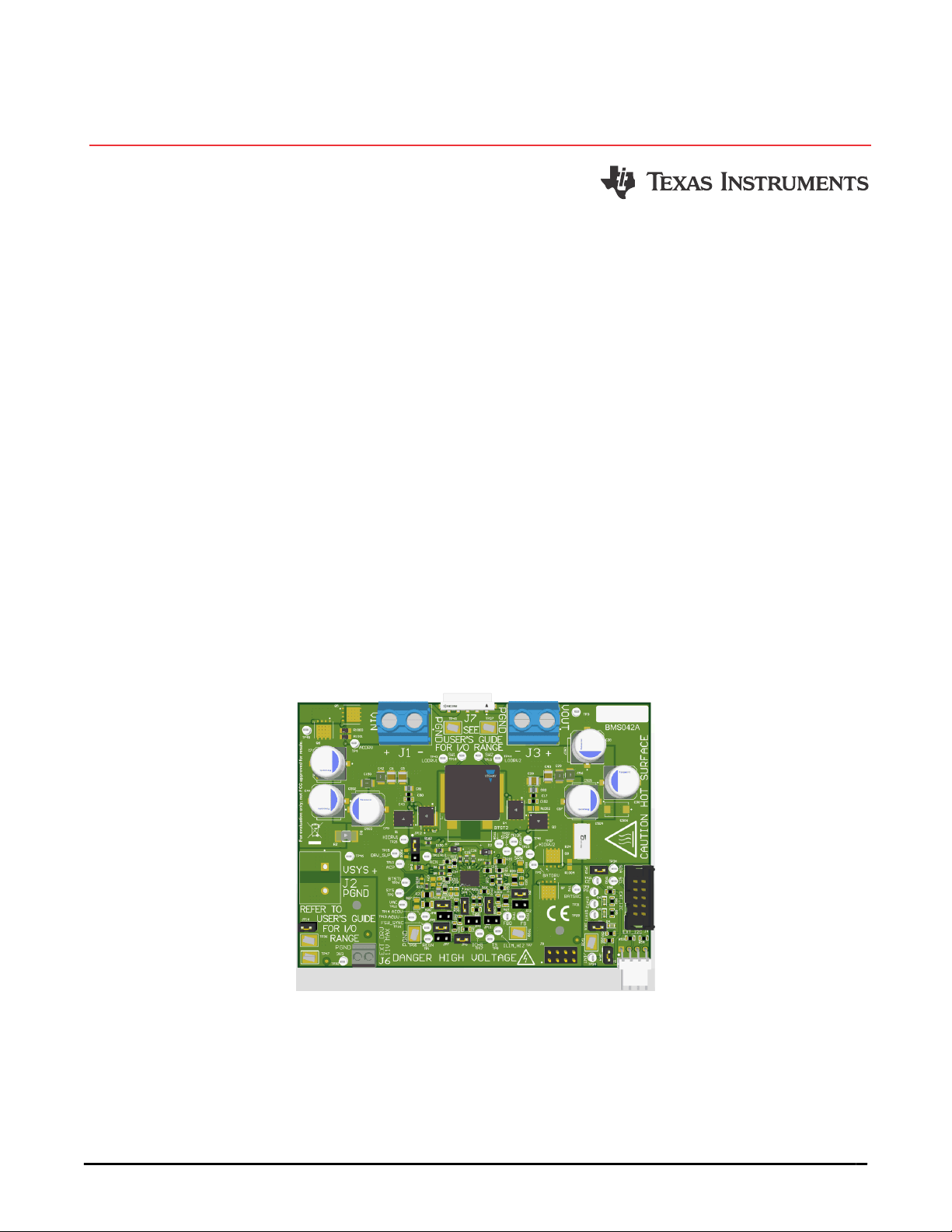

BQ25756E Evaluation Module

Description

The BQ25756EEVM evaluation module (EVM) is a

complete evaluation system for the BQ25756E IC, a

buck-boost battery charge controller with a wide input

range of 4.2 V - 36 V, a wide output voltage range of

up to 36 V, and bi-directional capabilities.

The BQ25756EEVM has a max input and output of 36

V and a max charge current of 10 A.

Get Started

1. Order the EVM on ti.com

2. Order the EV2400 to communicate with the EVM

3. Download the BQ25756E BQZ file

4. Download the BQ25756E EVM design files on

ti.com

Features

• Wide input voltage operating range: 4.2 V–36 V

• Wide output operating range: up to 36 V with

CC/CV support for:

– 2– to 7–Cell Li-Ion

– 2– to 9–Cell LiFePO4

• Synchronous buck-boost DC/DC charge controller

with NFET drivers

– Adjustable switching frequency from 200 kHz to

600 kHz

– Optional synchronization to external clock

– Optional gate driver supply input for optimized

efficiency

• Resistor-programmable standalone with added I2C

Mode

• Built in MPPT to maximize power from solar panel

arrays

• Power up from battery (reverse mode) output 4 V

to 36 V

• High safety integration

– Adjustable input overvoltage and undervoltage

protection

– Output Overvoltage and overcurrent protection

www.ti.com Description

SLUUCY5 – NOVEMBER 2023

Submit Document Feedback

BQ25756E Evaluation Module 1

1 Evaluation Module Overview

1.1 Introduction

The BQ25756EEVM can be evaluated for up to 180 W range of USB Extended Power Range (EPR) and up to

7 cell Li-Ion battery charging implementing CC/CV profile. Typical applications include Kick eScooters, cordless

power tools, garden tools, robotic lawn mowers, portable power stations, cordless vacuum cleaners, vacuum

robots, solar chargers, and USB-PD EPR applications.

This EVM does not include the EV2400 or USB2ANY interface device and does not provide any electrical

isolation for the digital interfaces. EV2400 or USB2ANY must be ordered separately to evaluate the

BQ25756EEVM and electrical safety considerations must be considered when interfacing between the PC and

the EVM board. When interfacing the EVM to the PC through the digital interfaces, digital isolators with isolation

boundary is recommended.

The BQ25756EEVM has smaller clearance and creepage than normally used on high voltage boards as well as

not having an isolation boundary. If you apply high voltage to this board, all terminals must be considered high

voltage and hazardous live. Electric shock is possible when connecting the board to live wire. The board must be

handled with care by a professional. For safety, use of isolated test equipment with various protection features

(such as overvoltage and overcurrent) is recommended.

1.2 Kit Contents

This EVM kit includes:

• 1 BQ25756E EVM

1.3 Device Information

The BQ25756EEVM evaluation module (EVM) is an evaluation system for the BQ25756E IC. The BQ25756E IC

is a buck-boost battery charge controller with a wide input range of 4.2 V - 36 V, a wide output voltage range of

up to 36 V, and bi-directional capabilities.

The device offers high-efficiency battery charging over a wide voltage range with output CC-CV control. The

device integrates all the loop compensation for the buck-boost converter, thereby providing a high density

method with ease of use.

Besides the I2C host-controlled charging mode, the device also supports programmable hardware limits. Input

current, and output current regulation targets can be set with single resistor on the IIN, and IOUT pins,

respectively.

Evaluation Module Overview www.ti.com

2BQ25756E Evaluation Module SLUUCY5 – NOVEMBER 2023

Submit Document Feedback

1.4 General Texas Instruments High Voltage Evaluation (TI HV EMV) User Safety Guidelines

WARNING

Always follow TI's set-up and application instructions, including use of all interface components within their

recommended electrical rated voltage and power limits. Always use electrical safety precautions to help verify

your personal safety and those working around you. Contact TI's Product Information Center http://ti.com/

customer support for further information.

Save all warnings and instructions for future reference.

WARNING

Failure to follow warnings and instructions can result in personal injury, property damage or death

due to electrical shock and burn hazards.

The term TI HV EVM refers to an electronic device typically provided as an open framed, unenclosed printed

circuit board assembly. It is intended strictly for use in development laboratory environments, solely for qualified

professional users having training, expertise and knowledge of electrical safety risks in development and

application of high voltage electrical circuits. Any other use and/or application are strictly prohibited by Texas

Instruments. If you are not suitably qualified, then immediately stop from further use of the HV EVM.

1. Work Area Safety:

a. Keep work area clean and orderly.

b. Qualified observers must be present anytime circuits are energized.

c. Effective barriers and signage must be present in the area where the TI HV EVM and the interface

electronics are energized, indicating operation of accessible high voltages can be present, for the

purpose of protecting inadvertent access.

d. All interface circuits, power supplies, evaluation modules, instruments, meters, scopes, and other related

apparatus used in a development environment exceeding 50Vrms/75VDC must be electrically located

within a protected Emergency Power Off EPO protected power strip.

e. Use stable and non-conductive work surface.

f. Use adequately insulated clamps and wires to attach measurement probes and instruments. No

freehand testing whenever possible.

2. Electrical Safety:

a. As a precautionary measure, a good engineering practice to assume is that the entire EVM can have

fully accessible and active high voltages.

b. De-energize the TI HV EVM and all the inputs, outputs and electrical loads before performing any

electrical or other diagnostic measurements. Revalidate that TI HV EVM power has been safely de-

energized.

c. With the EVM confirmed de-energized, proceed with required electrical circuit configurations, wiring,

measurement equipment hook-ups and other application needs, while still assuming the EVM circuit and

measuring instruments are electrically live.

d. Once EVM readiness is complete, energize the EVM as intended.

WARNING

While the EVM is energized, never touch the EVM or the electrical circuits, as the electrical

circuits and EVM can be at high voltages capable of causing electrical shock hazard.

3. Personal Safety

a. Wear personal protective equipment e.g. latex gloves or safety glasses with side shields or protect EVM

in an adequate lucent plastic box with interlocks from accidental touch.

Limitation for safe use:

EVMs are not to be used as all or part of a production unit.

www.ti.com Evaluation Module Overview

SLUUCY5 – NOVEMBER 2023

Submit Document Feedback

BQ25756E Evaluation Module 3

1.4.1 General Safety Information

The following warnings and cautions are noted for the safety of anyone using or working close to the BQ25756E

EVM. Observe all safety precautions.

Warning

The BQ25756EEVM circuit module can become hot during operation due to dissipation of

heat. Avoid contact with the board. Follow all applicable safety procedures applicable to

your laboratory.

CAUTION

Hot surface. Contact can cause burns. Do not touch!

Warning

The BQ25756EEVM has smaller clearance and creepage than normally used on high

voltage boards as well as not having an isolation boundary. If the user applies high

voltage to this board, then all terminals are considered high voltage and hazardous live.

Electric shock is possible when connecting the board to live wire. The board needs to be

handled with care by a professional. For safety, use of isolated test equipment with various

protection features (such as overvoltage and overcurrent) is recommended.

Warning

High voltages that can cause injury exist on this evaluation module (EVM). Please verify all

safety procedures are followed when working on this EVM. Never leave a powered EVM

unattended.

Warning High voltage can be present on board capacitors after power down. Properly check and

discharge all on-board energy reservoir after EVM power down.

Caution Do not leave EVM powered when unattended.

CAUTION

The communication interfaces are not isolated on the EVM. The use of digital isolators is

recommended. Verify all high voltage safety precautions are observed during testing.

CAUTION

Connections for rated current must be made at the terminal block. Test points are not rated for the

board current.

CAUTION

The circuit module can be damaged by over temperature. To avoid damage, monitor the temperature

during evaluation and provide cooling, as needed, for your system environment. Do not operate

beyond the current and voltage limits in the Section 2.3.

CAUTION

Test equipment can be damaged by application of external voltages. Check your equipment

requirements and use blocking diodes or other isolation techniques, as needed, to prevent damage

to your equipment.

CAUTION

The circuit module has signal traces, components, and component leads on the bottom of the board.

This can result in exposed voltages, hot surfaces or sharp edges. Do not reach under the board

during operation.

Evaluation Module Overview www.ti.com

4BQ25756E Evaluation Module SLUUCY5 – NOVEMBER 2023

Submit Document Feedback

CAUTION

The default settings of the BQ25756E is possibly not designed for the user's application. Verify

the EVM settings are set appropriately for test setup before device power up. Set all protections

appropriately and limit current for safe operation.

CAUTION

The board does not have a fuse installed and relies on the external voltage source current limit to

verify circuit protection.

www.ti.com Evaluation Module Overview

SLUUCY5 – NOVEMBER 2023

Submit Document Feedback

BQ25756E Evaluation Module 5

2 Hardware

2.1 Board Parameters

Table 2-1. Default board setup for BQ25756EEVM

Description Value Unit

ACUV Input undervoltage 4.2 V

ACOV Input overvoltage 36 V

IIN Input current of the EVM 8 A

IOUT Output current of the EVM 10 A

FSW_SYNC Switching frequency of the power stage 250 KHz

Table 2-2. PCB and Mechanical Parameters

Value Unit

Board Size (X dimension, or length) 112 mm

Board Size (Y dimension, or width) 84 mm

IC + power stage max height 5 mm

Total Copper Layers 6 layer

Copper weight per layer 2 oz

Total board thickness 62 mil

2.2 IO and Jumper Descriptions

Table 2-3. Connector/Port Description

Jack Description

J1-VIN Input: positive terminal

J1-PGND Input: negative terminal (ground terminal)

J3-VOUT Connected to battery pack output

J3-PGND Ground

J4-EXT_I2C Communication port for the USB2ANY

J5-I2C Communication port for the EV2400

J6-EXT_DRV Connection for external gate drive

J7-Power Connector Connection for VAC and BAT

J8-Communication Port Connection for EXT_DRV, /INT, I2C, /PG, and 3.3 V

Hardware www.ti.com

6BQ25756E Evaluation Module SLUUCY5 – NOVEMBER 2023

Submit Document Feedback

Table 2-4. Jumper Description

Jumper Description Factory Default

JP1 Use JP1 to connect the default feedback resistor and set the charger to the default 7

cell battery Installed

JP2 Use JP2 to connect a new feedback resistor to program a different cell count Not installed

JP3 Use JP3 to connect external IOUT resistor. JP3 can be shorted to PGND to disable

hardware output current limiting.

Not installed

JP4 Shunt JP4 to use default IOUT resistor. By closing JP4, the default IOUT current is

set to 10 A.

Installed

JP5 Shunt JP5 to bias TS. Installed

JP6 With JP5 shunted (REGN connected for voltage divider). Shunt JP6 to set TS status

to normal.

Installed

JP7 With JP5 shunted (REGN connected for voltage divider). Use JP7 to connect

external resistor to change TS status.

Not installed

JP8 Use JP8 to connect external FSW_SYNC resistor. Not installed

JP9 Shunt JP9 to use default FSW_SYNC resistor. By closing JP9, the default switching

frequency is set to 250 kHz.

Installed

JP10 Shunt JP10 to use default IIN resistor. By closing JP10, the maximum input current

is set to 8 A.

Installed

JP11 Use JP11 to connect external IIN resistor. JP11 can be shorted to PGND to disable

hardware input current limiting.

Not installed

JP12

Use JP12 to select the gate driver source. Shunt pin1 to pin2 to use IC internal

LDO REGN output. Shunt pin2 to pin3 to use external gate drive supply. Maximum

external gate drive supply can be up to 11 V.

Pin1 and pin2 shunted

JP13 Shunt JP13 to enable controller in forward mode. Open JP13 to disable controller.

The /CE pin can also be used as a general purpose indicator.

Installed

JP14 Shunt JP14 to connect /INT to a pullup rail. Installed

JP15 Shunt JP15 to connect STAT1 to a pullup rail. The STAT1 pin can also be used as a

general purpose indicator.

Installed

JP16 Shunt JP16 to generate on board 3.3-V pullup rail. Installed

2.3 Recommended Operating Conditions

Table 2-5. Recommended Operating Conditions for BQ25756EEVM

Description MIN TYP MAX UNIT

VIN (J1) Input voltage to the EVM 4.2 36

(1) V

VOUT (J3) Output voltage of the EVM 3.3 36

(1) V

IIN (J1) Input current of the EVM 10(3) (4) A

IOUT (J3) Output current of the EVM 10(3) A

Regulator output power Output power of the EVM 360

(3) W

EXT_DRV (J6) Voltage applied to DRV_SUP pin of the regulator 4 11 V

EVM Operating Ambient

Temperature (TA) 25(2) °C

(1) Due to the high di/dt and dv/dt electrical flow associated with switch-mode power supplies, nodes on the EVM can have high spike

above input voltage (in buck mode) or output voltage (in boost mode) level. Switch node voltage can swing up to "input or output +

inductive spike" level. High side gate drives can swing up to "switch node voltage + 11 V (DRV_SUP supply voltage dependent) + gate

drive inductive spike" level. Safety precautions must be observed at all times.

(2) Connectors, bump-ons, jumpers on the EVM are not a good choice for evaluation under temperature greatly deviated from room

temperature of 25°C. Please refer to BOM for temperature rating of board components.

(3) Thermal monitoring (for example, using a thermal camera) is recommended if power stage output current > 5 A or total output power >

100 W.

(4) Default EVM input current limit is set to 8 A through the IIN pin. The current limiting feature can be disabled by setting EN_IIN_PIN bit

to '0', changing IIN pin resistor, or shorting IIN pin to PGND through JP11.

www.ti.com Hardware

SLUUCY5 – NOVEMBER 2023

Submit Document Feedback

BQ25756E Evaluation Module 7

2.4 Equipment

There are two recommended ways to test the EVM. The first and preferred way to test the EVM is to use a

four-quadrant power supply. The second is to use a electronic load in constant voltage mode. Testing with a

constant voltage load is covered in a later section. The following list of equipment is recommended when testing

with a four-quadrant power supply.

1. Power Supplies:

A power supply capable of supplying 40 V at 8 A is required. While this part can handle larger voltage and

current, larger power levels are not necessary for this procedure.

2. Load #1:

A Kepco load: BOP36-6M, DC 0 to ±36 V, 0 to ±6 A (or higher), or equivalent. When testing without a real

battery, connect 2000 uF of capacitance across the input.

3. Meters:

Six Fluke 75 multimeters, (equivalent or better) or: Three equivalent voltage meters and three equivalent

current meters.

4. Computer:

A computer with at least one USB port and a USB cable.

5. EV2400 Communication Kit:

6. Software:

Download and properly install bqStudio from https://www.ti.com/tool/BQSTUDIO.

2.4.1 Equipment Set Up

Hardware www.ti.com

8BQ25756E Evaluation Module SLUUCY5 – NOVEMBER 2023

Submit Document Feedback

Use the following guidelines to set up the equipment:

1. Set power supply #1 for 23 V DC, 8 A current limit and then turn off the supply.

2. Connect the output of power supply #1 in series with a current meter to J1 (VIN and PGND).

3. Connect a voltage meter across J1 (VIN) and J1 (PGND).

4. Connect load #1 in series with a current meter to J3 (VBAT and PGND).

5. Connect a voltage meter across J5 (VBAT and PGND).

6. Set 23 V at KEPCO load output. Limit KEPCO to 6 A. Use load #2 to power EVM from the VOUT output.

7. Connect J5 to the EV2400. Connect J5 to the I2C PORT 2 on the EV2400.

8. Make sure the jumpers are installed as indicated in IO and Jumper Descriptions.

9. Turn on the computer and load #2. Open the bqStudio software.

a. Select Charger and click the Next button.

b. Select Charger_1_00_BQ25756.bqz on the Select a Target Page.

c. After selecting the target device, click Field View. The main window of BQ25756E EVM software

appears.

d. Change I2C Address to D4(6A) and click Read Register.

10. Set WATCHDOG and EN_CHG to disabled.

11. In 16 Bit Registers, set ICHG_REG to 2000 mA and IPRECHG to 2000 mA.

www.ti.com Hardware

SLUUCY5 – NOVEMBER 2023

Submit Document Feedback

BQ25756E Evaluation Module 9

12. Turn on power supply #1, measure

V(J1(VAC)) = 30 V ± 0.5 V

I(J1(IAC)) = 1.6A ± 0.5 A

V(J3(VBAT)) = 23.5V ± 0.5 V

I(J3(IBAT)) = 2 A ± 0.5 A

13. Set power supply #1 for V, measure

V(J1(VAC)) = 23 V ± 0.5 V

I(J1(IAC)) = 2.1 A ± 0.5 A

V(J3(VBAT)) = 23.5 V ± 1 V

I(J3(IBAT)) = 2 A ± 0.5 A

14. Set power supply #1 for 10 V, measure

V(J1(VAC)) = 10 V ± 0.5 V

I(J1(IAC)) = 5.0 A ± 0.5 A

V(J3(VBAT)) = 23.5 V ± 1 V

I(J3(IBAT)) = 2 A ± 0.5 A

2.4.2 Equipment - Using a CV Load

The following list of equipment is recommended when testing with a constant voltage electronic load.

1. Power Supplies:

A power supply capable of supplying 40 V at 4 A is required. While this part can handle larger voltage and

current, larger power levels are not necessary for this procedure.

2. Load #1:

Kikusui PLZ164WA 0-150V, 0-33A When testing without a real battery, connect 2000 uF of capacitance

across the input.

3. Meters:

Six Fluke 75 multimeters, (equivalent or better) or: Four equivalent voltage meters and two equivalent

current meters.

4. Computer:

A computer with at least one USB port and a USB cable.

5. EV2400 Communication Kit:

6. Software:

Download and properly install bqStudio from https://www.ti.com/tool/BQSTUDIO.

Hardware www.ti.com

10 BQ25756E Evaluation Module SLUUCY5 – NOVEMBER 2023

Submit Document Feedback

Tabla de contenidos

Otros manuales de Placa madre de Texas Instruments

Texas Instruments

Texas Instruments LMX2572EVM Manual de usuario

Texas Instruments

Texas Instruments DP838367 RGMII EVM Manual de usuario

Texas Instruments

Texas Instruments MCF8315EVM Manual de usuario

Texas Instruments

Texas Instruments PanelBus TFP201EVM Manual de usuario

Texas Instruments

Texas Instruments LM74670-SQEVM Manual de usuario

Texas Instruments

Texas Instruments bq25040 Manual de usuario

Texas Instruments

Texas Instruments RF430FRL152HEVM Manual de usuario

Texas Instruments

Texas Instruments TPS8804EVM Manual de usuario

Texas Instruments

Texas Instruments ADC366 EVM Series Manual de usuario

Texas Instruments

Texas Instruments AMC1210EVM Manual de usuario

Texas Instruments

Texas Instruments TAS5753MDEVM Manual de usuario

Texas Instruments

Texas Instruments DLP LightCrafter Dual DLPC900 Manual de usuario

Texas Instruments

Texas Instruments LMX2615EVM-CVAL Manual de usuario

Texas Instruments

Texas Instruments ADS64XX EVM Manual de usuario

Texas Instruments

Texas Instruments TPA3244EVM Manual de usuario

Texas Instruments

Texas Instruments CC2538-CC2592 Manual de usuario

Texas Instruments

Texas Instruments INA241EVM Manual de usuario

Texas Instruments

Texas Instruments bq24725EVM Manual de usuario

Texas Instruments

Texas Instruments LMK00105 Manual de usuario

Texas Instruments

Texas Instruments TCA6507EVM Manual de usuario

Texas Instruments

Texas Instruments TLC6983 Manual de usuario

Texas Instruments

Texas Instruments PGA281EVM Manual de usuario

Texas Instruments

Texas Instruments RF430RL15 H Series Manual de usuario

Texas Instruments

Texas Instruments TPS22925EVM Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
