User's Guide

SNVA485B–June 2011–Revised May 2013

AN-2150 LM3450A Evaluation Board

1 Introduction

The LM3450A evaluation board is designed to provide an AC to LED solution for a 30W LED load.

Specifically, it takes an AC mains input and converts it to a constant current output of 700mA for a series

string of 1 to 13 LEDs (maximum LED stack voltage of 45V). There are two assembly versions designed

to operate from two different nominal AC input voltages, 120VAC or 230VAC. .

The board employs a two stage design with an LM3450A flyback primary stage and an LM3409HV

secondary stage. The LM3450A provides an isolated 50V regulated output voltage and a power factor

corrected input current. The LM3409HV uses the 50V flyback output as its input and provides a constant

current of 700mA to the LED load. This two stage design provides excellent line and load regulation as

well as isolation. The board is comprised of two copper layers with components on both sides and an FR4

dielelctric.

The two-stage design has several key advantages over a single stage design including:

• No 120Hz LED current ripple

• Better dimming performance at low dimming levels.

• Better line disturbance rejection

• Better efficiency using small LED stack voltages

2 Specifications

120VAC 30W Version

• Input Voltage Range: VIN = 90VAC – 135VAC

• Regulated Flyback Output Voltage: VOUT = 50V

• Maximum LED Stack Voltage: VLED < 45V

• Regulated LED Current: ILED = 700mA

230VAC 30W Version

• Input Voltage Range: VIN = 180VAC – 265VAC

• Regulated Flyback Output Voltage: VOUT = 50V

• Maximum LED Stack Voltage: VLED < 45V

• Regulated LED Current: ILED = 700mA

All trademarks are the property of their respective owners.

SNVA485B–June 2011–Revised May 2013 AN-2150 LM3450A Evaluation Board

ZCD

GATE

LM3450A

GND

COMP

HOLD

DIM

FLT2

FLT1

PWM

BIAS

RETURN

OPTICAL

ISOLATION

RETURN

EMI FILTER

PWM

INPUT

LED

LOAD

VCC

VAC

ISEN

VREF

VADJ

HOLD

LM3409HV

LED Driver

Specifications

www.ti.com

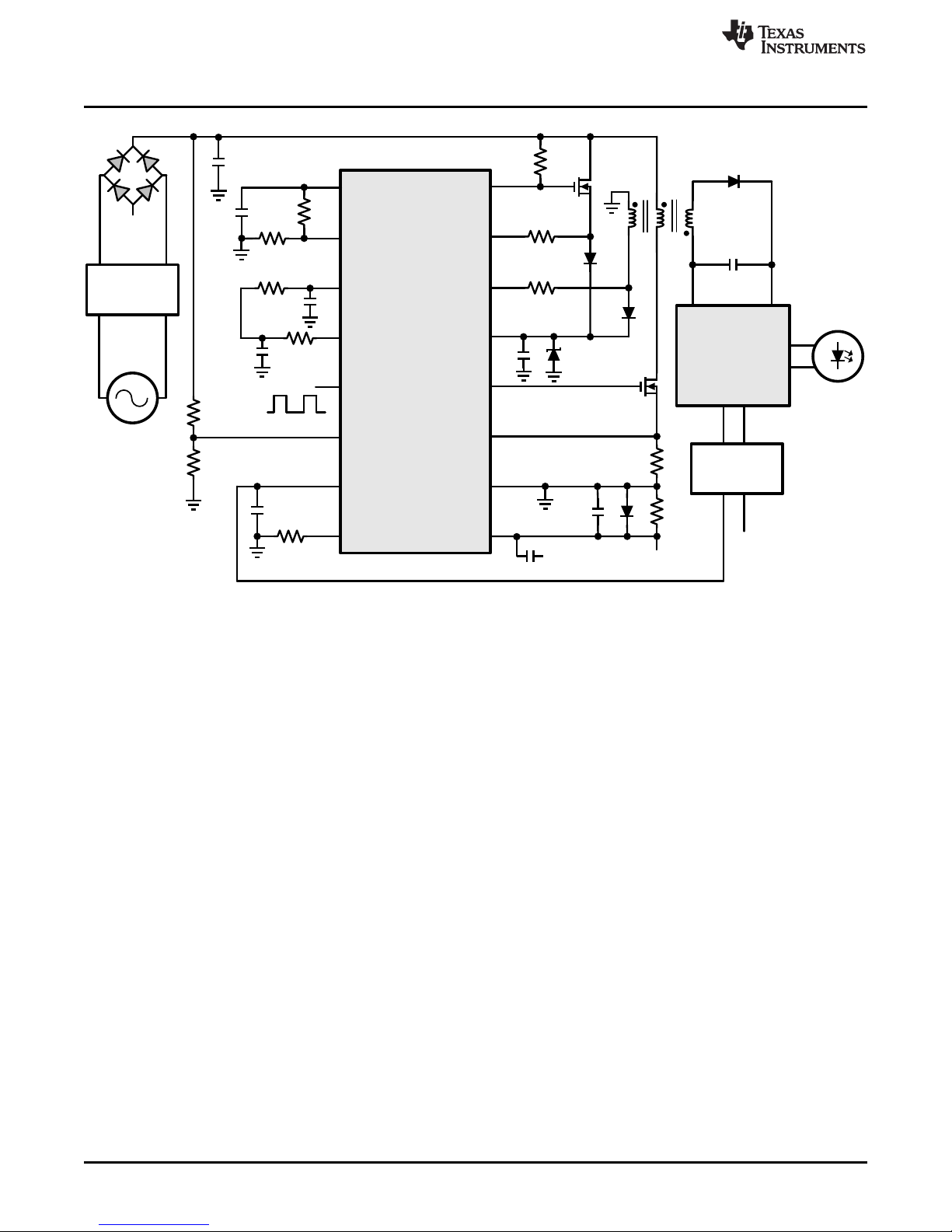

Figure 1. Schematic

2AN-2150 LM3450A Evaluation Board SNVA485B–June 2011–Revised May 2013

Submit Documentation Feedback

POUT (W)

1.00

0.98

0.96

0.94

0.92

16 20 24 28 32

100 VAC

120 VAC

POUT (W)

1.00

0.98

0.96

0.94

0.92

16 20 24 28 32

200 VAC

230 VAC

POUT (W)

EFFICIENCY (%)

16 20 24 28 32

100 VAC

120 VAC

POUT (W)

EFFICIENCY (%)

16 20 24 28 32

200 VAC

230 VAC

www.ti.com

Typical Performance

3 Typical Performance

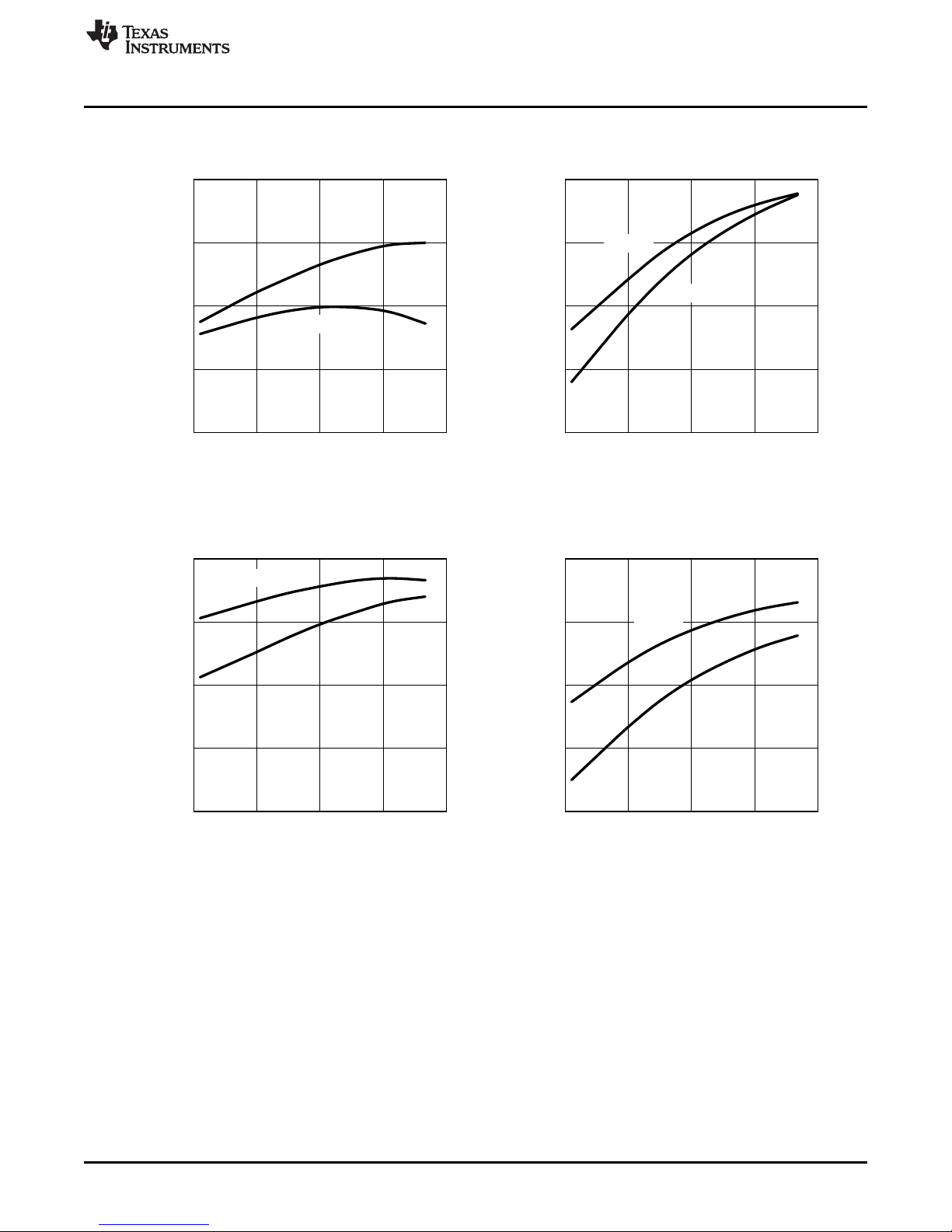

Figure 2. 120V, 30W Version Figure 3. 230V, 30W Version

Efficiency vs. Output Power Efficiency vs. Output Power

Figure 4. 120V, 30W Version Figure 5. 230V, 30W Version

Power Factor vs. Output Power Power Factor vs. Output Power

SNVA485B–June 2011–Revised May 2013 AN-2150 LM3450A Evaluation Board

100

1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39

AMPLITUDE (mA)

HARMONIC NUMBER

Limits

Measured

1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39

AMPLITUDE (mA)

HARMONIC NUMBER

Limits

Measured

AMPLITUDE in dbuV

FREQUENCY

AMPLITUDE in dbuV

FREQUENCY

Conducted EMI Performance

www.ti.com

4 Conducted EMI Performance

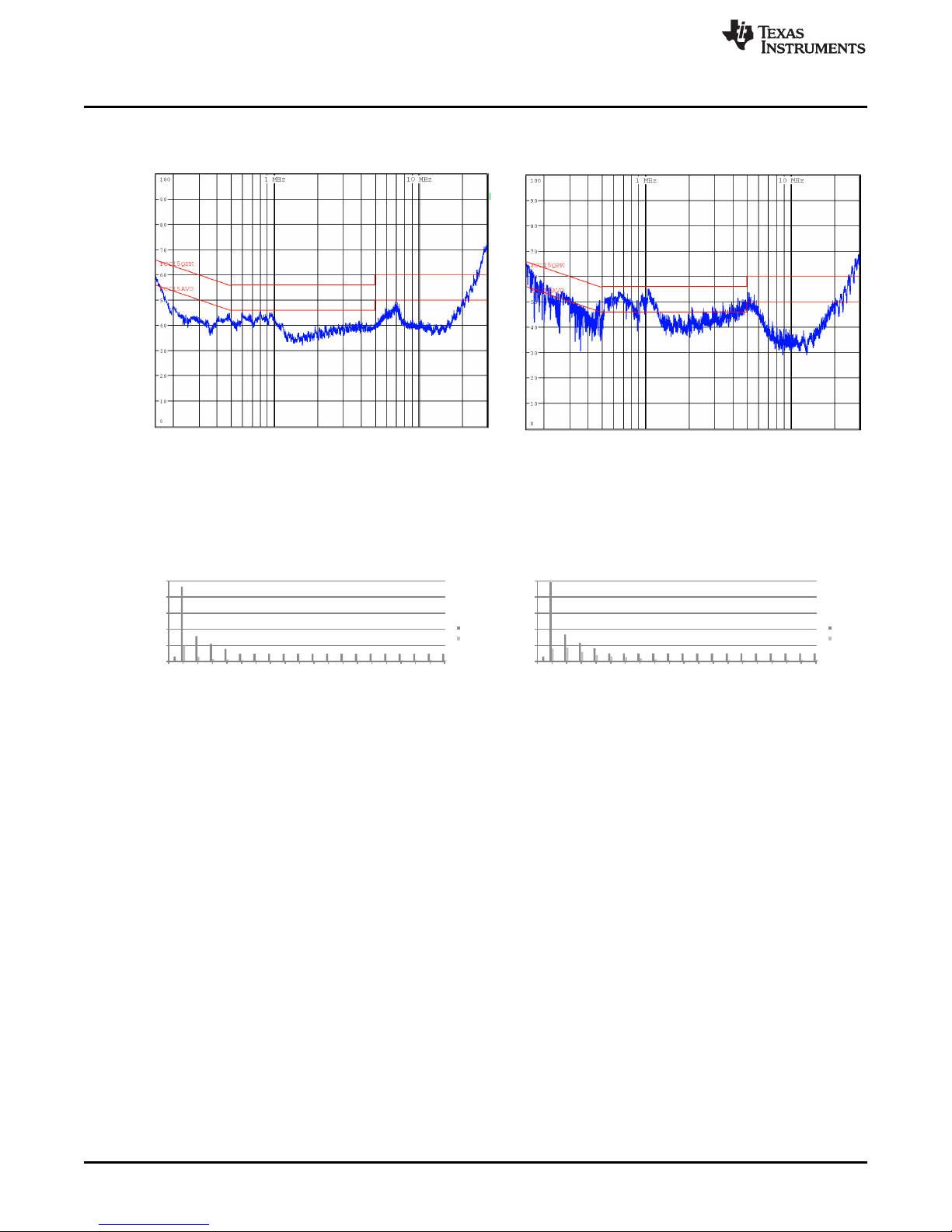

Figure 6. 120V, 30W Conducted EMI Peak Scan Figure 7. 230V, 30W Conducted EMI Peak Scan

Line and Neutral - CISPR/FCC Class B Quasi Peak and Line and Neutral - CISPR/FCC Class B Quasi Peak and

Average Limits Average Limits

5 THD / Harmonic Performance

Figure 8. 120V, 30W THD Measurements Figure 9. 230V, 30W THD Measurements

EN 61000-3 Class C Limits EN 61000-3 Class C Limits

THD = 6.27% ; Fundamental = 316mA THD = 8.96% ; Fundamental = 167mA

4AN-2150 LM3450A Evaluation Board SNVA485B–June 2011–Revised May 2013

Submit Documentation Feedback

VCC

VREF

ZCDFLT2

DIM GATE

VAC CS

COMP GND

FB ISEN

HOLDVADJ

FLT1

BIAS

www.ti.com

LM3450A Pin Descriptions

6 LM3450A Pin Descriptions

Pin Name Description Application Information

Reference Output: Connect directly to VADJ or to resistor

1 VREF 3V Reference divider feeding VADJ and to necessary external circuits.

Analog Dim and Phase Dimming Range Input: Connect

directly to VREF to force standard 70% phase dimming

2 VADJ Analog Adjust range. Connect to resistor divider from VREF to extend

usable range of some phase dimmers or for analog

dimming. Connect to GND for low power mode.

Ramp Comparator Input: Connect a series resistor from

3 FLT2 Filter 2 FLT1 capacitor and a capacitor to GND to establish

second filter pole.

Angle Decoder Output: Connect a series resistor to a

4 FLT1 Filter 1 capacitor to ground to establish first filter pole.

Open Drain PWM Dim Output: Connect to dimming input

5 DIM 500 Hz PWM Output of output stage LED driver (directly or with isolation) to

provide decoded dimming command.

Multiplier and Angle Decoder Input: Connect to resistor

6 VAC Sampled Rectified Line divider from rectified AC line.

Error Amplifier Output and PWM Comparator Input:

7 COMP Compensation Connect a capacitor to GND to set the compensation.

Error Amplifier Inverting Input: Connect to output voltage

via resistor divider to control PFC voltage loop for non-

8 FB Feedback isolated designs. Connect to a 5.11kΩresistor to GND

for isolated designs (bypasses error amplifier). Also

includes over-voltage protection and shutdown modes.

Input Current Sense Non-Inverting Input: Connect to

diode bridge return and resistor to GND to sense input

9 ISEN Input Current Sense current for dynamic hold. Connect a 0.1µF capacitor and

Schottky diode to GND, and a 0.22µF capacitor to

HOLD.

10 GND Power Ground System Ground

MosFET Current Sense Input: Connect to positive

11 CS Current Sense terminal of sense resistor in PFC MosFET source.

Gate Drive Output: Connect to gate of main power

12 GATE Gate Drive MosFET for PFC.Gate Drive Output: Connect to gate of

main power MosFET for PFC.

Power Supply Input: Connect to primary bias supply.

13 VCC Input Supply Connect a 0.1µF bypass capacitor to ground.

Demagnetization Sense Input: Connect a resistor to

14 ZCD Zero Crossing Detector transformer/inductor winding to detect when all energy

has been transferred.

Open Drain Dynamic Hold Input: Connect to holding

15 HOLD Dynamic Hold resistor which is connected to source of passFET.

SNVA485B–June 2011–Revised May 2013 AN-2150 LM3450A Evaluation Board

UVLO

CSP

VIN

COFF 7

CSN

GND PGATE

DAP

VCC

IADJ

LM3409HV Pin Descriptions

www.ti.com

Pin Name Description Application Information

Pre-regulator Gate Bias Output: Connect to gate of

16 BIAS Pre-regulator Gate Bias passFET and to resistor to rectified AC (drain of

passFET) to aid with startup.

7 LM3409HV Pin Descriptions

Pin Name Description Application Information

Connect to a resistor divider from VIN. UVLO threshold is

1 UVLO Input Under Voltage Lock-out 1.24V and hysteresis is provided by a 22µA current

source.

Apply a voltage between 0 - 1.24V, or connect a resistor

2 IADJ Analog LED Current Adjust from this pin to GND, to set the current sense threshold

voltage.

Apply a voltage >1.6V to enable device, a PWM signal

3 EN Logic Level Enable to dim, or a voltage <0.6V for low power shutdown.

Connect an external resistor from VOto this pin, and a

4 COFF Off-time programming capacitor from this pin to GND to set the off-time.

5 GND Power Ground Connect to the system ground.

6 PGATE Gate Drive Connect to the gate of the external PFET.

7 CSN Negative Current Sense Connect to the negative side of the sense resistor.

Connect to the positive side of the sense resistor (also

8 CSP Positive Current Sense connected to VIN).

Connect at least a 1 µF ceramic capacitor from this pin

9 VCC VIN-referenced Linear Regulator Output to CSN. The regulator provides power for P-FET drive.

10 VIN Input Voltage Connect to the input voltage.

Connect to pin 5 (GND). Place 4-6 vias from DAP to

DAP DAP Thermal PAD on bottom of IC bottom layer GND plane.

6AN-2150 LM3450A Evaluation Board SNVA485B–June 2011–Revised May 2013

Submit Documentation Feedback

ZCD

GATE

LM3450A

VCC

GND

COMP

HOLD

VAC

VADJ

DIM

FLT2

FLT1

ISEN

PWM

VREF BIAS

IADJ

CSN

LM3409HV

UVLO

VCC

COFF

GND

CSP

PGATE

DAP

VIN

VOUT

PWM

VOP1

VOP2

RETURN

VLED

LMV431

OPTO1

OPTO2

VOP2

VOP1

VPOP2

VOUT

EMI

FILTER

CONTROL

FEEDBACK

SECONDARY

LED DRIVER

DIMMING

VREF +

MAINS

LED

LOAD

D10

D23

D9 D4

C30

C66

C26

C11

C13

C42

C44 D16

C43

C17

C18

C24 C23

D17

C22

R56

R47

R17

R23

R24

R25

R26

R29

R32

R38

R30

R31

R34

R36

R70

R77 R72

R81

R16

R71

R84

R65

R66

R83

R58

C35

C34

C38 C36

C39

C37

C47

D15

D13

D14

D22

D11D12

Q7 L3

R57

HOLD

VLED

R39

U10

U11

VPOP2

VCC

R18

D18

C21

C46

VCC

VADJ

COMPBIAS

D21

D24

R20

R21

SOFTSTART

C12

D20

THERMAL

PROTECT

R10

R12

R14

R15

AUX R6

AUX

R11

www.ti.com

Simplified Evaluation Board Schematic

8 Simplified Evaluation Board Schematic

Figure 10. Simplified Evaluation Board Schematic

SNVA485B–June 2011–Revised May 2013 AN-2150 LM3450A Evaluation Board

VREF +

LM3450A FLYBACK

VREF +

EMI + BRIDGE LM3409HV BUCK

Design Information

www.ti.com

9 Design Information

The following section explains how to design using the LM3450A power factor controller and phase

dimming decoder. Refer to AN-1953 LM3409HV Evaluation Board (SNVA390) for a detailed design

procedure of the LM3409HV secondary stage and to the LM3450/A LED Drivers with Active Power Factor

Correction & Phase Dimming Decoder (SNVAS681) data sheet for specific details regarding the function

of the LM3450A device. All reference designators refer to the Simplified Evaluation Board Schematic. Note

that parallel and series resistances are combined in one schematic symbol for simplification. To improve

readability of this design document, each subsection is followed by a list of Definitions for new terms used

in the calculations. Section 11, showing all components and connectors, is found at the end of this

document as well as a Bill of Materials for each assembly version.

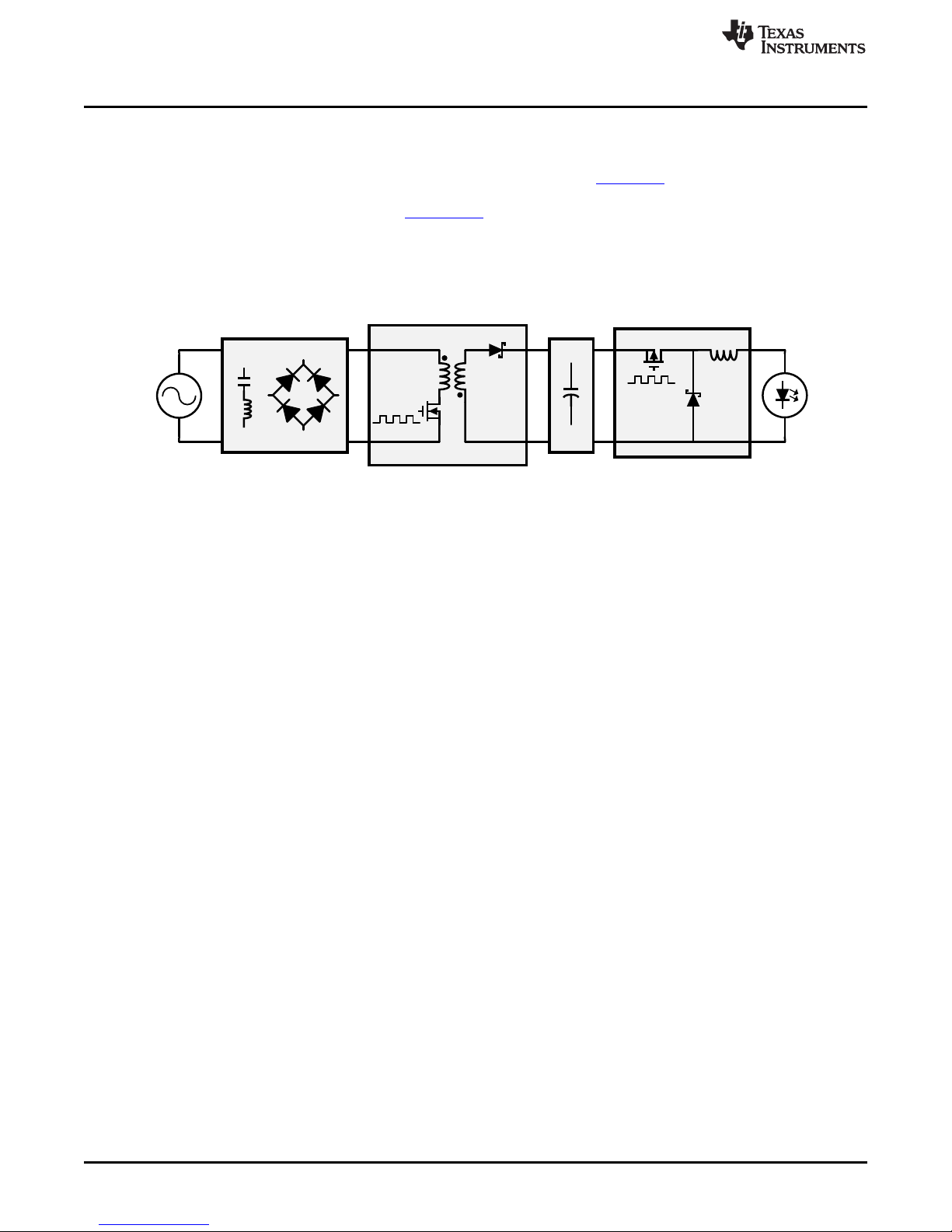

Figure 11. Two-Stage PFC LED Driver

9.1 1ST Stage - CRM Flyback

The first stage of the evaluation board shown in Figure 11 is a critical conduction mode (CRM) flyback

converter controlled with the LM3450A. CRM converters operate at the boundary of continuous conduction

mode (CCM) and discontinuous conduction mode (DCM). CRM is implemented by turning on the main

switching FET (Q3) until the primary current rises to a peak threshold. Q3 is then turned off and the

current falls until a zero crossing is detected. At this point, Q3 is turned on and the cycle repeats.

In the CRM flyback PFC application, the rectified AC input is fed forward to the control loop, yielding a

sinusoidal peak current threshold. This peak threshold creates a sinusoidal primary peak current envelope

IP-pk as shown in Figure 12. The secondary peak current envelope IS-pk will simply be a scaled version of

the primary according to the turns ratio of the transformer. Assuming good attenuation of the switching

ripple via the EMI filter, the average input current IIN(t), shown in red, can also be approximated as a

sinusoid. Since the input current has the same shape and phase as the input voltage, high power factor

(PF) can easily be achieved.

8AN-2150 LM3450A Evaluation Board SNVA485B–June 2011–Revised May 2013

Submit Documentation Feedback

IIN-PK

IP-PK

IS-PK

tON TSW

www.ti.com

Design Information

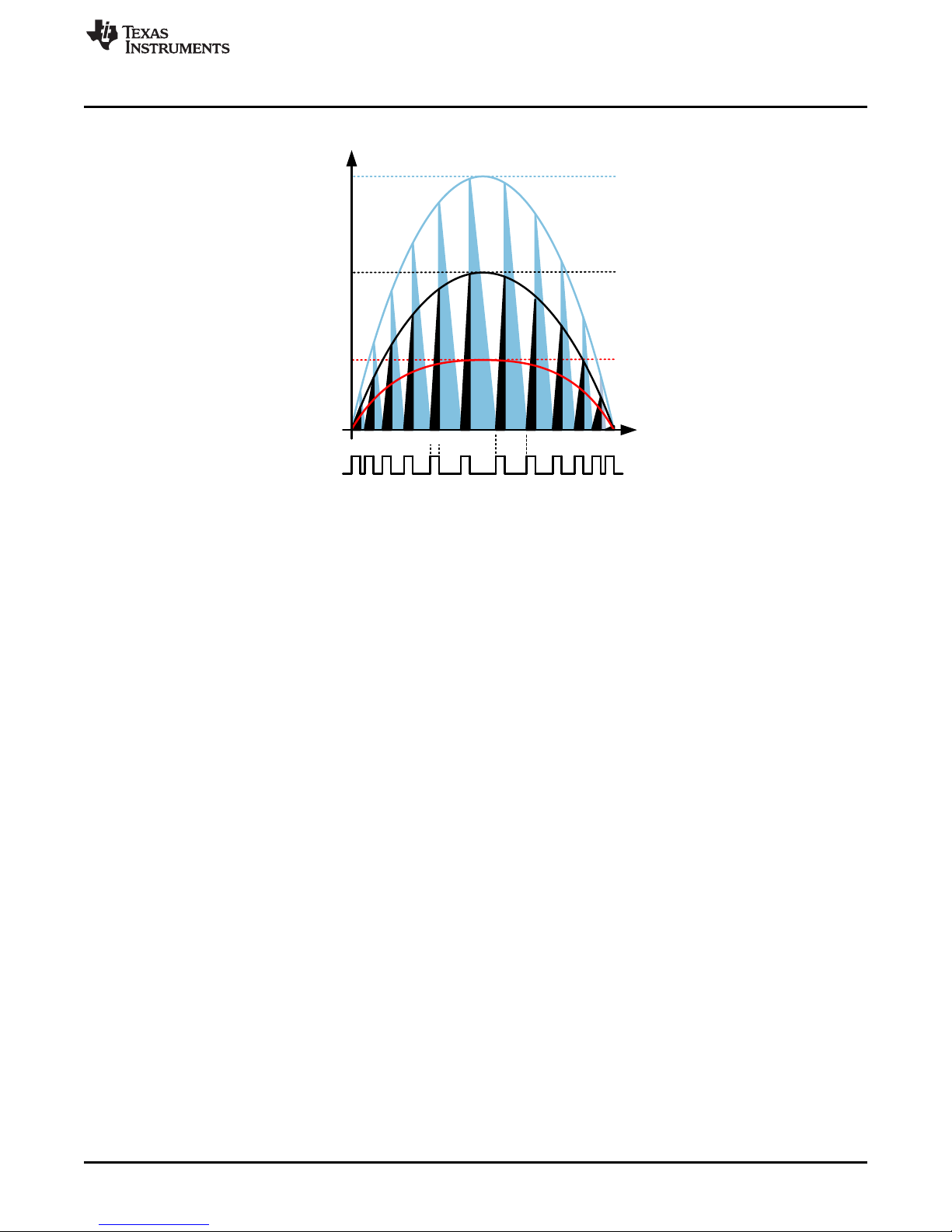

Figure 12. CRM Flyback Current Waveforms

The input current shaping happens instantly in CRM due to the feed-forward mechanism; however, the

converter must also regulate the flyback output voltage with a traditional feedback loop. This is

accomplished with a narrow bandwidth error amplifier coupled with energy storage capacitance at the

output to limit the twice line frequency ripple. The output of the error amplifier is multiplied with the scaled

rectified AC voltage to achieve both input current shaping and output voltage regulation. Refer to the

datasheet for a more detailed explanation of the power factor controller.

The LM3450A also has a phase decoder that interprets the phase dimming angle and maps it to a 500Hz

PWM open-drain output at the DIM pin. This signal is directly connected to an opto-isolator to send across

the isolation boundary to the second stage LED driver. In addition, the LM3450A provides a dynamic hold

circuit to ensure that the holding current requirement is satisfied in forward phase dimmers. Refer to the

datasheet for a more detailed explanation of the phase dimmer decoder.

9.2 2ND Stage - Buck LED Driver

The second stage of the evaluation board is a buck LED driver controlled with the LM3409HV. The input

to this stage is the flyback output voltage and the output is a regulated constant current of 700mA to a

stack of <45V of LEDs. The LM3409HV is a hysteretic PFET controller using peak current detection and a

constant off-timer to provide regulated LED current with a constant switching frequency ripple. Coupled

with the flyback energy storage capacitance, the LM3409HV is able to remove all 120HZ ripple content

from the LED output. The 500Hz PWM signal from the first stage is used as the dimming input to the

LM3409HV. The output of the opto-isolator is connected directly to the EN pin of the LM3409HV to provide

a PWM dimmed LED current according to the detected phase angle at the primary.

The LM3409HV design is not included in this document. Refer to AN-1953 for a detialed design

procedure. The specifications for the second stage are:

• Nominal Input Voltage = 50V

• Regulated LED Current = 700mA

• Nominal LED Stack Voltage = 45V

• Switching Frequency at Nominal Input = 100kHz

• Inductor/LED Current Ripple = 115mA

9.3 CRM Flyback Converter

Operating Points

SNVA485B–June 2011–Revised May 2013 AN-2150 LM3450A Evaluation Board

Design Information

www.ti.com

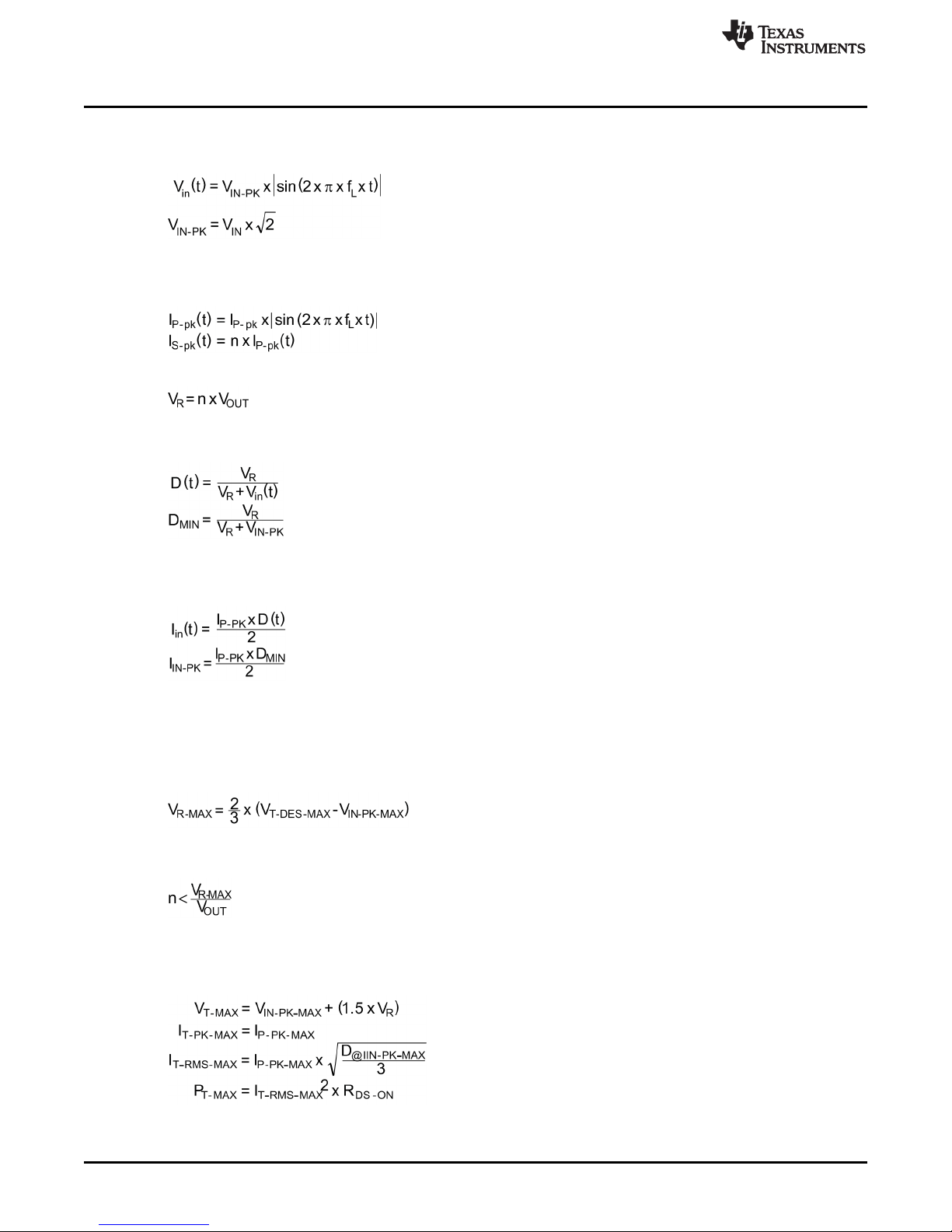

The AC mains voltage, at the line frequency fL, is assumed to be perfectly sinusoidal and the diode bridge

ideal. This yields a perfect rectified sinusoid at the input to the flyback. The input voltage Vin(t) is defined in

terms of the peak input voltage:

(1)

The controller and the transformer are also assumed to be ideal. These assumptions yield a sinusoidal

peak primary current envelope IP-pk(t) and peak secondary current envelope IS-pk(t) as shown in Figure 12.

Both are defined in terms of the peak primary current:

(2)

The output voltage reflected to the primary is defined:

(3)

CRM control yields a variable duty cycle over a single line cycle with a minimum occurring at the peak

input voltage:

(4)

The resulting sinusoidal average input current Iin(t), shown in Figure 12, is approximated as the average of

each triangular current pulse during a switching period. The peak input current occurs at the peak primary

current:

(5)

Turns Ratio

The first thing to decide with an isolated design is the desired transformer turns ratio. This should be

based on the specified output voltage and the maximum peak input voltage. Frequently the MosFET is

already chosen for a design, given its cost and availability. With a desired MosFET voltage, the maximum

reflected voltage at the primary is calculated:

(6)

Generally, an integer turns ratio is selected to achieve a reflected voltage at or below the defined

maximum:

(7)

Switching MosFET

The main switching MosFET (Q3) can be sized as desired; to block the maximum drain-to-source voltage,

operate at the maximum RMS current, and dissipate the maximum power:

(8)

The peak current limit should be at least 25% higher than the maximum peak input current:

10 AN-2150 LM3450A Evaluation Board SNVA485B–June 2011–Revised May 2013

Submit Documentation Feedback

Tabla de contenidos

Otros manuales de Placa madre de Texas Instruments

Texas Instruments

Texas Instruments bqSWITCHER bq241 EVM Series Manual de usuario

Texas Instruments

Texas Instruments TPS71401DRVEVM-426 Manual de usuario

Texas Instruments

Texas Instruments DS90UB960-Q1EVM Manual de usuario

Texas Instruments

Texas Instruments TCA9536EVM Manual de usuario

Texas Instruments

Texas Instruments ADS9110EVM-PDK Manual de usuario

Texas Instruments

Texas Instruments TMDSCNCD263-PMIC Manual de usuario

Texas Instruments

Texas Instruments AFE7070 Manual de usuario

Texas Instruments

Texas Instruments LMP92066 Manual de usuario

Texas Instruments

Texas Instruments TMAG5123EVM Manual de usuario

Texas Instruments

Texas Instruments DAC7741EVM Manual de usuario

Texas Instruments

Texas Instruments SN65LV1021 Manual de usuario

Texas Instruments

Texas Instruments BQ77216 Manual de usuario

Texas Instruments

Texas Instruments DS90UB96X-Q1EVM Manual de usuario

Texas Instruments

Texas Instruments LM5180-Q1 Manual de usuario

Texas Instruments

Texas Instruments BQ25170EVM Manual de usuario

Texas Instruments

Texas Instruments TMAG5110-5111EVM Manual de usuario

Texas Instruments

Texas Instruments DS560MB410EVM Manual de usuario

Texas Instruments

Texas Instruments LP8752 Q1 Series Manual de usuario

Texas Instruments

Texas Instruments DRV8303EVM Manual de usuario

Texas Instruments

Texas Instruments UCC2351 Series Manual de usuario

Texas Instruments

Texas Instruments DS90UB933-Q1EVM Manual de usuario

Texas Instruments

Texas Instruments LMH9235 Manual de usuario

Texas Instruments

Texas Instruments DAC348 Series Manual de usuario

Texas Instruments

Texas Instruments TPS53129EVM-621 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
