User's Guide

SLLU213–February 2015

SN65LVPE512 EVM

The SN65LVPE512 is a dual-channel, single lane USB 3.0 redriver and signal conditioner that supports

data rates of 5 Gbps. This document explains how to use the LVPE512 EVM to easily evaluate the

functionality of this device in various applications.

This EVM acts as a modifiable reference design for the SN65LVPE512 that allows this device to be used

in a wide variety of applications and configurations. Table 1 explains how to modify these configuration

settings by using the switches on the EVM. Example applications for this device include notebooks,

desktops, docking stations, servers, and workstations. Schematics, printed-circuit-board (PCB) layout

images, and a bill of materials (BOM) for this module are included in this user's guide.

Contents

1 Introduction ................................................................................................................... 2

2 LVPE512 Evaluation Module............................................................................................... 2

3 Kit Contents................................................................................................................... 2

3.1 Operational Description of EVM .................................................................................. 2

4 PCB Construction............................................................................................................ 3

4.1 EVM Board Schematics............................................................................................ 3

4.2 EVM PCB Layout ................................................................................................... 6

4.3 EVM PCB Fabrication.............................................................................................. 8

5 EVM Bill of Materials ........................................................................................................ 8

List of Figures

1 Schematic of High Speed Pins............................................................................................. 3

2 Schematic of EQ Control Pins ............................................................................................. 4

3 Schematic of Device Control Pins......................................................................................... 4

4 Schematic of Power Pins ................................................................................................... 5

5 PCB Layout of Top Layer................................................................................................... 6

6 PCB Layout Second Layer ................................................................................................. 6

7 PCB Layout of Third Layer ................................................................................................. 7

8 PCB Layout of Bottom Layer............................................................................................... 7

List of Tables

1 Configuration of EVM........................................................................................................ 2

2 Suggested Default Settings ................................................................................................ 3

3 SN65LVPE512 EVM Bill of Materials ..................................................................................... 8

SLLU213–February 2015 SN65LVPE512 EVM

Introduction

www.ti.com

1 Introduction

The SN65LVPE512 is a dual-channel, single lane USB 3.0 redriver and signal conditioner supporting data

rates of 5 Gbps. The device complies with USB 3.0 specification revision 1.0, supporting electrical idle

condition and low-frequency periodic signals (LFPS) for USB 3.0 power management modes.

The SN65VLPE512 minimizes signal degradation effects such as crosstalk and inter-symbol interference

(ISI) that limit interconnect distance between two devices. The input stage of each channel offers

adjustable equalization that compensates for the distortion the USB 3.0 input signal experienced. The

output stage offers adjustable de-emphasis that will compensate for distortion the output signal will

experience. The optimal equalization and de-emphasis levels will depend on the length of the input and

output interconnections. The SN65VLPE512 provides a unique way to tailor output de-emphasis on a per-

channel basis with use of the DE and OS pins. All TX and RX equalization and de-emphasis settings are

programmed by six 3-state pins as shown in Table 1.

2 LVPE512 Evaluation Module

This sections contains the kit contents and operational description of the EVM as well as configuration

instructions and suggested default settings.

3 Kit Contents

• 1 SN65LVPE512 Evaluation Module

• This user manual

3.1 Operational Description of EVM

This EVM facilitates the simple evaluation of the LVPE512 USB 3.0 redriver by providing an easy and

efficient method for changing the configuration settings of the device. Physical switches on the EVM are

used to modify these settings by altering the state of the programmable 3-state configuration pins. Further

information on how to use these switches to configure the device is found in Table 1.

The EVM board includes one USB 3.0 plug and one USB 3.0 receptacle to allow for device

interconnections. The EVM board is powered by a 3.3-V supply voltage, which is derived from the internal

VBUS power supply of the USB connection, therefore, no external power source is required for the EVM

to operate.

Table 1. Configuration of EVM

Switch Pin Description Switch Position and Corresponding Setting

SW1 DE1 (De-emphasis channel 1) 1: –3.5 dB

2: 0 dB

3: –6.0 dB

SW2 EQ1 (Equalization channel 1) 1: 7 dB

2: 0 dB

3: 15 dB

SW3(1) OS1 (Output swing channel 1) 1: 1105 mVpp

2: 1241 mVpp

3: 1324 mVpp

SW4 DE2 (De-emphasis channel 2) 1: –3.5 dB

2: 0 dB

3: –6.0 dB

SW5 EQ2 (Equalization channel 2) 1: 7 dB

2: 0 dB

3: 15 dB

SW6(1) OS2 (Output swing channel 2) 1: 1105 mVpp

2: 1241 mVpp

3: 1324 mVpp

SW7 EN_RXD 1: Enabled

2: N/A (two position switch)

3: Sleep Mode

(1) SW3, SW6 have incorrectly labeled settings on their silkscreen.

2SN65LVPE512 EVM SLLU213–February 2015

Submit Documentation Feedback

www.ti.com

PCB Construction

Table 1. Configuration of EVM (continued)

Switch Pin Description Switch Position and Corresponding Setting

SW9 Power source selection 1: 3.3 V from Regulator

2: N/A (two position switch)

3: VCC from external source on JMP1

SW10 NC N/A

Table 2. Suggested Default Settings

Switch Pin Description Switch Position and Corresponding Setting

SW1 DE1 (De-emphasis channel 1) 2: 0 dB

SW2 EQ1 (Equalization channel 1) 2: 0 dB

SW3 OS1 (Output swing channel 1) 2: 1241 mVpp

SW4 DE2 (De-emphasis channel 2) 2: 0 dB

SW5 EQ2 (Equalization channel 2) 2: 0 dB

SW6 OS2 (Output swing channel 2) 2: 1241 mVpp

SW7 EN_RXD 1: Enabled

SW9 Power source selection 1: 3.3 V from USB VBUS

SW10 NC N/A

4 PCB Construction

This section contains the EVM board schematics and the PCB board layouts.

4.1 EVM Board Schematics

Figure 1 through Figure 4 illustrate the SN65LVPE512 EVM schematics.

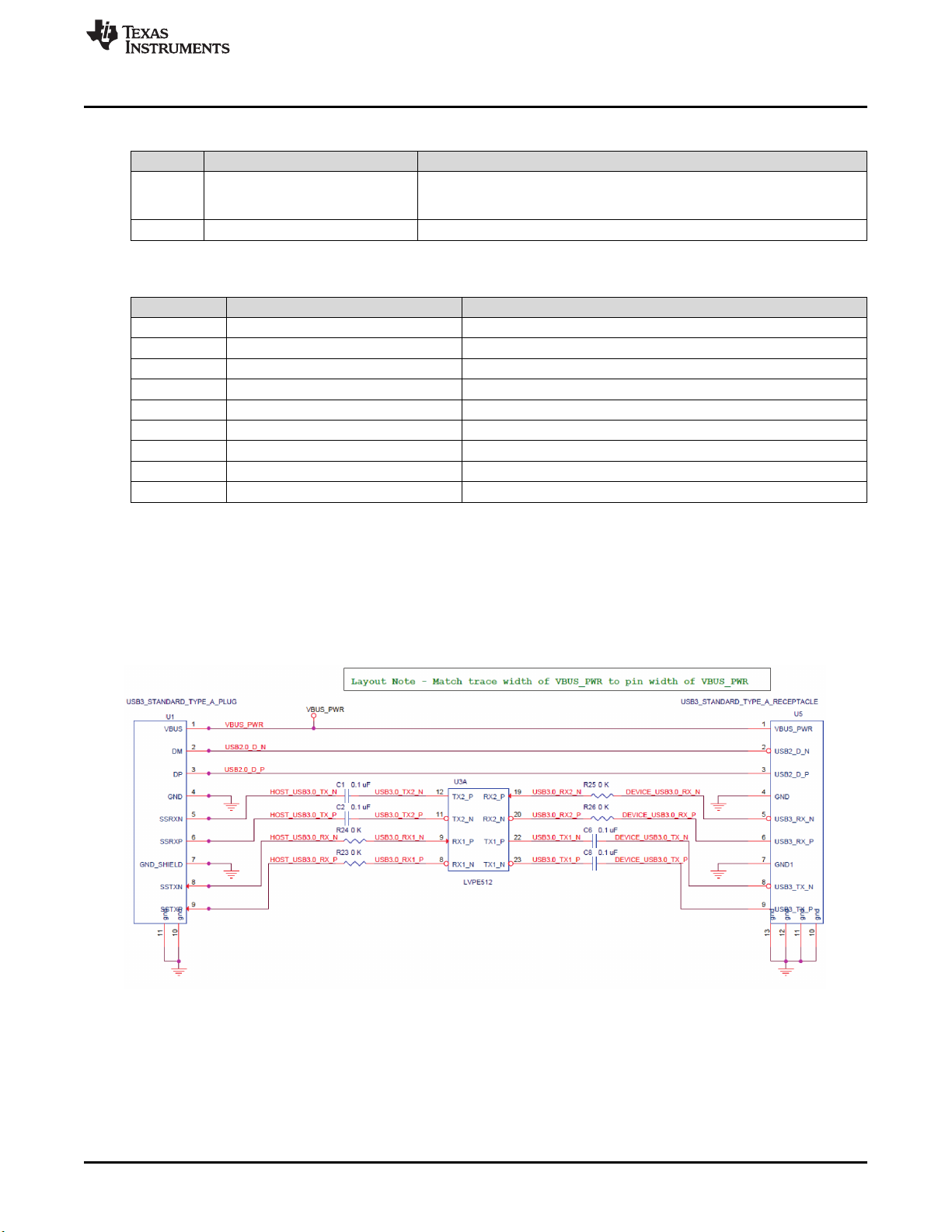

Figure 1. Schematic of High Speed Pins

SLLU213–February 2015 SN65LVPE512 EVM

PCB Construction

www.ti.com

Figure 2. Schematic of EQ Control Pins

Figure 3. Schematic of Device Control Pins

4SN65LVPE512 EVM SLLU213–February 2015

Submit Documentation Feedback

www.ti.com

PCB Construction

Figure 4. Schematic of Power Pins

SLLU213–February 2015 SN65LVPE512 EVM

PCB Construction

www.ti.com

4.2 EVM PCB Layout

Figure 5 through Figure 8 illustrate the SN65LVPE512 PCB layouts.

Figure 5. PCB Layout of Top Layer

Figure 6. PCB Layout Second Layer

6SN65LVPE512 EVM SLLU213–February 2015

Submit Documentation Feedback

www.ti.com

PCB Construction

Figure 7. PCB Layout of Third Layer

Figure 8. PCB Layout of Bottom Layer

SLLU213–February 2015 SN65LVPE512 EVM

PCB Construction

www.ti.com

4.3 EVM PCB Fabrication

The EVM board is a 4-layer board constructed of FR4-PolyClad 370 material. The board consists of a

signal layer on top, a ground layer, a power layer, and another signal layer on the bottom. The impedance

of the differential traces is 100 Ω. Other traces have an impedance of 50 Ω.

NOTE: In order to achieve the desired impedance, it is recommended that you consult your board

manufacturer for their process and design requirements.

5 EVM Bill of Materials

Table 3 lists the SN65LVPE512 EVM BOM.

Table 3. SN65LVPE512 EVM Bill of Materials

QTY Reference Value Digi-Key P/N PCB Footprint Manufacturer P/N

4 C1, C2, C6, C8 0.1 µF 490-3167-2-ND cc0201 GRM033R60J104KE19D

4 C15, C16, C22, 1.0 µF 490-1320-2-ND cc0402 GRM155R60J105KE19D

C23

4 C17, C24, C27, 0.1 µF 587-1227-2-ND cc0402 LMK105BJ104KV-F

C29

2 C18,C25 0.01 µF 399-1011-2-ND cc0402 C0402C100J5GACTU

1 C28 10 µF 587-3383-2-ND cc0603 JMK107ABJ106MAHT

1 JMP1 Header 2x1 10046483-202HLF-ND berg2 10046483-202HLF

6 R2 ,R3, R6, R7, 4.98 K 311-4.99KHRCT-ND r0603 RC0603FR-074K99L

R10, R11

2 R14, R27 4.98 K DNI 311-4.99KHRCT-ND r0603 RC0603FR-074K99L

4 R23, R24, R25, 0 K 311-0.0GRCT-ND r0603 RC0603JR-070RL

R26

6 SW1–SW6 Switch CJS-1201 563-1023-1-ND CJS-1200B CJS-1201TA

3 SW7, SW9, SW10 Switch CJS-1200 563-1022-1-ND CJS-1200B CJS-1200TB

1 U1 USB3_STANDARD_ 732-3157-ND usb3_plug_wurth_elektronik 6.92112E+11

TYPE_A_PLUG

1 U3 LVPE512 SN65LVPE512RMQR-ND 24QFN04_0_50 SN65LVPE512RMQR

1 U4 REG104A-33 REG104GA-3.3-ND DCQ_R-PDSO-G6 REG104GA-3.3

1 U5 USB3_STANDARD_ 732-3148-1-ND usb3_recpt_wurth_elektronik 6.92121E+11

TYPE_A_RECEPTACLE

8SN65LVPE512 EVM SLLU213–February 2015

Submit Documentation Feedback
