SLUU172 − October 2003

4Evaluation Modules for −48-V Hot Swap Controllers

Evaluation Modules for −48-V Hot Swap Controllers

Systems Pow

Contents

1 Introduction 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 The −48-V Hot Swap Controller EVM 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Getting Started 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Using the Evaluation Modules to Evaluate the TPS2398 and TPS2399 12. . . . . . . . . . . . . . . . . .

1 Introduction

This User’s Guide describes the use and features of the simple −48-V hot swap evaluation

module (EVM). This EVM can be used to learn about the TPS2398 and TPS2399 hot swap

controller integrated circuits (ICs) from Texas Instruments (TI). The TPS2398 and TPS2399 are

negative voltage hot swap controllers intended for use in systems needing to hot swap telecom

distribution-level voltages. They integrate inrush current control, peak current limiting, electronic

circuit breaker, enable input, and current fault indication. The EVM is a PCB-based tool featuring

either device, and can be used to evaluate device operation in simulated live insertion events.

1.1 Features

The following list highlights some of the features of the TPS2398 and TPS2399.

•Wide input supply range of −36 V to −80 V

•Transient rating to −100 V

•Programmable current limit

•Programmable current slew rate

•Enable input (EN)

•Fault timer to eliminate nuisance trips

•Open-drain power good output (PG)

•8-pin MSOP package

SLUU172 − October 2003

Evaluation Modules for −48-V Hot Swap Controllers

1.2 Description

The TPS2398 and TPS2399 simple −48-V hot swap controllers are integrated solutions

optimized for use in nominal −48-V systems. They are used in conjunction with an external

N-channel MOSFET and sense resistor to enable hot swap, the insertion and removal of plug-in

cards or modules in powered systems. Both devices feature inrush current slew rate and peak

magnitude limiting, which are easily programmed by the sense resistor value, and a single

external capacitor. They facilitate implementation of platform control of the electrical connection

or isolation of the protected load, and provide single-line load fault reporting. An on-chip timer,

also set by a single capacitor, provides filtering against nuisance breaker trips. These features

are all incorporated into a tiny 8-pin MSOP package.

The TPS2398 latches off in response to current faults. The TPS2399 periodically retries the

load, to test for the continued existence of a fault.

2 The −48-V Hot Swap Controller EVM

2.1 Module Description

The −48-V hot swap EVM contains all the components needed to implement a complete telecom

hot swap interface. In addition, it contains some additional components and PCB patterns to

facilitate evaluation of the device.

Banana jacks are provided for connection of the user’s power supply. On the switched side of

the hot swap circuit, jacks are also provided for connection of the user’s electronic or resistive

load, if desired. The board also contains two through-hole patterns for the installation of

large-value aluminum electrolytic capacitors. This capacitance is used to simulate the input bulk

capacitance present at a plug-in’s power inputs. The EVM is supplied from the factory with a

100-µF capacitor installed in one of the locations. The second pattern, connected in parallel with

the first, can be used to increase or otherwise modify the amount of load capacitance.

From the input power jacks, power is applied to the hot swap circuit via a toggle switch

connected in-line with the high-side of the power bus. Bounce of the switch contacts helps the

user observe the response of the devices under power-up conditions resembling those of an

actual application. An on-board slide switch is also provided to independently toggle the status

of the device enable input (EN pin).

With the TPS2398 and TPS2399, both inrush slew rate limiting and a fault time-out period are

externally programmable using capacitors. On the EVM, several options are provided for slew

rate limiting, for quick comparison of the effect of capacitor value on this function. The capacitors

can be quickly switched in and out of the circuit via the DIP switch. Fault timing programming is

set up in a similar manner; some amount of capacitance is hard-wired into the circuit, with the

option of switching in additional capacitance.

Test points are provided throughout the circuit for easy voltage monitoring via oscilloscope or

voltmeter. The test point connections are listed in Table 4.

A pictorial of the −48−V hot swap EVM is shown in Figure 1.

SLUU172 − October 2003

6Evaluation Modules for −48-V Hot Swap Controllers

Figure 1. Evaluation Module Top Assembly

2.2 EVM Schematic Diagram and List of Materials

The EVM schematic diagram is shown in Figure 2.

SLUU172 − October 2003

Evaluation Modules for −48-V Hot Swap Controllers

RTN

GATE

ISNS

−VIN

FLTTME

IRAMP

TP7

TP6

+ +

TP13

TP14

TP15

TP16

VOUT

−

TP4

TP3

USER C1

1000 pF

12345

SW1

TP1

USER

TP2

OFF

ENABLE

TP12TP10

−48 V_IN

TP8

TP11TP9

S1 OFF

−48 V_RTN

TP5

POWER

100 µF

100 V

100 µF

100 V

20 kΩ

1 W

20 mΩ

0.5 W

0.01 µF

0.047 µF

0.1 µF

0.082 µF

7.32 kΩ

1/8 W, 1%

200 kΩ

1/8 W,

12 kΩ

1 W

20 kΩ

1 W

UDG−03018

TPS2398DGK

TPS2399DGK

Power Good

IRF530S

1Not installed on −001 or −002 assemblies.

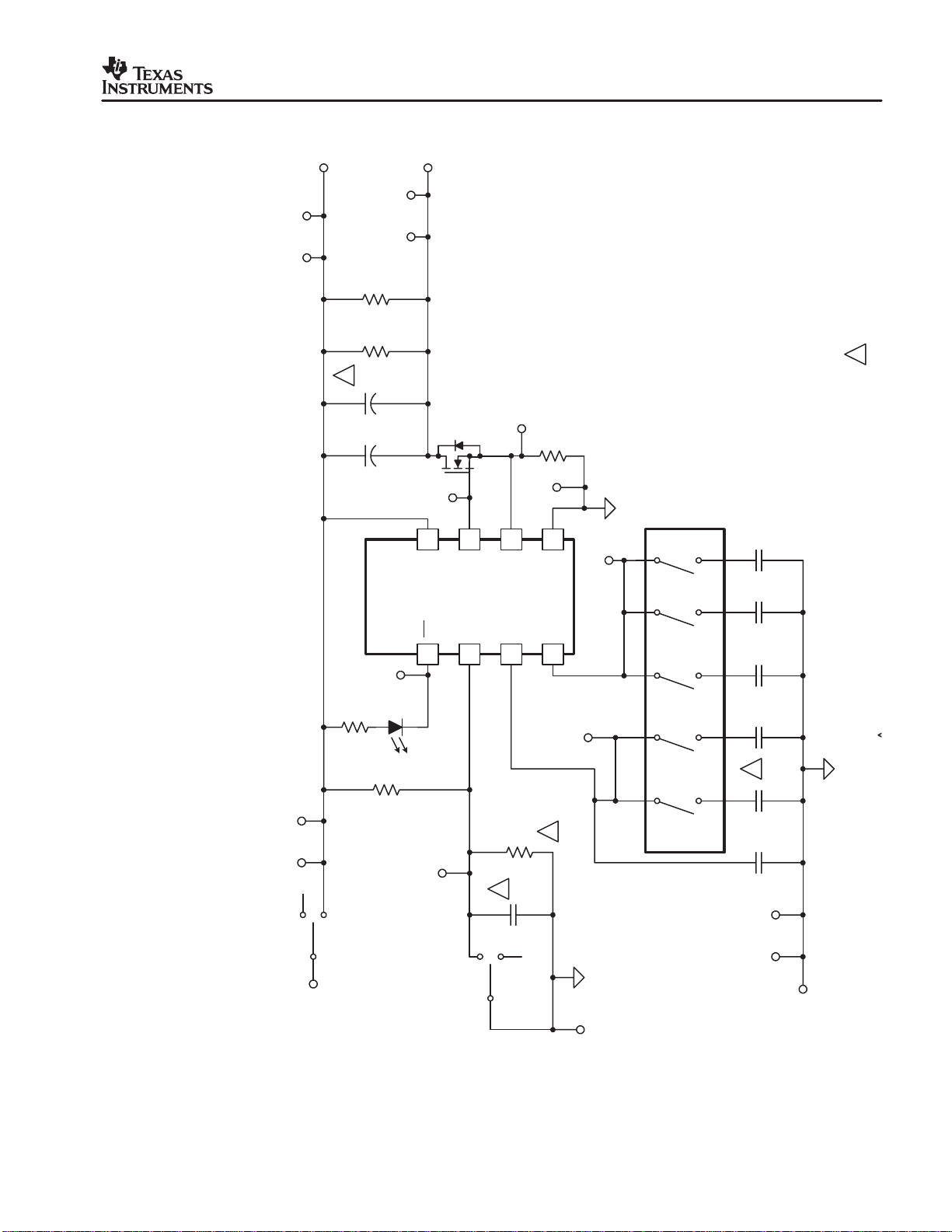

Figure 2. −48-V Hot Swap Evaluation Module Schematic

SLUU172 − October 2003

8Evaluation Modules for −48-V Hot Swap Controllers

Table 1. List of Materials

REFERENCE

QUANTITY

DESCRIPTION

MANUF

PART NUMBER

REFERENCE

DESIGNATOR −002 −001

DESCRIPTION

MANUF

PART NUMBER

U1 1 − IC, −48-V Hot Swap Controller, w/Retry Texas

Instruments TPS2399DGK

U1 − 1 IC, −48-V Hot Swap Controller, Latching Texas

Instruments TPS2398DGK

TP1−TP4, TP6,

TP7, TP9, TP11,

TP13, TP15 10 10 Jack Test Point, red Farnell 240−345

TP5, TP8, TP10,

TP12, TP14,

TP16 6 6 Jack, test point, black Farnell 240−333

S1 1 1 Switch, toggle, SPDT, PC Mnt. E−Switch 100SP1T1B1M2QE

S2 1 1 Switch, slide, SPDT, right angle, 200 mA E−Switch EG1213

SW1 1 1 Switch, dip, 5-position, SPST CTS 219−05MS

R1 1 1 Resistor, 200 kΩ, 0.125W, 1% Panasonic ERJ−8ENF2003

R2 − − Resistor, 0.125W, 1% Standard Standard

R3 1 1 Resistor, 12 kΩ, 1W, 5% Venkel CR2512−1W123J

R4 1 1 Resistor, 0.02 Ω, 0.5W, 1% Vishay−Dale WSL−2010 .020<1%

R5, R6 2 2 Resistor, 20 kΩ, 1W, 5% Venkel CR2512−1W203J

Q1 1 1 XSTR, MOSFET, N−channel, V(BR) > 100V Int’l Rectifier IRF530S

J1, J2, J3, J4 4 4 Jack, banana, non-insulated, PC mount Pomona 3267

D1 1 1 Diode, LED, green Panasonic LN1361C

C1 1 1 Capacitor, ceramic, 1000 pF, 25 V, 10%, X7R Vitramon VJ0805Y102KXXA

C2 1 1 Capacitor, ceramic, 0.01 µF, 16 V, 10%, X7R Vitramon VJ0805Y103KXJA

C3 1 1 Capacitor, ceramic, 0.047 µF, 16 V, 10%, X7R Vitramon VJ0805Y473KXJA

C4 1 1 Capacitor, ceramic, 0.1 µF, 16 V, 10%, X7R Vitramon VJ0805Y104KXJA

C5 − − Capacitor, ceramic, 0805 Standard Standard

C6 1 1 Capacitor, aluminum. electrolytic, 100 µF, 100 V, 20% Vishay EKA00DE310L00

C7 − − Capacitor, aluminum. electrolytic, 100 µF, 100 V, 20% Vishay EKA00DE310L00

C8 − − Capacitor, ceramic, 1206 Standard Standard

C9 1 1 Capacitor, ceramic, 0.082 µF, 16 V, 10%, X7R Vitramon VJ0805Y823KXJA

N/A 4 4 Spacer, nylon, hex, #6−32, 0.625” Eagle 14HTSP020

N/A 4 4 Screw, nylon, round head, #6−32, 0.25” Eagle 010632R025

N/A 1 1 PCB, FR−4, 2−layer, SMOBC, 3.225” x 2.237”, 0.062”

thk. Texas

Instruments HPA024

SLUU172 − October 2003

Evaluation Modules for −48-V Hot Swap Controllers

2.3 −48-V Hot Swap EVM Operating Specifications

The −48−V hot swap EVM is intended to allow some degree of user reconfiguration. This allows

designers to set up the circuit to better represent the characteristics of their target application.

Potential modifications include changing the current limit threshold, the inrush limiting, the fault

timing, and load characteristics. However, under no circumstances should the EVM kit be

operated beyond the absolute maximum conditions specified in Table 2.

Table 2. Absolute Maximum Ratings (1)(2)

PARAMETER MIN MAX UNITS

Input voltage range, J1 −0.3 100 V

Load current, J3 −2.25

Load return current, J4 2.25 A

Ambient operating temperature range −40 85 °C

(1) All voltages are with respect to the PCB −48-V_IN node at J2.

(2) Currents are positive into and negative out of the specified terminal.

As supplied from the factory, the −48-V hot swap EVM is configured for operation under the

following target conditions, shown in Table 3.

Table 3. Recommended Operating Conditions (1)(2)

PARAMETER MIN TYP MAX UNITS

Input supply voltage, J1 36 48 80 V

Nominal load current, J3 −1

Nominal load return current, J4 1A

Operating temperature range −40 85 °C

(1) All voltages are with respect to the PCB −48-V_IN node at J2.

(2) Currents are positive into and negative out of the specified terminal.

3 Getting Started

3.1 Equipment Requirements

The following test equipment is required to use the −48-V hot swap EVM (TPS2398EVM or

TPS2399EVM).

•Power supply, 80 Vdc at 3-A minimum

•Oscilloscope

•Digital voltmeter (DVM)

The individual DIP switches of SW1 are labeled numerically on the PCB silkscreen. Throughout

this document, references to the DIP switches (e.g., SW1−1) apply to these screened labels, not

to any marking on the switch. However, to determine the ON and OFF positions of the switches,

use the labeling on the switch body itself.

SLUU172 − October 2003

10 Evaluation Modules for −48-V Hot Swap Controllers

3.2 Verifying the EVM Operation

The following procedure steps may be used to verify functional operation of the EVM after

receipt.

3.2.1 Equipment Setup

1. On the EVM board, place the POWER switch in the OFF position, and verify that the

ENABLE switch is in the OFF position.

2. Set the DIP switches 1 through 4 of switch SW1 to the ON position.

3. Turn on the power supply and adjust the output for about 48 V. Verify the supply current

limit is set to allow at least 3 A. Turn off the power supply.

4. Connect the EVM and test equipment as shown in Figure 3.

5. On the oscilloscope, set the channel amplifiers to the following scales:

•CH1: 20 V/div

•CH2: 2 V/div

•CH3: 5 V/div

•CH4: 20 V/div

For easier correlation to the information in this document, the scope trace baselines can be

positioned as shown in Figure 4.

6. Set the scope to trigger on the rising edge of Channel 1, at approximately a 10-V level.

Set the scope timebase to 10 ms, and the trigger mode to NORMAL.

UDG−03019

OSCILLOSCOPE

CH 1

CH 2

CH 3

CH 4

POWER

SUPPLY

−+

J2 (−48V_IN)

J1 (−48V_RTN)

TP2

TP4

TP3

TP16

TP15

TP14

TP8/TP12 (GND)

VOLTS COM

DIGITAL

VOLTMETER

−48-V Hot Swap Controller

Evaluation Module

(TPS2398EVM/TPS2399EVM)

Figure 3. Evaluation Module Setup

Este manual sirve para los siguientes modelos

Otros manuales de Unidad de control de Texas Instruments

Texas Instruments

Texas Instruments 2000 series Manual de usuario

Texas Instruments

Texas Instruments DRV2625 Haptics BoosterPack Manual de usuario

Texas Instruments

Texas Instruments DAC38RF8xEVM Series Manual de usuario

Texas Instruments

Texas Instruments LMK00308EVM Manual de usuario

Texas Instruments

Texas Instruments UCC2 5 EVM-286 Series Manual de usuario

Texas Instruments

Texas Instruments TPS6101xEVM-157 Manual de usuario

Texas Instruments

Texas Instruments TPS65320C-Q1-EVM Manual de usuario

Texas Instruments

Texas Instruments TAS2559 Manual de usuario

Texas Instruments

Texas Instruments TMS320C6670 Manual de usuario

Texas Instruments

Texas Instruments BoosterPack IWR1642 Manual de usuario

Texas Instruments

Texas Instruments DRV10974 EVM Manual de usuario

Texas Instruments

Texas Instruments SN65LVDS387EVM Manual de usuario

Texas Instruments

Texas Instruments TPS62866 Manual de usuario

Texas Instruments

Texas Instruments TRF7960TB Manual de usuario

Texas Instruments

Texas Instruments TPS65988EVM Manual de usuario

Texas Instruments

Texas Instruments SWIFT TPS548A20 Manual de usuario

Texas Instruments

Texas Instruments TPSM8282xEVM-080 Manual de usuario

Texas Instruments

Texas Instruments OPT3005DTSEVM Manual de usuario

Texas Instruments

Texas Instruments DAC5652AEVM Manual de usuario

Texas Instruments

Texas Instruments ADS5231 EVM Manual de usuario

Texas Instruments

Texas Instruments THS1030/31EVM Manual de usuario

Texas Instruments

Texas Instruments AFE5818 Manual de usuario

Texas Instruments

Texas Instruments HD3SS3220 Manual de usuario

Texas Instruments

Texas Instruments TCA8424 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
