INA901EVM-CVAL Evaluation Module User's Guide

User's Guide

SBOU216A–October 2018–Revised June 2020

INA901EVM-CVAL Evaluation Module User's Guide

This user’s guide describes the characteristics, operation, and use of the INA901EVM-CVAL evaluation

module (EVM). This EVM is designed to evaluate the performance of the INA901-SP voltage-output,

current shunt monitor in a variety of configurations. Throughout this document, the terms evaluation board,

evaluation module, and EVM are synonymous with the INA901EVM-CVAL. This document also includes a

schematic, reference printed-circuit board (PCB) layouts, and a complete bill of materials (BOM).

WARNING

Danger: HIGH VOLTAGE! This evaluation board is intended for

professional use only. It has exposed high voltages. Do not

operate this board without proper high-voltage/high-current safety

practices. Read the General Texas Instruments High Voltage

Evaluation (TI HV EVM) User Safety Guidelines section before using

the EVM.

www.ti.com

2SBOU216A–October 2018–Revised June 2020

Submit Documentation Feedback

INA901EVM-CVAL Evaluation Module User's Guide

Contents

1 General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines ...................... 3

2 Overview...................................................................................................................... 4

2.1 INA901-SP Overview............................................................................................... 4

2.2 INA901EVM-CVAL Overview ..................................................................................... 4

2.3 EVM Kit Contents................................................................................................... 4

2.4 Related Documentation From Texas Instruments.............................................................. 4

3 Hardware...................................................................................................................... 5

3.1 Features.............................................................................................................. 5

4 Operation ..................................................................................................................... 5

4.1 Warnings............................................................................................................. 5

4.2 Quick Start Setup................................................................................................... 5

4.3 Measurements ...................................................................................................... 6

5 EVM Components.......................................................................................................... 10

5.1 Input Current....................................................................................................... 10

5.2 Input Filter Options................................................................................................ 10

5.3 First Order and Sallen Key Filter Options ..................................................................... 10

5.4 Comparator......................................................................................................... 10

5.5 Unused Comparator Channel and Best Practices ............................................................ 10

5.6 Comparator Disconnect .......................................................................................... 10

6 Schematic, PCB Layout, and Bill of Materials.......................................................................... 11

6.1 INA901EVM-CVAL Schematics ................................................................................. 11

6.2 PCB Layer Plots................................................................................................... 12

6.3 Bill of Materials .................................................................................................... 16

List of Figures

1 High-Side Setup Using Onboard Shunt Resistor ....................................................................... 7

2 High-Side Setup Using An External Shunt Resistor .................................................................... 8

3 Supply Setup for Common and Differential Voltage .................................................................... 9

4 INA901EVM-CVAL Schematic ........................................................................................... 11

5 INA901EVM-CVAL Top Overlay ......................................................................................... 12

6 INA901EVM-CVAL Top Copper.......................................................................................... 13

7 INA901EVM-CVAL Bottom Copper...................................................................................... 14

8 INA901EVM-CVAL Bottom Overlay...................................................................................... 15

List of Tables

1 INA901EVM-CVAL Kit Contents........................................................................................... 4

2 INA901EVM-CVAL Bill of Materials ..................................................................................... 16

Trademarks

All trademarks are the property of their respective owners.

WARNING

www.ti.com

General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines

SBOU216A–October 2018–Revised June 2020

INA901EVM-CVAL Evaluation Module User's Guide

1 General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines

Always follow TI’s setup and application instructions, including use of all interface components within their

recommended electrical rated voltage and power limits. Always use electrical safety precautions to help

ensure your personal safety and those working around you. Contact TI's Product Information Center

http://support/ti./com for further information.

Save all warnings and instructions for future reference.

WARNING

Failure to follow warnings and instructions may result in personal injury,

property damage or death due to electrical shock and burn hazards.

The term TI HV EVM refers to an electronic device typically provided as an open framed, unenclosed

printed circuit board assembly. It is intended strictly for use in development laboratory environments,

solely for qualified professional users having training, expertise and knowledge of electrical safety risks in

development and application of high voltage electrical circuits. Any other use and/or application are strictly

prohibited by Texas Instruments. If you are not suitable qualified, you should immediately stop from further

use of the HV EVM.

1. Work Area Safety

a. Keep work area clean and orderly.

b. Qualified observer(s) must be present anytime circuits are energized.

c. Effective barriers and signage must be present in the area where the TI HV EVM and its interface

electronics are energized, indicating operation of accessible high voltages may be present, for the

purpose of protecting inadvertent access.

d. All interface circuits, power supplies, evaluation modules, instruments, meters, scopes and other

related apparatus used in a development environment exceeding 50Vrms/75VDC must be

electrically located within a protected Emergency Power Off EPO protected power strip.

e. Use stable and nonconductive work surface.

f. Use adequately insulated clamps and wires to attach measurement probes and instruments. No

freehand testing whenever possible.

2. Electrical Safety

As a precautionary measure, it is always a good engineering practice to assume that the entire EVM

may have fully accessible and active high voltages.

a. De-energize the TI HV EVM and all its inputs, outputs and electrical loads before performing any

electrical or other diagnostic measurements. Revalidate that TI HV EVM power has been safely

de-energized.

b. With the EVM confirmed de-energized, proceed with required electrical circuit configurations,

wiring, measurement equipment connection, and other application needs, while still assuming the

EVM circuit and measuring instruments are electrically live.

c. After EVM readiness is complete, energize the EVM as intended.

WARNING

While the EVM is energized, never touch the EVM or its electrical

circuits, as they could be at high voltages capable of causing electrical

shock hazard.

Overview

www.ti.com

4SBOU216A–October 2018–Revised June 2020

Submit Documentation Feedback

INA901EVM-CVAL Evaluation Module User's Guide

3. Personal Safety

a. Wear personal protective equipment (for example, latex gloves or safety glasses with side shields)

or protect EVM in an adequate lucent plastic box with interlocks to protect from accidental touch.

Limitation for safe use:

EVMs are not to be used as all or part of a production unit.

2 Overview

2.1 INA901-SP Overview

The INA901-SP is a space-grade, radiation-hardness-assured (RHA) current-sense amplifier. It can sense

drops across shunt resistors at common-mode voltages from –15 V to +65 V, independent of the supply

voltage. The INA901-SP operates from a single +2.7-V to +16-V supply, drawing 700 μA (typical) of supply

current. The voltage output has a gain of 20 V/V with a typical gain error of ±0.2%. The device is specified

over the extended operating temperature range of –55°C to +125°C, QML-V qualified and is offered in an

8-pin CFP package.

2.2 INA901EVM-CVAL Overview

The INA901EVM-CVAL is designed to demonstrate the functionality and performance of the INA901-SP.

The board contains a footprint for a size 2512 surface mount shunt resistor. It can also be operated with

an external shunt resistor or by simply applying differential voltages to the inputs.

The board also comes equipped with a space-grade LM193AJRLQMLV-SP dual comparator, which is

used to configure the EVM as an over current detector.

2.3 EVM Kit Contents

Table 1 summarizes the contents of the INA901EVM-CVAL kit. Contact the Texas Instruments Product

Information Center nearest you if any component is missing. TI also recommends checking the INA901

device product folder at www.ti.com for any further information regarding this product.

Table 1. INA901EVM-CVAL Kit Contents

Item Item Part Number Quantity

INA901EVM-CVAL Test Board INA901EVM-CVAL 1

2.4 Related Documentation From Texas Instruments

This document provides information regarding Texas Instruments' integrated circuits used in the assembly

of the INA901EVM-CVAL.

Document Literature Number

INA901 Product Data Sheet SBOS938

www.ti.com

Hardware

SBOU216A–October 2018–Revised June 2020

INA901EVM-CVAL Evaluation Module User's Guide

3 Hardware

The EVM is user configurable so that a wide range of operating conditions and filtering options can be

demonstrated. The board also contains an LM193AJRLQMLV-SP space-grade comparator so that the

EVM can be evaluated as an overcurrent detector. The board can support –15-V to 65-V common-mode

signal on the inputs, and a 10-A load current with a user installed shunt resistor.

3.1 Features

• Flexible input connections, including both onboard and external shunt

• Ease of access to device pins with test points

• Onboard comparator for out-of-box overcurrent detection

• Footprints for optional filtering at the input pins

4 Operation

4.1 Warnings

4.1.1 High Voltage

The common-mode voltage rating of the INA901-SP and the INA901EVM-CVAL is –15 V to 65 V. When

using the device and EVM under such circumstances, all proper safety practices must be followed. Do not

apply less than –15 V or more than 65 V.

4.1.2 High Current

An unpopulated footprint is provided for the user to install an onboard shunt resistor. The shunt resistor

traces have a maximum current rating of 10 A. Ensure that the power rating of the resistor is sufficient for

the application.

4.1.3 Board Component Grades

All components on this board are intended for evaluation purposes only and not for flight.

4.2 Quick Start Setup

Follow these procedures to set up and use the INA901EVM-CVAL:

Step 1. Connect the positive lead of an external DC supply voltage to J2 (V+), and connect the

ground reference of that supply to J3 (GND). Set the supply for 5 V. Ensure this supply is

turned off for now.

Step 2. Ensure the shorting plug is populated at J5. Alternatively, a separate pullup voltage can be

applied to the comparator. To do this, depopulate the shorting plug at J5, and apply the

desired voltage to J6 (V_PULLUP).

Step 3. Provide a differential input voltage signal to the IN+ and IN– nodes by connecting the signal

leads to the positive and negative terminals of J1 on the EVM, respectively, as explained in

Section 4.3.

Operation

www.ti.com

6SBOU216A–October 2018–Revised June 2020

Submit Documentation Feedback

INA901EVM-CVAL Evaluation Module User's Guide

4.3 Measurements

WARNING

CAUTION HOT SURFACE! If measuring current, first make sure

that the equipment (shunt resistor, wires, connectors, and so on)

can support the amperage and power dissipation. Secondly, make

sure that the current flowing through J1 does not exceed 10 A.

Failure to do so can result in hot surfaces (> 55°C), damage to the

EVM, or personal injury.

The shunt resistor will become hot during use. Ensure proper

precautions are taken to prevent contact with R1 during operation.

Failure to do so can result in personal injury.

www.ti.com

Operation

SBOU216A–October 2018–Revised June 2020

INA901EVM-CVAL Evaluation Module User's Guide

To configure the EVM using an onboard shunt resistor, follow this procedure:

Step 1. Solder a size 2512 resistor at the pads of R1. Ensure the area is clean of flux, and the

chosen resistor is thermally capable of the desired use case.

Step 2. Connect the positive and negative terminals of J1 in series with the load and bus voltage

sources while powered off. You will need to ensure proper logical order to test either the

high-side, or low-side application. See TI Precision Labs - Current Sense Amplifiers: Design

Considerations for additional information on proper application and orientation. Figure 1

shows the correct connections for a high-side application using this method.

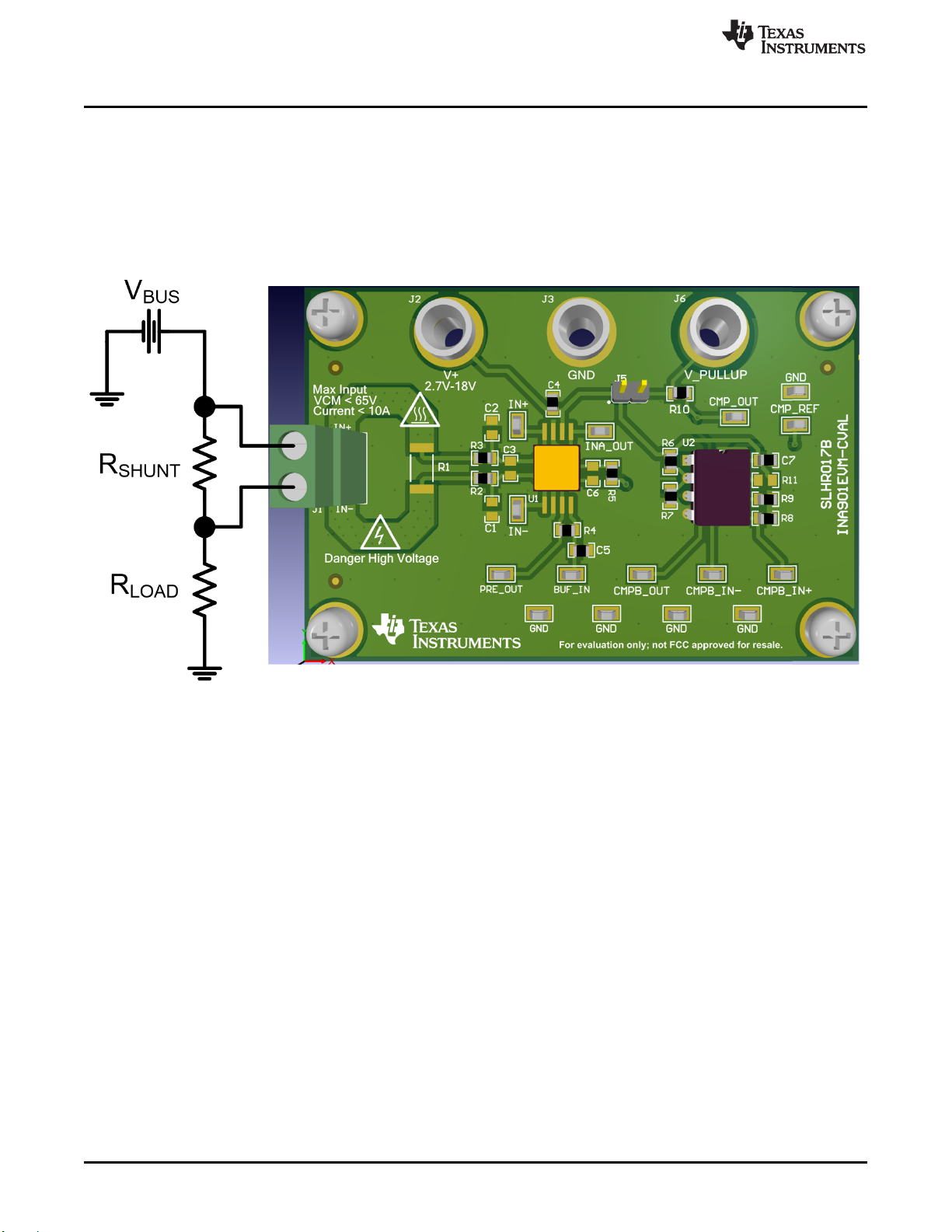

Figure 1. High-Side Setup Using Onboard Shunt Resistor

Step 3. Power on all supplies.

Step 4. Measure the output voltage at INA_OUT with respect to GND.

Step 5. Observe the overcurrent trigger: Using either a DMM or oscilloscope, measure the voltage at

CMP_OUT. Slowly increase the magnitude of the load current until it measures > 125 mV.

Observe the comparator output change states.

Operation

www.ti.com

8SBOU216A–October 2018–Revised June 2020

Submit Documentation Feedback

INA901EVM-CVAL Evaluation Module User's Guide

To configure the EVM using an external shunt resistor, follow this procedure:

Step 1. Choose an external shunt for the desired use case. Ensure the chosen resistor is thermally

capable of the desired use case.

Step 2. Connect the positive and negative terminals of J1 with the load and bus voltage sources

while powered off. Figure 2 shows the correct connections for a high-side application using

this method. Ensure that you make the connections such that the sensing location is directly

across the shunt, and there will be no high current on the sensing path. See TI Precision

Labs - Current Sense Amplifiers: Shunt Resistor Layout for additional information.

Figure 2. High-Side Setup Using An External Shunt Resistor

Step 3. Power on all supplies.

Step 4. Measure the output voltage at INA_OUT with respect to GND using a DMM.

Step 5. Observe the overcurrent trigger: Using either a DMM or oscilloscope, measure the voltage at

CMP_OUT. Slowly increase the magnitude of the load current until it measures > 125 mV.

Observe the comparator output change states.

www.ti.com

Operation

SBOU216A–October 2018–Revised June 2020

INA901EVM-CVAL Evaluation Module User's Guide

To configure the EVM to evaluate a specific voltage use case, follow this procedure:

Step 1. Set the differential voltage: Connect an unpowered positive differential voltage across the

positive and negative terminals of J1. Given the internal GND reference of the device, make

sure that the IN+ pin is the more positive of the two inputs.

Step 2. Set the common mode voltage: to evaluate at a specific common mode, connect an

unpowered –15-V to 65-V voltage supply to the inputs by connecting the positive lead of the

external voltage source to the negative terminal of J1, and negative lead to a GND test point.

This action effectively raises the absolute common-mode voltage of the input pins, while still

retaining a positive input differential signal. Figure 3 shows how this supply setup should look

when this is done. Ensure that the supplies used to perform this are able to withstand the

voltages present before using this method.

Figure 3. Supply Setup for Common and Differential Voltage

Step 3. Power on all supplies.

Step 4. Measure the output voltage at INA_OUT with respect to GND using a DMM.

Step 5. Observe the overcurrent trigger: Using either a DMM or oscilloscope, measure the voltage at

CMP_OUT. Slowly increase the magnitude of the load current until it measures > 125 mV.

Observe the comparator output change states.

EVM Components

www.ti.com

10 SBOU216A–October 2018–Revised June 2020

Submit Documentation Feedback

INA901EVM-CVAL Evaluation Module User's Guide

5 EVM Components

This section summarizes the INA901EVM-CVAL components.

5.1 Input Current

J1 is the primary input terminal of the INA901EVM-CVAL. This terminal allows the EVM to be placed in

series with a bus voltage and load current. R1 is able to be fitted with a size 2512 resistor in this use case.

Alternatively, a differential voltage is able to be applied directly across the terminals of J1 to evaluate the

EVM.

5.2 Input Filter Options

Resistors R2 and R3, along with capacitor C3, form an optional filter on the inputs of the device. By

default, R2 and R3 are populated with 0-Ωresistors, and C3 is not populated. If this filter is populated, use

resistance of less than 10 Ωto minimize the introduction of additional errors.

C1 and C2 serve as additional options for common mode filtering on each input if desired. C1 and C2 are

not populated by default.

5.3 First Order and Sallen Key Filter Options

C5 is populated by default with a 15-pF capacitor which, along with the internal 96-kΩresistor at the PRE

OUT pin of U1, forms a first-order filter between the PRE OUT and BUF IN stages of U1.

By default, C6 is not populated, and R4 is populated with a 0-Ωresistor. These values may be changed

along with C5 to form a second order Sallen-Key filter. See the Device Functional Modes section of the

INA901-SP Radiation Hardened, –15-V to 65-V Common Mode Unidirectional Current-Shunt Monitor Data

Sheet for additional information on how to configure this.

5.4 Comparator

The "A" channel of comparator U2 is configured by default as an overcurrent detector. Resistors R6 and

R7 are configured by default so that the comparator reference is ½ of V+. As V+ also sets the full scale

output range of the INA901, this sets the overcurrent point of the comparator to ½ of the full scale output

range of the INA901, or when VSENSE > 125 mV for a supply voltage of 5 V. This set point can be changed

by adjusting the values of R6 and R7.

5.5 Unused Comparator Channel and Best Practices

The "B" channel of comparator U2 is unused by default. Resistors R8, R9, and R11 are configured in

accordance with the Unused Comparator Connections section of the Application Design Guidelines for

LM339, LM393, TL331 Family Comparators Including the New B-versions Application Report.

5.6 Comparator Disconnect

If the INA901 needs to be evaluated without other devices present, R5 can be depopulated to disconnect

the INA901 from the comparator.

Tabla de contenidos

Otros manuales de Unidad de control de Texas Instruments

Texas Instruments

Texas Instruments CDCM9102EVM Manual de usuario

Texas Instruments

Texas Instruments TPS65912xEVM-081 Instrucciones de funcionamiento

Texas Instruments

Texas Instruments OPT3004EVM Manual de usuario

Texas Instruments

Texas Instruments bq2023EVM-001 Manual de usuario

Texas Instruments

Texas Instruments MCT8316ZT Manual de usuario

Texas Instruments

Texas Instruments ADS1x7xEVM-PDK Manual de usuario

Texas Instruments

Texas Instruments TUSB564RNQ Manual de usuario

Texas Instruments

Texas Instruments TPS7A78EVM-011 Manual de usuario

Texas Instruments

Texas Instruments LM5156EVM-BST Manual de usuario

Texas Instruments

Texas Instruments bq35100 Manual del producto

Texas Instruments

Texas Instruments TPS25948EVM Manual de usuario

Texas Instruments

Texas Instruments TPS73633EVM Manual de usuario

Texas Instruments

Texas Instruments XIO2001 Manual de usuario

Texas Instruments

Texas Instruments Tiris 2000 Series Manual de usuario

Texas Instruments

Texas Instruments HSS-MOTHERBOARDEVM Manual de usuario

Texas Instruments

Texas Instruments BoosterPack BOOST-IR Manual de usuario

Texas Instruments

Texas Instruments TPS51220A EVM-476 Manual de usuario

Texas Instruments

Texas Instruments bq24153A Manual de usuario

Texas Instruments

Texas Instruments UCD90120 Manual de usuario

Texas Instruments

Texas Instruments bq27 10EVM Series Manual de usuario

Texas Instruments

Texas Instruments DP83869EVM Manual de usuario

Texas Instruments

Texas Instruments TAS2770YFF Manual de usuario

Texas Instruments

Texas Instruments TUSB216EVM Manual de usuario

Texas Instruments

Texas Instruments TPS254900AQ1EVM-003 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
