Teufel Effekt 2 Manual de usuario

Effekt 2 Wireless Speaker

Technical Description And User

Manual

2• Effect 2• Effect 2

Contents

General Notes And Information

Notice

The information in this document may

change without prior notice and in no

way constitutes any liability on the part

of Lautsprecher Teufel GmbH.

No part of this user manual may

be reproduced in any form or be

broadcasted in any way electroni-

cally, mechanically, by photocopy or

recording without the written permis-

sion of Lautsprecher Teufel GmbH.

Version 1.0, June 2023

Original packaging

If you wish to exercise your right of

return, we ask that you be absolutely

sure to hold on to the packaging. We

can only accept product returns with

the ORIGINAL PACKAGING.

Empty boxes are not available!

General Notes And Information........ 2

Overview ............................................ 5

Setup.................................................. 6

Operation........................................... 7

Troubleshooting............................... 10

Technical Data.................................11

Declaration Of Conformity ..............11

Complaints

In case of a complaint we will need

the following information to process

your enquiry:

1. Invoice number

Can be found on the sales slip

(enclosed with the product) or on the

order confirmation received as a PDF

document, e.g. 4322543

2. Serial number or batch number

Located on the back side of

the device, e.g. serial no.:

KB20240129A-123.

Thank you for your support!

3Effect 2 •

Contact

Please contact our customer service

department with any questions,

suggestions, or complaints:

Lautsprecher Teufel GmbH

BIKINI Berlin

Budapester Str. 44

10787 Berlin (Germany)

Telephone:

00800 200 300 40 (toll-free)

Fax:

+49 (0)30 / 300 930 930

Online support:

www.teufelaudio.com/service

Contact form:

www.teufelaudio.com/contact

Before operating the product

for the first time, please read

the safety notes and user

manual carefully. Only in this way,

you can ensure that all functions are

used in a safe and reliable manner.

Store the user manual in a safe place

and also be sure to pass it on to any

subsequent owner.

NOTICE

Check that all items have

been delivered and that

nothing is damaged. If you

find any damage, do not

operate the device; instead

contact our customer service

department.

Proper use

The wireless speakers are designed

for the playback of audio signals

from an external player via wireless

connection.

Only use the wireless speakers as

described in this user manual. Any

other use will be deemed as not in

accordance with the instructions and

may lead to damage to property or

even persons.

The manufacturer accepts no liability

for damage caused by improper use.

The wireless speakers are intended

for domestic use.

4• Effect 2

Explanation of terms

You can find the following signal

terms in this user manual:

CAUTION

This signal term indicates a

low risk, which, if not avoided,

may result in minor or

moderate injury.

NOTICE

This signal term warns you of

potential damage.

The isolation pads can produce

discolouration on sensitive

surfaces.

• On parquet, varnished wood and

similar surfaces, you should stick

felt gliders to the rubber feet of the

device or put a blanket under it.

This will prevent discolouration of

the floor over the long term.

Explanation of symbols

Protection class II

Dual insulation

Risk of electrical shock –

do not open the housing.

Disconnect the mains cord

before changing a fuse.

5Effect 2 •

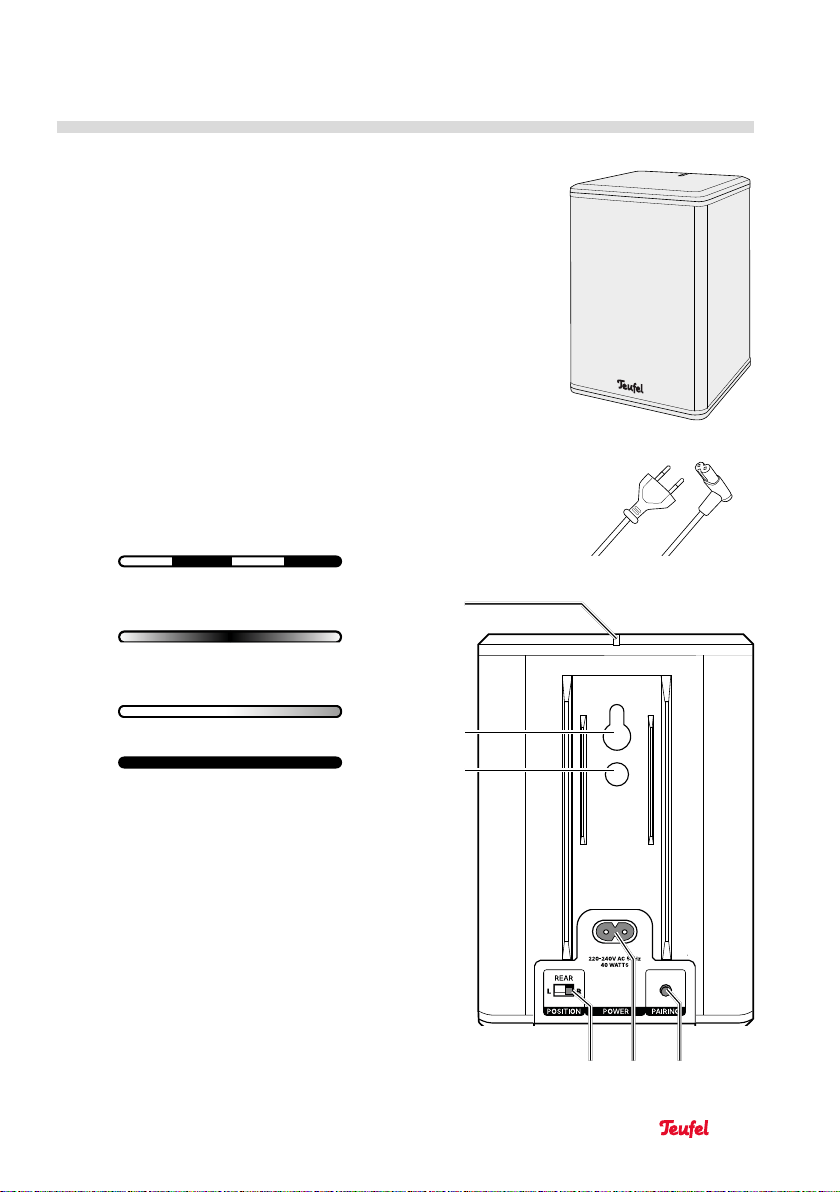

Overview

Package contents

(1)

2× “Effekt” wireless speaker

(2)

2× Angled power cord (2.5 m)

Operational controls

(3) Power indicator:

• Pairing: LED Blinking

• Searching for known devices:

LED fades in and out.

• Connected:

LED white and dims down

• Standby/Off: LED off

(4)

Keyhole opening for wall

mounting.

(5) M6 threaded insert for wall

mounting

(6) POSITION: Elect if the speaker

should play left or right channel.

(7) Power cord jack socket

(8) PAIRING: Establish a wireless

connection to the external player

(see page 8)

(1)

(2)

(6) (7) (8)

(3)

(4)

(5)

6• Effect 2

Setup

NOTICE

If the device is subjected

to warm temperatures after

being cold (e.g. after trans-

port), condensation may occur

inside of it.

–In this case, wait approx. 2

hours before you connect

and activate it.

CAUTION

The device is disconnected

from the mains by pulling the

mains plug out of the socket.

–Therefore make sure that

the socket is always easily

accessible.

Location tips

• Make sure that the environment is

clean and free from dust.

• Select a location away from heat

sources and direct sunlight.

• Do not place any heavy objects on

the cables or the device.

• The wireless connection has a

maximum range of 15 m, but can

be obstructed by objects, walls

and other transmitters (e.g. Wi-Fi,

DECT).

Rear speakers

As rear speakers, the wireless

speakers are set up or hung to the

side of or behind the listener at a

height of 1.20 m to 2.10 m (see the

grey areas in the graphic).

The ideal position is offset by approx.

20 degrees from the parallel posi-

tion to the listener on the left and

right side (A). The distance between

the rear speakers and the listening

position should not be less than 1 m.

However, if you (need to) sit closer,

please ensure that the front side of

the speaker is not directly facing you.

Rather, the speaker must be angled

towards the wall (B). Alternatively,

you can create a greater distance

by placing the speakers higher than

1.20 m or further away (C).

7Effect 2 •

Operation

Setting the channel

• With the POSITION switch (6), you

determine the stereo channel (right

or left) to be played back by the

respective wireless speaker.

• The speakers can only connect

if one speaker is set to the right

channel and the other to the left

channel.

Mains connection

• Connect the power cord with the

power cord jack socket (7) and

insert the plug of the power cord (5)

in a mains socket (220–240

V~/50 Hz).

• The first time you turn the wireless

speaker on, it will switch to pairing

mode and the power indicator (3)

will quickly blink in white.

(6) (5)

(3)

8• Effect 2

First-time connection

1. Hold the PAIRING button (8) down

until the power indicator (3) blinks

quickly in white.

PAIRING

Speaker

Pairing

< 1 sec

(8) (3)

2. Switch the transmitter unit (e.g.

soundbar) to pairing mode. Please

refer to the user manual for the

transmitter unit for more informa-

tion. This can be an option in the

Speaker submenu ( Speaker)

or a Pairing button on the transmit-

ting device.

3. As soon as the Effect 2 has found

a compatible transmitter, it will

connect with it.

The power indicator (3) illuminates

continuously in white and dims

down.

PAIRING

Speaker

Pairing

Short Press

(3)

9Effect 2 •

Automatic connection

• If the wireless speakers were

already connected to a compatible

transmitter, they will immediately

be connected to it.

The power indicator (3) illuminates

in white and slowly dims down.

• If there is no transmitter nearby or

if it is switched off, the Effect 2 will

search for the transmitter.

The power indicator (3) will fade in

and out in white.

• The connection will be established

as soon as you switch on the trans-

mitter.

The power indicator (3) illuminates

in white and slowly dims down.

Automatic activation/

deactivation

As soon as the wireless speakers

receive a signal from a connected

transmitter, they will switch back on

from standby mode.

If the signal is deactivated, the

wireless speakers will switch back to

standby mode after a short time. In

standby mode, the power indicator (3)

will be off.

10 • Effect 2

Troubleshooting

The following advice should help you to solve problems. If this does not work, our

online support area will provide help:

https://manual.teufelaudio.com

Problem Possible cause/solution

The Effekt’s power

indicator (3) does

not illuminate.

Make sure that power is supplied. Check to make sure that

the mains plug is securely seated.

The LED turns off when the transmitter is switched off. To

check whether the device is working, pull the plug out of the

socket, wait 1 minute and then plug it back in. The power

indicator starts fading in and out.

No sound The volume has been set too low. Increase the volume on

the transmitter.

No 5.1 audio: If e.g. a pure stereo signal is played, the rear

speakers will remain mute. Then select a surround sound

simulation such as Dolby Prologic on the transmitter unit.

A “test tone” is suitable for testing the connection providing

your transmitter unit offers this function for adjusting the

level.

The rear satel-

lites do not emit

sound.

MP3s, radio as well as many TV programmes only transmit

stereo sound. Switch your receiver to a Pro-Logic mode or

a DSP mode (5.1 Stereo). Select UPMIX method or get a

5.1 signal.

No connection Transmitter is off – switch the transmitter on.

Distance is >15m or objects are blocking the connection

signal. Correct the allocation of the devices.

The connection is

not automatically

established.

Reconnect the devices (see page 8).

The transmission

is disrupted.

Other wireless signal sources (cordless telephones, Wi-Fi

stations or microwaves) affect the connection. Move the

devices causing the disturbance.

Otros manuales para Effekt 2

Tabla de contenidos

Otros manuales de Oradores de Teufel

Teufel

Teufel Ultima 40 C Manual de usuario

Teufel

Teufel BOOMSTER GO Manual de lista de piezas

Teufel

Teufel iTeufel Air Blue Manual

Teufel

Teufel Definion 3 Center Manual de lista de piezas

Teufel

Teufel iTeufel Air Blue Manual de usuario

Teufel

Teufel Holist M Manual de lista de piezas

Teufel

Teufel Boomster Manual de usuario

Teufel

Teufel Boomster Manual de lista de piezas

Teufel

Teufel ROCKSTER CROSS Manual de usuario

Teufel

Teufel Bamster XS Manual de usuario

Teufel

Teufel Definion 3 Center Manual de lista de piezas

Teufel

Teufel LT5 MK2 FR Manual

Teufel

Teufel Cinebar 51 THX Manual de usuario

Teufel

Teufel T 130 D Manual

Teufel

Teufel Ultima 40 Active Manual

Teufel

Teufel VT 12 Manual de usuario

Teufel

Teufel BAMSTER Manual de lista de piezas

Teufel

Teufel Ultima Center UL 40 C Mk2 Manual de usuario

Teufel

Teufel Omniton 202 Manual

Teufel

Teufel CS 35 C Manual

Teufel

Teufel BAMSTER PRO Manual

Teufel

Teufel VT 11 Manual

Teufel

Teufel Definion 3 Center Manual de lista de piezas

Teufel

Teufel ROCKSTER AIR 2 Manual de lista de piezas

Manuales populares de Oradores de otras marcas

argon audio

argon audio IE20 Manual de usuario

Denon

Denon SC-N7 Manual de usuario

Gemline

Gemline Ace 3952 Manual de usuario

Focal

Focal ON WALL 300 Manual de instrucciones

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manual de usuario

SoundLogic

SoundLogic BCCS-6/6395 Manual de usuario

Peavey

Peavey DTH 218 Manual de usuario

Avantree

Avantree Pluto Air Manual de usuario

Morel

Morel Integra Series INTEGRA OVATION 4 Manual de usuario

Oppo

Oppo SONICA Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Rocksteady

Rocksteady Stadium Manual de usuario

Bowers & Wilkins

Bowers & Wilkins 4 Manual de usuario

Sonance

Sonance SONOS OUTDOOR Series Manual de usuario

Electro-Voice

Electro-Voice EVID FM4.2 Manual de usuario

Pioneer

Pioneer XW-HTD630 Manual de usuario

Onn

Onn BWA16AA002 Manual de usuario

HP GL313AA - USB Speakers PC Multimedia Manual de usuario
