Instruction manual

Contents

General notes ....................................................18

1. Safety advice......................................................19

2. Intended purpose ..............................................20

3. Product description ............................................21

3.1 Display and control elements ........................................21

3.2 Voltage supply ..............................................................22

4. Commissioning ..................................................23

5. Operation ..........................................................24

5.1 Connecting a probe ......................................................24

5.2 Switching the instrument on / off ..................................24

5.3 Switching the display light on / off ................................24

5.4 Performing settings ......................................................25

6. Measuring ..........................................................27

7. Care and maintenance ......................................29

8. Questions and answers......................................30

9. Technical data ....................................................31

10. Accessories/spare parts ....................................31

testo 417

Vane anemometer

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

General notes18

General notes

This chapter provides important advice on using this

documentation.

The documentation contains information that must be

applied if the product is to be used safely and efficiently.

Please read this documentation through carefully and

familiarise yourself with the operation of the product before

putting it to use. Keep this document to hand so that you

can refer to it when necessary.

Identification

Representation Meaning Comments

Note Offers helpful tips and information.

±, 1, 2 Objective Denotes the objective that is to be

achieved via the steps described. Where

steps are numbered, you must always

follow the order given!

Condition A condition that must be met if an action

is to be carried out as described.

i, 1, 2, ... Step Carry out steps. Where steps are

numbered, you must always follow the

order given!

Text Display text Text appears on the instrument display.

Control button Press the button.

- Result Denotes the result of a previous step.

ºCross-reference Refers to more extensive or detailed

information.

Button

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

1. Safety advice 19

1. Safety advice

This chapter gives general rules which must be followed

and observed if the product is to be handled safely.

Avoid personal injury/damage to equipment

iDo not use the measuring instrument and probes to

measure on or near live parts.

iNever store the measuring instrument/probes together

with solvents and do not use any desiccants.

Product safety/preserving warranty claims

iOperate the measuring instrument only within the

parameters specified in the Technical data.

iAlways use the measuring instrument properly and for its

intended purpose. Do not use force.

iDo not expose handles and feed lines to temperatures in

excess of 70 °C unless they are expressly permitted for

higher temperatures.

Temperatures given on probes / sensors relate only to

the measuring range of the sensors.

iOpen the instrument only when this is expressly

described in the documentation for maintenance and

repair purposes.

Carry out only the maintenance and repair work that is

described in the documentation. Follow the prescribed

steps when doing so. For safety reasons, use only

original spare parts from Testo.

Ensure correct disposal

iTake faulty rechargeable batteries/spent batteries to the

collection points provided for them.

iSend the product back to Testo at the end of its useful

life. We will ensure that it is disposed of in an

environmentally friendly manner.

de

enfresitptsvnl????

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

2. Intended purpose20

2. Intended purpose

This chapter gives the areas of application for which the

product is intended.

Use the product only for those applications for which it was

designed. Ask Testo if you are in any doubt.

testo 417 is a compact measuring instrument for

measuring flow velocities and temperatures by means of an

integrated 100mm vane with temperature probe.

The product was designed for the following

tasks/applications:

· Measuring volumetric flow rates at inlets/outlets

· Measuring the temperature of flows

The product should not be used in the following areas:

· Areas at risk of explosion.

· Diagnostic measurements for medical purposes

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

3. Production description 21

3. Product description

This chapter provides an overview of the components of

the product and their functions.

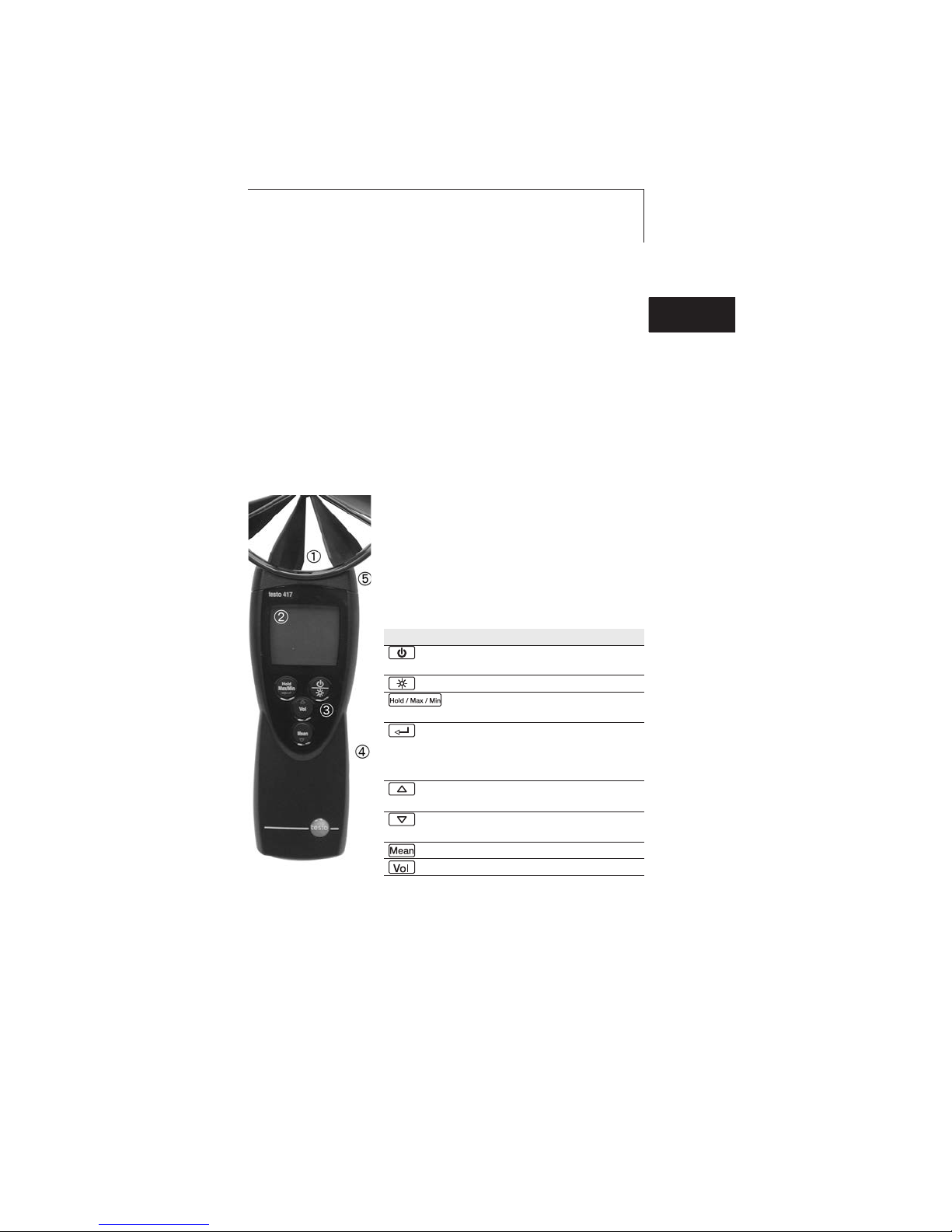

3.1 Display and control

elements

Overview

Probe

Display

Control buttons

Battery compartment (rear)

Service compartment (rear)

Button functions

Button Functions

Switch instrument on;

switch instrument off (press and hold)

Switch display light on / off

Keep reading, display

maximum/minimum value

Open/leave configuration mode (press

and hold);

In configuration mode:

Confirm input

In configuration mode:

Increase value, select option

In configuration mode:

Reduce value, select option

Multi-point and timed mean calculation

Volumetric flow

de

enfresitptsvnl????

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

3. Production description22

Important displays

Display Meaning

Battery capacity (bottom right in display):

· 4 segments in the battery symbol are lit: Instrument battery is fully

charged

· No segments in the battery symbol are lit: Battery is almost spent

3.2 Voltage supply

Voltage is supplied by means of a 9V monobloc battery

(included in delivery) or rechargeable battery. It is not

possible to run the instrument from the mains supply or

charge a rechargeable battery in the instrument.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

4. Commissioning 23

4. Commissioning

This chapter describes the steps required to commission

the product.

²Inserting a battery/rechargeable battery:

1To open the battery compartment on the rear of the

instrument, push the lid of the battery compartment in

the direction of the arrow and remove it.

2Insert a battery/rechargeable battery (9V monobloc).

Observe the polarity!

3To close the battery compartment, replace the lid of

the battery compartment in position and push it

against the direction of the arrow.

de

enfresitptsvnl????

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

5. Operation24

5. Operation

This chapter describes the steps that have to be executed

frequently when using the product.

5.1 Connecting a probe

The necessary probes are permanently connected or

integrated. It is not possible to connect any additional

probes.

5.2 Switching the instrument

on / off

²Switching the instrument on:

iPress .

- Measurement view is opened: The current reading

is displayed, or ----- lights up if no reading is

available.

²Switching the instrument off:

iPress and hold (for approx. 2s) until the display

goes out.

5.3 Switching the display

light on / off

²Switching the display light on/off:

The instrument is switched on.

iPress .

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

5. Operation 25

5.4 Performing settings

1To open configuration mode:

The instrument is switched on and is in measurement

view. Hold, Max or Min are not activated.

iPress and hold (for approx. 2s) until the display

changes.

- The instrument is now in configuration mode.

You can change to the next function with .

You can leave configuration mode at any time. To do

so, press and hold (for approx. 2s) until the

instrument has changed to measurement view. Any

changes that have already been made in configuration

mode will be saved.

2To set funnel factor F.FACT:

For measurements at ventilation outlets with a funnel

the parameter F.FACT must be activated. The funnel

set (order no. 0563 4170) consists of a funnel for

measurements at plate outlets (200 x 200mm) and a

funnel for measurements at ventilation outlets (330 x

330mm).

Configuration mode is opened, F.FACT is lit.

iActivate (on) or deactivate (oFF) the factor with /

and confirm with .

3To set the area (only if F.FACT oFF):

Configuration mode is opened, AREA is lit.

iSet the cross-sectional area with / and

confirm with .

de

enfresitptsvnl????

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

5. Operation26

4To set the grill factor: K.FACT (only if F.Fact oFF):

If parts of the cross-sectional area are covered (e.g.

by grill members), this can be corrected via the grill

factor. The grill factor indicates the proportion of free

space on the cross-sectional area. Example: If 20% of

the area is covered, the grill factor must be set to 0.8

(80% free space)

Configuration mode is opened, K.FACT is lit.

iSet the grill factor with / and confirm with

.

5To set Auto Off:

Configuration mode is opened, AutoOff is flashing.

iSelect the desired option with / and confirm

with :

·on: The measuring instrument switches off

automatically if no button is pressed for 10min (Hold

or Auto Hold is lit).

· oFF: The measuring instrument does not switch

itself off automatically.

6To set the unit ofmeasurement:

Configuration mode is opened, UNIT is lit.

iSelect the desired unit of measurement with /

and confirm with .

7To reset:

Configuration mode is opened, RESET is lit.

iSelect the desired option with / and confirm

with :

·no: Instrument is not reset.

· Yes: Instrument is reset. The instrument is reset to

the factory settings.

- The instrument returns to measurement view.
