Teradek Wave Manual de usuario

Quick Start Guide

Live Streaming Encoder/Monitor

Wave

PHYSICAL PROPERTIES

A: Wi-Fi antennas

B: Power button

C: Monitor display

D: Sony L-series dual battery plate

E: RP-SMA connectors

F: USB modem port

G: SD card slot

H: USB-C power input

I: Ethernet port

J: HDMI input

K: Mic/Line stereo input

L: Headphone output

JKL

TABLE OF CONTENTS

Smart Streaming Monitor .................... 2

Power and Connect ............................. 3

Mounting ............................................ 4

Get Started......................................... 6

UI Overview ....................................... 9

Network Conguration ...................... 12

Sharelink .......................................... 14

Wave App ........................................ 16

Recording ........................................ 17

WHAT’S INCLUDED

1x Wave Assembly

SMART STREAMING MONITOR

Teradek’s Wave is the only live streaming monitor that handles encoding, smart event

creation, network bonding, multistreaming, and recording – all on a 7” daylight-

viewable touchscreen display. Wave delivers high denition live streaming video

with the quality and reliability expected in traditional broadcasts and utilizes Wave’s

innovative project workow: FlowOS.

1x Wave Stand Kit

2x Wave Rosette w/Gaskets

2x Wave Thumbscrews

1x Ethernet Flat - Cable

1x Ultra Thin HDMI Male Type A (Full) - HDMI

Male Type A (Full) 18in Cable

1x Neoprene Sleeve for 7 in. Monitors

1x PSU 30W USB-C Power Adapter

2x WiFi Antenna

Turn on your video source then connect it to Wave’s HDMI input (J).

Connect power to Wave via the included USB-C adapter or attach one or both

Sony L-series batteries to the built-in dual-battery plate on the back (D).

POWER AND CONNECT

Once Wave has booted, the main screen will be displayed. From the main screen

you can create an event by tapping the Create a new Event tab or the + icon, or by

swiping left on the screen.

Use a hot shoe mount and a 1/4”-20 screw or any other mounting hardware to

mount Wave to your camera, if desired.

Press the Power button (B). Wave begins to boot as soon as the power is turned on.

NOTE: Wave encoders are hot swappable between USB-C and L-series batteries. Both power source

types can be connected together, but Wave will draw power from the USB-C power source by default.

Attach the two Wi-Fi antennas to the RP-SMA connectors (E).

Wave has a three 1/4”-20 threaded holes: one on the bottom to mount on a camera, and

two on each side to install the included stand kit.

MOUNTING

Wave can be

mounted vertically

on a camera.

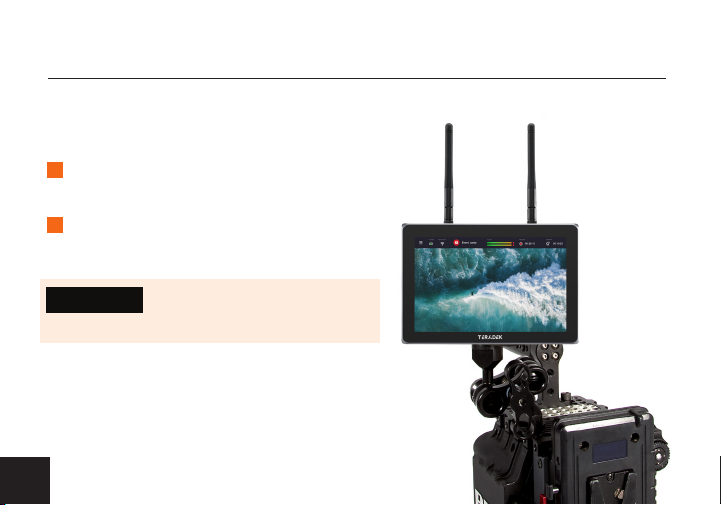

MOUNT ON A CAMERA

Attach Wave to your camera’s arm

mount, then screw on to secure.

Orient the WiFi antennas so that

each one has clear line−of−sight.

• DO NOT OVERTIGHTEN SCREWS.

Doing so can damage Wave’s chassis

and internal components, voiding the warranty.

CAUTION:

Repeat steps 1-3 for the opposite side, then

tighten both thumbscrews.

Place a rosette disc over one of Wave’s side

mounting holes.

Ax one of the stands over the rosette disc

so that the both rosettes are facing each other

(1) and the feet are facing towards you (2).

Insert a thumbscrew through the stand and

rosette disc and into the mounting hole (3),

then slightly tighten the thumbscrew to secure

the arm against the device. Ensure that the

stand is loose enough in order to adjust the

stands to your preference.

STAND KIT INSTALLATION

2Create a name for your event (optional),

then select a thumbnail so that it’s easily

identiable. Tap Next.

From the main screen, tap the +icon to

enter the Personalize your new Event screen.

GET STARTED

3Select a method to connect to the internet:

• WIFI - Tap Setup, select a network, then

enter your password.

• ETHERNET - Plug an Ethernet cable

from an Ethernet switch or router.

• MODEM - Insert a compatible

3G/4G/5G USB modem.

Tap Next when done.

For more details on how to connect to a network, see page 12.
