Tennant 6100 Manual de capacitación
IB 340345 (12--02) 1
No. 340345
Machine: 6100
Published: 12--02
Rev. 01
INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 384436
SYNOPSIS / PROBLEM:
This kit contains the parts needed to install a right hand side brush kit on the model 6100
sweeper.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 2 hours)
PREPARATION:
(Refer to FIG. 1, 2 and 3)
FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.
1. Disconnect battery cables from machine.
WARNING: Always disconnect battery cables from machine before working
on electrical components.
2. Remove all hardware mounting the front shroud to the control panel and the machine.
Carefully separate the front shroud from the control panel. Set the front shroud and all
mounting hardware aside.
3. Lift the machine with a hoist or jacks. Block machine properly with jack stands or check that
hoist is properly locked into position.
FOR SAFETY: When servicing machine, block machine tires before jacking up machine.
FOR SAFETY: When servicing machine, jack up machine at designated locations only.
Block machine up with jack stands.
SIDE BRUSH MOTOR GROUP INSTALLATION:
(Refer to FIG. 1, 2 and 3)
1. Mount the electric motor (1) to the side brush bracket (10) with four hex screws (2) and
washers (3).
(Refer to FIG. 1)
2. Mount the right hand side brush guard (15) over the side brush bracket (10) with five hex
screws (2), washers (3) and lock nuts (18).
(Refer to FIG. 1)
3. Press the two flange bearings (6), into the rear end of the side brush mounting channel (5).
(Refer to FIG. 1)
IB 340345 (12--02)2
4. Connect the front end of the side brush mounting channel (5) and the right hand lift
cable (21) to the bracket and motor sub--assembly with the hex screw (7), die spring (11)
and lock nut (9).
(Refer to FIG. 1 and 3)
NOTE: Check that the lift cable (21) is mounted on the left (nut) side of the mounting
channel (5) and the die spring (11) is on the right side of the bracket (10) when
mounted in the channel (5)
(Refer to FIG. 1)
5. Connect the side brush cable (12) to the back side of the side brush bracket (10) with hex
screw (8) and lock nut (9). Tighten the hex screw (8) and lock nut (9) only hand tight, the
side brush cable (12) must be able to move freely.
(Refer to FIG. 1)
6. Place one clevis pin (14) in the side brush channel (5) and the second in the top of the side
brush bracket (10). Connect the two clevis pins (14) with the extension spring (13).
(Refer to FIG. 1)
7. Install the right hand side brush assembly in the machine. Mount the side brush
channel (5) to the frame with one clevis pin (20) and cotter pin (4) and mount the side
brush cable (12) to the frame with the other clevis pin (20) and cotter pin (4).
(Refer to FIG. 1)
8. Secure the side brush wiring harness back along the side brush cable (12) with wire ties.
9. On IC machines only: Secure the main harness with the cable clamp (31) and hex
screw (32).
(Refer to FIG. 2)
SIDE BRUSH LIFT GROUP INSTALLATION:
(Refer to FIG. 1, 2 and 3)
1. Guide the right hand side brush lift cable (21) up through the frame of the machine just
inside the right, front corner brace.
(Refer to FIG. 3)
2. Route the lift cable (21) up over the pulley (22). Secure the cable and pulley to the corner
brace with one hex screw (26), angle piece (25), sleeve (23), and hex nut (27). Tighten
hardware finger tight.
(Refer to FIG. 3)
3. Mount the side brush lift plate (30) to the right side of the side brush support with hex
screw (28), and washer (29). Tighten the hardware finger tight.
(Refer to FIG. 3)
4. Guide the lift cable (21) under the second pulley (22). Secure the lift cable (21) and
pulley (22) to the side brush support with one hex screw (26), angle piece (25), sleeve (24),
and hex nut (27).
(Refer to FIG. 3)
NOTE: Guide the hex screw (26) through the angle piece (25), sleeve (24) and pulley (22).
Continue through the side brush support and side brush lift plate (30). Secure the hex
screw (26) with the hex nut (27) on the back side of the side brush lift plate. (30)
5. Guide the lift cable (21) over the third pulley (22). Secure the cable (21) and pulley (22) to
the top of the side brush support with one hex screw (26), angle piece (25), sleeve (23),
and hex nut (27). Tighten the hardware finger tight.
(Refer to FIG. 3)
6. Connect the end of the lift cable (21) to the side brush lift handle with already existing cable
mounting hardware.
(Refer to FIG. 3)
7. Lower the machine down off the jacks or hoist.
8. Check that the pin (19) is secure in the brush drive shaft.
(Refer to FIG. 1)
9. Mount the side brush sweeping head to the motor with a flat washer (16) and cotter
pin (17).
(Refer to FIG. 1)
IB 340345 (12--02) 3
10. Lower the side brush with the side brush handle. Adjust the side brush height by loosening
and sliding the middle pulley up or down the side brush support. Tighten the pulley when
the side brush is in the preferred operating position.
11. Tighten the other two mounted pulleys with a wrench when the side brush height is
adjusted.
12. Connect the battery cables to the machine. Turn the machine power on, and check the side
brushes for proper operation.
13. Turn the machine power off. Replace the front shroud, and secure with set aside mounting
hardware.
2
3
4
5
6
7
8
9
10
1
11 12
13 14
15
16
17
18
19
20
6
14
9
2
3
FIG. 1 -- SIDE BRUSH MOTOR GROUP INSTALLATION
IB 340345 (12--02)4
31 32
FIG. 2 -- FRONT SHROUD REMOVAL
IB 340345 (12--02) 5
22
23
24
25
26
27
28
29
30
21
21
26
26
25
25
23
22
22
27
27
27
Side brush support
Mount cable with
existing hardware

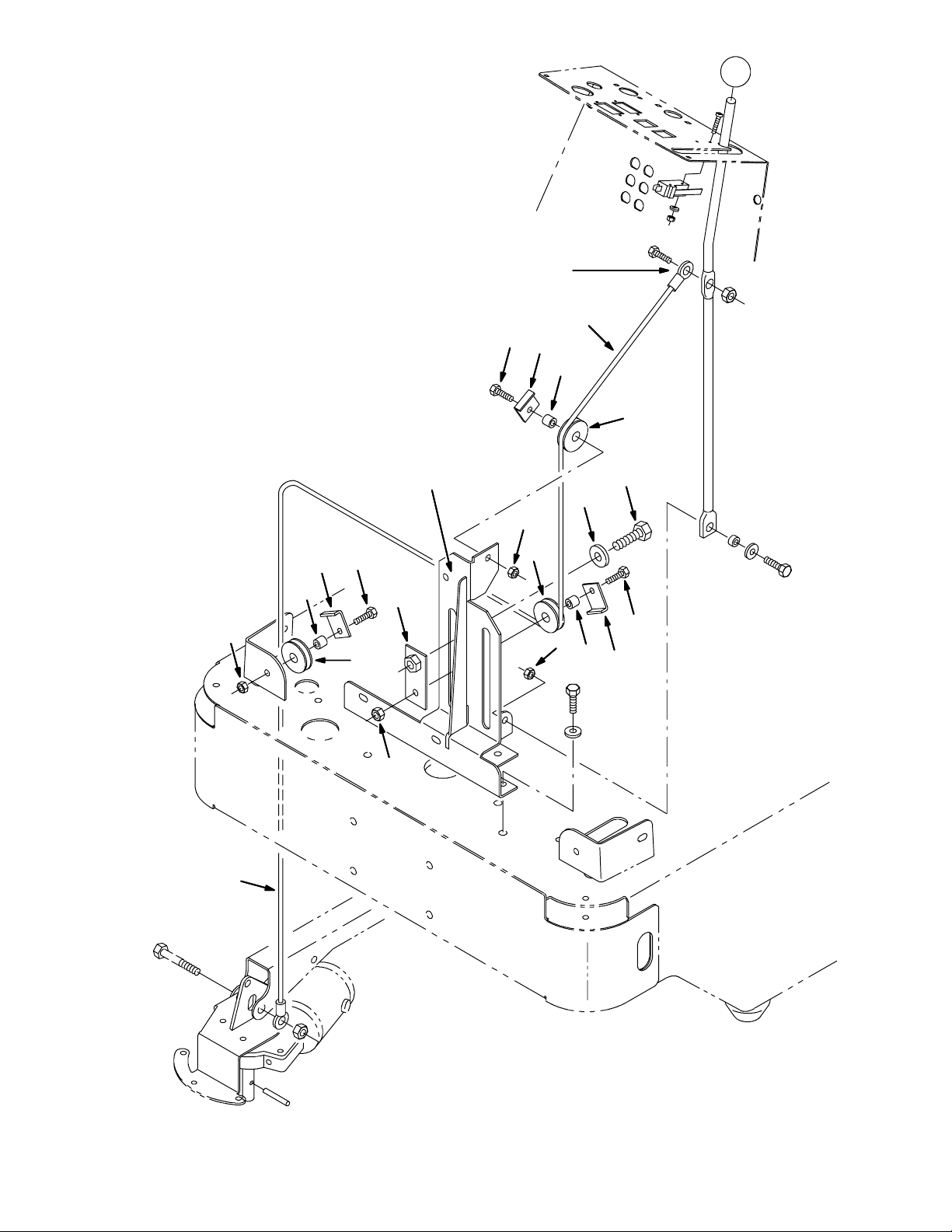

FIG. 3 -- SIDE BRUSH LIFT GROUP INSTALLATION
IB 340345 (12--02)6
BILL OF MATERIALS FOR RIGHT HAND SIDE BRUSH KIT 384436
TENNANT
Ref. Part No. Description Qty.
1 379213 Motor, Electric, 12V 1
2 15678 Screw, Hex, M06--1.0 X 16, Ss 9
3 01684 Washer, Flat, .25 Ss 9
444906 Pin, Hair Cotter 2
5 81783 Channel, Mtg, Sidebrush 1
6 15648 Bearing, Flange 2
7 06972 Screw, Hex, M12--1.75 X 60, 8.8 1
8 41345 Screw, Hex, M12--1.75 X 25, 8.8 1
908711 Nut, Hex, Lock, M12--1.75,Nl 2
10 81786 Bracket Wldt, Sidebrush 1
11 87242 Spring, Die .50 Id 1.00 Od 1.25 1
12 81784 Cable, Sidebrush 1
13 15047 Spring, Extension 1
14 39019 Pin, Clevis 2
15 81822 Guard,Sidebrush 1
16 04400 Washer, Flat, M16, 17 X30X3Ss 1
17 02942 Pin, Hair Cotter 1
18 08712 Nut, Hex, Lock, M06--1.0, Nl,Ss 5
19 11516 Pin 1
20 06279 Pin, Clevis 2
21 81795 Cable, Sidebrush Lift Rh 1
22 369781 Pulley 3
23 222460 Sleeve 2
24 80395 Sleeve 1
25 54400 Angle 3
26 76570 Screw, Hex, M08--1.25 X 30, 8.8 3
27 08709 Nut, Hex, Lock, M08--1.25,Nl 4
28 06967 Scr Hex M12X1.75 20 1
29 32493 Washer, Flat, .50 Hard 1
30 81955 Plate, Sidebrush Lift 1
31 26395--1 Clamp, Cable, 0.56D 1
32 361339 Screw, Hex 1
TENNANT COMPANY
P. O. Box 1452
Minneapolis, MN 55440-1452
