Tenda W268R Manual de usuario

11N Wireless Broadband Router

is the registered trademark of Shenzhen

Tenda Technology Co., Ltd. All the products and

product names mentioned herein are the

trademarks or registered trademarks of their

respective holders. Copyright of the whole product

as integration, including its accessories and

software, belongs to Shenzhen Tenda Technology

Co., Ltd. Without the permission of Shenzhen Tenda

Technology Co., Ltd, any individual or party is not

allowed to copy, plagiarize, imitate or translate it

into other languages.

All the photos and product specifications mentioned

in this manual are for references only. As the

upgrade of software and hardware, there will be

changes. And if there are changes, Tenda is not

responsible for informing in advance. If you want to

know more about our product information, please

visit our website at www.tenda.cn.

11N Wireless Broadband Router

Contents

Chapter 1: Introduction ...............................................1

1.1 Product Features ..............................................2

1.2 Package Contents.............................................4

1.3 LED Indicator and Port Description......................4

Chapter 2 Hardware Installation....................................7

2.1 How to Install the Router.....................................7

2.2 Network Application Plan.....................................9

Chapter 3 How to Login to the Router .......................... 10

3.1 How to Set the Network Configurations ............... 10

3.2 Login to the Router........................................... 12

Chapter 4: Quick Setup Guide .................................... 14

4.1 Setup Wizard................................................... 14

Chapter 5: Advanced Settings .................................... 20

5.1 LAN Settings.................................................. 20

5.2 WAN Settings .................................................. 21

5.3 MAC Address Clone .......................................... 24

5.4 DNS Settings................................................... 25

Chapter 6: Wireless Setting........................................ 26

11N Wireless Broadband Router

6.1 Basic Settings.................................................. 26

6.2 Wireless Security Setting................................... 28

6.3 Advanced Settings............................................ 31

6.4 WPS Settings................................................... 32

6.5 WDS Settings .................................................. 35

6.6 Wireless Access Control..................................... 36

6.7 Connection Status............................................ 37

Chapter 7: DHCP Server ............................................ 38

7.1 DHCP Settings ................................................. 38

7.2 DHCP List and Binding ...................................... 39

Chapter 8 Virtual Server ............................................ 40

8.1 Port Range Forwarding...................................... 40

8.2 DMZ Settings................................................... 42

8.3 UPNP Settings ................................................. 43

Chapter 9 Traffic Control............................................ 44

9.1 Traffic Control.................................................. 44

Chapter10 URL Monitor.............................................. 46

10.1 URL Monitor................................................... 46

Chapter 11: Security Settings..................................... 48

11.1 Client Filter Settings ....................................... 48

11.2 URL Filter Settings........................................ 49

11N Wireless Broadband Router

11.3 MAC Address Filter........................................ 50

11.4 Prevent Network Attack................................... 52

11.5 Remote Web Management ............................... 53

11.6 WAN Ping .................................................... 54

Chapter12 Routing Setting ......................................... 55

12.1 Routing Table................................................. 55

Chapter 13 System Tools ........................................... 56

13.1 Time Settings ................................................ 56

13.2 DDNS ........................................................... 57

13.3 Backup/Restore Settings ................................. 58

13.4 Restore to Factory Default Setting................... 60

13.5 Upgrade Firmware .......................................... 61

13.6 Reboot the Router .......................................... 61

13.7 Password Change ........................................... 62

13.8 System Log ................................................... 63

13.9 Logout.......................................................... 63

Appendix 1：Glossary ............................................... 64

Appendix 2: Ask and Question.................................... 66

11N Wireless Broadband Router

Chapter 1: Introduction

Thank you for purchasing Tenda 11N Wireless Broadband

Router!

W268R utilizes advanced MIMO technology and increases

over 8 times transmission range of ordinary 802.11g

products. Compatible with IEEE802.11n (Draft 4.0) and

IEEE802.11g/b standards, it can provide up to 150Mbps

stable transmission rate. Additionally, it includes router,

wireless access point, four-port switch and firewall in one,

dedicated to SOHOs (Small Office/Home Office) and family

networking.

It supports WDS (Wireless Distribution System) function for

repeating and amplifying the signals to extend the wireless

network coverage. Besides, the Router also supports all of

the latest wireless security features, such as 64/128-bit WEP,

WPA, WPA2, WPA&WPA and WPS (PBC and PIN) encryption

methods, packet filtering and port forwarding, to prevent

unauthorized access and protect your network against

malicious attack.

In addition, URL and MAC address filtering can take it easy

for parents and network administrator to manage network

11N Wireless Broadband Router

life and QoS bandwidth control over specific computer’s

downloading speed is supported as well. Moreover, UPnP and

WMM support can smooth your MSN voice better, and the

included Setup Wizard on CD-ROM will be easy and fast for

non-savvy users to install the device and access to the

Internet.

1.1 Product Features

¾Includes router, wireless access point, four-port switch

and firewall in one

¾Provides up to 150Mbps uploading and downloading

speed

¾Supports two WPS (Wi-Fi Protected Setup) encryption

methods: PBC and PIN

¾Compliant to IEEE802.11n, IEEE802.11g, IEEE802.11b,

IEEE802.3 and IEEE802.3u standards

¾Supports over 8 times transmission range of 11G

products

¾Supports 64/128-bit WEP, WPA, WPA2, WPA&WPA2

encryption methods

¾Supports RTS/CTS protocol and data partitioning

function

¾Provides one 10/100Mbps Auto-Negotiation Ethernet

WAN port

11N Wireless Broadband Router

¾Provides four 10/100Mbps Auto-Negotiation Ethernet

LAN ports

¾Supports xDSL/Cable MODEM, static and dynamic IP in

community networking

¾Supports remote/local Web management

¾Supports WMM to better smooth your voice and video

¾Supports SSID stealth mode and access control based

over MAC address (up to 30 entries)

¾Supports Auto MDI/MDIX

¾Supports wireless Roaming technology for high-efficient

wireless connections

¾Supports auto negotiation/manual mode for

802.11b/802.11g/802.11n

¾Supports UPnP and DDNS

¾Supports Firefox 1.0, IE5.5 or above

¾Supports SNTP

¾Supports virtual server, DMZ host

¾Built-in firewall for hacker's attack prevention

¾Supports DHCP server/client

¾Supports auto wireless channel selection

¾Supports LAN access control to the Internet

¾Provides syslog to record the status of the router

¾Supports WDS wireless network extension

¾Supports QoS function

¾Built-in two omni-directional antennas

11N Wireless Broadband Router

1.2 Package Contents

Please unpack the box and check the following items:

¾One W268R 11N Wireless Broadband Router

¾One Quick Installation Guide

¾One Power Adapter

¾One CD-ROM

If any of listed items are missing or damaged, please contact

the Tenda reseller from whom you purchased for

replacement immediately.

1.3 LED Indicator and Port Description

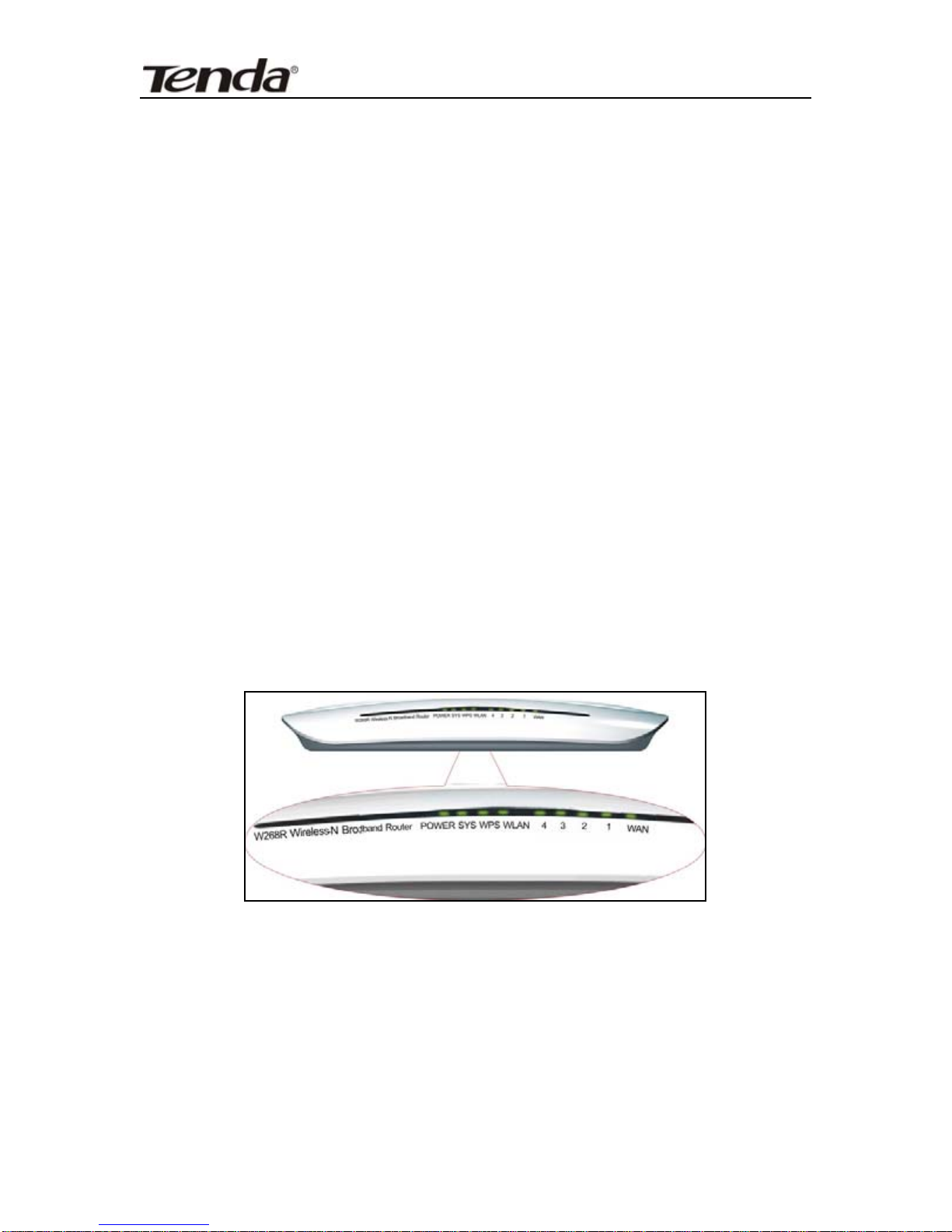

Front Panel and LED Indicator Show

LED indicator description on front panel (from L to R)

POWER

When turns green, Always ON indicates the power

connects well.

11N Wireless Broadband Router

SYS

When turns green, blinking indicates the system runs

well.

WPS

When blinking, it indicates the device is negotiating with

client in WPS mode.

WLAN

Wireless signal LED indicator. When turns green, blinking

indicates the wireless function is enabled;

LAN (4,3,2,1)

Wired local network LED indicator. Always ON indicates it

is connected with Ethernet device; blinking indicates the

device is transmitting and/or receiving data.

WAN

Wide area network indicator. Always ON indicates the

Router’s WAN port is connected well; blinking indicates

the port is being transmitted and received data packets.

Back Panel Show：
