Template:FMB640 First start card

Leading GSM/GNSS Terminal for advanced applications

Contents

1 How to insert SIM card and connect the battery

2 How to insert microSD card into FMB640

How to insert SIM card and connect the battery

Unscrew 4 screws counterclockwise that are located on the bottom of the device.1.

Remove the cover.2.

Insert SIM card as shown with PIN request disabled or read Security info how to enter it3.

later in Teltonika Configurator. Make sure that SIM card cut-off corner is pointing outside.

SIM slot 1 is closer to PCB, SIM slot 2 is the upper one.

Connect battery as shown to device.4.

After configuration, see “PC Connection (Windows)”, attach device cover back.5.

Screw in all screws. Device is ready to be mounted.6.

Micro-SIM card insertion/removal must be performed when device is powered off – external

voltage and internal battery disconnected. Otherwise Micro-SIM card might be damaged or

device will not detect it.

FMX6 devices use Standard size SIM cards for SIM1 and SIM2. Currently most of the SIM

cards provided by operators can be disassembled into 3 parts - Standard/Micro/Nano.

Depending on the SIM card construction - during device usage in harsh conditions, SIM

assembly might come apart which causes instability when connecting to operator.

To avoid such risk:

1) If possible - ask operator for Standard SIM card with solid construction (not pre-cut to 3

parts)

2) Do not use SIM cards that were previously disassembled (SIM was taken apart

previously)

3) If you plan to use only one SIM card - insert it into SIM1 slot (lower slot) - this ensures

greater pressure on SIM contacts as the contact bed is pushed by PCB.

When 2 SIM cards are used simultaneously risk is mitigated as well - when SIM1 is

inserted, a greater pressure is applied for SIM2, so SIM parts are harder to come lose

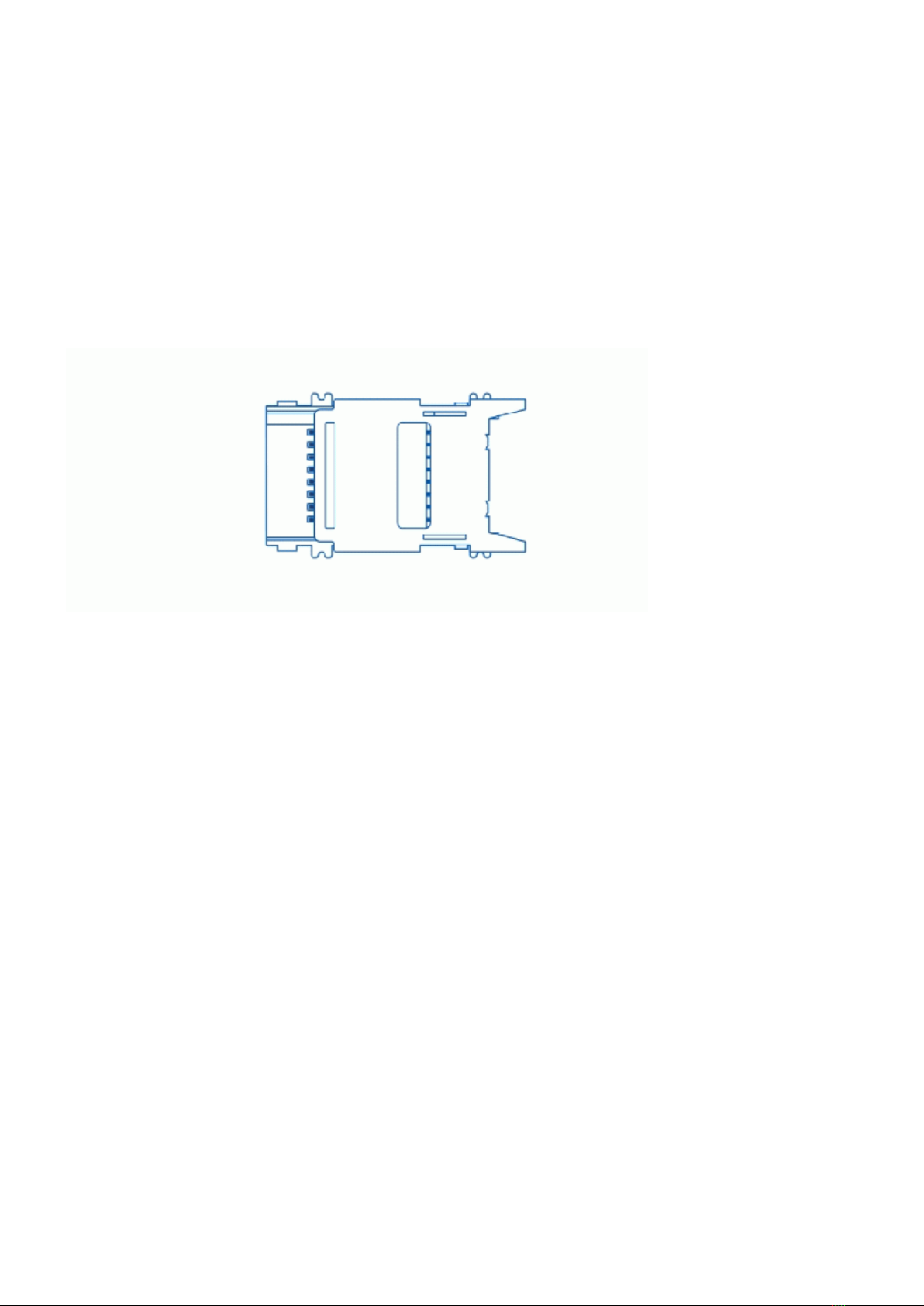

How to insert microSD card into FMB640

Push microSD card lock case.1.

Open microSD card locker.2.

Correctly insert microSD card into slot.3.

Close microSD card locker.4.

Push microSD card lock case to locked position.5.
