Teltonika FMB001 Guía de instalación

FMB001

Easy OBDII tracker

Quick Manual v1.6

Quick Manual v1.6 // FMB001 2

CONTENT

Know your device................................................................................................................................................................................................3

Pinout ...................................................................................................................................................................................................................4

Set up your device ..............................................................................................................................................................................................5

PC Connection (Windows)..................................................................................................................................................................................6

How to install USB drivers (Windows) ..............................................................................................................................................................6

Conguration.......................................................................................................................................................................................................7

Quick SMS conguration....................................................................................................................................................................................9

Mounting recommendations.......................................................................................................................................................................... 11

Basic characteristics ........................................................................................................................................................................................ 12

LED indications................................................................................................................................................................................................. 12

Safety information .......................................................................................................................................................................................... 15

Certication and Approvals ............................................................................................................................................................................ 16

Warranty ........................................................................................................................................................................................................... 18

Warranty disclaimer ....................................................................................................................................................................................... 18

Quick Manual v1.6 // FMB001 3

KNOW YOUR DEVICE

OBDII

CONNECTOR

STATUS

LED

NAVIGATE

LED

MICRO-SIM

SLOT

BATTERY

SOCKET

MICRO-USB

TOP VIEW TOP VIEW (WITHOUT COVER)

Quick Manual v1.6 // FMB001 4

PINOUT

PIN NUMBER PIN NAME DESCRIPTION

1 DIN1 Ignition input

2 PWM_BUS+/VPW

4 GND (-) Ground

5 GND (-) Ground

6CAN_H CAN high

7 K-Line

10 PWM_BUS-

14 CAN_L CAN low

15 L-Line

16 VCC (10 - 30)V

DC(+)

Power supply (+10-30

V DC)

FMB001 OBDII socket pinout

PIN2

PIN1 PIN4 PIN5 PIN6 PIN7

PIN10 PIN14 PIN15 PIN16

Quick Manual v1.6 // FMB001 5

SET UP YOUR DEVICE

HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY

Device is ready to be

connected.

1COVER REMOVAL 3BATTERY CONNECTION

2MICRO-SIM CARD INSERT ATTACHING COVER BACK

Gently remove FMB001

cover using plastic pry tool

from both sides.

Insert Micro-SIM card as

shown with PIN request

disabled or read our Wiki1

how to enter it later in

Teltonika Congurator2.

Make sure that Micro-

SIM card cut-o corner is

pointing forward to slot.

1 wiki.teltonika-gps.com/view/

FMB001_Security_info

2 wiki.teltonika.lt/view/Teltonika_

Congurator

Connect battery as shown to

device. Position the battery

in place where it does not

obstruct other components.

Attach device cover back.

Quick Manual v1.6 // FMB001 6

PC CONNECTION (WINDOWS)

HOW TO INSTALL USB DRIVERS (WINDOWS)

1. Please download COM port drivers from here1.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the

setup.

1 teltonika-gps.com/downloads/en/fmb120/TeltonikaCOMDriver.zip

1. Power-up FMB001 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED

indications1”.

2. Connect device to computer using Micro-USB cable or Bluetooth connection:

• Using Micro-USB cable

• You will need to install USB drivers, see “How to install USB drivers (Windows)2”

• Using Bluetooth

• FMB001 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device >

Bluetooth. Choose your device named – “FMBxxx_last_7_imei_digits”, without LE in the end. Enter default password 5555,

press Connect and then select Done.

3. You are now ready to use the device on your computer.

1 wiki.teltonika-gps.com/view/FMB001_LED_status

2 Page 6, "How to install USB drivers"

Quick Manual v1.6 // FMB001 7

MS .NET REQUIREMENTS

Operating system MS .NET Framework version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1

1 dotnet.microsoft.com/en-us/download/dotnet-framework/net462

At rst FMB001 device will have default factory settings set. These settings should be changed according to the users needs. Main

conguration can be performed via Teltonika Congurator1software. Get the latest Congurator version from here2. Congurator

operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.

1 wiki.teltonika-gps.com/view/Teltonika_Congurator

2 wiki.teltonika-gps.com/view/Teltonika_Congurator_versions

CONFIGURATION

Quick Manual v1.6 // FMB001 8

Downloaded Congurator will be in compressed archive.

Extract it and launch Congurator.exe. After launch software

language can be changed by clicking 🌐 in the right bottom

corner.

Conguration process begins by pressing on connected device.

FMB001

Various Status window1 tabs display information about GNSS2,

GSM3, I/O4, Maintenance5and etc. FMB001 has one user

editable prole, which can be loaded and saved to the device.

After any modication of conguration the changes need to

be saved to device using Save to device button. Main buttons

oer following functionality:

 Load from device – loads conguration from device.

 Save to device – saves conguration to device.

 Load from le – loads conguration from le.

 Save to le – saves conguration to le.

 Update rmware – updates rmware on device.

 Read records – reads records from the device.

 Reboot device – restarts device.

 Reset conguration – sets device conguration to

default.

Most important congurator section is GPRS – where all

your server and GPRS settings6 can be congured and Data

Acquisition7 – where data acquiring parameters can be

congured. More details about FMB001 conguration using

Congurator can be found in our Wiki8.

After connection to Congurator Status window will be

displayed.

FMB001

1 wiki.teltonika-gps.com/view/FMB001_Status_info

2 wiki.teltonika-gps.com/view/FMB001_Status_info#GNSS_Info

3 wiki.teltonika-gps.com/view/FMB001_Status_info#GSM_Info

4 wiki.teltonika-gps.com/view/FMB001_Status_info#I.2FO_Info

5 wiki.teltonika-gps.com/view/FMB001_Status_info#Maintenance

6 wiki.teltonika-gps.com/index.php?title=FMB001_GPRS_settings

7 wiki.teltonika-gps.com/index.php?title=FMB001_Data_acquisition_

settings

8 wiki.teltonika-gps.com/index.php?title=FMB001_Conguration

Quick Manual v1.6 // FMB001 9

QUICK SMS CONFIGURATION

Default conguration has optimal parameters present to ensure best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS SETTINGS:

 2001 – APN

 2002 – APN username (if there are no APN username,

empty eld should be left)

 2003 – APN password (if there are no APN password,

empty eld should be left)

SERVER SETTINGS:

 2004 – Domain

 2005 – Port

 2006 – Data sending protocol (0 – TCP, 1 – UDP)

« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»

1 2 3 4 5 6

Quick Manual v1.6 // FMB001 10

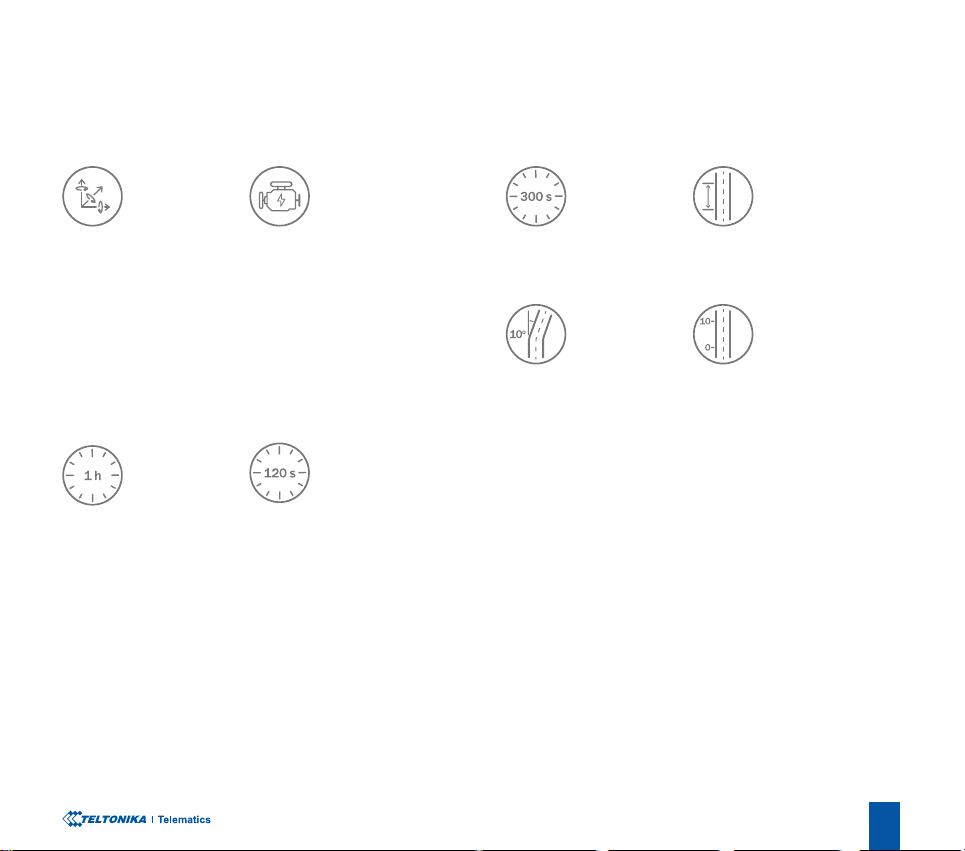

DEFAULT CONFIGURATION SETTINGS

MOVEMENT AND IGNITION DETECTION: DEVICE MAKES A RECORD ON MOVING

IF ONE OF THESE EVENTS HAPPEN:

SPEED DIFFERENCE

between last coordinate

and current position is

greater than 10 km/h

VEHICLE DRIVES

100 meters

VEHICLE TURNS

10 degrees

PASSES

300 seconds

After successful SMS conguration, FMB001 device will synchronize time and update records to congured server. Time intervals

and default I/O elements can be changed by using Teltonika Congurator1or SMS parameters2.

1 wiki.teltonika-gps.com/view/Teltonika_Congurator

2 wiki.teltonika-gps.com/view/Template:FMB_Device_Family_Parameter_list

VEHICLE MOVEMENT

will be detected by

accelerometer

DEVICE MAKES A

RECORD ON STOP IF:

1 HOUR PASSES

while vehicle is

stationary and

ignition is o

IGNITION

will be detected by

vehicle power voltage

between 13,2 – 30 V

RECORDS SENDING TO

SERVER:

EVERY 120 SECOND

it is sent to the server

If device has made a

record
