Telematrix 3002MWD Manual de usuario
3002MWD
TWO LINE
DELUXE FEATURE
SPEAKERPHONE
5 or 10 MEMORY
INSTALLATION
AND USER GUIDE
®
TeleMatrix Copyright 2005 ©
COMPLIANCE AND SAFETY
As specified by FCC regulation, we are required to inform you of specific governmental and compliance
regulatory requirements, safety notices, safety instructions and other informative information. TeleMa-
trix, Inc. provides this information in a separate manual. We pack the separate Compliance and Safety
Manual within each outer box or product box when shipped.
Prior to reading this operation manual and prior to setting up your telephone, please refer to the Compli-
ance and Safety Manual.
If the Compliance and Safety Manual is not immediately available. Please obtain a free copy by calling
our Priority Care Department (phone number 1-800-462-9446) or by downloading a copy on our Internet
(web site address www.telematrixusa.com).
Features ...........................................………..……………………………………............................. 1
Controls ...........................................................................…………………………………………… 2
Switch Settings .....................................….......................……………………………………………... 4
Installation .....................................................................……………………………………………... 5
Wall Mounting .....................................….......................……………………………………………..... 7
Programming Speed Dial Memory .................................……………………………………………....… 8
Operation ........................................................................…………………………………………….. 11
Care and Maintenance ..................................................……………………………………………...... 16
Service …………………………………………………..……………………………………….………………………..… 17
Warranty .......................................................................…………………………………………….... 18
CONTENTS
FEATURES
•Two Line
•Convenient Data Port
•5 or 10 Single Button Memory Locations With Secure Programming
•Tone Dialing
•Speaker Key
•Conference Key
•Mute Key
•Handset Volume Control
•TouchLite™ Message Waiting Retrieval
•Store Key (submerged))
•Storable Flash Function Programmable at 100mS to 1000mS (default is 600mS)
•Storable Pause Function Programmable at 1.0 to 5.0 Seconds (default is 1.2 Seconds)
•HI/LOW Ringer Volume Control Switch
•Desk or Wall Mountable
•Fully Modular, Easy To Install
1
CONTROLS
2
DEFINITION OF CONTROLS
1. Handset ..........…………..………….........… Hearing aid compatible, low profile styling.
2. Ringer Controls ………………….……………. Adjusts the volume of the ringers to HI/LOW setting.
3. Handset Jack ……………………………….… Modular receptacle where handset cord plugs into the base unit.
4. Dial Pad ………………………………….…….. Large keys used for dialing.
5. Conference Key ……………………………… Used for conference calling.
6. Handset Volume Control ……………….… Controls the loudness of the receiver volume when pressed.
7. Speaker Key …………………………………… Used to activate speaker
8. Mute Key ……………………………………….. Used to mute speaker key and handset
9. Hold Key ……………………………………….. Used to place caller on hold
10. Message Waiting TouchLite™ Key ……… Used to call voice mail to retrieve messages.
11. Pause Key ……………………………………... (Submerged Key) Used to program a 1.2 second pause in memory.
12. Flash Key …………………………………….… (Submerged Key) Used to provide a 600 mS line break to access PBX/Centrex.
13. Feature Access Keys ………………………. 5 or 10 Programmable memory locations (based on model) for frequently dialed phone numbers
and access codes.
14. Data Port ………………………………………. Used to connect a computer modem, fax machine, or answering device.
15. High/Low Ringer Volume Switch ……… Used to control the ringing volume for each line.
16. Store Key ………………………………………. (Submerged Key) Used to program information for speed dialing.
17. Message Waiting Lamp Switch ………… Used to select the Message Waiting Light operation.
3
SWITCH SETTINGS
There are installer selectable switches located on the bottom base underneath a protective plastic overlay. These switches are
hidden behind a plastic cover for security. To locate, remove the plastic covers using a sharp pointer or paper clip as shown.
4
Line Voltage Selectors (Optional Feature)
The 3002MWD is designed to operate behind PBX telephone systems rated be-
tween 24 volts and 48 volts. If you have this feature, there are line voltage
selector switches that must be set according to the PBX system rating that the
phone will be installed. There are two (2) switches, the first for Line 1 and the
other for Line 2. Each switch has three (3) setting options. They are: “24V/48V/
OFF”. Set the switches by simply sliding to the appropriate setting. The ”OFF”
setting is used to turn off the line if a line appearance is not wired to the tele-
phone.
Note: the factory default is set to the “24V” setting.
Message Waiting Selector
The 3002MWD can support 90VDC neon or low-voltage LED message waiting
systems. Simply slide the switch to the desired position that is compatible with
your PBX messaging system.
Note: the phone is factory preset to the “Neon” setting.
INSTALLATION

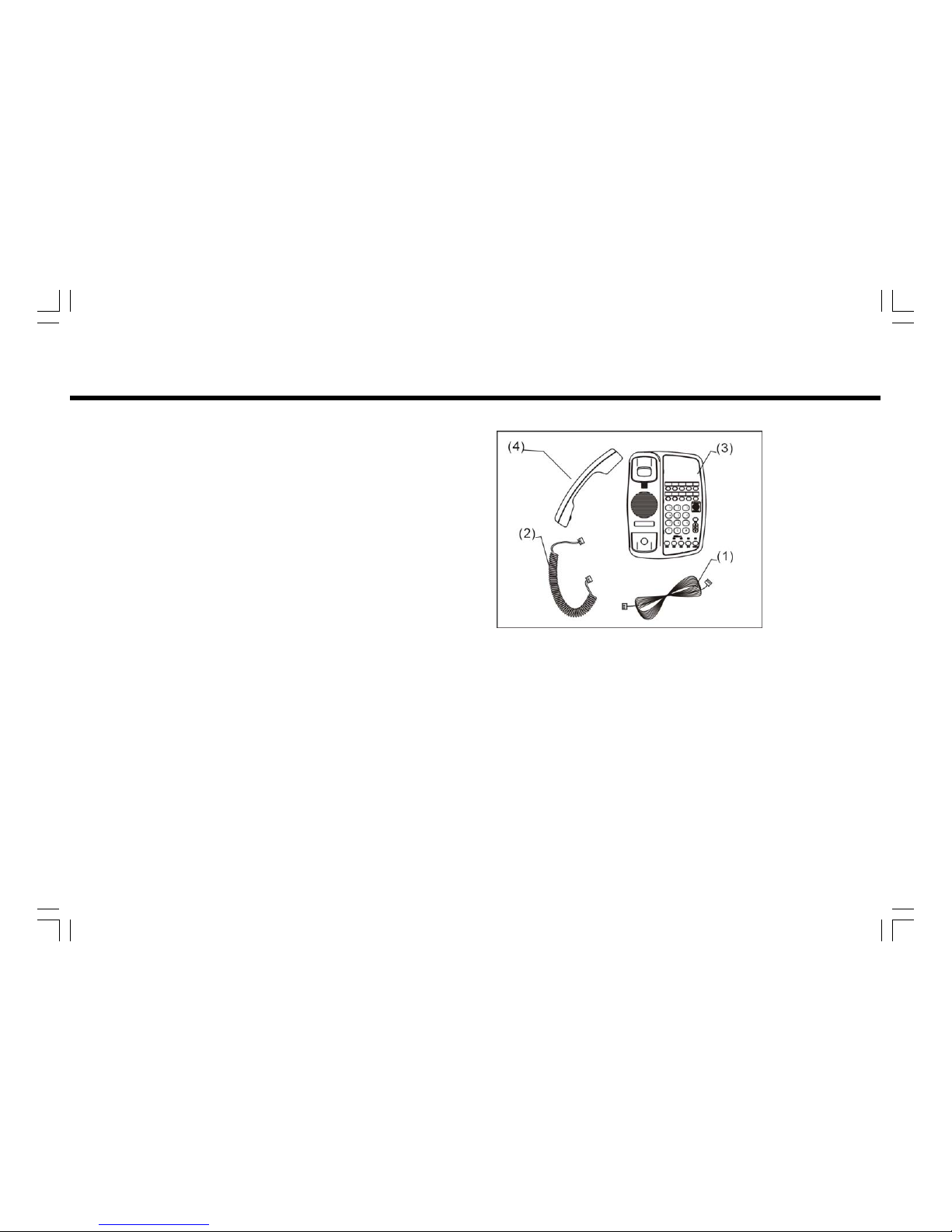

Parts Check List
The following parts are included in this package:
1. 15’ modular telephone line cord.
2. Modular coiled handset cord.
3. Base unit
4. Handset
Caution
•Never install telephone wiring during a lightning storm.
•Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
•Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at the network interface.
•Use caution when installing or modifying telephone lines.
5
The wall mount wedge and short line cord parts are not included. Call customer service for assistance.
Connecting The Handset Cord
A 10’ modular coil handset cord is provided.
To install, simply plug one end of the handset
cord into the modular jack on the handset.
The remaining end of the handset cord plugs
into the jack labeled “Handset” located on
the left side of the base unit.
(figure 3)
INSTALLATION
Connecting The Line Cord
A 15’ modular line cord is provided. To
install, simply plug one end of the line cord
into the modular jack located on the back of
the base unit. The remaining end of the line
cord plugs into the wall jack.
(figure 4)
6
WALL MOUNTING
7
Figure 8
Figure 7
Wall Mounting (OPTIONAL)*
The Marquis Telephone was designed to be conveniently wall
mounted. There is no additional hardware required. Follow these
easy steps:
1. The handset retaining clip must be engaged to secure the
handset when hanging up. To engage the clip, unsnap the
clip, rotate the clip 180º and then snap the clip into place.
(figure 7)
2. Plug one end of a short line cord (not included) into the line
jack on the back of the Marquis base unit. Plug the remaining
end of the short line cord into the wall jack.
3. Next, snap in the wall mount wedge (not included) and guide
the phone onto the studs of the wall jack. Pull down firmly
until you feel it snap into place. The unit is now wall mounted.
(figure 8)
CONTACT TELEMATRIX FOR THE OPTIONAL WALL MOUNTING
WEDGE. CALL PRIORITY CARE AT 1-800-462-9446.
