Teleco TSDR5000CI Manual de usuario

Digital DVB

TSDR5000CI

receiver

Camping

VOLT

V. 002

2 - Digital DVB TSDR5000CI receiver

Table of Contents

Contents

Figures and Tables

Information

Safety information

General view

Remote control

Front view

Rear view

Technical specifications

Definition

Technical specifications

List of accessories

Installation

Introduction

Main connections

Connecting the lead from the satellite dish

Connecting the SCART cable between the receiver and the TV or monitor

Connecting the coaxial cable between receiver and TV

Connecting the remote control infrared sensor

Connecting to the power supply

Additional connections

Connecting to a video recorder

Connecting to a monitor in S-VHS

Connecting a Home Theatre system

Immediate use of the receiver

Introduction

Switching on the receiver

Changing service

Favourites lists which were factory loaded

Other immediate functions

Menu and advanced functions

Introduction

Accessing the menu

The favourites list

Creating a list

Modifying a list

Deleting a list

Installation

Antenna/Satellite configuration

Antenna configuration

Table of Contents

Digital DVB TSDR5000CI receiver - 3

Satellite configuration

Adding a new satellite

Modifying the satellites list

Deleting a satellite

Adding a transponder

Deleting a transponder

LNB configuration

Motor configuration

Service installation

TV configuration

Set time

VCR configuration

Reinstallation

System update

User settings

Language configuration

Access control

Modifying the PIN code

Information about system

Conditioned access

Reinstalling your receiver

Introduction

Re-installation sequence

Glossary

Figures and Tables

Figure 1 – frontal panel

Figure 2 – rear panel

Figure 3 – info banner

Figure 4 – Camping menu

Figure 5 - volume

Figure 6 – mute function

Figure 7 - EPG and info function

Figure 8 – audio service selection

Figure 9 – Main menu

Figure 10 – Service list management

Figure 11 – Creating a list

Figure 12 – Modifying a list

Figure 12 A – Modifying a list

Figure 12 B – Modifying a list

Figure 13 – Deleting a list

4 - Digital DVB TSDR5000CI receiver

Figure 14 – Installing the receiver

Figure 15 – Antenna/satellite configuration

Figure 16 – Configuring the antenna

Figure 17 – Services resetting message

Figure 18 – Configuring satellites

Figure 19 – Adding a new satellite

Figure 20 – Modifying the satellites list

Figure 21 – Adding a transponder

Figure 22 – Deleting a transponder

Figure 23 – LNB configuration

Figure 24 – Motor configuration

Figure 25 – Service installation mode

Figure 26 – Service acquisition

Figure 27 – Service acquisition over

Figure 28 – Services saved on the receiver

Figure 29 – TV configuration

Figure 30 – Setting the clock

Figure 31 – VCR configuration

Figure 32 – System update

Figure 33 – User settings menu

Figure 34 – Menu/audio language settings

Figure 35 – Controlling access to receiver functions

Figure 36 – PIN code

Figure 37 – System information

Figure 38 – Conditioned access

Figure 39 – Access to CAM information

Figure 40 – Example of information on the CAM

Figure 41 – Example of information on the SmartCard

Figure 42 – Confirm reinstallation

Figure 44 – Welcome message

Figure 45 – Setting the language during re-initialisation

Figure 46 – TV configuration

Figure 47 – LNB configuration

Figure 48 – Service installation

Figure 49 – Services being installed

Figure 50 – Service reception complete

Figure 51 – Services saved

Figure 52 – Clock setting

Figure 53 - Reinstallation completed

Table of Contents

Information

Digital DVB TSDR5000CI receiver - 5

Information

Congratulations on purchasing our TSDR5000CI receiver, one of the most technologically advanced

products in the satellite TV reception field. This handbook has been drawn up to provide information

on installation, use and maintenance of your TSDR5000CI system.

This handbook contains all the information pertaining to the TSDR5000CI receiver:

Issue date: 15th July 2006

Document version: TSDR5000CI rev. 2.0

Software version: 1.9

Electronics version: V2

Should you require further information please contact your local dealer or:

TELECO s.p.a.

Via E. Majorana 49

I-48022 LUGO (RA)

Web site: www.telecogroup.com

Technical Assistance : lab@telecogroup.com

Technical Assistance 899.899.856

Newsgroup : news:\\85.47.106.113

Ftp: ftp: \\ 85.47.106.113

TELECO s.p.a. shall not be held responsible for any errors in drawing up this manual. All information

which is contained herein is updated on the date of issue and the aforementioned revisions.

TELECO s.p.a. reserves the right to make modifications according to technological changes.

6 - Digital DVB TSDR5000CI receiver

Information about safety

The following safety information refers to installation, use and maintenance. The handbook contains

specific info/safety warnings on specific topics. Always observe safety information with the utmost

care.

Electronic devices on the TSDR5000CI receiver can generate potentially dangerous

voltages. Electronic device covers must only be removed for maintenance and

set-up purposes and only after taking all the required precautions.

Before removing the electronic device covers always check that the

mains power supply is OFF and that the power lead

has been disconnected.

Installation and maintenance work must only be carried out

by qualified personnel.

Always disconnect the unit from the mains power supply before cleaning it.

Use a dry cloth and clean the outer shell only.

Protect the unit against condensation and splashes. The unit must be positioned

so that adequate ventilation is provided via the grilles.

Maximum working temperature = 45 C

General view

Digital DVB TSDR5000CI receiver - 7

General view

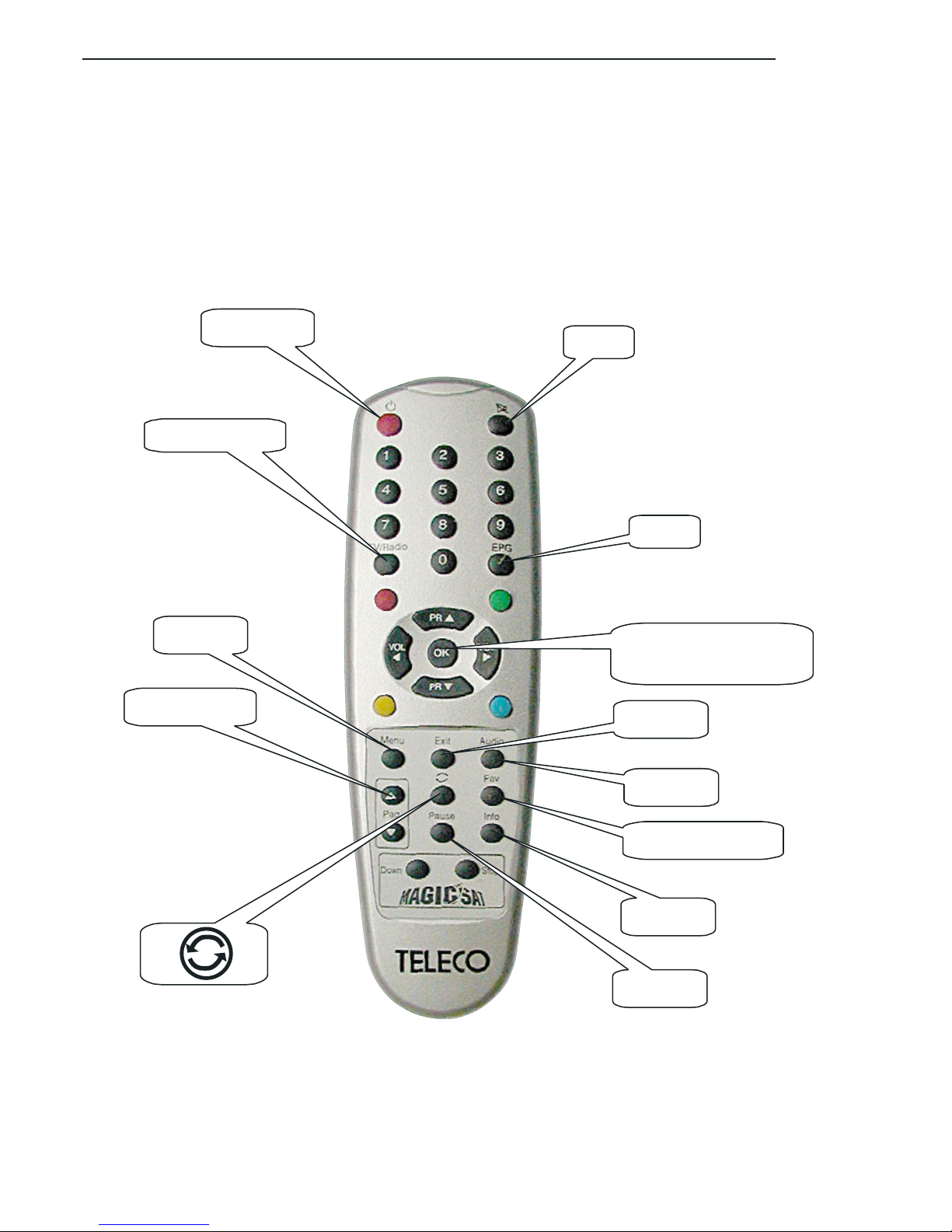

Remote control

ON/OFF

TV/RADIO

Page + e -

Mute

EPG

Right, left, up, down

and OK keys

Exit

Audio

Favourites list

Info

Pause

8 - Digital DVB TSDR5000CI receiver

General view

ON / OFF

TV/RADIO

EPG

0..9

Right, Left, Up, Down, OK

Exit

Audio

Favourites list

Info

Pause

Page + / -

Mute

Switches the receiver on and off

Switches from TV to radio reception

Electronic Program Guide

Access to advanced receiver functions

Numerical keypad

Multi-function keys: volume control, Camping menu access key,

next or previous service (program) and other functions.

Exits the currently selected page.

Chooses which audio service to listen to (if the broadcaster has

activated the multi-audio service)

Selects which service list to use from among those available

(general, favourite, satellite).

Additional information on the currently selected service

Image freeze (analogous to VHS pause function)

Sat Finder: sound level and quality tone of the signal

Goes to next or previous page on a list.

Audio service disabled

General view

Digital DVB TSDR5000CI receiver - 9

Fronte view

On/off Display CAM modules (2)

Figure 1 - frontal panel

Rear view

Figure 2 - rear panel

LNB input

(1) VCR (4)

Audio

outputs

(7)

Antenna

input (9)

Power supply

12V

(12)

LNB

output (2) Computer

port (3)

(5)

S-VHS

(6)

TV output

(8) IR-

remote

(10) DataPort

(11)

10 - Digital DVB TSDR5000CI receiver

General view

On/off switch

CAM modules

LNB input

LNB output

Computer port

VCR

S-VHS

Audio outputs

Antenna input

TV output

IR_Remote

DataPort

12V Power supply

General power switch

Two slots for CAM PCMCIA modules

F-type connector for satellite dish lead.

F-type connector for second receiver (e.g. an analogue receiver) to make

use of the same satellite dish connection.

DB9 connector for computer link

SCART socket for video recorder connection

SCART socket for TV connection

Video output connector in S-VHS

Auxiliary audio output connectors. L & R connectors are available as is

a S/PDIF connector for PCM (Digital) format audio output

TV signal output connector for signals from traditional antenna mixed

with UHF band digital receiver signal. These connections should only be

used if the TV does not have a SCART connector or a base band

audio/video input.

Remote control IR sensor connector

DataPort connector for additional devices

12 Volt power connector.

Traditional VHF/UHF band antenna input connector
